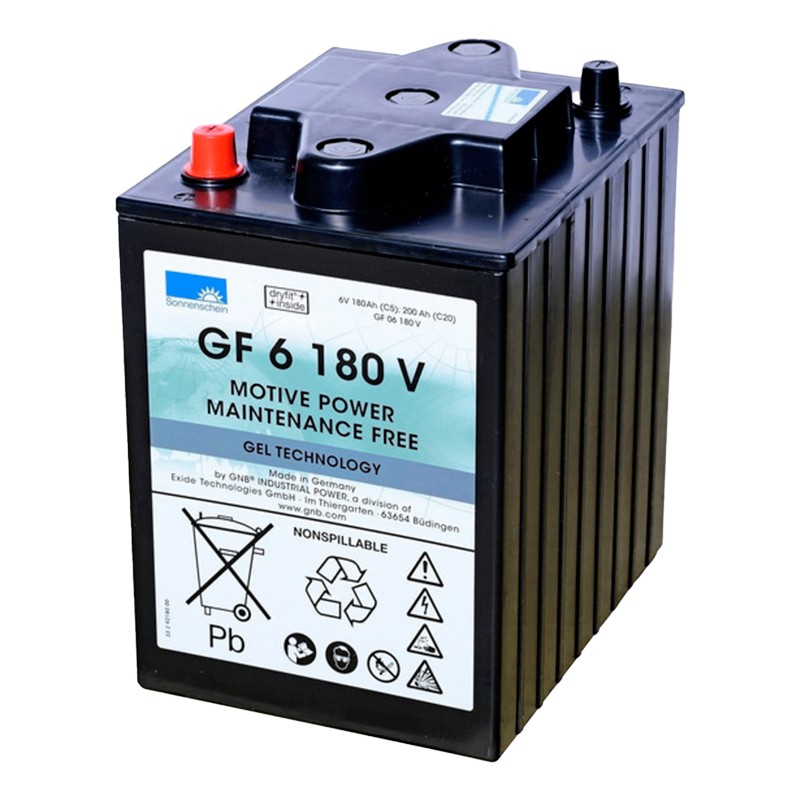

Sonnenschein GF06180V · Traction battery 6V 200Ah GEL
Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF06180V |
| Voltage (V) | 6V |
| Capacity (C20) | 200Ah (c20) |
| Capacity | 200Ah |
| Technology | GEL |
| Weight | 32,00 |
| Terminal type | AP |
| EAN | 3661024500012 |
€436.95
VAT included
Sonnenschein GF06180V 6V 200Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
6 V
Capacity
200 Ah
Dimensions
244×190×275 mm
Technology
Gel
Weight
32 kg
Model
GEL - GF -V Sonnenschein Traction range 700 cycles

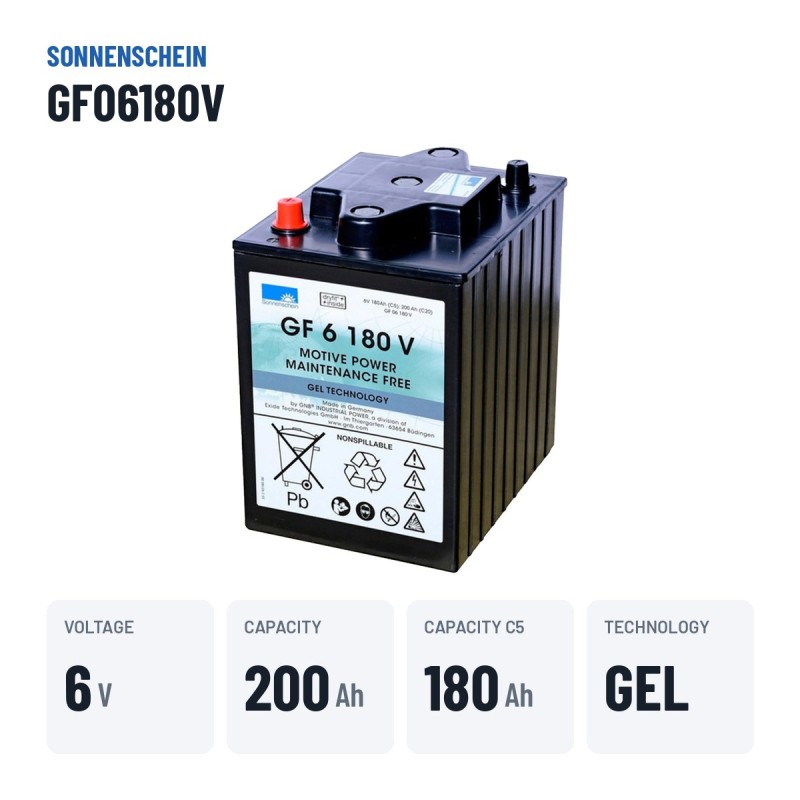

Traction battery Sonnenschein GF06180V 200Ah 6V
6VVoltage
200AhCapacity
32kgWeight
With 200 Ah with GEL technology, the Sonnenschein GF06180V supports continuous duty cycles in forklifts, pallet trucks, stackers and aerial work platforms. Measuring 244 × 190 × 275 mm, it is the direct replacement for forklifts and pallet trucks fitted from the factory with a 200 Ah battery of this format.
- Sealed and safe indoors.
- Direct replacement in size and connections.
- GEL: excellent resistance to deep discharge and long cycle life.
- Reinforced plates for repeated deep discharges.
What the Sonnenschein GF06180V is for
Designed for forklifts, pallet trucks, stackers and aerial work platforms, the Sonnenschein GF06180V withstands the vibration and industrial use of a warehouse. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 32 kg and AP terminals.
Will it fit your current battery tray?

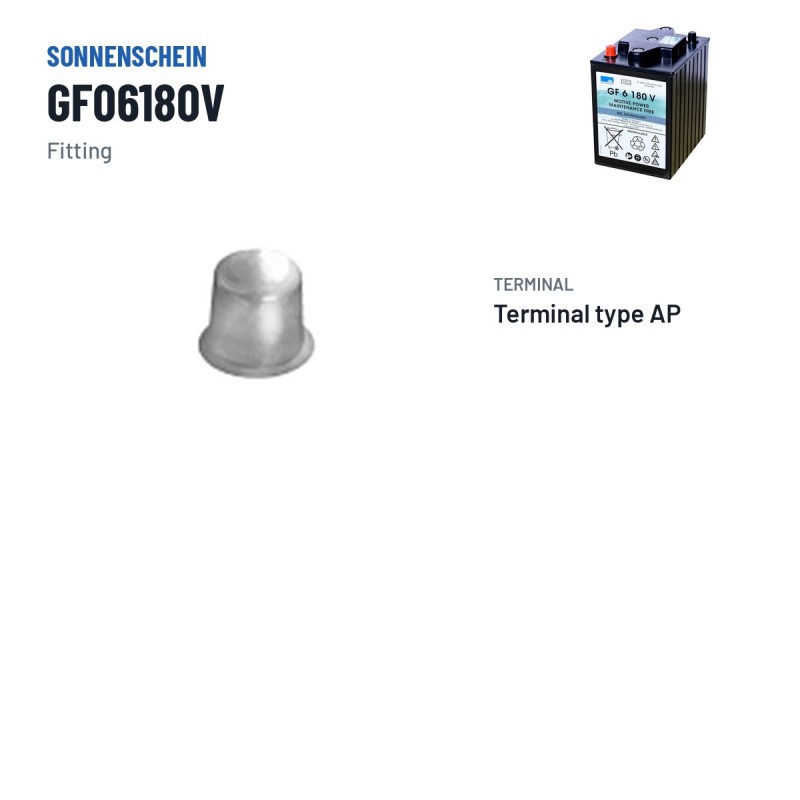

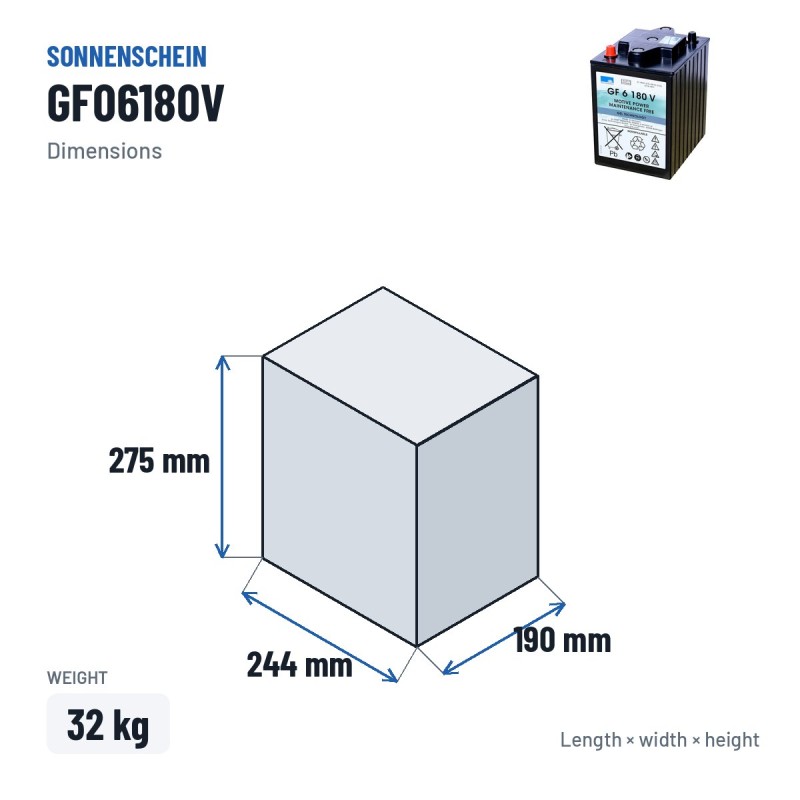

In terms of format, the Sonnenschein GF06180V measures 244 × 190 × 275 mm (length × width × height) and weighs 32 kg. It uses AP terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Technology inside the Sonnenschein GF06180V
The GF06180V is one of the Sonnenschein references for this type of use; it shares the same manufacturing and quality-control criteria as the rest of the brand's catalogue.
In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.
Sonnenschein: the maker behind the GF06180V
Sonnenschein batteries with dryfit® technology have equipped power wheelchairs, cleaning machines and industrial vehicles for decades thanks to their reliability and cycle life. All the Sonnenschein batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Sonnenschein GF06180V comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. Follow the manufacturer's charging regime and do not interrupt full charging cycles.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BATERIAS-SONNENSCHEIN-GF06180V
Data sheet
- Weight
- 32,00
- Technology
- GEL
- Terminal type
- AP
- Capacity (C20)
- 200Ah (c20)
- Voltage (V)
- 6V
- Capacity
- 200Ah
Specific References
- EAN13
- 3661024500012
- MPN
- GF06180V
Codes and references Sonnenschein GF06180V
| Brand | Sonnenschein |
|---|---|
| Manufacturer reference (MPN) | GF06180V |
| EAN-13 barcode | 3661024500012 |
| Dimensions (length × width × height) | 244 × 190 × 275 mm (244x190x275) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is this battery GEL? What is the typical use?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Sonnenschein GF06180V battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Sonnenschein GF06180V is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 244×190×275 mm — also written as 244x190x275 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Sonnenschein GF06180V?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
