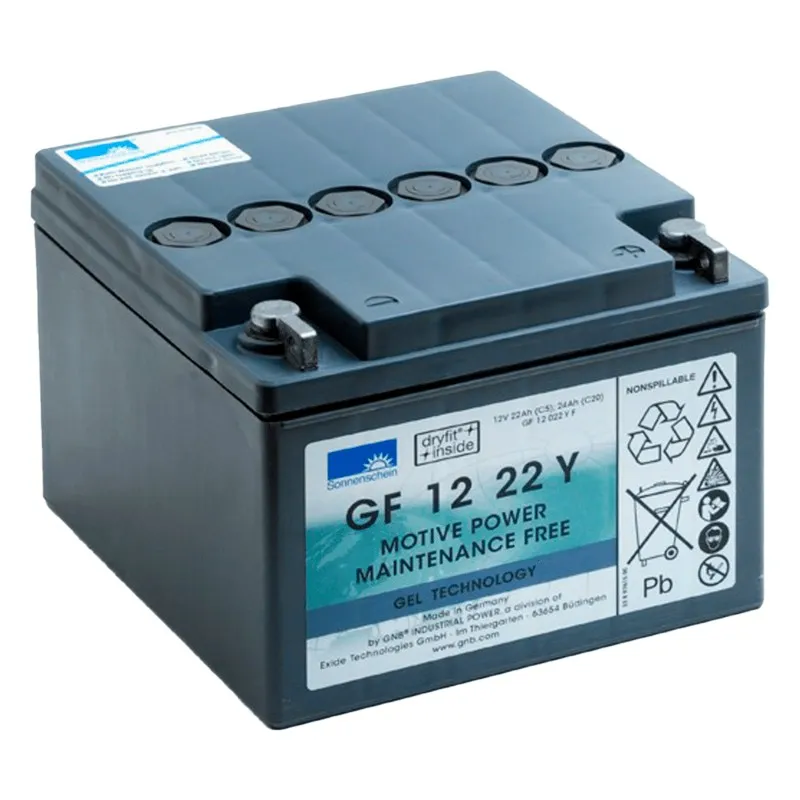

Sonnenschein GF12022YF · Deep-cycle battery 12V 24Ah GEL
Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF12022YF |
| Voltage (V) | 12V |
| Capacity (C20) | 24Ah (c20) |
| Capacity | 24Ah |
| Technology | GEL |
| Weight | 10,00 |
| Terminal type | F3 |
| EAN | 3660766462756 |
€183.70
VAT included
Sonnenschein GF12022YF 12V 24Ah is a deep-cycle battery optimised for repeated discharges down to 80 % DOD and thousands of life cycles. Ideal when the battery discharges and recharges daily rather than just cranking the engine (mobility scooters, backup systems, golf, pallet trucks).
Why this deep-cycle battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
24 Ah
Dimensions
167×176×126 mm
Technology
Gel
Weight
10 kg
Model
GEL - GF -Y Sonnenschein Cyclic range 450 cycles
Mobility battery Sonnenschein GF12022YF 24Ah 12V
12VVoltage
24AhCapacity
10kgWeight
Designed for power wheelchairs, mobility scooters and light electric vehicles, the Sonnenschein GF12022YF offers 24 Ah of deep-cycle capacity with GEL technology. Its 167 × 176 × 126 mm make it the exact replacement for the 24 Ah battery fitted as standard to many power wheelchairs and mobility scooters.
- Sealed AGM/GEL: safe indoors and in transport.
- GEL: excellent resistance to deep discharge and long cycle life.
- Approved for air and sea transport (VRLA).
- No maintenance, no water top-ups.
What the Sonnenschein GF12022YF is for
The Sonnenschein GF12022YF is the usual replacement in power wheelchairs, mobility scooters and light electric vehicles. Recharge after each use and avoid leaving it discharged for days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 10 kg and F3 terminals.
Size, terminals and hold-down of the Sonnenschein GF12022YF
It has external dimensions of 167 × 176 × 126 mm and weighs 10 kg. It uses F3 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What Sonnenschein does differently
Sonnenschein (EnerSys) invented the dryfit® GEL battery: the world reference in gel batteries for electric mobility, light traction and applications that demand safety and intensive cycling. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Technology inside the Sonnenschein GF12022YF
Sonnenschein builds the GF12022YF to the same standards as the rest of its catalogue; what changes between references is capacity, format and terminal position.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
Usage and maintenance tips
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together.
Manufacturer's warranty
The Sonnenschein GF12022YF comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BATERIAS-SONNENSCHEIN-GF12022YF
Data sheet
- Weight
- 10,00
- Technology
- GEL
- Terminal type
- F3
- Capacity (C20)
- 24Ah (c20)
- Voltage (V)
- 12V
- Capacity
- 24Ah
Specific References
- EAN13
- 3660766462756
- MPN
- GF12022YF
Codes and references Sonnenschein GF12022YF
| Brand | Sonnenschein |
|---|---|
| Manufacturer reference (MPN) | GF12022YF |
| EAN-13 barcode | 3660766462756 |
| Dimensions (length × width × height) | 167 × 176 × 126 mm (167x176x126) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the GF12022YF model a gel battery? Where is it used?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Sonnenschein GF12022YF battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the GF12022YF model?
Expected lifespan of the Sonnenschein GF12022YF is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the GF12022YF model?
Dimensions (length × width × height) are 167×176×126 mm — also written as 167x176x126 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Sonnenschein GF12022YF?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
