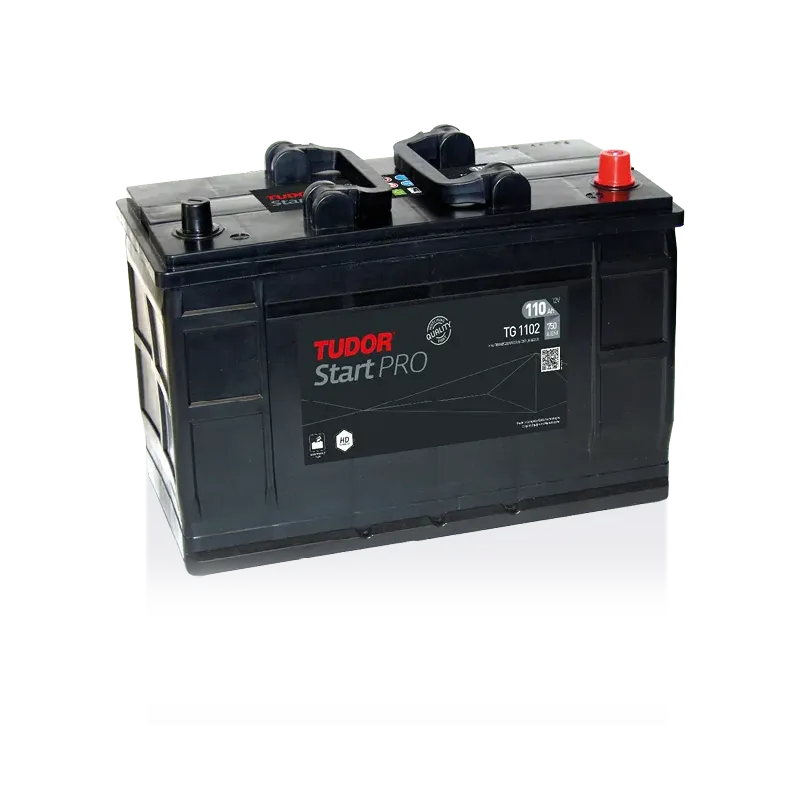

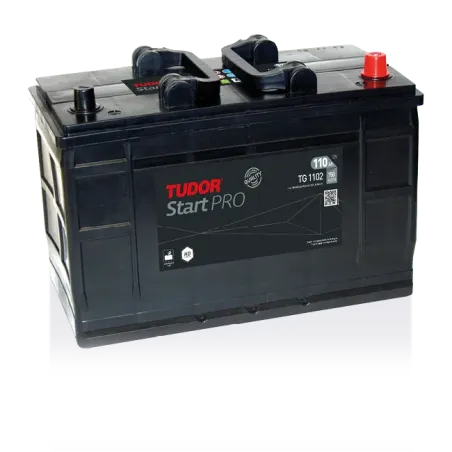

Tudor TG1102 Start Pro · Truck battery 110Ah 750A

Specifications

BrandTUDOR
Part numberTG1102
Voltage (V)12
Capacity (C20)110Ah (c20)
Cold cranking amps (EN)750A
TechnologyFlooded
Length349.00 mm
Width175.00 mm
Height235.00 mm
See the full specifications →
Price: €104.70
VAT included
Quantity

Brand: Tudor batteries Part number: TG1102

Tudor TG1102 12V 110Ah 750A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
110 Ah C20
Cold cranking
750 A EN-1
Dimensions
349×175×235 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
25,4 kg
Model
TUDOR START PRO (HD)

Where it fits: the Tudor TG1102 is one of our truck batteries, belongs to our Tudor batteries and by capacity it sits among our 110Ah batteries.

The Tudor TG1102 in practice

Which cars do our customers fit it to?

Mostly to Bobcat 300 (1 orders with the vehicle identified). That those models use it does not guarantee it fits yours: check the plate, as tray and polarity vary by version.

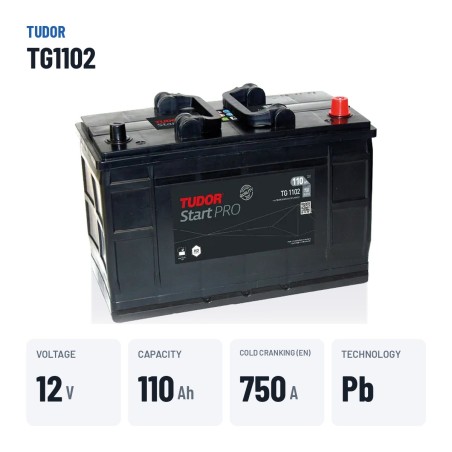

Truck battery Tudor TG1102 Start PRO (Hd) 110Ah 750A 12V

12VVoltage
110AhCapacity
750ACold cranking
25.40kgWeight

The Tudor TG1102 truck battery is rated at 12 V, 110 Ah and 750 A of cold cranking current (EN) from the Start PRO (Hd) range, and is prepared for trucks, buses, tractors and heavy machinery. Measuring 349 × 175 × 235 mm and the positive terminal on the right, it is the direct replacement for trucks fitted from the factory with a 110 Ah battery of this format.

In short: the Tudor TG1102 (110 Ah, 750 A, 349 × 175 × 235 mm, positive terminal on the right). Verified equivalent alternatives: Varta I18 and Exide EG1102.

  • Powers tachograph, fridge and heater during rest stops.
  • Better tolerance to deep discharge than a conventional starter battery.
  • Good balance of capacity, cranking power and price.
  • Resistant to constant chassis vibration.

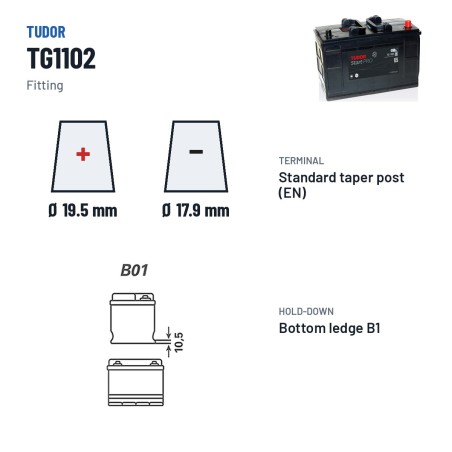

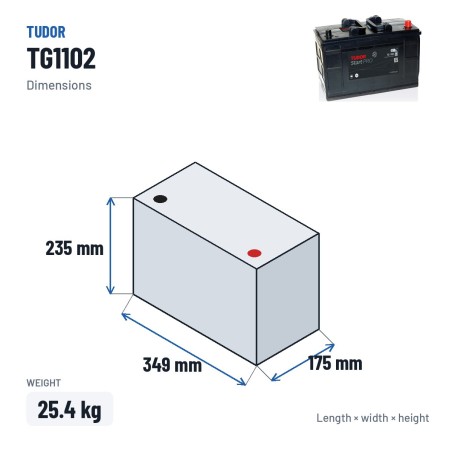

Size, terminals and hold-down of the Tudor TG1102

It has external dimensions of 349 × 175 × 235 mm and weighs 25.40 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B1 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

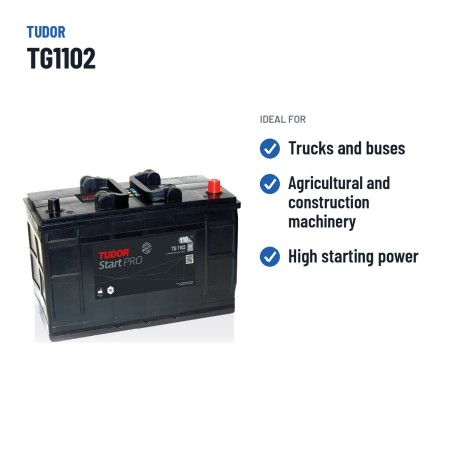

What the Tudor TG1102 is for

Designed for trucks, buses, tractors and heavy machinery, the Tudor TG1102 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 25.40 kg, EN taper post terminals and B1 hold-down.

The Tudor TG1102: Start PRO (Hd) range and conventional lead-acid technology

The TG1102 is part of the Tudor Start PRO (Hd) range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.

What Tudor does differently

Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. We guarantee that every Tudor arrives new, charged and with the manufacturer's full warranty.

Warranty and coverage

The Tudor TG1102 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Usage and maintenance tips

On batteries with filler caps, check the electrolyte level and top up only with distilled water. Keep the terminals clean and tight and the battery firmly secured against chassis vibration.

When you get it and how to return it

Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

  • Reference
    BCOM-TUDOR-TG1102

Data sheet

  • Brand
    TUDOR
  • Reference
    TG1102
  • Model
    TUDOR START PRO (HD)
  • Voltage (V)
    12
  • Length
    349.00 mm
  • Width
    175.00 mm
  • Height
    235.00 mm
  • Weight
    25.40 Kgs
  • Technology
    Flooded
  • EAN
    3661024055390
  • Terminal layout
    Positive terminal on the right
  • Terminal type
    EN taper post
  • Hold-down
    B1
  • Cold cranking amps (EN)
    750A
  • Capacity (C20)
    110Ah (c20)
  • Case type
    D02

Specific References

  • EAN13
    3661024055390
  • MPN
    TG1102

Download

Datasheet Tudor TG1102 (English)

PDF datasheet of the Tudor TG1102 battery – English

Download (169.24KB)

Codes and references Tudor TG1102

Brand Tudor · see all Tudor batteries
Manufacturer range TUDOR START PRO (HD)
Manufacturer part number (MPN) TG1102
EAN-13 barcode 3661024055390
Dimensions (length × width × height) 349 × 175 × 235 mm (349x175x235)

Tudor TG1102: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Tudor TG1102 is interchangeable with these equivalent references: I18 (Varta), EG1102 (Exide), TF1202 (Tudor), EF1202 (Exide).

Product Specifications Technology Price
Tudor TG1102 Tudor TG1102 This battery 12V 110Ah 750A Lead-acid 104,70 €
Tudor TF1202 Tudor TF1202 Bigger sister ★ 4,0 12V 120Ah 870A Lead-acid 109,40 € +4,70 €

Tudor TG1102 vs Tudor TF1202

Bigger sister · +4,70 €

It is the bigger sister of the TG1102 in the same Tudor range. Compared with the TG1102 it has 10 Ah more and 120 A of cold cranking more. It costs 4,70 € more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG1102 does the job.

TG1102TF1202
Capacity110 Ah120 Ah
Cold cranking (EN)750 A870 A
TechnologyLead-acidLead-acid
Dimensions (mm)349 × 175 × 235349 × 175 × 235
Positive terminalPositive terminal on the rightPositive terminal on the right
Price104,70 €109,40 €
Varta I18 Varta I18 Varta equivalent ★ 5,0 12V 110Ah 680A Lead-acid 109,60 € +4,90 €

Tudor TG1102 vs Varta I18

Varta equivalent · +4,90 €

Same case and same fitting as the TG1102, from Varta. Compared with the TG1102 it has 70 A of cold cranking less. It costs 4,90 € more. If you want to save or the TG1102 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

TG1102I18
Capacity110 Ah110 Ah
Cold cranking (EN)750 A680 A
TechnologyLead-acidLead-acid
Dimensions (mm)349 × 175 × 235349 × 175 × 236
Positive terminalPositive terminal on the rightPositive terminal on the right
Price104,70 €109,60 €
Exide EF1202 Exide EF1202 Exide equivalent ★ 4,0 12V 120Ah 870A Lead-acid 113,90 € +9,20 €

Tudor TG1102 vs Exide EF1202

Exide equivalent · +9,20 €

The Exide alternative that fits where the TG1102 goes, with the same polarity. Compared with the TG1102 it has 10 Ah more and 120 A of cold cranking more. It costs 9,20 € more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

TG1102EF1202
Capacity110 Ah120 Ah
Cold cranking (EN)750 A870 A
TechnologyLead-acidLead-acid
Dimensions (mm)349 × 175 × 235349 × 175 × 235
Positive terminalPositive terminal on the rightPositive terminal on the right
Price104,70 €113,90 €
Exide EG1102 Exide EG1102 Exide equivalent ★ 5,0 12V 110Ah 750A Lead-acid 104,70 € same price

Tudor TG1102 vs Exide EG1102

Exide equivalent · same price

It is the verified Exide equivalent for the TG1102 tray. Compared with the TG1102 it has the same Ah and cranking power. It costs the same. Decide by price, brand preference and availability: both fit and crank the same.

TG1102EG1102
Capacity110 Ah110 Ah
Cold cranking (EN)750 A750 A
TechnologyLead-acidLead-acid
Dimensions (mm)349 × 175 × 235349 × 175 × 235
Positive terminalPositive terminal on the rightPositive terminal on the right
Price104,70 €104,70 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 110Ah batteries: We stock 28 models of 110 Ah to compare by price, technology and cold cranking: see all 110Ah batteries. Same size (349 × 175 × 235 mm): batteries of 349 × 175 × 235 mm.

Recommended accessories — complement the Tudor TG1102 with a charger or tester

Compatible vehicles

The Tudor TG1102 fits 212 vehicles. Most searched below:

See all 212 compatible vehicles

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

What is the service life of the TG1102 model?

There is no exact figure: for a battery such as the Tudor TG1102, a reasonable guide is 4 to 6 years in normal lorry use. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the truck itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

What are the measurements of the TG1102 model?

Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close. It measures 349×175×235 mm in length × width × height, with the terminals included in the height.

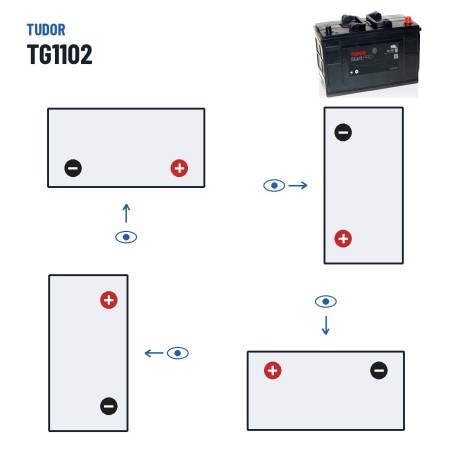

On which side is the positive of the TG1102 model?

It has the positive on the right (polarity). It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive.

Is the TG1102 valid for my vehicle?

Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your truck is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The compatibility list for the TG1102 runs to 212 verified vehicle versions. In every case, the truck manufacturer's specifications (owner's handbook) take precedence.

Which batteries are equivalent to the Tudor TG1102?

A battery interchangeable with the Tudor TG1102 must match it on dimensions (349×175×235 mm), polarity (positive on the right), capacity (110 Ah) and cranking current (750 A). The "Equivalents" section of this page gathers the recommended options with equivalent performance; remember that in Start-Stop trucks an EFB should not be replaced with a conventional battery.

Tudor TG1102 or Tudor TF1202: which one to choose?

It is the bigger sister of the TG1102 in the same Tudor range. Compared with the TG1102 it has 10 Ah more and 120 A of cold cranking more. It costs 4,70 € more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG1102 does the job.

Tudor TG1102 or Varta I18: which one to choose?

Same case and same fitting as the TG1102, from Varta. Compared with the TG1102 it has 70 A of cold cranking less. It costs 4,90 € more. If you want to save or the TG1102 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.
