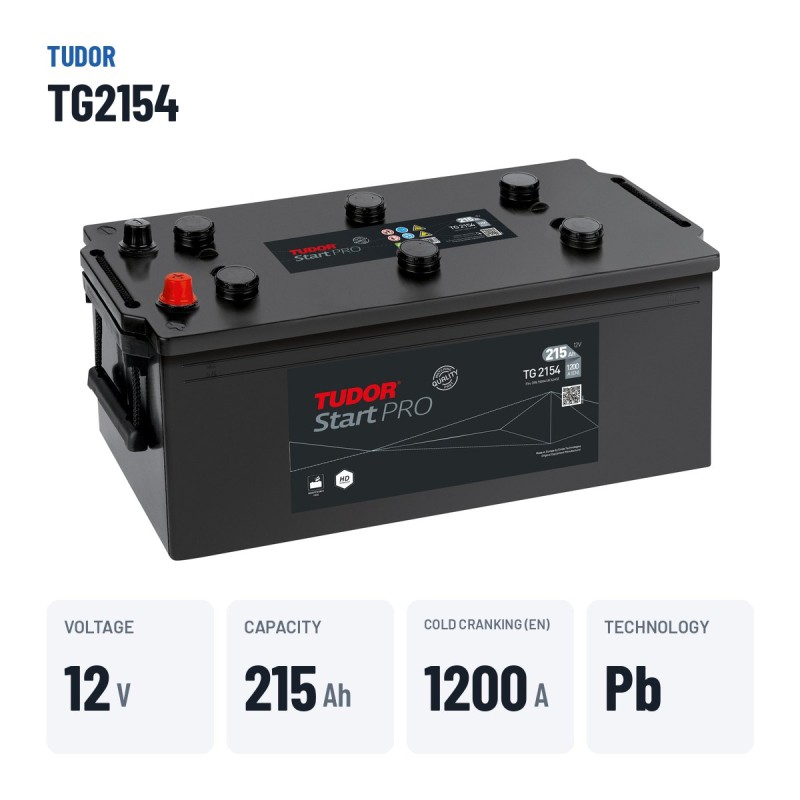

Tudor TG2154 · Truck battery 12V 215Ah 1200A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TG2154 |
| Voltage (V) | 12 |
| Capacity (C20) | 215Ah (c20) |
| Technology | Lead-acid |
| Length | 518.00 mm |
| Width | 279.00 mm |
| Height | 240.00 mm |
| Terminal layout | Positive terminal on the right |
€777.95
VAT included
Polarity: positive on the right. Check it matches your current battery before buying.
4,66/5★★★★★16 reviewsVerified purchases
- ★★★★★Julian Crespo:
Envío correcto en el tiempo que decían
- ★★★★★JULIAN RODRIGUEZ:
Buenos precios, buena atención y rapidez en la entrega. De 10!
- ★★★★★Cesar Lopez:
Me recomendaron esta web. Buenos precios y buen tiempo de entrega
Tudor TG2154 12V 215Ah 1200A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
215 Ah
Cold cranking
1200 A
Dimensions
518×279×240 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
54,9 kg
Model
TUDOR START PRO (HD)
Truck battery Tudor TG2154 Start PRO (Hd) 215Ah 1,200A 12V
12VVoltage
215AhCapacity
1,200ACold cranking
54.90kgWeight
With 215 Ah and 1,200 A of cold cranking current (EN), the Tudor TG2154 from the Start PRO (Hd) range is built for professional use in trucks, buses, tractors and heavy machinery. It measures 518 × 279 × 240 mm and the positive terminal on the right, the format sought by anyone replacing a 215 Ah battery in trucks.
- Designed for 24 V installations with two batteries in series.
- Powerful cold cranking for large-displacement diesel engines.
- Heavy Duty construction for intensive professional use.
- Conventional lead-acid: the most proven and economical technology.

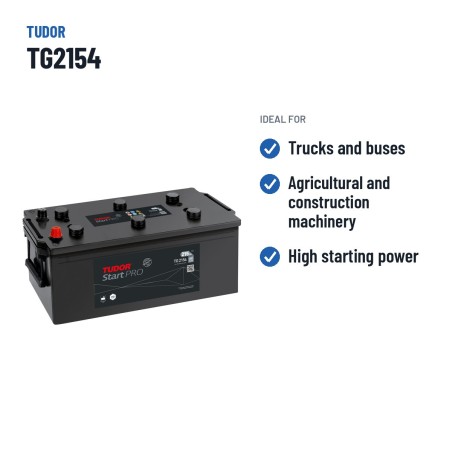

What the Tudor TG2154 is for
Designed for trucks, buses, tractors and heavy machinery, the Tudor TG2154 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 54.90 kg.

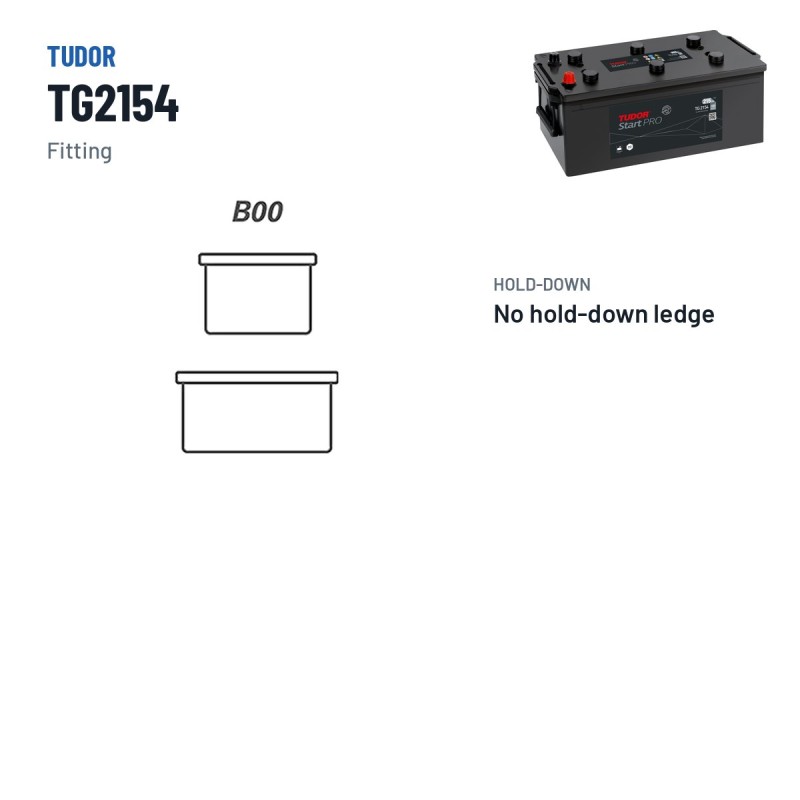

Size, terminals and hold-down of the Tudor TG2154

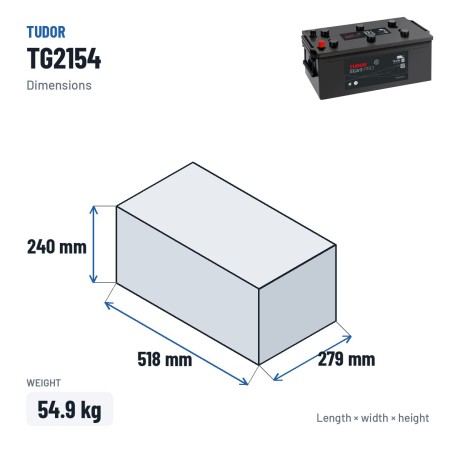

The Tudor TG2154 is made in the 518 × 279 × 240 mm format and weighs 54.90 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Tudor TG2154: Start PRO (Hd) range and conventional lead-acid technology
Within the Tudor catalogue, the Start PRO (Hd) series groups the references designed for this use. The TG2154 is the 215 Ah model of that family, with the same performance as its siblings in other sizes.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Why choose Tudor batteries
Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Manufacturer's warranty
The Tudor TG2154 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
How to make it last longer
In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing. During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TUDOR-TG2154
Data sheet
- Brand
- TUDOR
- Reference
- TG2154
- Model
- TUDOR START PRO (HD)
- Voltage (V)
- 12
- Length
- 518.00 mm
- Width
- 279.00 mm
- Height
- 240.00 mm
- Technology
- Lead-acid
- EAN
- 3661024055468
- Terminal layout
- Positive terminal on the right
- Cold cranking amps (EN)
- 1200A
- Capacity (C20)
- 215Ah (c20)
Specific References
- EAN13
- 3661024055468
- MPN
- TG2154
4,66/5
Verified purchasesLatest verified reviews
★★★★★Julian Crespo
21/05/2026Entrega rápida de la batería
Envío correcto en el tiempo que decían
★★★★★JULIAN RODRIGUEZ
07/04/2026Servicio excelente
Buenos precios, buena atención y rapidez en la entrega. De 10!
★★★★★Cesar Lopez
16/02/2026Gratamente sorprendido
Me recomendaron esta web. Buenos precios y buen tiempo de entrega
★★★★★Gabriel Molina
04/02/2026Me llegó al día siguiente
Pedí la batería en Viernes y el Lunes ya la tenía aquí
★★★★★Gonzalo Leon
21/01/2026Encontré lo buscaba
Creo que esta web es la mejor para adquirir tu batería, muy recomdable
★★★★★Luis Miguel Herrera
15/01/2026Los mejores
Buena atención telefónica, cosa que no se puede decir de muchos otros sitios
★★★★★Raul Cruz
07/01/2026Me encantan
Llamé para pedir el localizador de mi paquete y me atendieron estupendamente
★★★★★Xavier Hernandez
23/12/2025Encontré lo que buscaba
Recibí la bateria de mi coche antes de lo previsto
Codes and references Tudor TG2154
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR START PRO (HD) |
| Manufacturer reference (MPN) | TG2154 |
| EAN-13 barcode | 3661024055468 |
| Dimensions (length × width × height) | 518 × 279 × 240 mm (518x279x240) |
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TG2154 battery last?
Expected lifespan of the Tudor TG2154 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Tudor TG2154 battery?
Dimensions (length × width × height) are 518×279×240 mm — also written as 518x279x240 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TG2154 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TG2154 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the TG2154 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
