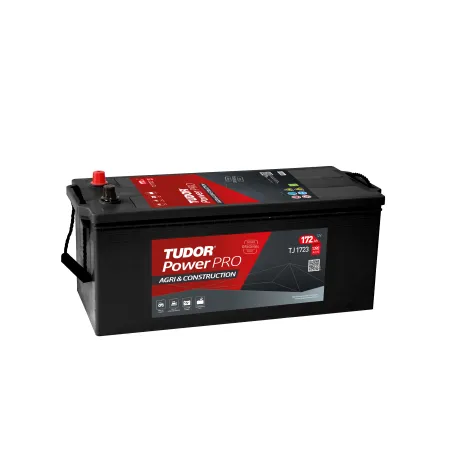

Tudor TJ1723 · Truck battery 12V 172Ah 1390A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TJ1723 |
| Voltage (V) | 12 |
| Capacity (C20) | 172Ah (c20) |
| Technology | Lead-acid |
| Length | 513.00 mm |
| Width | 223.00 mm |
| Height | 223.00 mm |
| Terminal layout | Positive terminal on the left |
€830.40
VAT included
4,91/5★★★★★9 reviewsVerified purchases
- ★★★★★Alberto Serrano:
Envío correcto en el tiempo que decían
- ★★★★★Xavier Vega:
Buena atención telefónica, cosa que no se puede decir de muchos otros sitios
- ★★★★★Ramon Rubio:
Llamé para pedir el localizador de mi paquete y me atendieron estupendamente
Tudor TJ1723 12V 172Ah 1390A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
172 Ah
Cold cranking
1390 A
Dimensions
513×223×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
48,8 kg
Model
TUDOR START PRO (HD)
Truck battery Tudor TJ1723 Start PRO (Hd) 172Ah 1,390A 12V
12VVoltage
172AhCapacity
1,390ACold cranking
48.80kgWeight
The Tudor TJ1723 truck battery is rated at 12 V, 172 Ah and 1,390 A of cold cranking current (EN) from the Start PRO (Hd) range, and is prepared for trucks, buses, tractors and heavy machinery. Measuring 513 × 223 × 223 mm and the positive terminal on the left, it is the direct replacement for trucks fitted from the factory with a 172 Ah battery of this format.
- Good balance of capacity, cranking power and price.
- Resistant to constant chassis vibration.
- Powers tachograph, fridge and heater during rest stops.
- Better tolerance to deep discharge than a conventional starter battery.
What the Tudor TJ1723 is for
The Tudor TJ1723 is designed for trucks, buses, tractors and heavy machinery. In 24 V installations with two batteries in series, replace both at the same time to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 48.80 kg.
Dimensions, polarity and mounting
The Tudor TJ1723 is made in the 513 × 223 × 223 mm format and weighs 48.80 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Tudor: the maker behind the TJ1723
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Tudor TJ1723: Start PRO (Hd) range and conventional lead-acid technology
Within the Tudor catalogue, the Start PRO (Hd) series groups the references designed for this use. The TJ1723 is the 172 Ah model of that family, with the same performance as its siblings in other sizes.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Usage and maintenance tips
On batteries with filler caps, check the electrolyte level and top up only with distilled water. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.
Manufacturer's warranty
The Tudor TJ1723 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TUDOR-TJ1723
Data sheet
- Brand
- TUDOR
- Reference
- TJ1723
- Model
- TUDOR START PRO (HD)
- Voltage (V)
- 12
- Length
- 513.00 mm
- Width
- 223.00 mm
- Height
- 223.00 mm
- Technology
- Lead-acid
- EAN
- 3661024056731
- Terminal layout
- Positive terminal on the left
- Cold cranking amps (EN)
- 1390A
- Capacity (C20)
- 172Ah (c20)
Specific References
- EAN13
- 3661024056731
- MPN
- TJ1723
4,91/5
Verified purchasesLatest verified reviews
★★★★★Alberto Serrano
02/05/2026Entrega muy rápida
Envío correcto en el tiempo que decían
★★★★★Xavier Vega
10/02/2026Excelente trato al cliente
Buena atención telefónica, cosa que no se puede decir de muchos otros sitios
★★★★★Ramon Rubio
09/02/2026Servicio increíble
Llamé para pedir el localizador de mi paquete y me atendieron estupendamente
★★★★★Adrian Fuentes
16/01/2026Grandes
Me recomendaron esta web. Buenos precios y buen tiempo de entrega
Codes and references Tudor TJ1723
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR START PRO (HD) |
| Manufacturer reference (MPN) | TJ1723 |
| EAN-13 barcode | 3661024056731 |
| Dimensions (length × width × height) | 513 × 223 × 223 mm (513x223x223) |
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Tudor TJ1723 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the TJ1723 model?
Expected lifespan of the Tudor TJ1723 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Tudor TJ1723 battery?
Dimensions (length × width × height) are 513×223×223 mm — also written as 513x223x223 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TJ1723 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TJ1723 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Tudor TJ1723?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
