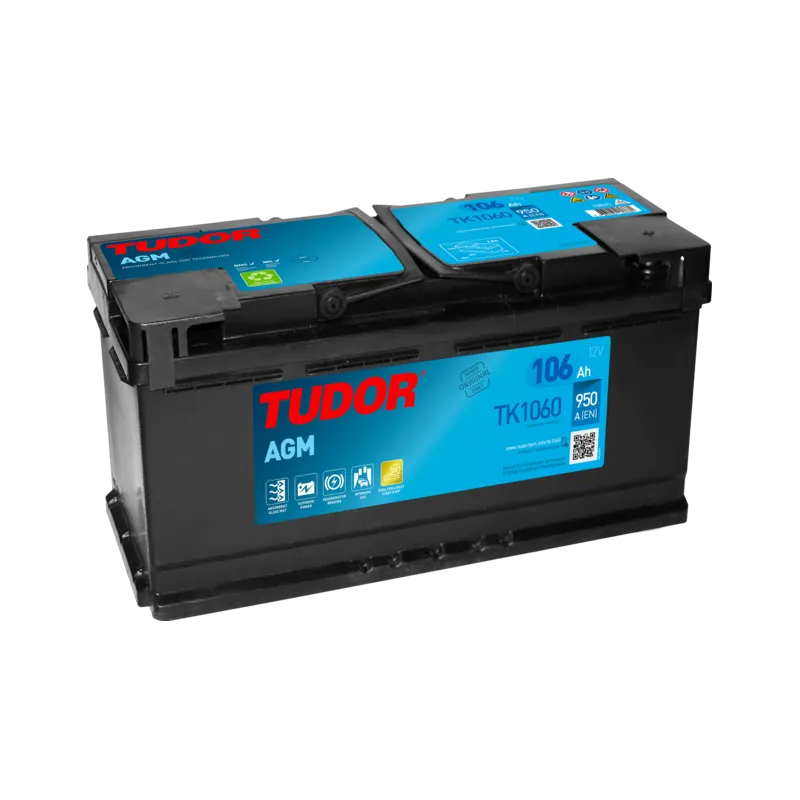

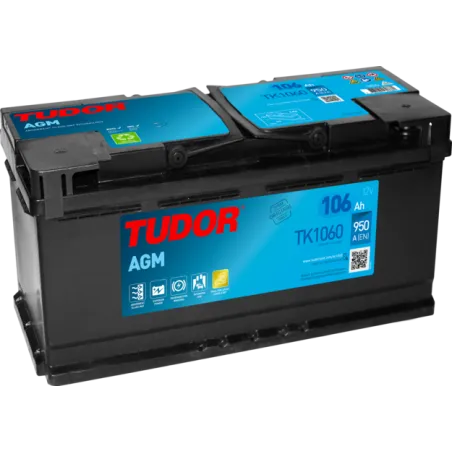

Tudor TK1060 AGM Microhybrid · Start-Stop battery 106Ah 950A

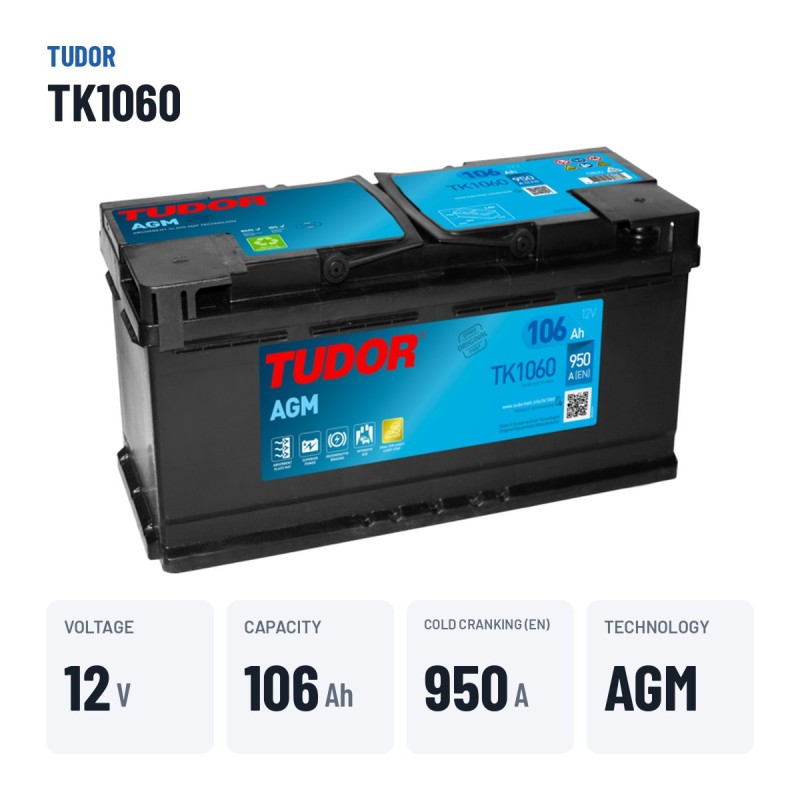

Specifications
| Brand | TUDOR |
|---|---|
| Part number | TK1060 |
| Voltage (V) | 12 |
| Capacity (C20) | 106Ah (c20) |
| Cold cranking amps (EN) | 950A |
| Technology | AGM |
| Length | 392.00 mm |
| Width | 175.00 mm |
| Height | 190.00 mm |
How do you want it in …?
Battery + installation
Service for one battery per order.
Tudor TK1060 12V 106Ah 950A is a battery designed specifically for Start-Stop vehicles. Withstands up to 3× more start cycles than a conventional battery and maintains performance with BMS and regenerative braking systems.

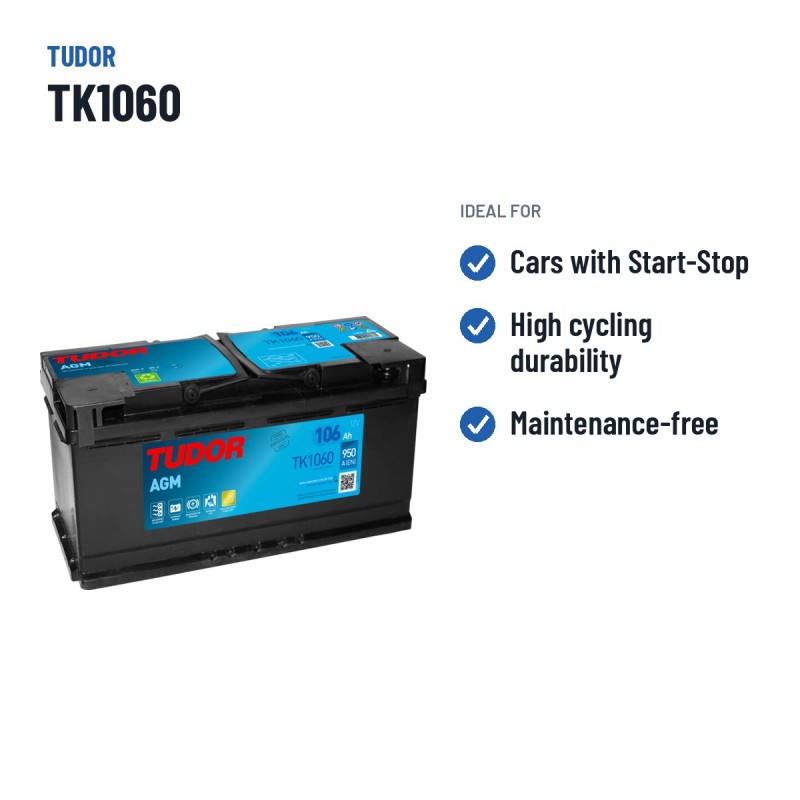

Why this Start-Stop battery?
- Designed for Start-Stopbuilt for the intensive cycling of modern cars
- 2 to 3 times longer lifevs fitting a cheap conventional battery
- Fast recoveryrecharges in minutes once the engine is running
Where it fits: the Tudor TK1060 is one of our car batteries, belongs to our Tudor batteries and by capacity it sits among our 106Ah batteries.
The Tudor TK1060 in practice
When not to choose it
The only reason to rule it out is the case: if length or positive-terminal side differ from the original, do not force it however well the Ah match.
Start-Stop battery Tudor TK1060 AGM Microhybrid 106Ah 950A 12V
The Tudor TK1060 with AGM technology delivers the 106 Ah at 12 V and 950 A of cold cranking current (EN) that cars with Start-Stop, regenerative braking and heavy electrical loads need. Its 392 × 175 × 190 mm and the positive terminal on the right make it the exact replacement for the 106 Ah battery fitted as standard to many Start-Stop cars.
In short: the Tudor TK1060 (106 Ah, 950 A, 392 × 175 × 190 mm, positive terminal on the right). It is an AGM battery for cars with Start-Stop and regenerative braking; if your car came with AGM, always replace it with another AGM. Verified equivalent alternatives: Varta A4 and Exide EK1060.
- Direct replacement for the original Start-Stop battery.
- Keeps comfort loads running with the engine off at the lights.
- Fast recharge on the move thanks to low internal resistance.
- AGM: faster recharging and better cycle resistance than a conventional battery.
What the Tudor TK1060 is for
In Start-Stop cars the battery works far harder than in a conventional car; the Tudor TK1060 is built for that intensive cycling and to recharge quickly on the move. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 29 kg, EN taper post terminals and B13 hold-down.
The Tudor TK1060: AGM Microhybrid range and AGM technology
Within the Tudor catalogue, the AGM Microhybrid series groups the references designed for this use. The TK1060 is the 106 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.

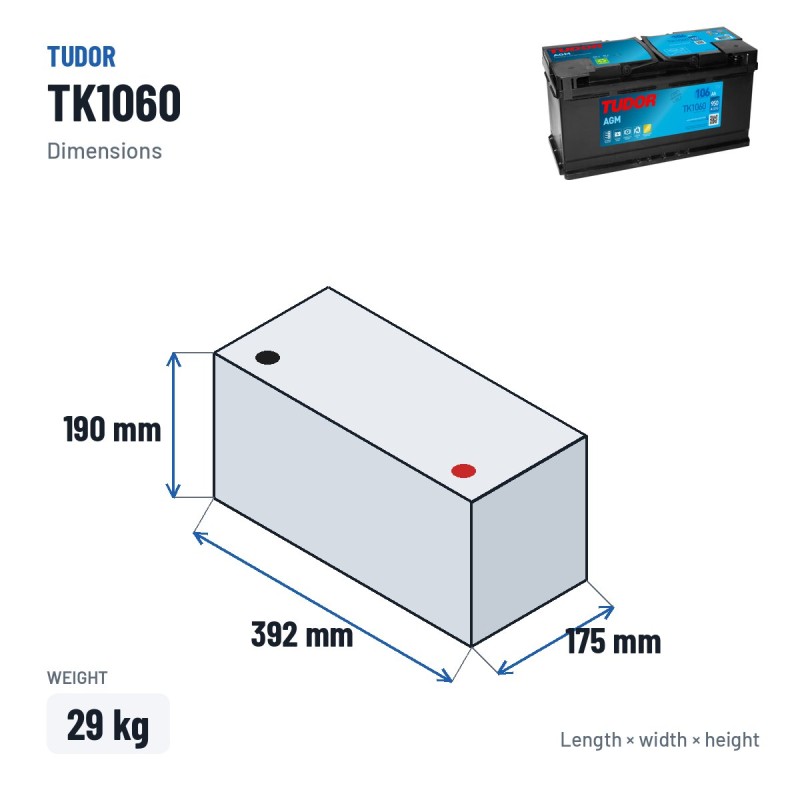

Dimensions, polarity and mounting
It has external dimensions of 392 × 175 × 190 mm and weighs 29 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Tudor: the maker behind the TK1060
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. We guarantee that every Tudor arrives new, charged and with the manufacturer's full warranty.
How to make it last longer
If the vehicle only does very short trips, a periodic maintenance charge with an AGM/EFB-compatible charger greatly extends its life. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Official warranty
The Tudor TK1060 comes with the manufacturer's official warranty. To keep it valid, always fit the same technology as the original battery (AGM or EFB) and register the replacement if your vehicle requires it.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

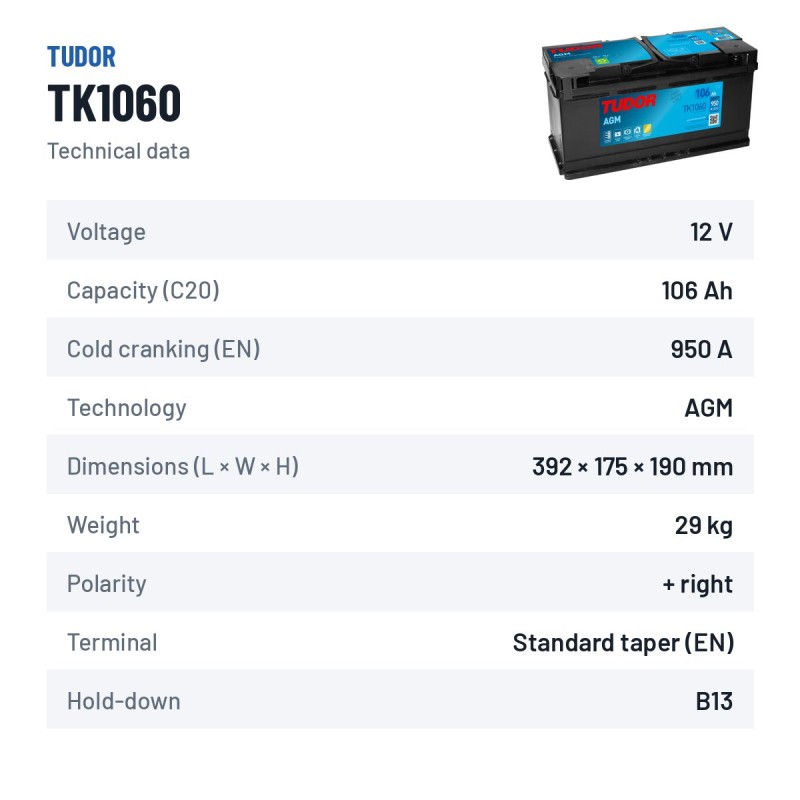

Data sheet
-
BrandTUDOR
-
ReferenceTK1060
-
ModelTUDOR AGM MICROHYBRID
-
Voltage (V)12
-
Length392.00 mm
-
Width175.00 mm
-
Height190.00 mm
-
Weight29.00 Kgs
-
TechnologyAGM
-
EAN3661024057660
-
Terminal layoutPositive terminal on the right
-
Terminal typeEN taper post
-
Hold-downB13
-
Cold cranking amps (EN)950A
-
Capacity (C20)106Ah (c20)
-
Case typeL06
Specific References
-
EAN133661024057660
-
MPNTK1060
Codes and references Tudor TK1060
| Brand | Tudor · see all Tudor batteries |
|---|---|
| Manufacturer range | TUDOR AGM MICROHYBRID |
| Manufacturer part number (MPN) | TK1060 |
| EAN-13 barcode | 3661024057660 |
| European case size (EN 50342-2) | L6 |
| Dimensions (length × width × height) | 392 × 175 × 190 mm (392x175x190) |
Tudor TK1060: best-selling equivalent or higher-spec batteries
The Tudor TK1060 is interchangeable with these equivalent references: A4 (Varta), EK1060 (Exide), LA105 (Varta).
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tudor
TK1060
This battery
|
12V 106Ah 950A | AGM | 175,70 € | |||||||||||||||||||||
Varta
A4
Varta equivalent
|
12V 105Ah 950A | AGM | 189,30 € +13,60 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| TK1060 | A4 | |
|---|---|---|
| Capacity | 106 Ah | 105 Ah |
| Cold cranking (EN) | 950 A | 950 A |
| Technology | AGM | AGM |
| Dimensions (mm) | 392 × 175 × 190 | 394 × 175 × 190 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 175,70 € | 189,30 € |
Exide
EK1060
Exide equivalent Tudor TK1060 vs Exide EK1060
Exide equivalent · −10,00 €
The Exide alternative that fits where the TK1060 goes, with the same polarity. Compared with the TK1060 it has the same Ah and cranking power. It costs 10,00 € less. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.
| TK1060 | EK1060 | |
|---|---|---|
| Capacity | 106 Ah | 106 Ah |
| Cold cranking (EN) | 950 A | 950 A |
| Technology | AGM | AGM |
| Dimensions (mm) | 392 × 175 × 190 | 392 × 175 × 190 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 175,70 € | 165,70 € |
Varta
LA105
Varta equivalent Tudor TK1060 vs Varta LA105
Varta equivalent · +68,20 €
It is the verified Varta equivalent for the TK1060 tray. Compared with the TK1060 it has 1 Ah less. It costs 68,20 € more. Decide by price, brand preference and availability: both fit and crank the same.
| TK1060 | LA105 | |
|---|---|---|
| Capacity | 106 Ah | 105 Ah |
| Cold cranking (EN) | 950 A | 950 A |
| Technology | AGM | AGM |
| Dimensions (mm) | 392 × 175 × 190 | 394 × 175 × 190 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 175,70 € | 243,90 € |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Other 106Ah batteries: We stock 7 models of 106 Ah to compare by price, technology and cold cranking: see all 106Ah batteries. Same size (392 × 175 × 190 mm): batteries of 392 × 175 × 190 mm.
Recommended accessories
Compatible vehicles
The Tudor TK1060 fits 149 vehicles. Most searched below:
Fitting it yourself? Step-by-step guide to replacing the battery →
Frequently asked questions
Is the Tudor TK1060 an AGM battery and what are the benefits of AGM?
Yes. The Tudor TK1060 is AGM (Absorbent Glass Mat): sealed lead-acid, with the electrolyte absorbed in glass fibre. It tolerates heat better and handles more cycles than a conventional battery, which is why it is the required technology with advanced Start-Stop and regenerative braking.
Is the Tudor TK1060 battery suitable for Start-Stop?
Yes: being AGM, the Tudor TK1060 is designed for Start-Stop cars. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. It needs nothing to work, though on most modern cars registering it via OBD is advisable so the alternator adjusts its charging profile. The general recommendation is EFB for basic Start-Stop and AGM where there is regenerative braking (it handles more cycles), unless the car manufacturer says otherwise.
How is the Tudor TK1060 battery fitted in a Start-Stop car?
With Start-Stop there are three more points: the negative terminal usually carries a battery sensor (IBS), so undo the cable at the terminal nut without removing the sensor; register the battery via OBD so the alternator applies the correct charging profile; and fit the same technology as the original (AGM or EFB) or higher, because a conventional battery wears out within months. Allow 15-30 minutes and a 10 mm spanner for a L6 case like this one. If the car keeps its battery in the boot or under a seat, it can take up to twice as long. Steps: 1) switch off and remove the key; 2) find the battery (bonnet, boot or under a seat); 3) undo the negative (−), then the positive (+); 4) remove the clamp and the old battery; 5) fit the new one facing the same way (positive on the right) to match the polarity; 6) connect the positive (+) and finally the negative (−). Our blog guide covers it in detail; if the owner's handbook describes a different procedure, follow the manufacturer.
What is the service life of the TK1060 model?
As a guide, you can expect the Tudor TK1060 to last 5 to 8 years in mild-climate car use with Start-Stop, although the real figure may be higher or lower. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of car and whether it has Start-Stop.
What are the measurements of the TK1060 model?
Check the room available in your car, because a single millimetre too much can stop the clamp from closing. Its dimensions are 392×175×190 mm, also written 392x175x190 mm; the height already includes the terminals. In European terms it is a L6 case.

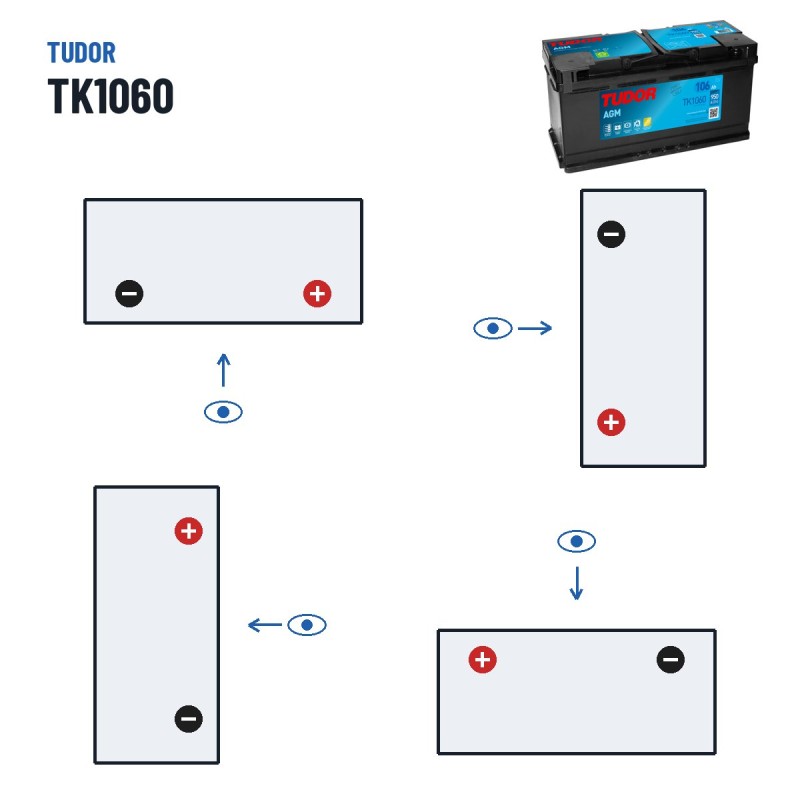

On which side is the positive of the TK1060 model?
On the Tudor TK1060, the polarity is positive on the right. It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. To check, stand the battery in front of you with the terminals nearest you: the positive (+) is the one with the red ring.
Is the TK1060 valid for my vehicle?
The TK1060 fits 149 verified vehicle versions in our database. For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). Always cross-check with what the car manufacturer states in the owner's handbook.
What are the equivalents of the TK1060 model?
Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the TK1060, 106 Ah (950 A cranking). See the "Equivalents" section of this page for the recommended options at the same performance level. Mind the technology: in Start-Stop cars an EFB is not swapped for a conventional battery.
Tudor TK1060 or Varta A4: which one to choose?
Same case and same fitting as the TK1060, from Varta. Compared with the TK1060 it has 1 Ah less. It costs 13,60 € more. If you want to save or the TK1060 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.
Tudor TK1060 or Exide EK1060: which one to choose?
The Exide alternative that fits where the TK1060 goes, with the same polarity. Compared with the TK1060 it has the same Ah and cranking power. It costs 10,00 € less. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.
When do I need an AGM battery like this one?
In an AGM (Absorbent Glass Mat) battery the electrolyte is held in a glass-fibre mat: no spills, and many more charge/discharge cycles than a conventional battery. Hence it is recommended for advanced Start-Stop with regenerative braking, such as BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO or Volvo i-Stop, and it handles tilting, vibration and extreme temperatures better than an EFB. The Tudor TK1060 has a capacity of 106 Ah.
Will my car recognise the new battery automatically?
The alternator detects the new battery and adapts the charge automatically, so on most cars it is not compulsory. Even so, it is advisable to register it via OBD so charging is optimum from the first minute and the battery lasts longer, particularly on BMW, Mercedes, Audi, Volvo or Land Rover, with more sophisticated BMS. Any workshop with an OBD scanner does it in a few minutes; DIY, with VCDS or Carista (VAG group), Bimmercode (BMW) or iCarsoft. Even if you do not register the Tudor TK1060, the car will start correctly; the profile adjusts within a few days.
