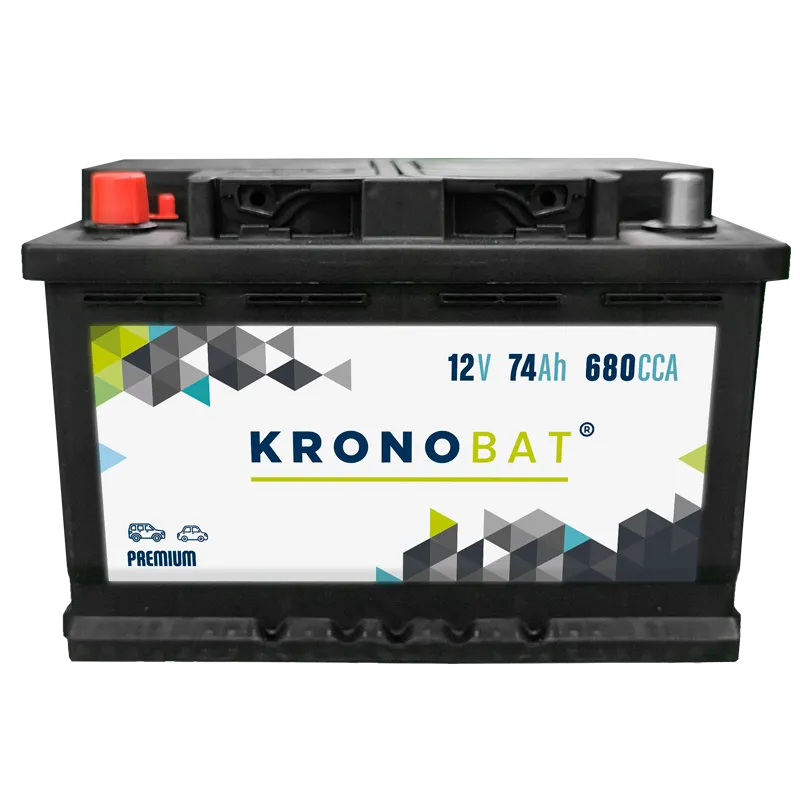

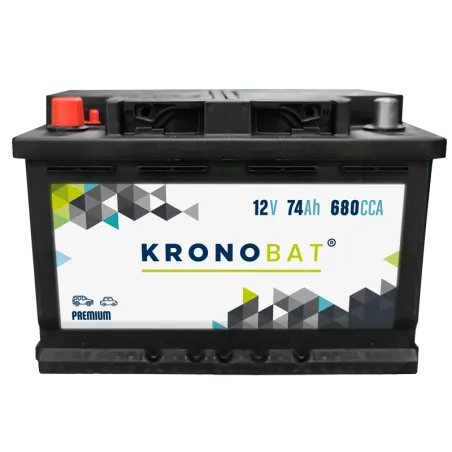

Kronobat PB-74.1B · Car battery 12V 74Ah 680A
Specifications
| Brand | KRONOBAT |
|---|---|
| Part number | PB-74.1B |
| Voltage (V) | 12 |
| Capacity (C20) | 74Ah (c20) |
| Technology | Lead-acid |
| Length | 278.00 mm |
| Width | 175.00 mm |
| Height | 190.00 mm |
| Weight | 17.30 Kgs |
€71.40
VAT included
Polarity: positive on the left. Check it matches your current battery before buying.
Kronobat PB-74.1B 12V 74Ah 680A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
74 Ah
Cold cranking
680 A
Dimensions
278×175×190 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
17,3 kg
Model
PREMIUM
Car battery Kronobat PB-74.1B Premium 74Ah 680A 12V
12VVoltage
74AhCapacity
680ACold cranking
17.30kgWeight
The Kronobat PB-74.1B car battery is rated at 12 V, 74 Ah and 680 A of cold cranking current (EN) from the Premium range, and is designed for passenger cars with conventional starting, without a Start-Stop system. Measuring 278 × 175 × 190 mm and the positive terminal on the left, it is the direct replacement for cars fitted from the factory with a 74 Ah battery of this format.
- Low self-discharge: copes with long stops without losing charge.
- Designed to last several years under normal daily use.
- Good balance of capacity, cranking power and price.
- Stable voltage for the vehicle electronics (ECU, sensors, climate control).
What the Kronobat PB-74.1B is for
The Kronobat PB-74.1B covers the needs of passenger cars with conventional starting, without a Start-Stop system: reliable starting, stable voltage for the electronics and a service life of several years in daily use. Check that it matches your current battery in size and terminal position. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 17.30 kg and 1.0 terminals.
Dimensions, polarity and mounting
The Kronobat PB-74.1B is made in the 278 × 175 × 190 mm format and weighs 17.30 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses 1.0 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What Kronobat does differently
With Kronobat we offer an own-brand alternative without compromising on quality: European manufacturing, original-equipment controls and the direct backing of baterias.com for warranty and advice. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Kronobat PB-74.1B: Premium range and conventional lead-acid technology
The PB-74.1B is part of the Kronobat Premium range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
How to make it last longer
In normal daily use the alternator keeps the battery charged; if the car stands for weeks, a maintenance charge once a month prevents deep discharge. Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge.
Warranty and coverage
The Kronobat PB-74.1B comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-KRONOBAT-PB-74.1B
Data sheet
- Reference
- PB-74.1B
- Model
- PREMIUM
- Voltage (V)
- 12
- Length
- 278.00 mm
- Width
- 175.00 mm
- Height
- 190.00 mm
- Weight
- 17.30 Kgs
- Technology
- Lead-acid
- Terminal layout
- Positive terminal on the left
- Terminal type
- 1.0
- Cold cranking amps (EN)
- 680A
- Capacity (C20)
- 74Ah (c20)
Specific References
- MPN
- PB-74.1B
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Kronobat PB-74.1B battery last?
Expected lifespan of the Kronobat PB-74.1B is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the PB-74.1B model?
Dimensions (length × width × height) are 278×175×190 mm — also written as 278x175x190 mm and correspond to the European L3 case size — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Kronobat PB-74.1B battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The PB-74.1B typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Kronobat PB-74.1B?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
