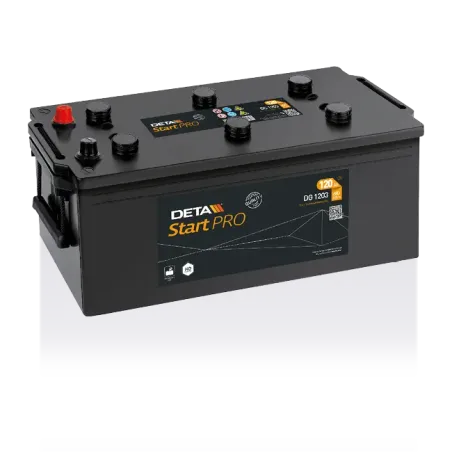

Deta DG1203 StartPRO · Truck battery 120Ah 680A

Specifications

BrandDeta
Part numberDG1203
Voltage (V)12
Capacity (C20)120Ah (c20)
Cold cranking amps (EN)680A
TechnologyLead-acid
Length513 mm
Width189 mm
Height223 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Deta DG1203 12V 120Ah 680A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
120 Ah C20
Cold cranking
680 A EN-1
Dimensions
513×189×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
32,5 kg
Model
DETA StartPRO

Where it fits: the Deta DG1203 is one of our truck batteries, belongs to our Deta batteries and by capacity it sits among our 120Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Truck battery Deta DG1203 12V 120Ah 680A

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Deta

Truck battery Deta DG1203 StartPRO 120Ah 680A 12V

12VVoltage
120AhCapacity
680ACold cranking
32.50kgWeight

The Deta DG1203 truck battery is rated at 12 V, 120 Ah and 680 A of cold cranking current (EN) from the StartPRO range, and is prepared for trucks, buses, tractors and heavy machinery. It measures 513 × 189 × 223 mm and the positive terminal on the left, the format sought by anyone replacing a 120 Ah battery in trucks.

In short: the Deta DG1203 (120 Ah, 680 A, 513 × 189 × 223 mm, positive terminal on the left). Verified equivalent alternatives: Varta M11 and Varta LFD140.

  • Heavy Duty construction for intensive professional use.
  • Conventional lead-acid: the most proven and economical technology.
  • Designed for 24 V installations with two batteries in series.
  • Powerful cold cranking for large-displacement diesel engines.

What the Deta DG1203 is for

Designed for trucks, buses, tractors and heavy machinery, the Deta DG1203 withstands constant chassis vibration and discharges during stops with active loads. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 32.50 kg and B00 hold-down.

Dimensions, polarity and mounting

In terms of format, the Deta DG1203 measures 513 × 189 × 223 mm (length × width × height) and weighs 32.50 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B00 hold-down, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

What Deta does differently

Deta combines German engineering with Exide's industrial capacity. Its Power, Senator and PowerPRO series cover everything from urban cars to construction machinery. We guarantee that every Deta arrives new, charged and with the manufacturer's full warranty.

The Deta DG1203: StartPRO range and conventional lead-acid technology

The StartPRO is the Deta range the DG1203 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.

Usage and maintenance tips

Keep the terminals clean and tight and the battery firmly secured against chassis vibration. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.

Official warranty

The Deta DG1203 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

When you get it and how to return it

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-DETA-DG1203

Data sheet

  • Brand
    DETA
  • Reference
    DG1203
  • Model
    DETA StartPRO
  • Voltage (V)
    12
  • Length
    513 mm
  • Width
    189 mm
  • Height
    223 mm
  • Weight
    32.50 Kgs
  • Technology
    Lead-acid
  • EAN
    3661024026468
  • Terminal layout
    Positive terminal on the left
  • Hold-down
    B00
  • Cold cranking amps (EN)
    680A
  • Capacity (C20)
    120Ah (c20)
  • Case type
    D04

Specific References

  • EAN13
    3661024026468
  • MPN
    DG1203

Download

Datasheet Deta DG1203 (English)

PDF datasheet of the Deta DG1203 battery – English

Download (163.79KB)

Codes and references Deta DG1203

Brand Deta
Manufacturer range DETA StartPRO
Manufacturer part number (MPN) DG1203
EAN-13 barcode 3661024026468
Dimensions (length × width × height) 513 × 189 × 223 mm (513x189x223)

Deta DG1203: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Deta DG1203 is interchangeable with these equivalent references: M11 (Varta), LFD140 (Varta), K7 (Varta), I8 (Varta), TF1453 (Tudor). Higher-technology alternatives that can replace it: TE1403 (Tudor), EE1403 (Exide), EP1200 (Exide).

Product Specifications Technology Price
Deta DG1203 Deta DG1203 This battery 12V 120Ah 680A Lead-acid
Varta K7 Varta K7 Varta equivalent 12V 145Ah 800A Lead-acid €140.90 +€140.90

Deta DG1203 vs Varta K7

Varta equivalent · +€140.90

Same case and same fitting as the DG1203, from Varta. Compared with the DG1203 it has 25 Ah more and 120 A of cold cranking more. It costs €140.90 more. If you want to save or the DG1203 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

DG1203K7
Capacity120 Ah145 Ah
Cold cranking (EN)680 A800 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€140.90
Varta LFD140 Varta LFD140 Varta equivalent 12V 140Ah 800A Lead-acid €186.99 +€186.99

Deta DG1203 vs Varta LFD140

Varta equivalent · +€186.99

Same case and same fitting as the DG1203, from Varta. Compared with the DG1203 it has 20 Ah more and 120 A of cold cranking more. It costs €186.99 more. If you want to save or the DG1203 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

DG1203LFD140
Capacity120 Ah140 Ah
Cold cranking (EN)680 A800 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€186.99
Varta M11 Varta M11 Varta equivalent 12V 154Ah 1150A Lead-acid €166.10 +€166.10

Deta DG1203 vs Varta M11

Varta equivalent · +€166.10

It is the verified Varta equivalent for the DG1203 tray. Compared with the DG1203 it has 34 Ah more and 470 A of cold cranking more. It costs €166.10 more. Decide by price, brand preference and availability: both fit and crank the same.

DG1203M11
Capacity120 Ah154 Ah
Cold cranking (EN)680 A1150 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€166.10
Exide EP1200 Exide EP1200 Upgrade: AGM 12V 140Ah 700A AGM Upgrade €269.80 +€269.80

Deta DG1203 vs Exide EP1200

Upgrade: AGM · +€269.80

It is the AGM of the same case: more cycles, more cranking and better resistance to power draw at standstill than the DG1203. Compared with the DG1203 it has 20 Ah more and 20 A of cold cranking more. It costs €269.80 more. Essential if the vehicle requires AGM from the factory or draws a lot with the engine off; in conventional use the DG1203 does the job and AGM adds service life.

DG1203EP1200
Capacity120 Ah140 Ah
Cold cranking (EN)680 A700 A
TechnologyLead-acidAGM
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€269.80
Varta I8 Varta I8 Varta equivalent 12V 120Ah 680A Lead-acid €138.50 +€138.50

Deta DG1203 vs Varta I8

Varta equivalent · +€138.50

The Varta alternative that fits where the DG1203 goes, with the same polarity. Compared with the DG1203 it has the same Ah and cranking power. It costs €138.50 more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

DG1203I8
Capacity120 Ah120 Ah
Cold cranking (EN)680 A680 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€138.50
Tudor TF1453 Tudor TF1453 Tudor equivalent ★ 5,0 12V 145Ah 900A Lead-acid €144.99 +€144.99
Tudor TE1403 Tudor TE1403 Upgrade: EFB 12V 140Ah 800A EFB Upgrade €235.90 +€235.90
Exide EE1403 Exide EE1403 Upgrade: EFB 12V 140Ah 800A EFB Upgrade €224.70 +€224.70

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 120Ah batteries: We stock 24 models of 120 Ah to compare by price, technology and cold cranking: see all 120Ah batteries. Same size (513 × 189 × 223 mm): batteries of 513 × 189 × 223 mm.

Recommended accessories — complement the Deta DG1203 with a charger or tester

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How many years does this battery last?

There is no exact figure: for a battery such as the Deta DG1203 (conventional), a reasonable guide is 4 to 6 years in normal lorry use. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of truck and whether it has Start-Stop.

What size is this battery?

Before buying, measure the space in your truck: one extra millimetre can stop the hold-down clamp from closing. The Deta DG1203 takes up 513×189×223 mm (length, width and height, terminals included).

On which side is the positive of the DG1203 model?

It has the positive on the left (polarity). If your current battery has its positive on the other side, this one is not suitable without longer cables or a reconfigured system (short-circuit risk). Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive.

Does this battery fit my truck?

The DG1203 typically fits a wide range of European vehicles thanks to its standard DIN case format. For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The truck manufacturer's specifications always take priority over our tables.

What are the equivalents of the DG1203 model?

Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the DG1203, 120 Ah (680 A cranking). Technology matters too: in Start-Stop trucks, an EFB cannot be replaced with a conventional battery. The options at the same level are in the "Equivalents" section of this page.
