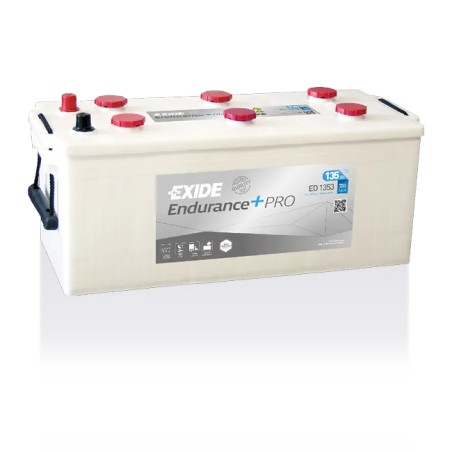

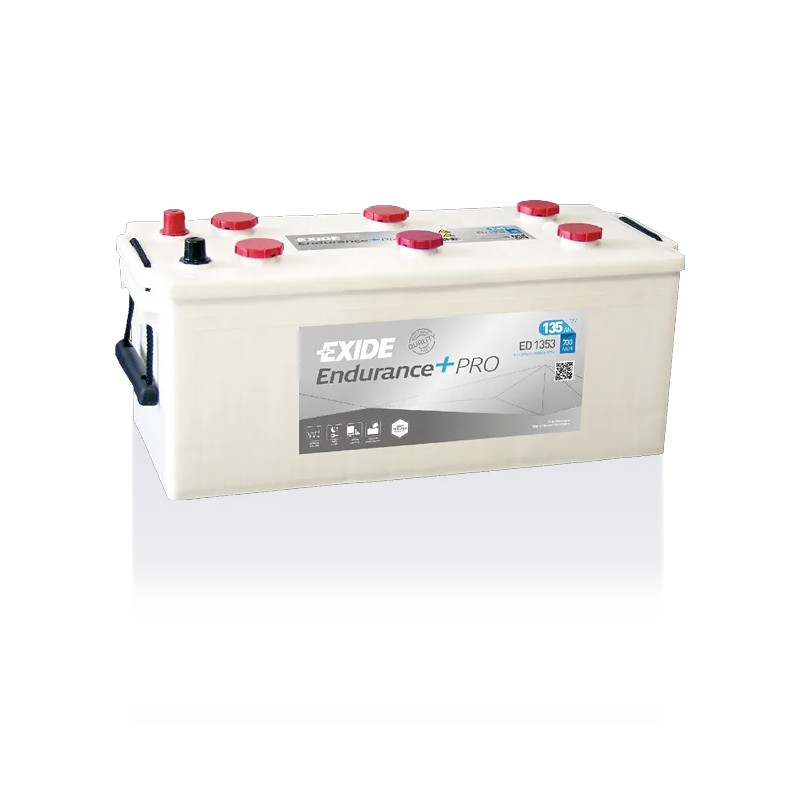

Exide ED1353 · Truck battery 12V 135Ah 700A

Batería Exide ED1353 135Ah - 1
search
  • Batería Exide ED1353 135Ah - 1

Specifications

BrandEXIDE
Part numberED1353
Voltage (V)12
Capacity (C20)135Ah (c20)
TechnologyFlooded
Length513.00 mm
Width189.00 mm
Height223.00 mm
Weight39.50 Kgs
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Exide ED1353 12V 135Ah 700A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
135 Ah C20
Cold cranking
700 A EN-1
Dimensions
513×189×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
39,5 kg
Model
EXIDE Endurance+PRO Gel
Free quote, no obligation

Request a quote for your Truck battery Exide ED1353 12V 135Ah 700A

  • Reply in under 24 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Exide

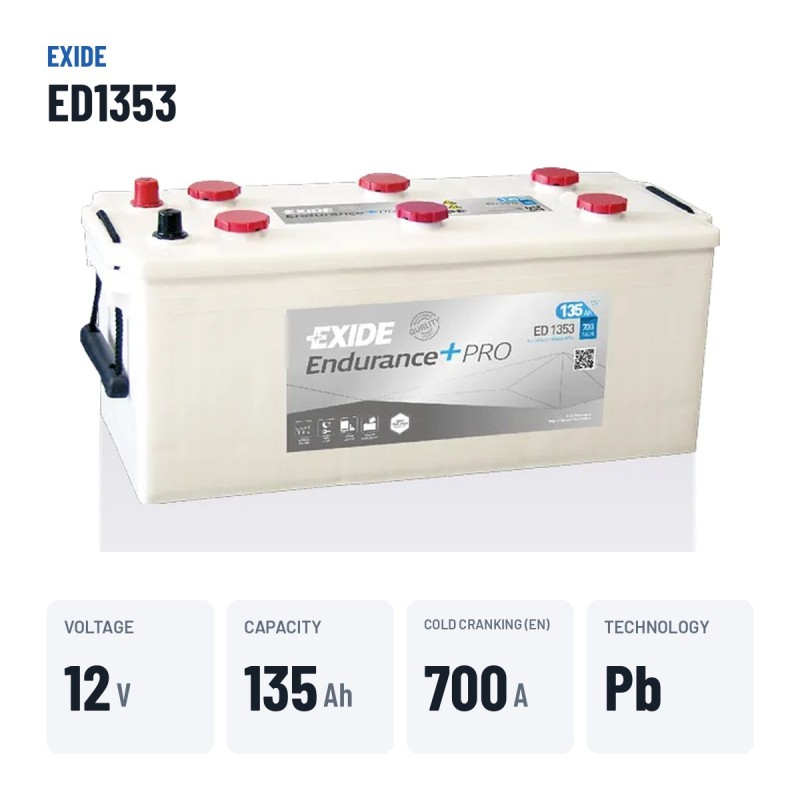

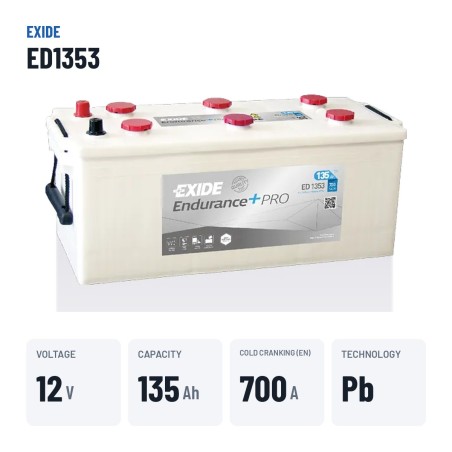

Truck battery Exide ED1353 Endurance+PRO 135Ah 700A 12V

12VVoltage
135AhCapacity
700ACold cranking
39.50kgWeight

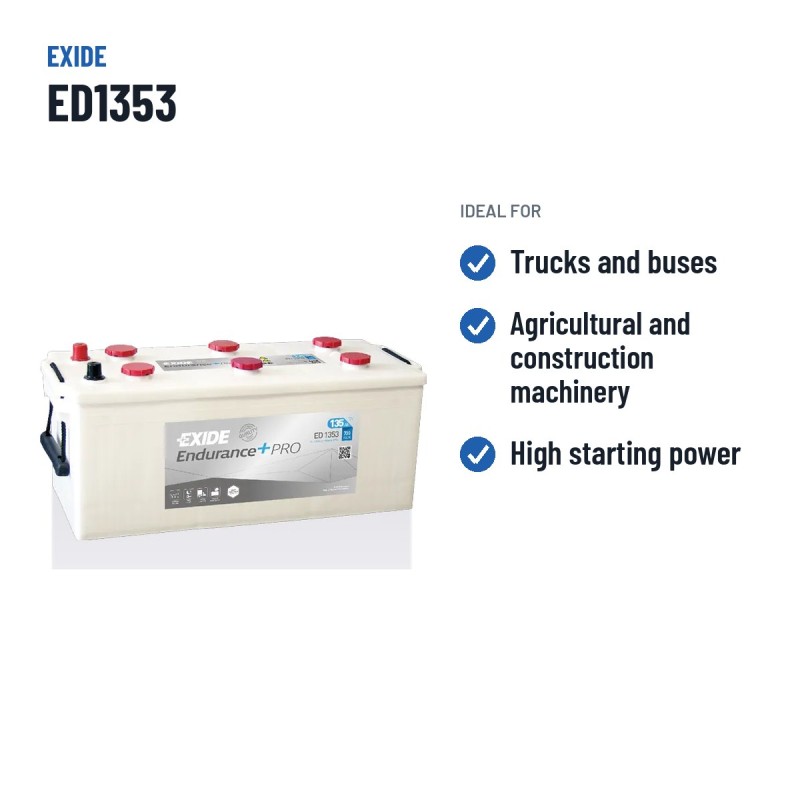

The Exide ED1353 with conventional lead-acid technology delivers 135 Ah at 12 V and 700 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. It replaces the original battery without adaptation in trucks with a 513 × 189 × 223 mm format: same 135 Ah capacity and the positive terminal on the left.

  • Conventional lead-acid: the most proven and economical technology.
  • Heavy Duty construction for intensive professional use.
  • Powerful cold cranking for large-displacement diesel engines.
  • Designed for 24 V installations with two batteries in series.

What the Exide ED1353 is for

With 135 Ah, the Exide ED1353 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 39.50 kg, EN taper post terminals and B0 hold-down.

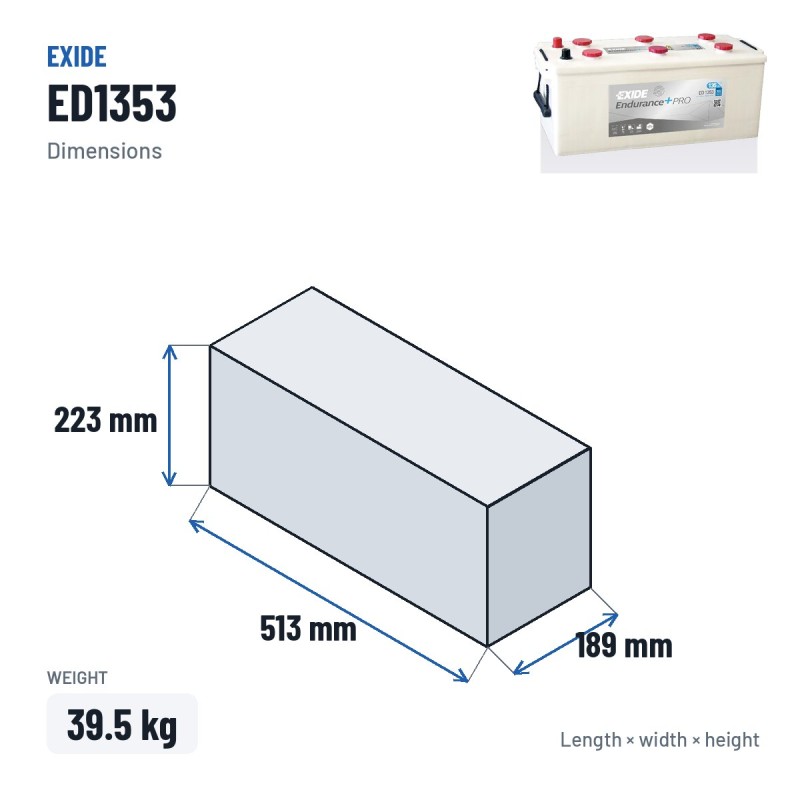

Dimensions, polarity and mounting

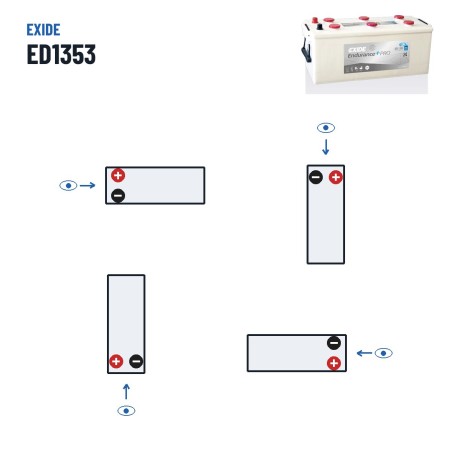

It has external dimensions of 513 × 189 × 223 mm and weighs 39.50 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

Exide: the maker behind the ED1353

With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.

The Exide ED1353: Endurance+PRO range and conventional lead-acid technology

The Endurance+PRO is the Exide range the ED1353 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.

Care and maintenance

In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing. During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery.

Official warranty

The Exide ED1353 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

When you get it and how to return it

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

BCOM-EXIDE-ED1353

Data sheet

Brand
EXIDE
Reference
ED1353
Model
EXIDE Endurance+PRO
Voltage (V)
12
Length
513.00 mm
Width
189.00 mm
Height
223.00 mm
Weight
39.50 Kgs
Technology
Flooded
EAN
3661024035217
Terminal layout
Positive terminal on the left

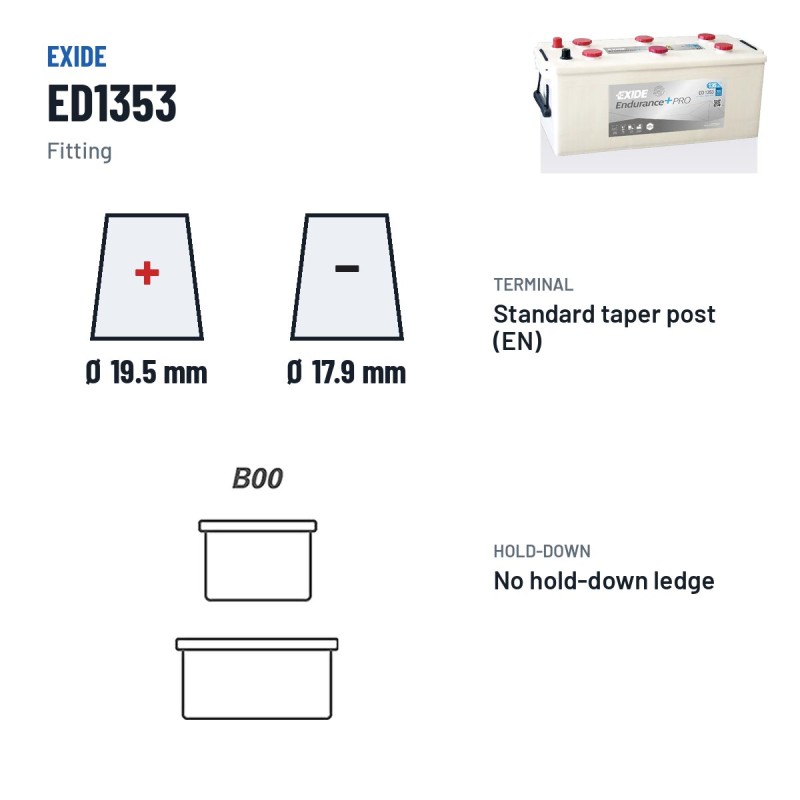

Terminal type
EN taper post
Hold-down
B0
Cold cranking amps (EN)
700A
Capacity (C20)
135Ah (c20)
Case type
D04

Specific References

EAN13
3661024035217
MPN
ED1353

Codes and references Exide ED1353

Brand Exide · see all batteries Exide
Manufacturer range EXIDE Endurance+PRO
Manufacturer reference (MPN) ED1353
EAN-13 barcode 3661024035217
Dimensions (length × width × height) 513 × 189 × 223 mm (513x189x223)

Comparison: Exide ED1353 vs equivalents — alternatives with the same dimensions, Ah and CCA

The Exide ED1353 is interchangeable with these equivalent references: I8 (Varta), EG1203 (Exide), TG1203 (Tudor), M11 (Varta), LFD140 (Varta).

Product Specifications Technology Price
Exide ED1353 Exide ED1353 This battery 12V 135Ah 700A Lead-acid
Varta I8 Varta I8 ★ 4,8 12V 120Ah 680A Lead-acid €138.50
Exide EG1203 Exide EG1203 12V 120Ah 680A Lead-acid €188.20
Tudor TG1203 Tudor TG1203 12V 120Ah 680A Lead-acid €188.20
Varta M11 Varta M11 ★ 4,8 12V 154Ah 1150A Lead-acid €166.10
Varta LFD140 Varta LFD140 ★ 4,8 12V 140Ah 800A Lead-acid €181.40

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Recommended accessories — complement the Exide ED1353 with a charger or tester

How to change the battery

Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.

⏱ 30-60 min🛠 Tools: 13 mm or 17 mm wrench (depending on make) · Protective gloves
  1. Step 1. Prepare the vehicle

    Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.

  2. Step 2. Locate the battery

    Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery (two people)

    Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify the engine starts

    Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.

Frequently asked questions

How do I fit the ED1353 model in my truck?

In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

What is the service life of the ED1353 model?

Expected lifespan of the Exide ED1353 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the measurements of the ED1353 model?

Dimensions (length × width × height) are 513×189×223 mm — also written as 513x189x223 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

Will the Exide ED1353 battery fit my truck?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The ED1353 typically fits a wide range of European vehicles thanks to its standard DIN case format.

Which batteries are equivalent to the Exide ED1353?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
