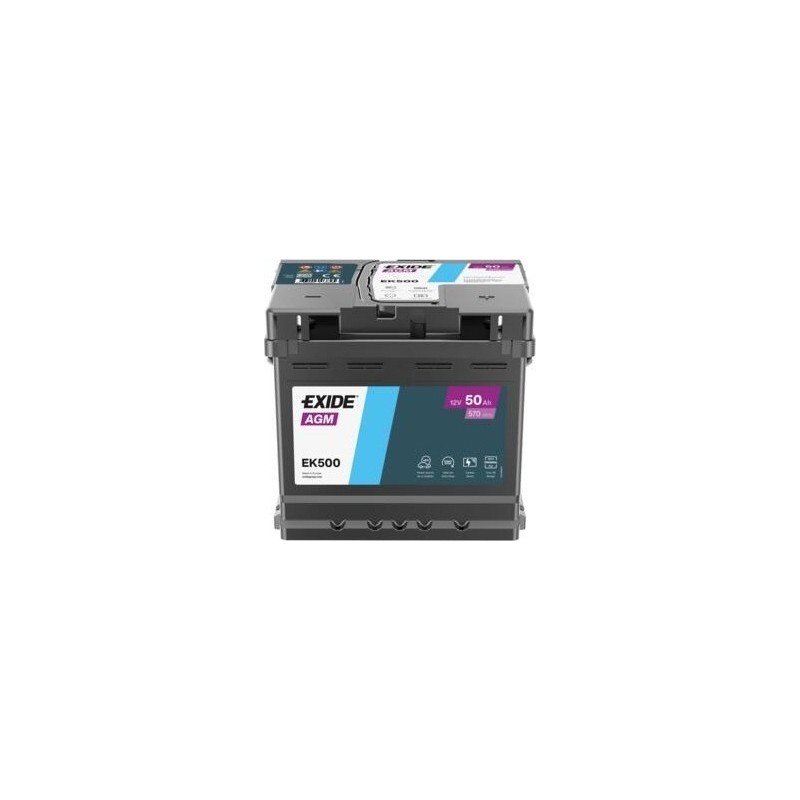

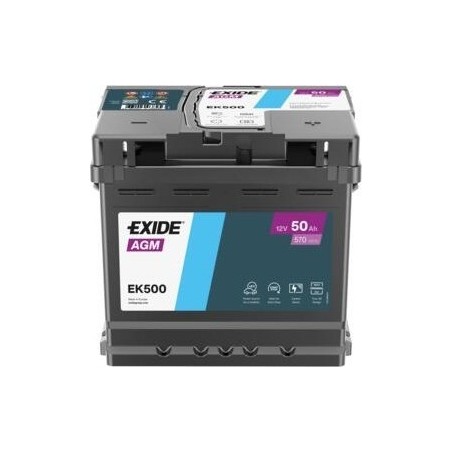

Exide EK500 · Start-Stop battery 50Ah 570A AGM

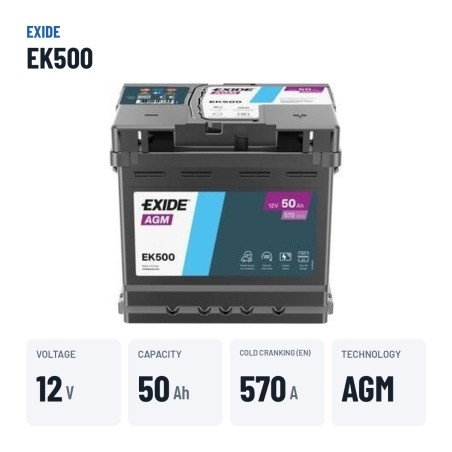

Specifications
| Brand | EXIDE |
|---|---|
| Part number | EK500 |
| Capacity (C20) | 50Ah (c20) |
| Cold cranking amps (EN) | 570A |
| Technology | AGM |
| Length | 207mm |
| Width | 175mm |
| Height | 190mm |
| Weight | 15 Kg |
Exide EK500 50Ah 570A is a battery designed specifically for Start-Stop vehicles. Withstands up to 3× more start cycles than a conventional battery and maintains performance with BMS and regenerative braking systems.
Why this Start-Stop battery?
- Designed for Start-Stopbuilt for the intensive cycling of modern cars
- 2 to 3 times longer lifevs fitting a cheap conventional battery
- Fast recoveryrecharges in minutes once the engine is running
Where it fits: the Exide EK500 is one of our car batteries, belongs to our Exide batteries and by capacity it sits among our 50Ah batteries.
The Exide EK500 in practice
Which cars do our customers fit it to?
Mostly to Kia RIO and Fiat 500 (2 orders with the vehicle identified). Always confirm compatibility with your registration: tray size and terminal layout change between versions.
When not to choose it
It is an AGM: it replaces an AGM, an EFB or a conventional battery, but not the other way round. Do not choose it if dimensions or polarity differ from the original, even if the Ah match.

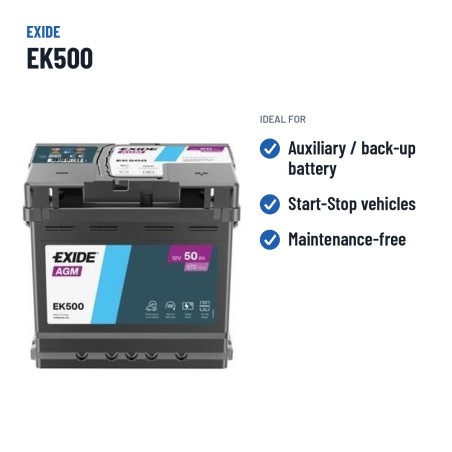

Auxiliary battery Exide EK500 50Ah 570A 12V
The Exide EK500 with AGM technology is the 50 Ah, 12 V support battery for the auxiliary network of cars with advanced Start-Stop and heavy electronics. Measuring 207 × 175 × 190 mm and the positive terminal on the right, it is the direct replacement for vehicles with an auxiliary battery fitted from the factory with a 50 Ah battery of this format.
In short: the Exide EK500 (50 Ah, 570 A, 207 × 175 × 190 mm, positive right). It is an AGM battery for cars with Start-Stop and regenerative braking; if your car came with AGM, always replace it with another AGM.
- Supports advanced Start-Stop systems.
- Direct replacement for the original auxiliary battery.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Protects the main battery and the alternator.
What the Exide EK500 is for

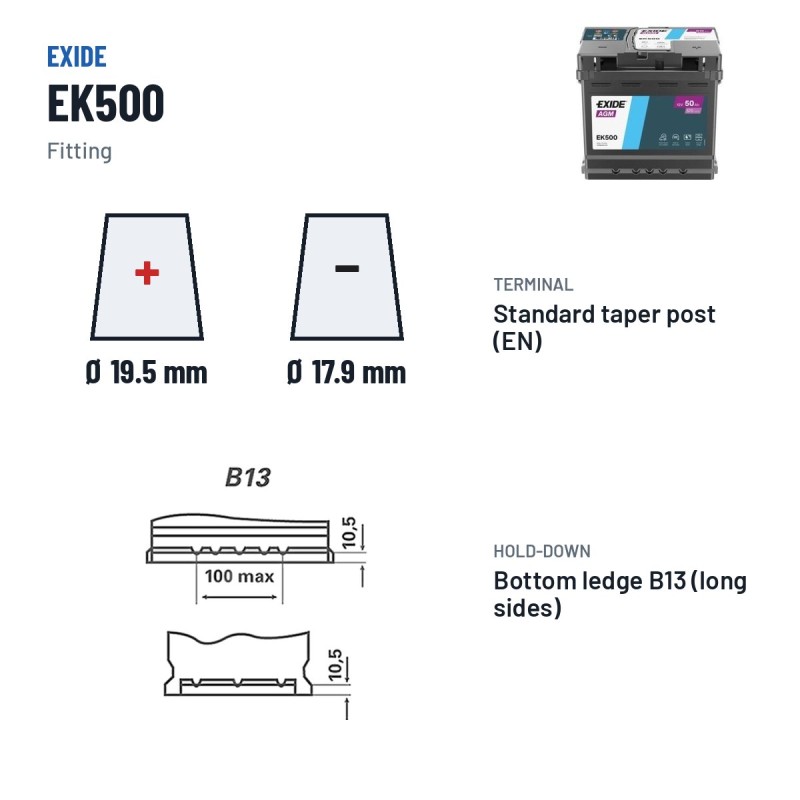

As an auxiliary battery, the Exide EK500 works alongside the main one; replace it when the vehicle reports a fault in the support network. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 15 kg, EN taper post terminals and B13 hold-down.
Technology inside the Exide EK500
The EK500 is one of the Exide references for this type of use; it shares the same manufacturing and quality-control criteria as the rest of the brand's catalogue.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Will it fit your current battery tray?
It has external dimensions of 207 × 175 × 190 mm and weighs 15 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Exide: the maker behind the EK500
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Replace it with the same technology and capacity as the original.
Warranty and coverage
The Exide EK500 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
Data sheet
-
Voltage (V)
-
Length207mm
-
Width175mm
-
Height190mm
-
Weight15 Kg
-
TechnologyAGM
-
EAN3661024038256
-
Terminal layoutPositive right
-
Terminal typeEN taper post
-
Hold-downB13
-
Cold cranking amps (EN)570A
-
Capacity (C20)50Ah (c20)
Specific References
-
EAN133661024038256
-
MPNEK500
Codes and references Exide EK500
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer part number (MPN) | EK500 |
| EAN-13 barcode | 3661024038256 |
| European case size (EN 50342-2) | L1 |
| Dimensions (length × width × height) | 207 × 175 × 190 mm (207x175x190) |
Exide EK500: best-selling equivalent or higher-spec batteries
The Exide EK500 is interchangeable with these equivalent references: A9 (Varta).
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Exide
EK500
This battery
|
50Ah 570A | AGM | 108,60 € | |||||||||||||||||||||
Varta
A9
Varta equivalent
|
12V 50Ah 540A | AGM | 118,90 € +10,30 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| EK500 | A9 | |
|---|---|---|
| Capacity | 50 Ah | 50 Ah |
| Cold cranking (EN) | 570 A | 540 A |
| Technology | AGM | AGM |
| Dimensions (mm) | 207 × 175 × 190 | 207 × 175 × 190 |
| Positive terminal | Positive right | Positive terminal on the right |
| Price | 108,60 € | 118,90 € |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Other 50Ah batteries: We stock 41 models of 50 Ah to compare by price, technology and cold cranking: see all 50Ah batteries. Same size (207 × 175 × 190 mm): batteries of 207 × 175 × 190 mm.
Recommended accessories
Fitting it yourself? Step-by-step guide to replacing the battery →
Frequently asked questions
Is the Exide EK500 an AGM battery and what are the benefits of AGM?
Yes: the EK500 from Exide uses AGM (Absorbent Glass Mat) technology, a sealed lead-acid battery whose electrolyte soaks a glass-fibre mat. It is the technology required by cars with advanced Start-Stop and regenerative braking. It withstands more cycles than a conventional battery and copes better with heat.
Is the Exide EK500 battery suitable for Start-Stop?
AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. The Exide EK500 is AGM, so yes, it is designed for Start-Stop cars. Basic Start-Stop: EFB. Start-Stop with regenerative braking: AGM, which withstands more cycles. Check the handbook for the technology the car manufacturer requires. Registering it via OBD is advisable on most modern cars (the alternator then applies the optimum profile), but it works from the start.
What should I bear in mind when fitting this Start-Stop battery?
On cars with Start-Stop or BMS, registering the battery via OBD makes the alternator charge with the correct profile. Mind the IBS sensor on the negative terminal too: loosen the cable nut, not the sensor. And the replacement must be the same technology (AGM or EFB) or higher: a conventional battery fails within months. On most cars it is a 15-30 minute job needing only a 10 mm spanner (up to twice as long when the battery is under a seat or in the boot). Steps: 1) switch off and remove the key; 2) find the battery (bonnet, boot or under a seat); 3) undo the negative (−), then the positive (+); 4) remove the clamp and the old battery; 5) fit the new one facing the same way (positive on the right) to match the polarity; 6) connect the positive (+) and finally the negative (−). If the car manufacturer lists any extra step in the handbook, follow it. More detail in how to replace the car battery.
How long does the Exide EK500 battery last?
As a rough estimate, the Exide EK500 typically lasts 5 to 8 years in mild-climate car use with Start-Stop; it is a guide figure, not a guaranteed period. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the car itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.
What are the measurements of the EK500 model?
It measures 207×175×190 mm in length × width × height, with the terminals included in the height; that is the European L1 case size. Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close.

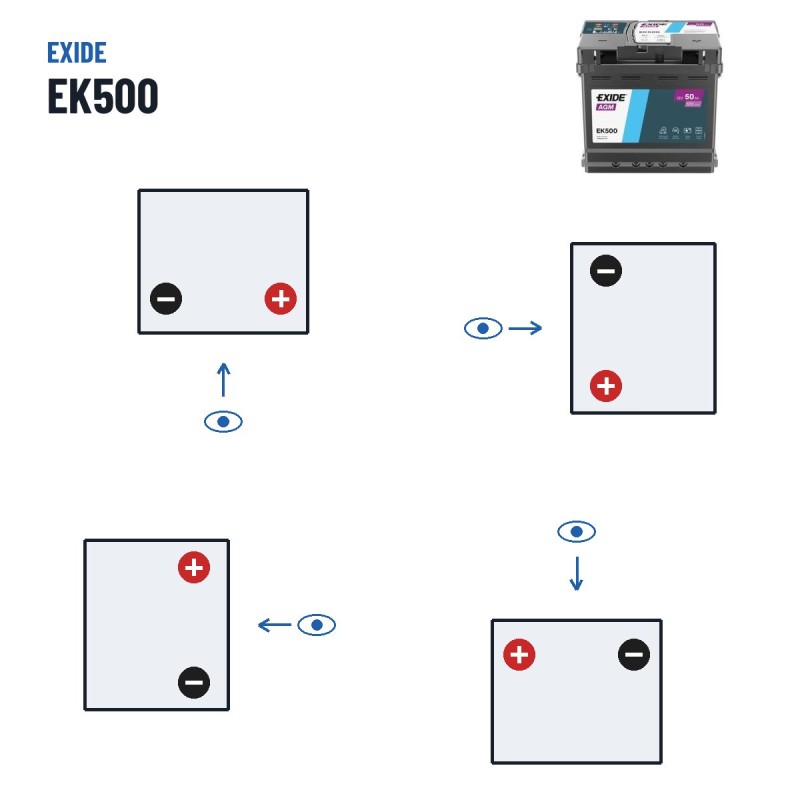

On which side is the positive of the EK500 model?
Polarity of the Exide EK500: positive on the right. If your current battery has its positive on the other side, this one is not suitable without longer cables or a reconfigured system (short-circuit risk). Seen from the front, terminals towards you, the positive (+) is the post with the red ring.
Is the EK500 valid for my vehicle?
Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your car is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The EK500 typically fits a wide range of European vehicles thanks to its standard DIN case format. In every case, the car manufacturer's specifications (owner's handbook) take precedence.
What are the equivalents of the EK500 model?
A direct equivalent needs what this EK500 offers: 207×175×190 mm, positive on the right, the same Ah and CCA and AGM technology. Technology matters too: in Start-Stop cars, an EFB cannot be replaced with a conventional battery. The options at the same level are in the "Equivalents" section of this page.
Exide EK500 or Varta A9: which one to choose?
It is the verified Varta equivalent for the EK500 tray. Compared with the EK500 it has 30 A of cold cranking less. It costs 10,30 € more. Decide by price, brand preference and availability: both fit and crank the same.
Why choose AGM instead of EFB for my Start-Stop car?
Cold cranking current (EN) of the Exide EK500: 570 A. AGM means Absorbent Glass Mat: the electrolyte soaks a glass-fibre mat (no spills), and an AGM battery lasts many more cycles than a conventional one. Hence it is recommended for advanced Start-Stop with regenerative braking, such as BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO or Volvo i-Stop, and it handles tilting, vibration and extreme temperatures better than an EFB.
Is there anything to do after replacing a Start-Stop battery?
The alternator detects the new battery and adapts the charge automatically, so on most cars it is not compulsory. Even so, it is advisable to register it via OBD so charging is optimum from the first minute and the battery lasts longer, particularly on BMW, Mercedes, Audi, Volvo or Land Rover, with more sophisticated BMS. Without registration the car starts normally; the alternator simply takes a few days to adjust the profile. Any workshop with an OBD scanner does it in a few minutes; DIY, with VCDS or Carista (VAG group), Bimmercode (BMW) or iCarsoft.
