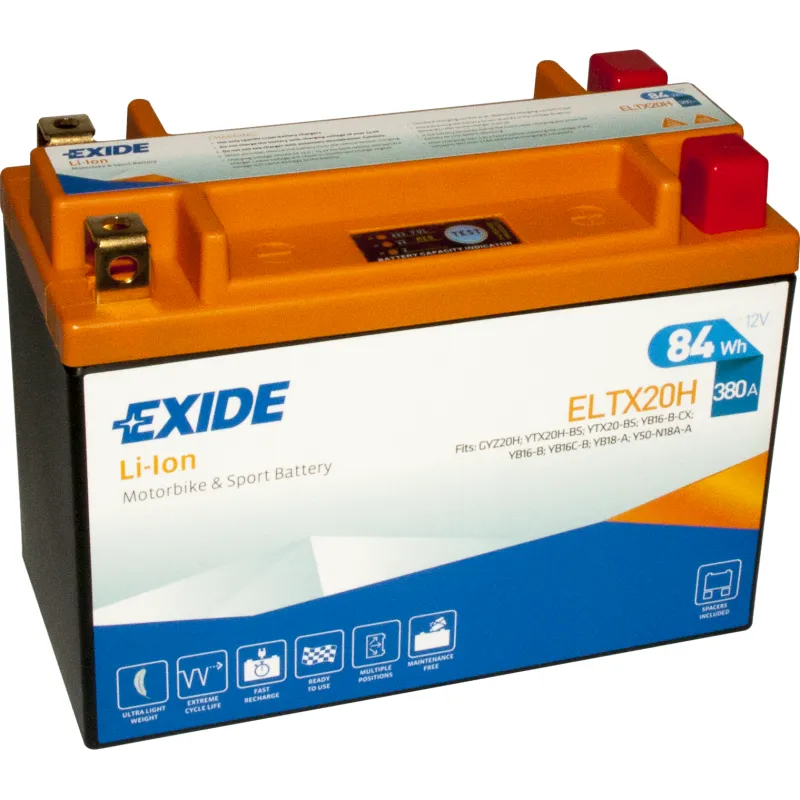

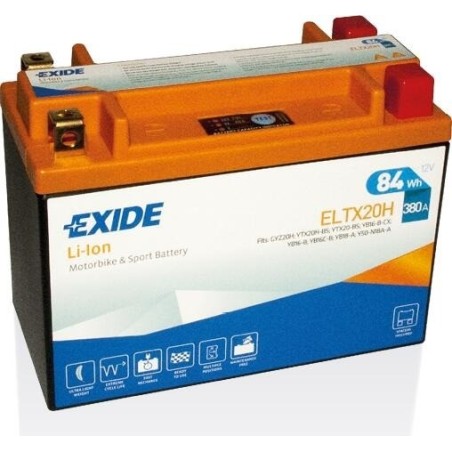

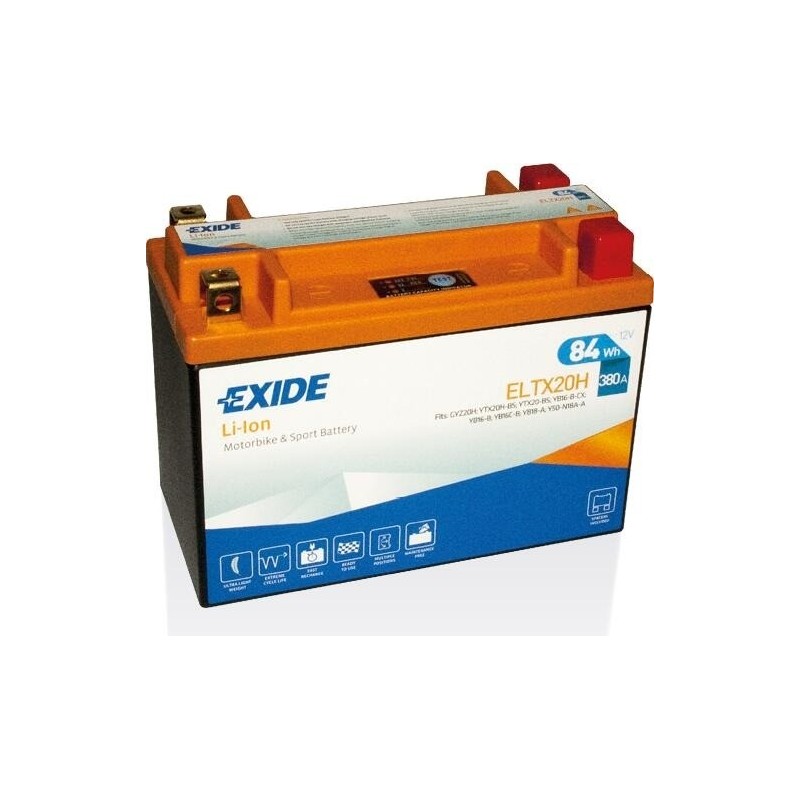

Exide ELTX20H · Motorcycle battery 12V 7Ah 380A Li-Ion
Specifications
| Brand | EXIDE |
|---|---|
| Part number | ELTX20H |
| Voltage (V) | 12 |
| Capacity (C20) | 7Ah (c20) |
| Technology | Li-Ion |
| Length | 175.00 cm |
| Width | 87.00 cm |
| Height | 130.00 cm |
| Weight | 1.30 Kgs |
€190.40
VAT included
Exide ELTX20H 12V 7Ah 380A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
ELTX20H
Voltage
12 V
Capacity
7 Ah
Cold cranking
380 A
Dimensions
175×90×130 mm
Technology
Litio (LiFePO4)
Polarity
Positive on the left
Weight
1,3 kg
Model
EXIDE MOTO LITHIUM
Mfr. reference
ELTX20H

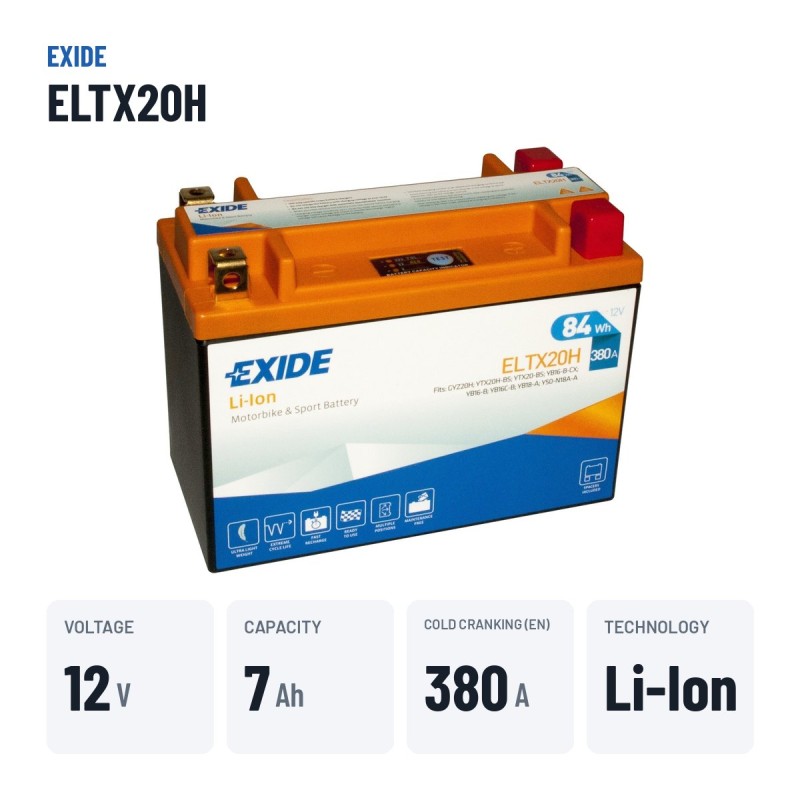

Lithium motorcycle battery Exide ELTX20H Moto Litio 7Ah 380A 12V
12VVoltage
7AhCapacity
380ACold cranking
1.30kgWeight
The Exide ELTX20H is a lithium battery rated at 12 V and 380 A of cold cranking current (EN) for motorcycles and quads looking to save weight and gain cranking power. It replaces the original battery without adaptation in motorcycles with a 175 × 87 × 130 mm format: same 7 Ah capacity and the positive terminal on the left.
- Minimal self-discharge: ready to use all season.
- Thousands of cycles of service life.
- LiFePO4 lithium: minimal weight and almost zero self-discharge.
- Up to 70% less weight than an equivalent lead-acid battery.

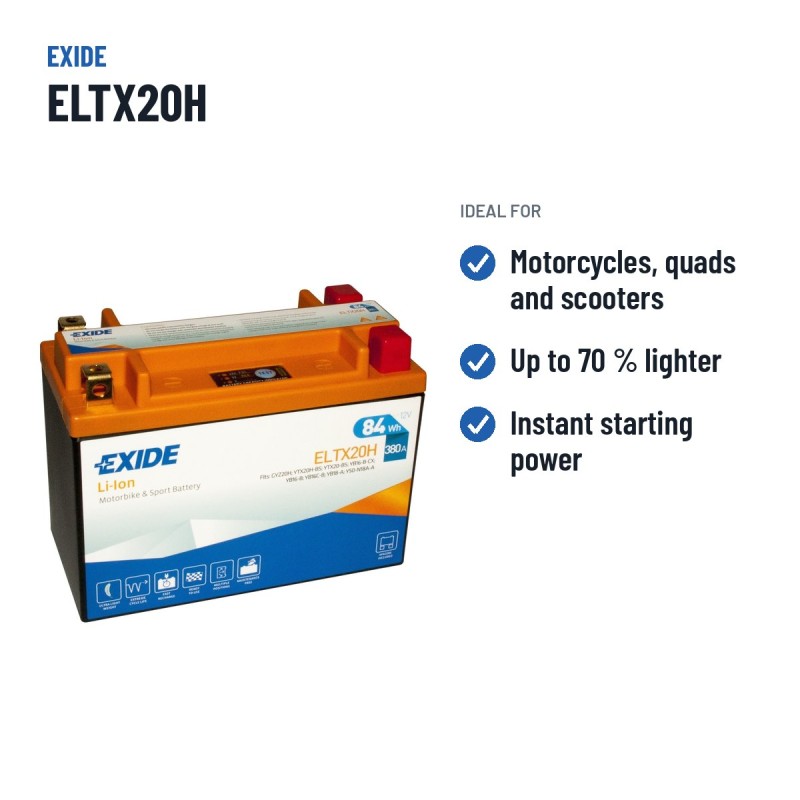

What the Exide ELTX20H is for

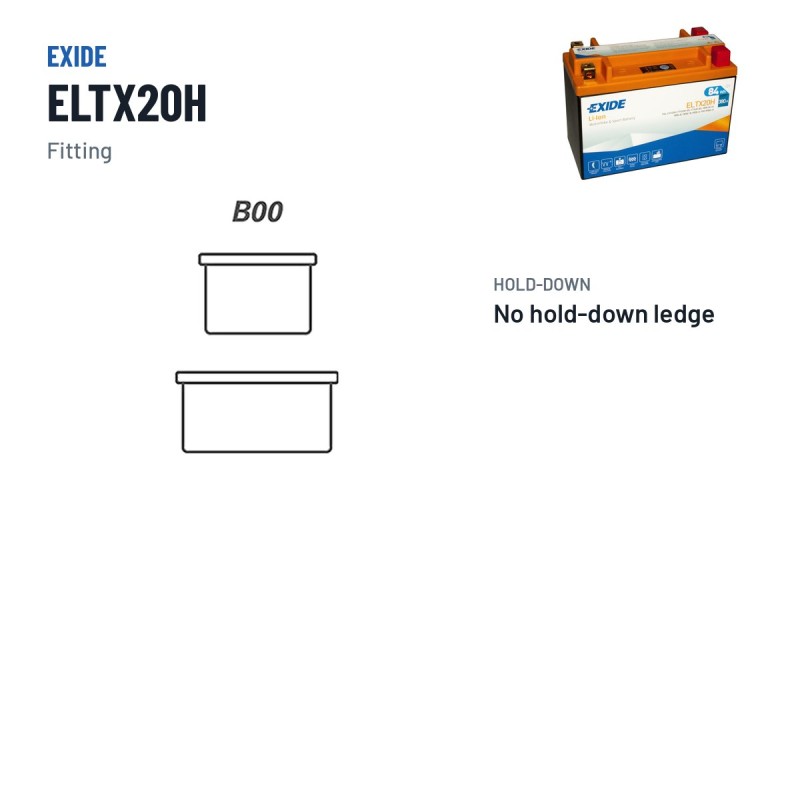

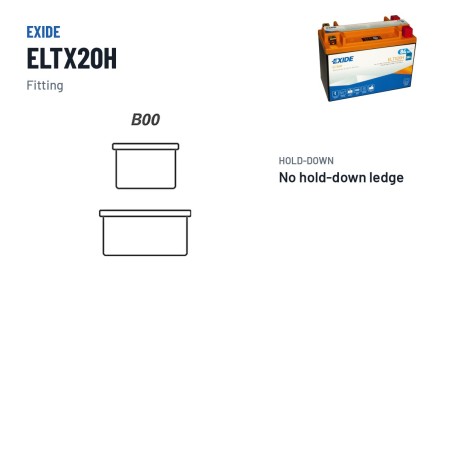

With its reduced weight, the Exide ELTX20H is a popular upgrade on sport, off-road and restored classic bikes looking to shed kilos. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 1.30 kg, M12 terminals and B0 hold-down.
The Exide ELTX20H: Moto Litio range and LiFePO4 lithium technology
The ELTX20H is part of the Exide Moto Litio range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Lithium iron phosphate (LiFePO4) offers far higher energy density than lead: the battery weighs a fraction, hardly self-discharges and withstands thousands of cycles. A built-in BMS monitors voltage, temperature and cell balance.
Will it fit your current battery tray?

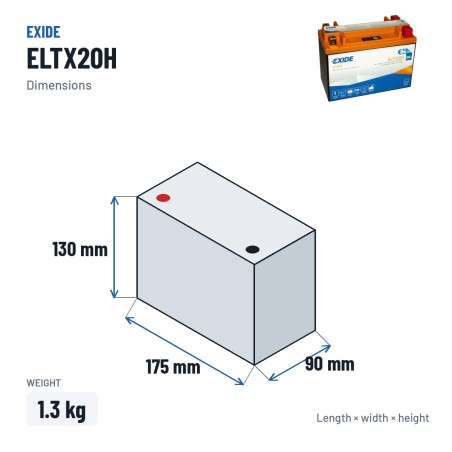

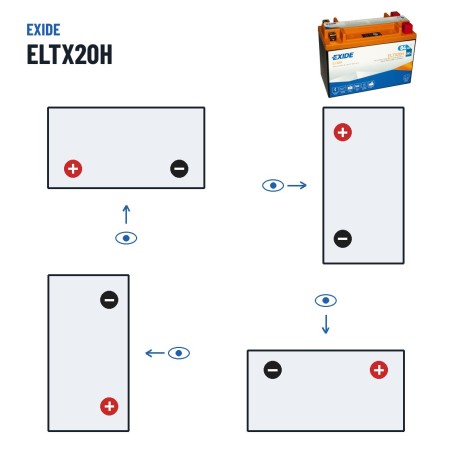

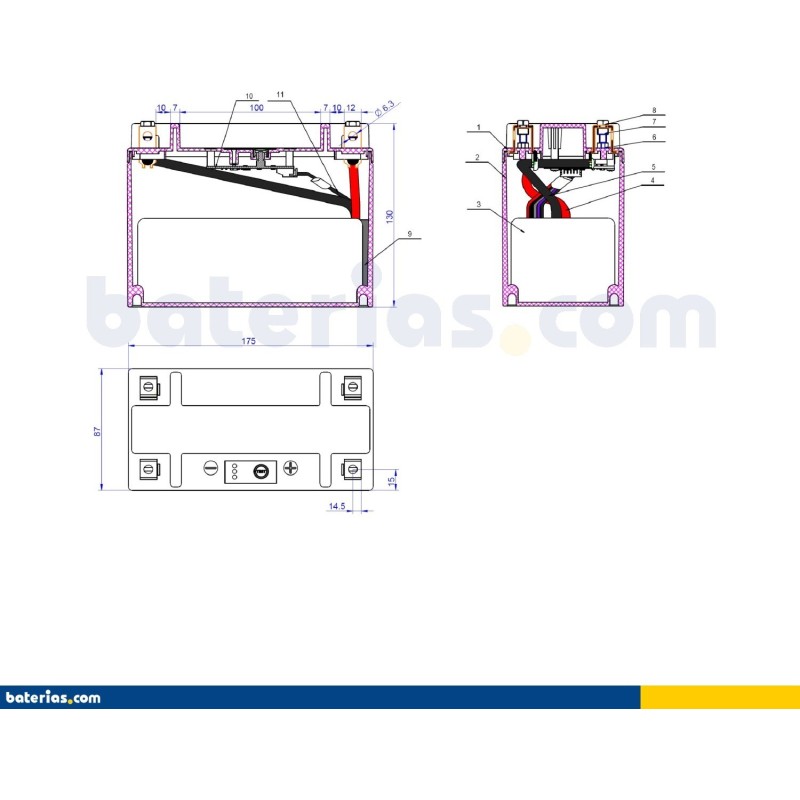

In terms of format, the Exide ELTX20H measures 175 × 87 × 130 mm (length × width × height) and weighs 1.30 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and M12 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Exide batteries
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
How to make it last longer
Check that the bike's regulator does not exceed 14.6 V; if the vehicle stands for long periods, an occasional maintenance charge is enough. Always use a LiFePO4-compatible charger and avoid the desulphation modes of lead-acid chargers.
Manufacturer's warranty
The Exide ELTX20H comes with the manufacturer's official warranty. Always charge with a LiFePO4-compatible charger: a lead-acid charger with a desulphation phase can damage it and void the warranty.
Shipping, delivery and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-ELTX20H

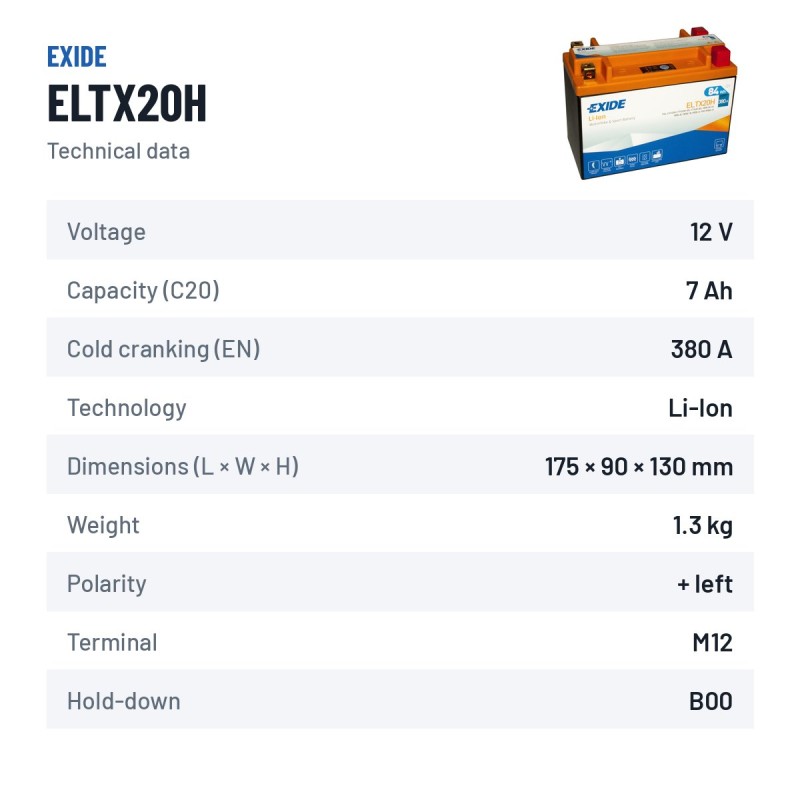

Data sheet
- Brand
- EXIDE
- Reference
- ELTX20H
- Model
- EXIDE MOTO LITHIUM
- Voltage (V)
- 12
- Length
- 175.00 cm
- Width
- 87.00 cm
- Height
- 130.00 cm
- Weight
- 1.30 Kgs
- Technology
- Li-Ion
- EAN
- 3661024036856
- Terminal layout
- Positive terminal on the left
- Terminal type
- M12
- Hold-down
- B0
- Cold cranking amps (EN)
- 380A
- Capacity (C20)
- 7Ah (c20)
- Energy (Wh)
- 84
Specific References
- EAN13
- 3661024036856
- MPN
- ELTX20H
Codes and references Exide ELTX20H
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MOTO LITHIUM |
| Manufacturer reference (MPN) | ELTX20H |
| EAN-13 barcode | 3661024036856 |
| Dimensions (length × width × height) | 175 × 90 × 130 mm (175x90x130) |
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I fit the ELTX20H model in my motorcycle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide ELTX20H battery last?
Expected lifespan of the Exide ELTX20H is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 175×90×130 mm — also written as 175x90x130 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the ELTX20H valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The ELTX20H typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide ELTX20H?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
