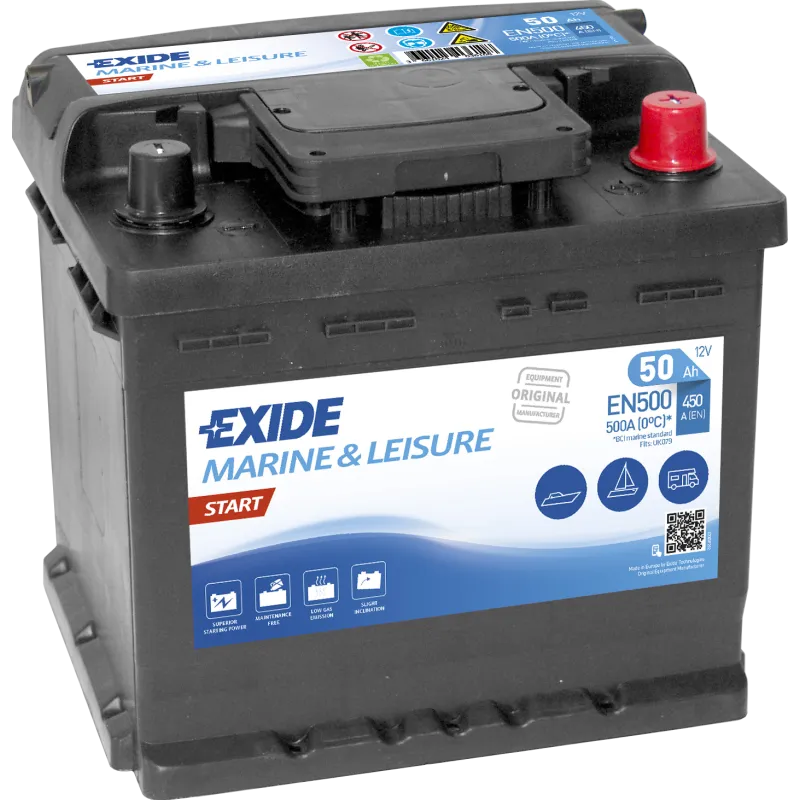

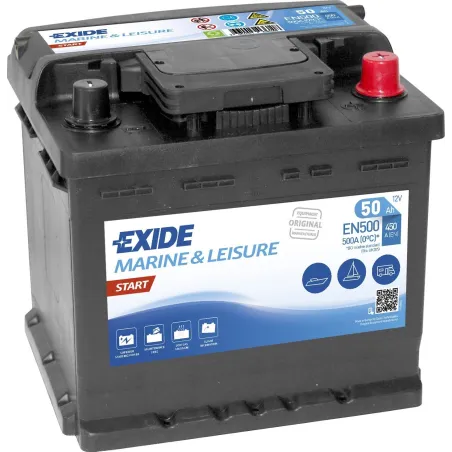

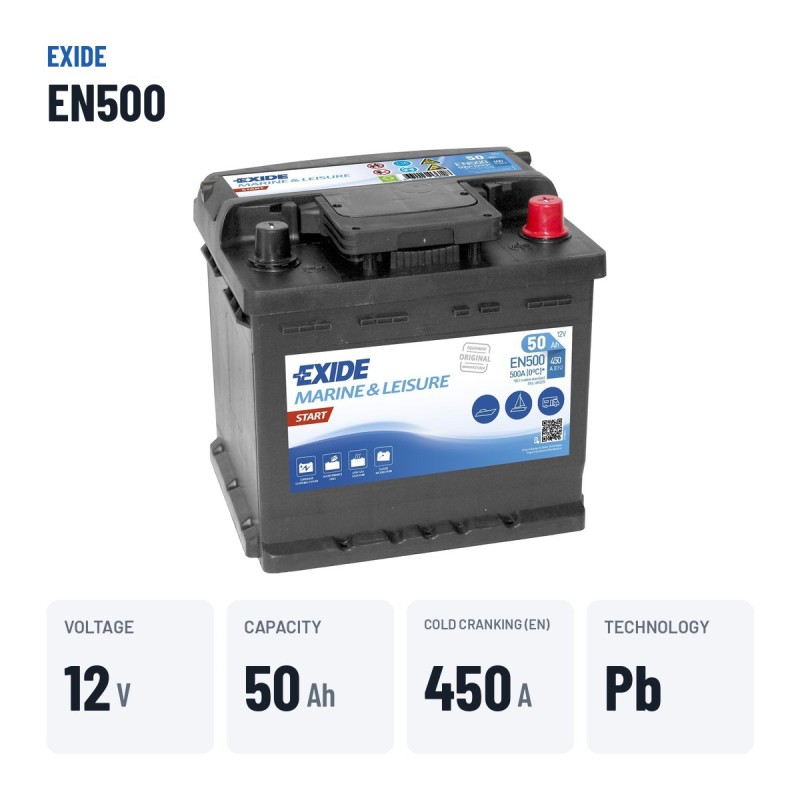

Exide EN500 · Marine battery 12V 50Ah 450A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EN500 |
| Voltage (V) | 12 |
| Capacity (C20) | 50Ah (c20) |
| Technology | Lead-acid |
| Length | 207.00 cm |
| Width | 175.00 cm |
| Height | 190.00 cm |
| Weight | 12.20 Kgs |
€95.30
VAT included

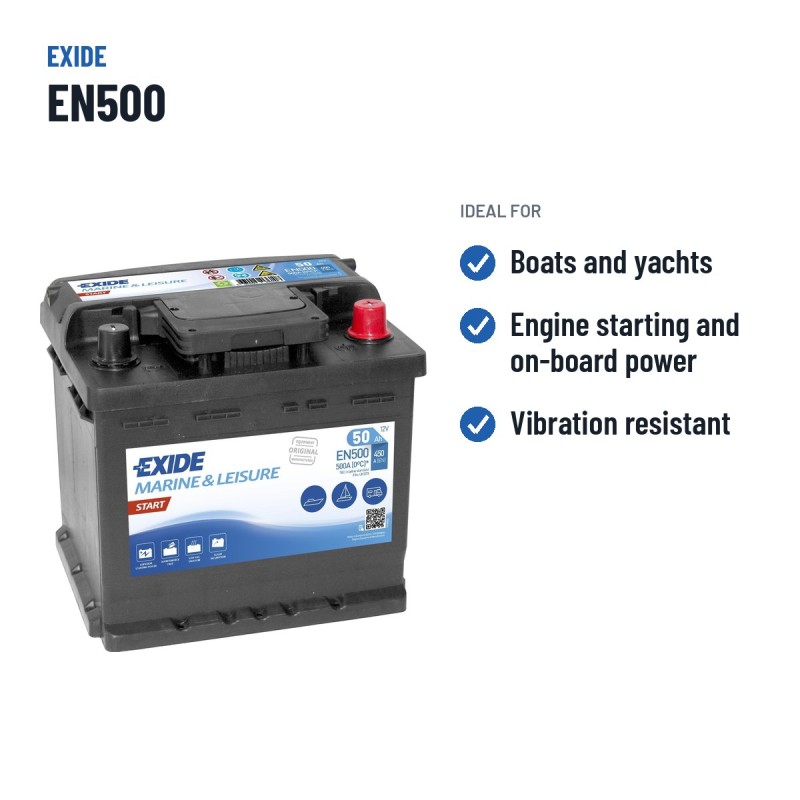

Exide EN500 12V 50Ah 450A is a starting battery for boats and motorhomes, with a case reinforced against the vibration of mooring and cruising. All its energy is designed to crank the engine reliably, not to run long loads: for that, fit a separate service bank.
Why this marine starting battery?
- Marine designbuilt for boat swell and vibration
- Starting in demanding conditionsmaximum cranking power
- Sealed and safemaintenance-free even when the boat rolls
Voltage
12 V
Capacity
50 Ah
Cold cranking
450 A
Dimensions
207×175×190 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
12,2 kg
Model
EXIDE MARINA START

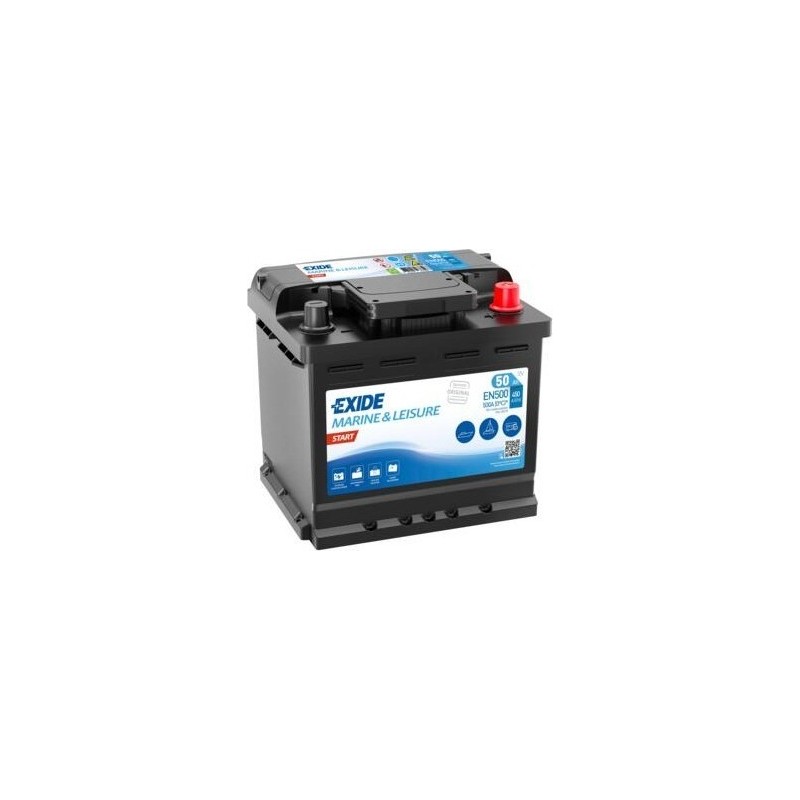

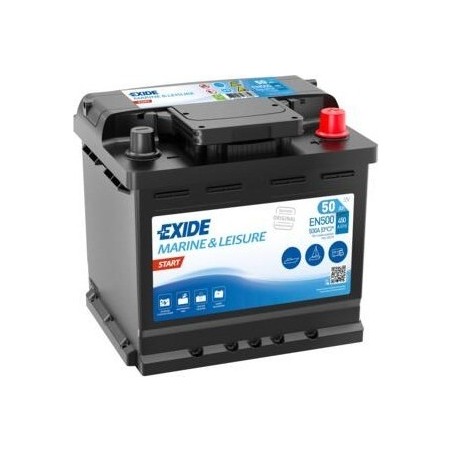

Marine battery Exide EN500 Marina Start 50Ah 450A 12V

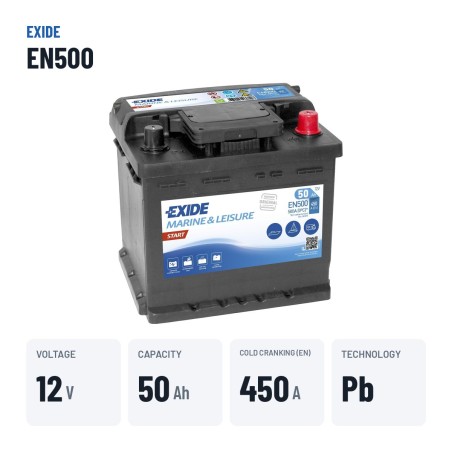

12VVoltage
50AhCapacity
450ACold cranking
12.20kgWeight
The Exide EN500 marine battery offers 12 V, 50 Ah and 450 A of cold cranking current (EN) from the Marina Start range with conventional lead-acid technology, designed for motor and sailing boats, both for engine starting and onboard services. It measures 207 × 175 × 190 mm and the positive terminal on the right, the format sought by anyone replacing a 50 Ah battery in boats.
- Reinforced case against vibration and swell.
- Conventional lead-acid: the most proven and economical technology.
- Tolerates the daily cycling of a boat in season.
- Powers onboard services: lights, sounder, GPS, fridge.
What the Exide EN500 is for
With 50 Ah, the Exide EN500 covers motor and sailing boats, both for engine starting and onboard services. At the end of the season, charge it fully before winter storage. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 12.20 kg, 1 terminals and B13 hold-down.
The Exide EN500: Marina Start range and conventional lead-acid technology
The EN500 is part of the Exide Marina Start range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

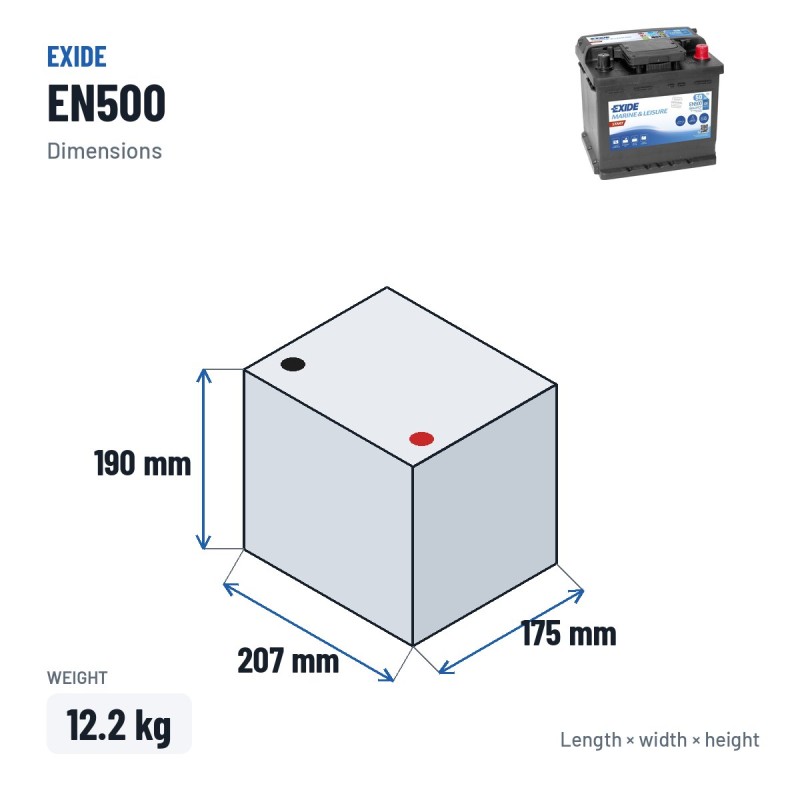

Size, terminals and hold-down of the Exide EN500

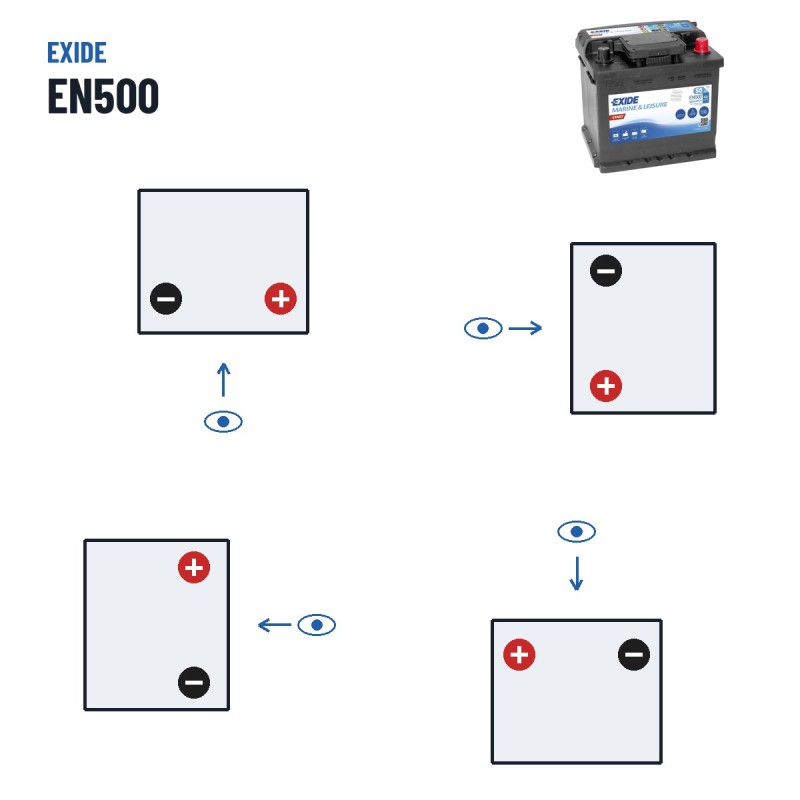

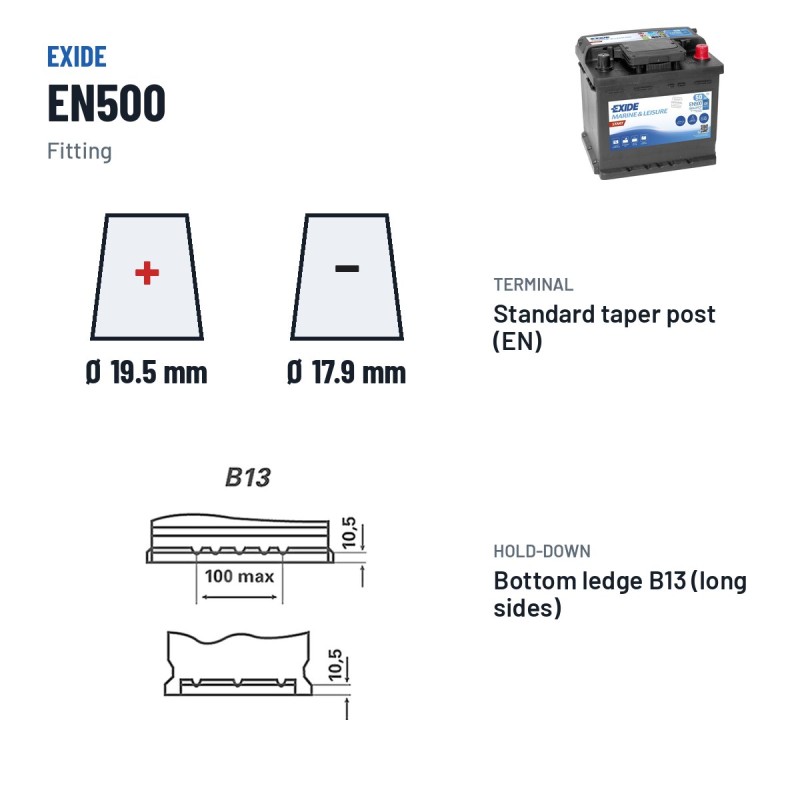

The Exide EN500 is made in the 207 × 175 × 190 mm format and weighs 12.20 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What Exide does differently
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
At the end of the season, charge the battery fully and, if possible, keep it on a charger over the winter lay-up. Protect the terminals with dielectric grease and check the fixing: vibration and swell loosen connections.
Warranty and coverage
The Exide EN500 comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-EXIDE-EN500

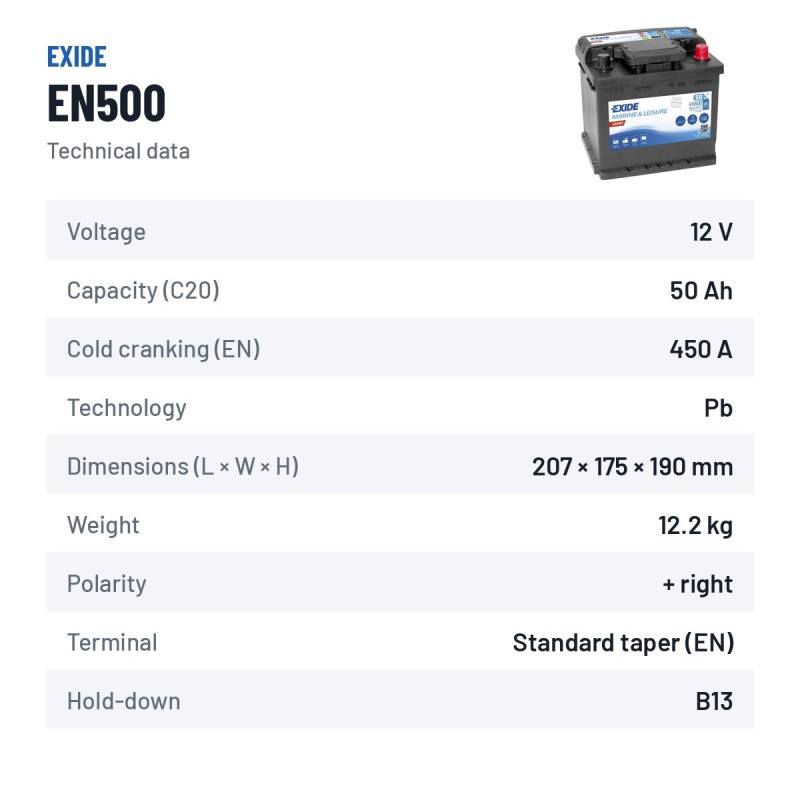

Data sheet
- Brand
- EXIDE
- Reference
- EN500
- Model
- EXIDE MARINA START
- Voltage (V)
- 12
- Length
- 207.00 cm
- Width
- 175.00 cm
- Height
- 190.00 cm
- Weight
- 12.20 Kgs
- Technology
- Lead-acid
- EAN
- 3661024036108
- Terminal layout
- Positive terminal on the right
- Terminal type
- 1
- Hold-down
- B13
- Cold cranking amps (EN)
- 450A
- Capacity (C20)
- 50Ah (c20)
- Case type
- L1
Specific References
- EAN13
- 3661024036108
- MPN
- EN500
Codes and references Exide EN500
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MARINA START |
| Manufacturer reference (MPN) | EN500 |
| EAN-13 barcode | 3661024036108 |
| European case size (EN 50342-2) | L1 |
| Dimensions (length × width × height) | 207 × 175 × 190 mm (207x175x190) |
Recommended accessories
How to change the battery
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify circuit + water protection
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
Frequently asked questions
How is the Exide EN500 battery installed in the vehicle?
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EN500 battery last?
Expected lifespan of the Exide EN500 is 4 to 6 years in regular boat use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the EN500 model?
Dimensions (length × width × height) are 207×175×190 mm — also written as 207x175x190 mm and correspond to the European L1 case size — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the EN500 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EN500 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide EN500?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
