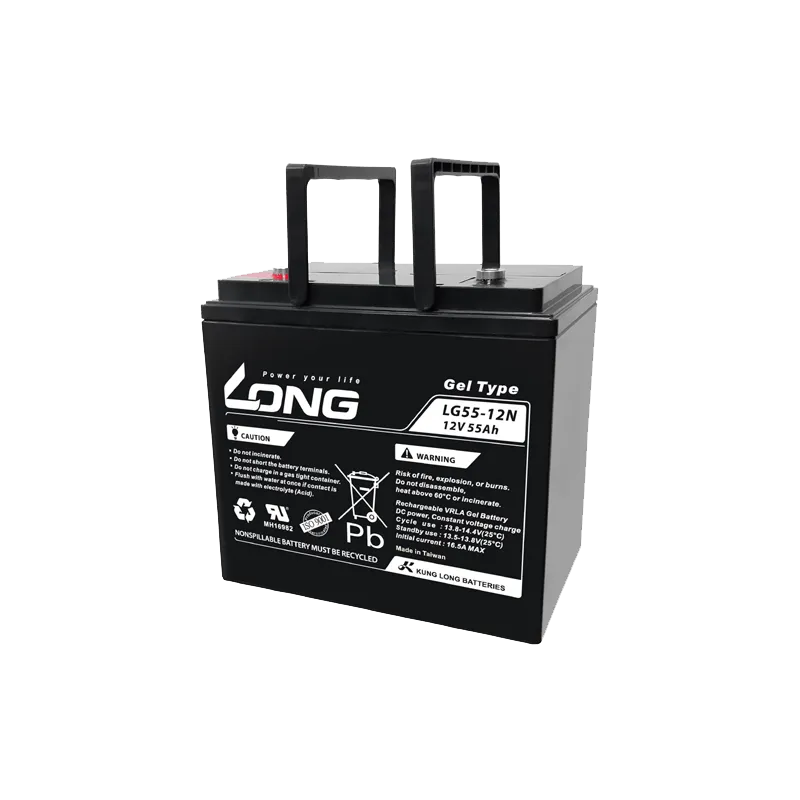

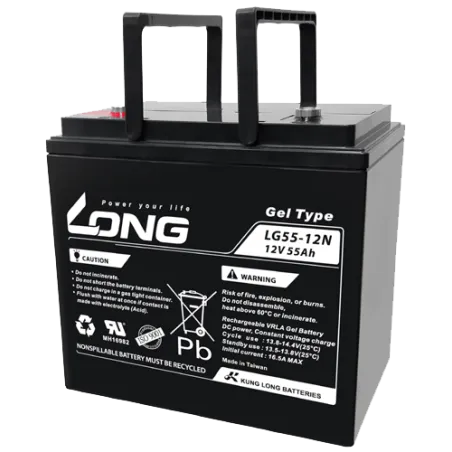

Long LG55-12N LG Series · Wheelchair battery 55Ah GEL

Specifications

BrandLONG
Part numberLG55-12N
Voltage (V)12
Capacity (C20)55Ah (c20)
Capacity (C5)46.75Ah (c5)
TechnologyGEL
Length226 mm
Width135 mm
Height214 mm
See the full specifications →
Price: €212.40
VAT included
Quantity

Brand: Long batteries Part number: LG55-12N

Long LG55-12N 12V 55Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.

Why this wheelchair battery?

  • Daily cycling without wearhandles deep discharges without losing capacity
  • Sealed AGM/GELno maintenance, no risk of spills
  • Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
55 Ah C20
Dimensions
226×135×214 mm
Technology
GEL
Polarity
Positive on the left
Weight
17 kg
Model
LG Series

Where it fits: the Long LG55-12N is one of our power wheelchair batteries, belongs to our Long batteries and by capacity it sits among our 55Ah batteries.

The Long LG55-12N in practice

LG55-12N vs Long LG22NF305CN

The Long LG55-12N offers 55 Ah and 0 A cold cranking in a 226 × 135 × 214 mm case. The Long LG22NF305CN, same brand and technology, goes up to 62 Ah and 0 A and costs €24.20 more. Going up is only worth it if the tray allows it and the car cranks lazily in the cold; in normal use this one is plenty.

Logo Long

Mobility battery Long LG55-12N LG Series 55Ah 12V

12VVoltage
55AhCapacity
17kgWeight

Designed for power wheelchairs, mobility scooters and light electric vehicles, the Long LG55-12N from the LG Series range offers 55 Ah of deep-cycle capacity with GEL technology. It measures 226 × 135 × 214 mm and the positive terminal on the left, the format sought by anyone replacing a 55 Ah battery in power wheelchairs and mobility scooters.

  • Standard replacement format for wheelchairs and scooters.
  • Thousands of useful cycles over its lifetime.
  • Designed to be discharged and recharged daily without losing capacity.
  • GEL technology: gelled electrolyte, fully sealed and maintenance-free.

What the Long LG55-12N is for

The Long LG55-12N is the usual replacement in power wheelchairs, mobility scooters and light electric vehicles. Recharge after each use and avoid leaving it discharged for days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 17 kg.

Will it fit your current battery tray?

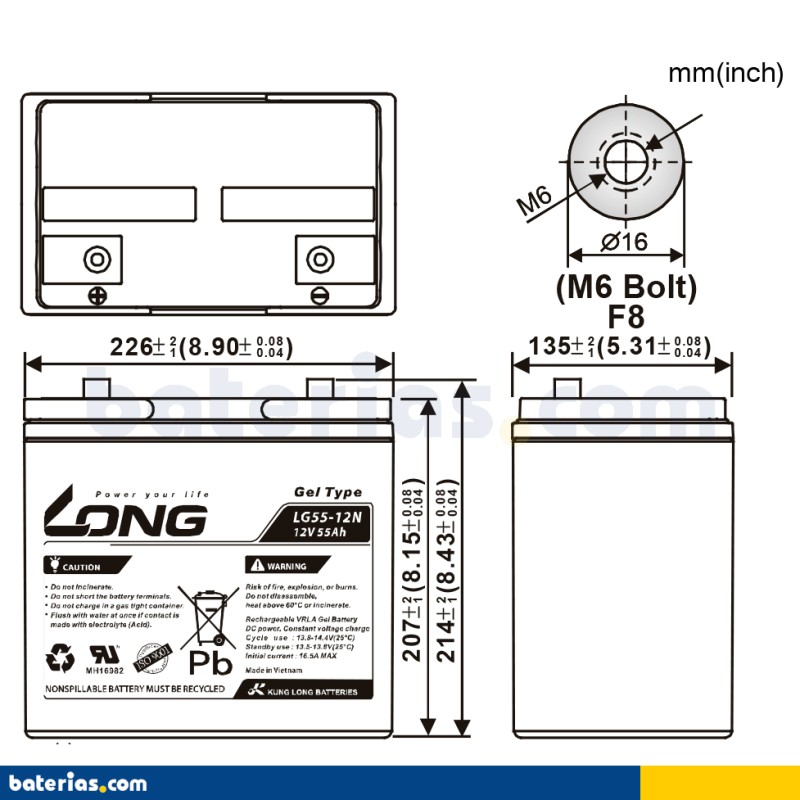

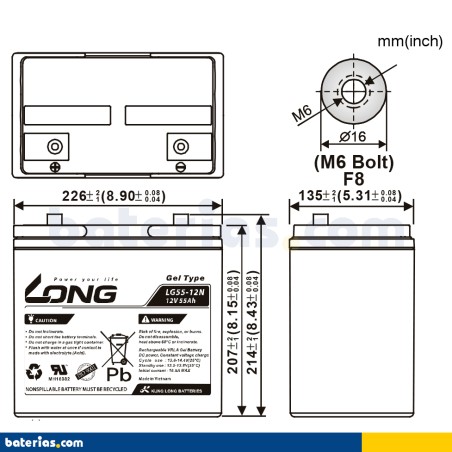

The Long LG55-12N is made in the 226 × 135 × 214 mm format and weighs 17 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

What Long does differently

Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

The Long LG55-12N: LG Series range and GEL technology

The LG55-12N is part of the Long LG Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.

Care and maintenance

Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity. GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte.

Manufacturer's warranty

The Long LG55-12N comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.

When you get it and how to return it

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-LONG-LG55-12N

Data sheet

  • Brand
    LONG
  • Reference
    LG55-12N
  • Model
    LG Series
  • Voltage (V)
    12
  • Length
    226 mm
  • Width
    135 mm
  • Height
    214 mm
  • Weight
    17.00 Kgs
  • Technology
    GEL
  • Terminal layout
    Positive terminal on the left
  • Capacity (C20)
    55Ah (c20)
  • Capacity (C5)
    46.75Ah (c5)

Specific References

  • MPN
    LG55-12N

Download

Datasheet Long LG55-12N

PDF datasheet of the Long LG55-12N battery

Download (706.29KB)

Long LG55-12N: alternatives with the same dimensions — alternatives with the same dimensions, Ah and CCA

Batteries from our catalogue with the same dimensions, voltage and technology as the Long LG55-12N and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.

Product Specifications Technology Price
Long LG55-12N Long LG55-12N This battery 12V 55Ah Gel 212,40 €
Long LG22NF305CN Long LG22NF305CN Same size 12V 62Ah Gel 236,60 € +24,20 €

Long LG55-12N vs Long LG22NF305CN

Same size · +24,20 €

It has the same dimensions, voltage and technology as the LG55-12N, although it is not a manufacturer-approved equivalent. Compared with the LG55-12N it has 7 Ah more. It costs 24,20 € more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

LG55-12NLG22NF305CN
Capacity55 Ah62 Ah
Cold cranking (EN)——
TechnologyGelGel
Dimensions (mm)226 × 135 × 214226 × 135 × 214
Positive terminalPositive terminal on the leftPositive terminal on the right
Price212,40 €236,60 €

Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.

Other 55Ah batteries: We stock 26 models of 55 Ah to compare by price, technology and cold cranking: see all 55Ah batteries. Same size (226 × 135 × 214 mm): batteries of 226 × 135 × 214 mm.

Recommended accessories — complement the Long LG55-12N with a charger or tester

Frequently asked questions

Is the LG55-12N model a gel battery? Where is it used?

Yes. The Long LG55-12N is GEL: sealed lead-acid in which the electrolyte is a gel. Its maximum charge voltage is lower than an AGM's, so a GEL-specific smart charger is needed. Designed for cyclic use (solar installations, motorhomes, electric wheelchairs, motorcycles), it tolerates deep discharges very well.

What are the measurements of the LG55-12N model?

The Long LG55-12N takes up 226×135×214 mm (length, width and height, terminals included). Before buying, measure the space in your device: one extra millimetre can stop the hold-down clamp from closing.

On which side is the positive of the LG55-12N model?

Polarity of the Long LG55-12N: positive on the left. Seen from the front, terminals towards you, the positive (+) is the post with the red ring. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.

Long LG55-12N or Long LG22NF305CN: which one to choose?

It has the same dimensions, voltage and technology as the LG55-12N, although it is not a manufacturer-approved equivalent. Compared with the LG55-12N it has 7 Ah more. It costs 24,20 € more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.
