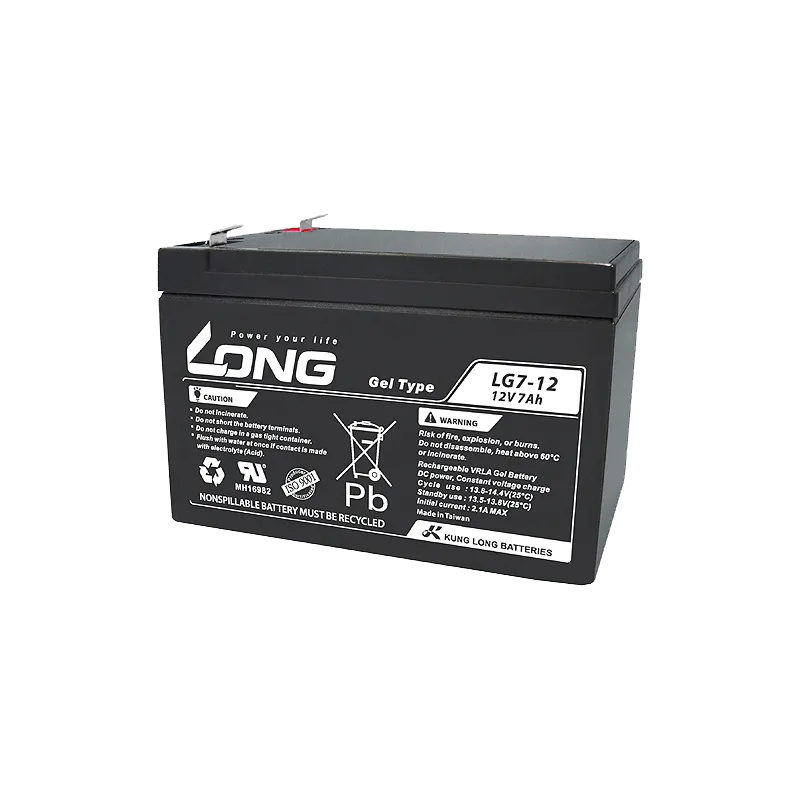

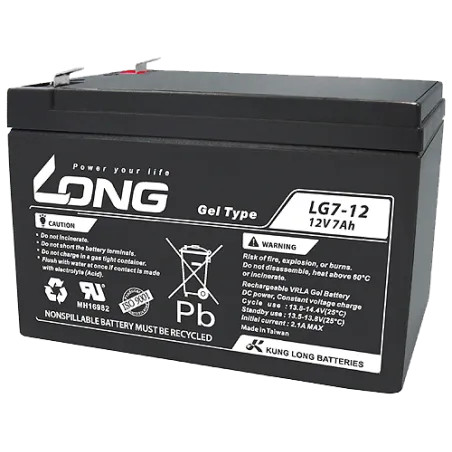

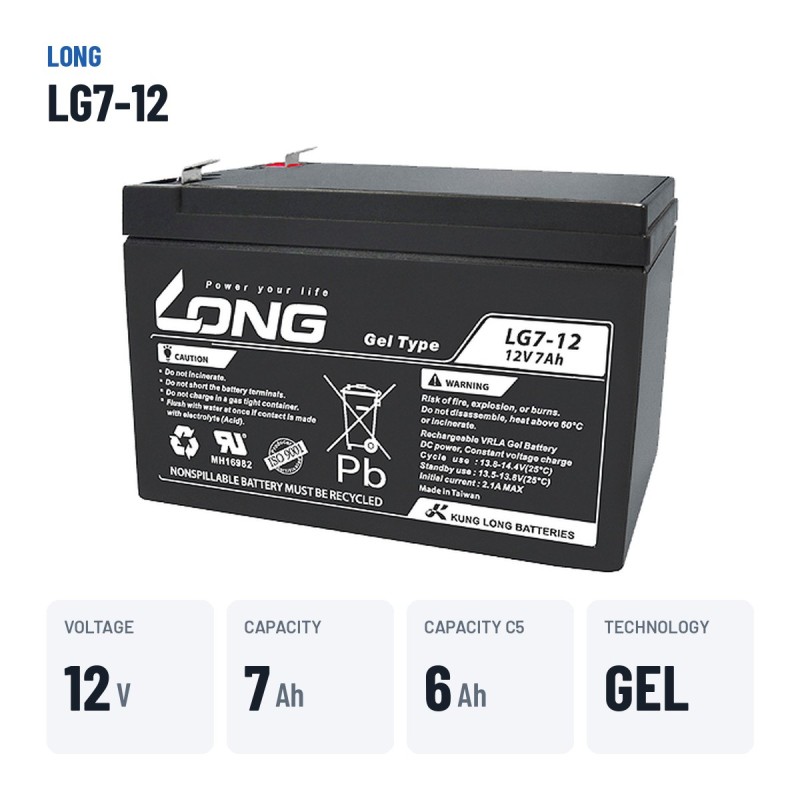

Long LG7-12 · Wheelchair battery 12V 7Ah GEL

Batería Long LG7-12 7Ah - 1
search
  • Batería Long LG7-12 7Ah - 1
  • Batería Long LG7-12 7Ah - 2

Specifications

BrandLONG
Part numberLG7-12
Voltage (V)12
Capacity (C20)7Ah (c20)
Capacity (C5)5.95Ah (c5)
TechnologyGEL
Length151.00 cm
Width65.00 cm
Height102.00 cm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Long LG7-12 12V 7Ah is a sealed AGM/GEL battery for daily mobility use: maintenance-free, no risk of spills, and thousands of useful cycles well beyond a starter battery.

Why this wheelchair battery?

  • Daily cycling without wearhandles deep discharges without losing capacity
  • Sealed AGM/GELno maintenance, no risk of spills
  • Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
7 Ah C20
Dimensions
151×65×102 mm
Technology
GEL
Polarity
Positive on the left
Weight
2,45 kg
Model
LG Series
Free quote, no obligation

Request a quote for your Wheelchair battery Long LG7-12 12V 7Ah GEL

  • Reply in under 24 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Long

Mobility battery Long LG7-12 LG Series 7Ah 12V

12VVoltage
7AhCapacity
2.45kgWeight

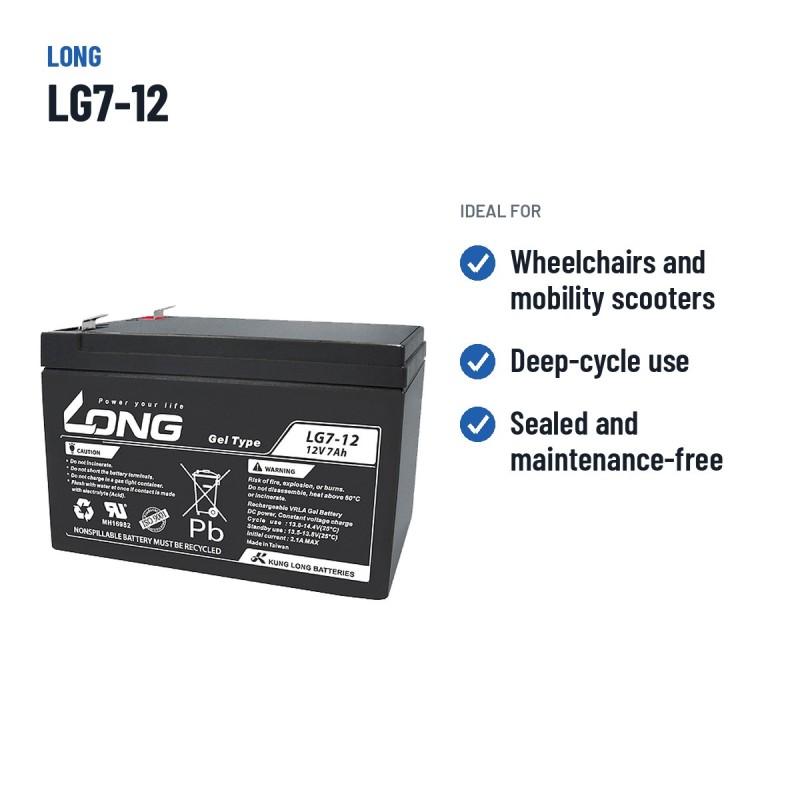

Designed for power wheelchairs, mobility scooters and light electric vehicles, the Long LG7-12 from the LG Series range offers 7 Ah of deep-cycle capacity with GEL technology. It measures 151 × 65 × 102 mm and the positive terminal on the left, the format sought by anyone replacing a 7 Ah battery in power wheelchairs and mobility scooters.

  • Standard replacement format for wheelchairs and scooters.
  • Thousands of useful cycles over its lifetime.
  • Designed to be discharged and recharged daily without losing capacity.
  • GEL technology: gelled electrolyte, fully sealed and maintenance-free.

What the Long LG7-12 is for

The Long LG7-12 is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 2.45 kg.

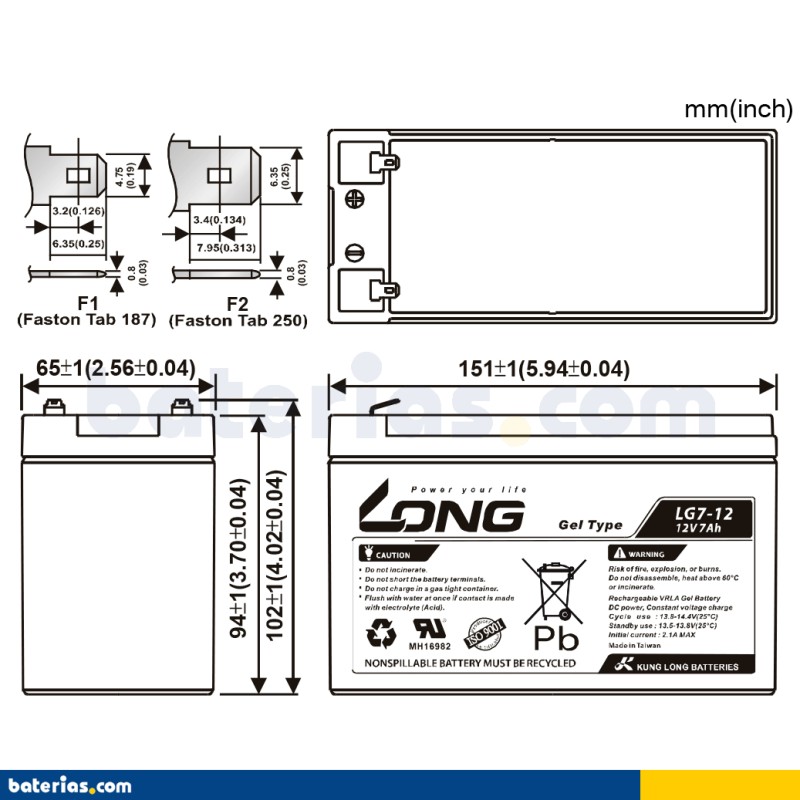

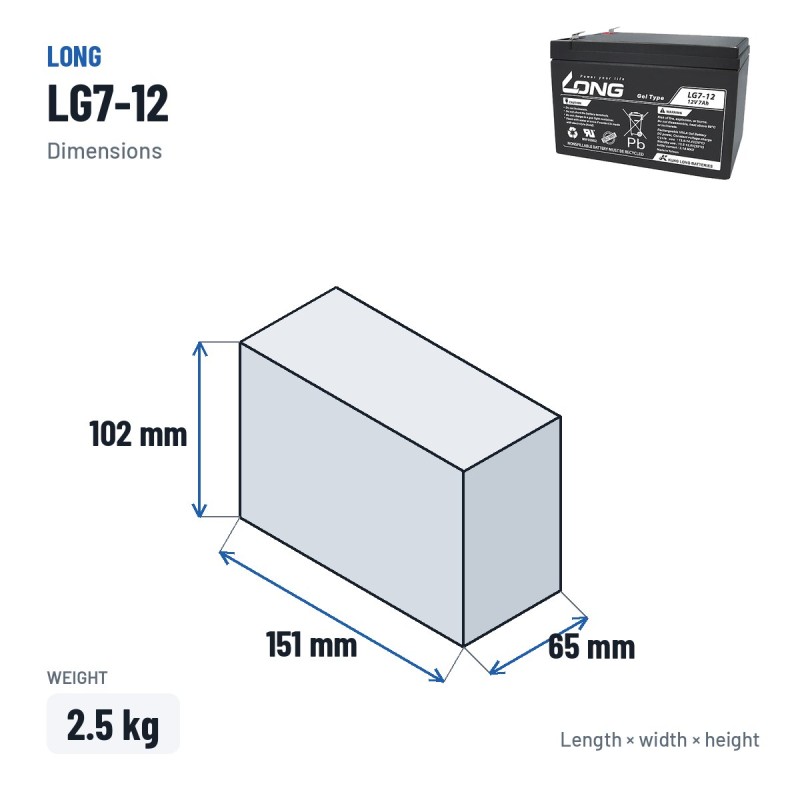

Dimensions, polarity and mounting

In terms of format, the Long LG7-12 measures 151 × 65 × 102 mm (length × width × height) and weighs 2.45 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

The Long LG7-12: LG Series range and GEL technology

The LG Series is the Long range the LG7-12 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

GEL technology fixes the acid in a solid gel. That removes maintenance and leaks and gives very long cycle life, in exchange for slightly slower recharging and lower peak current than an AGM.

What Long does differently

Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. All the Long batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Warranty and coverage

The Long LG7-12 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.

How to make it last longer

Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity.

Shipping, delivery and returns

Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

BCOM-LONG-LG7-12

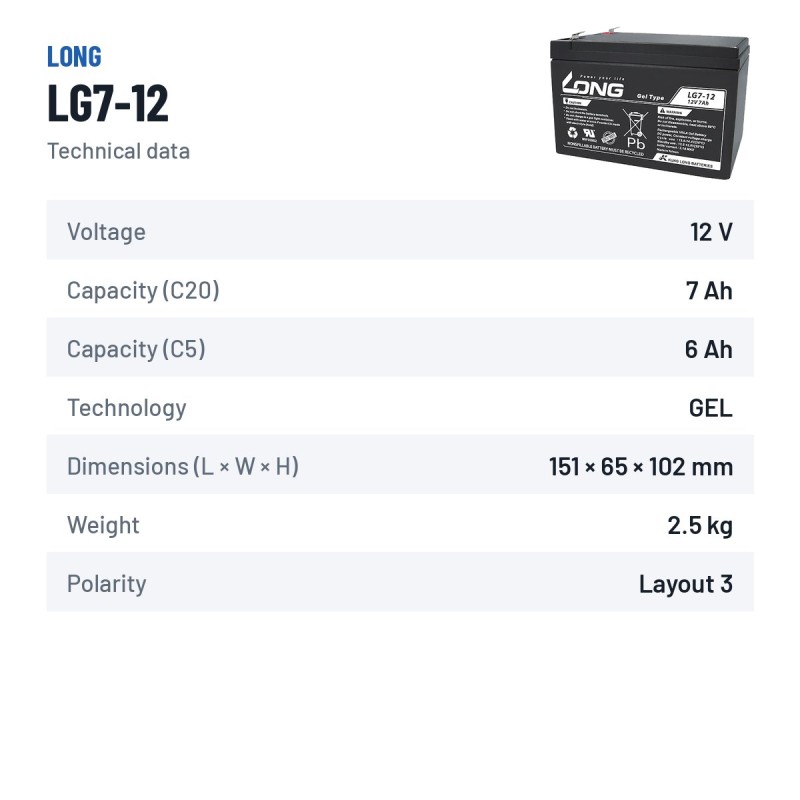

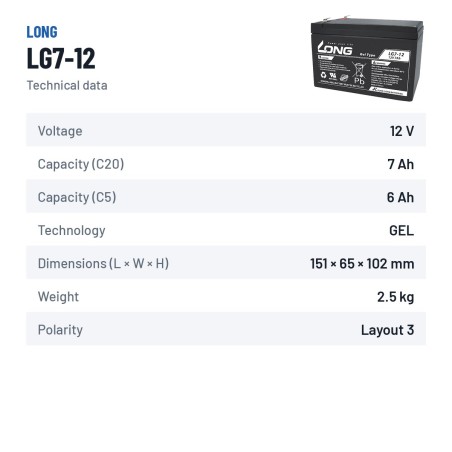

Data sheet

Brand
LONG
Reference
LG7-12
Model
LG Series
Voltage (V)
12
Length
151.00 cm
Width
65.00 cm
Height
102.00 cm
Weight
2.45 Kgs
Technology
GEL
Terminal layout
Positive terminal on the left
Capacity (C20)
7Ah (c20)
Capacity (C5)
5.95Ah (c5)

Specific References

MPN
LG7-12

Recommended accessories — complement the Long LG7-12 with a charger or tester

How to change the battery

Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.

⏱ 10-15 min🛠 Tools: Screwdriver or small wrench (3-5 mm typical) · Protective gloves
  1. Step 1. Power off and unplug the device

    Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.

  2. Step 2. Locate the battery compartment

    Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.

  3. Step 3. Disconnect the negative (−) first

    With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery

    Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.

  6. Step 6. Fit the new battery

    Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.

  7. Step 7. Connect the positive (+) first

    On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.

  8. Step 8. Initial charge before first use

    Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.

Frequently asked questions

Is this battery GEL? What is the typical use?

Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.

How is the Long LG7-12 battery installed in the vehicle?

In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

How many years does this battery last?

Expected lifespan of the Long LG7-12 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the dimensions of the Long LG7-12 battery?

Dimensions (length × width × height) are 151×65×102 mm — also written as 151x65x102 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

Which batteries are equivalent to the Long LG7-12?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
