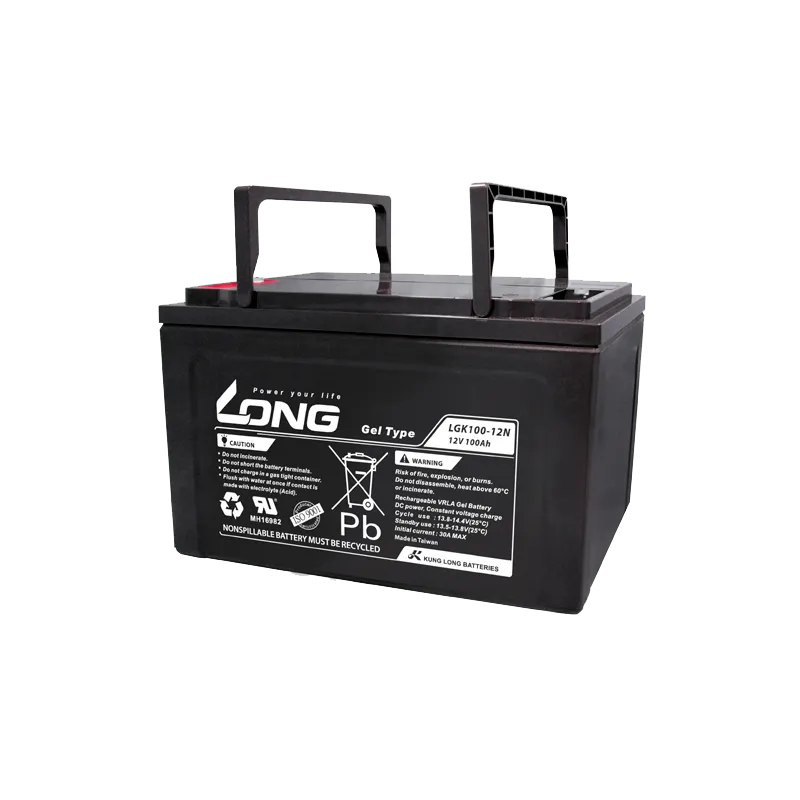

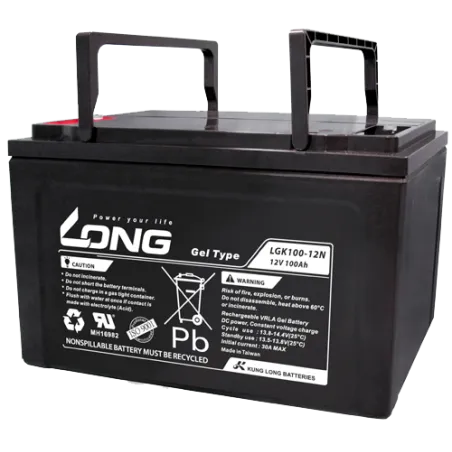

Long LGK100-12N · Wheelchair battery 12V 100Ah GEL

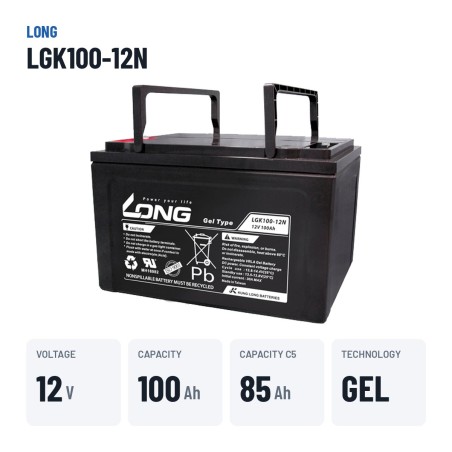

Specifications
| Brand | LONG |
|---|---|
| Part number | LGK100-12N |
| Voltage (V) | 12 |
| Capacity (C20) | 100Ah (c20) |
| Capacity (C5) | 85Ah (c5) |
| Technology | GEL |
| Length | 338.00 cm |
| Width | 170.00 cm |
| Height | 217.00 cm |
€278.80
VAT included
Long LGK100-12N 12V 100Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
100 Ah
Dimensions
338×170×217 mm
Technology
GEL
Polarity
Positive on the left
Weight
34 kg
Model
LG Series
Mobility battery Long LGK100-12N LG Series 100Ah 12V
12VVoltage
100AhCapacity
34kgWeight
Designed for power wheelchairs, mobility scooters and light electric vehicles, the Long LGK100-12N from the LG Series range offers 100 Ah of deep-cycle capacity with GEL technology. It measures 338 × 170 × 217 mm and the positive terminal on the left, the format sought by anyone replacing a 100 Ah battery in power wheelchairs and mobility scooters.
- Standard replacement format for wheelchairs and scooters.
- Thousands of useful cycles over its lifetime.
- Designed to be discharged and recharged daily without losing capacity.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
What the Long LGK100-12N is for
With 100 Ah, the Long LGK100-12N offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 34 kg.
Will it fit your current battery tray?

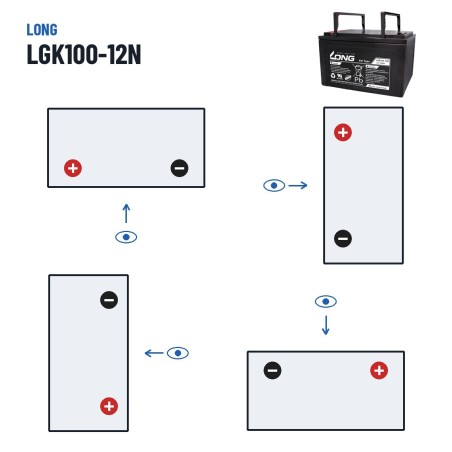

The Long LGK100-12N is made in the 338 × 170 × 217 mm format and weighs 34 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Long LGK100-12N: LG Series range and GEL technology
Within the Long catalogue, the LG Series series groups the references designed for this use. The LGK100-12N is the 100 Ah model of that family, with the same performance as its siblings in other sizes.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
Long: the maker behind the LGK100-12N
Long batteries combine large-scale production with ISO quality standards and a batch-to-batch consistency that has made them the de-facto standard in backup systems and electric mobility. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Long LGK100-12N comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-LONG-LGK100-12N
Data sheet
- Brand
- LONG
- Reference
- LGK100-12N
- Model
- LG Series
- Voltage (V)
- 12
- Length
- 338.00 cm
- Width
- 170.00 cm
- Height
- 217.00 cm
- Weight
- 34.00 Kgs
- Technology
- GEL
- Terminal layout
- Positive terminal on the left
- Capacity (C20)
- 100Ah (c20)
- Capacity (C5)
- 85Ah (c5)
Specific References
- MPN
- LGK100-12N
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Long LGK100-12N a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I fit the LGK100-12N model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long LGK100-12N battery last?
Expected lifespan of the Long LGK100-12N is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 338×170×217 mm — also written as 338x170x217 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Long LGK100-12N?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
