Long LGK75-12N · Wheelchair battery 12V 75Ah GEL
Specifications
| Brand | LONG |
|---|---|
| Part number | LGK75-12N |
| Voltage (V) | 12 |
| Capacity (C20) | 75Ah (c20) |
| Capacity (C5) | 63.75Ah (c5) |
| Technology | GEL |
| Length | 260.00 cm |
| Width | 170.00 cm |
| Height | 207.00 cm |
€190.70
VAT included

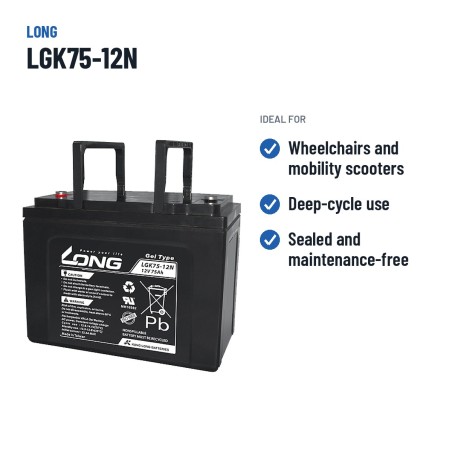

Long LGK75-12N 12V 75Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
75 Ah
Dimensions
260×170×207 mm
Technology
GEL
Polarity
Positive on the left
Weight
24,8 kg
Model
LG Series

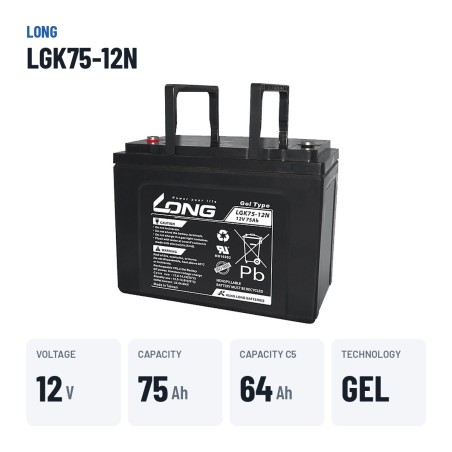

Mobility battery Long LGK75-12N LG Series 75Ah 12V
12VVoltage
75AhCapacity
24.80kgWeight
The Long LGK75-12N with GEL technology delivers 75 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. Measuring 260 × 170 × 207 mm and the positive terminal on the left, it is the direct replacement for power wheelchairs and mobility scooters fitted from the factory with a 75 Ah battery of this format.
- GEL: excellent resistance to deep discharge and long cycle life.
- Sealed AGM/GEL: safe indoors and in transport.
- No maintenance, no water top-ups.
- Approved for air and sea transport (VRLA).
What the Long LGK75-12N is for
With 75 Ah, the Long LGK75-12N offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 24.80 kg.
The Long LGK75-12N: LG Series range and GEL technology
Within the Long catalogue, the LG Series series groups the references designed for this use. The LGK75-12N is the 75 Ah model of that family, with the same performance as its siblings in other sizes.
GEL technology fixes the acid in a solid gel. That removes maintenance and leaks and gives very long cycle life, in exchange for slightly slower recharging and lower peak current than an AGM.

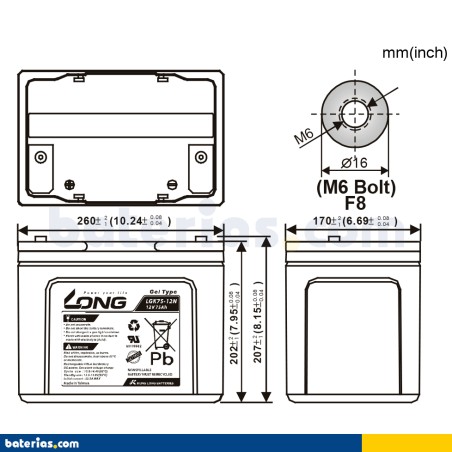

Size, terminals and hold-down of the Long LGK75-12N

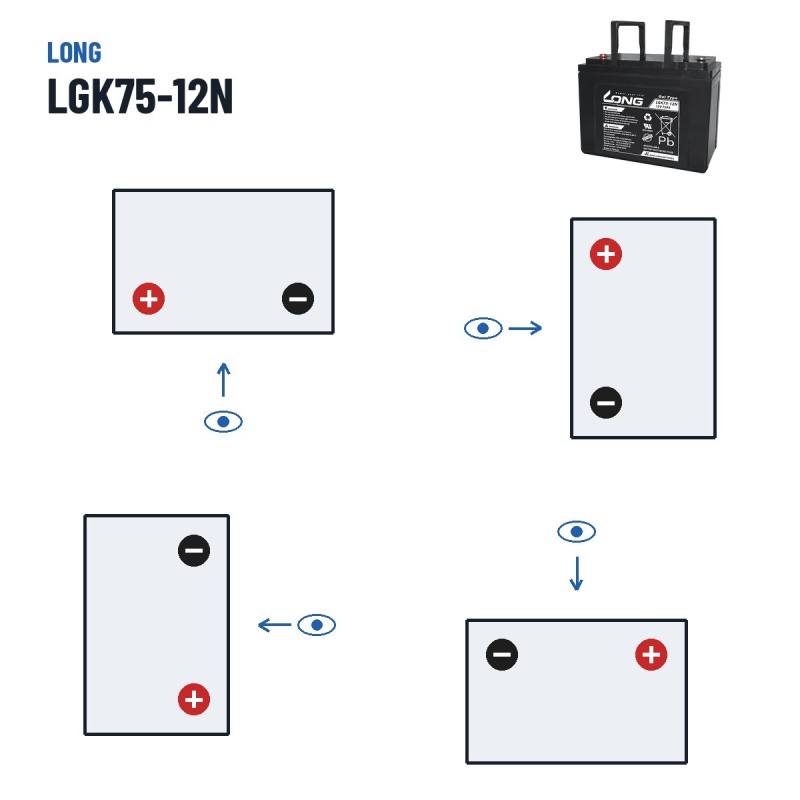

It has external dimensions of 260 × 170 × 207 mm and weighs 24.80 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Long batteries
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
How to make it last longer
Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity. GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte.
Warranty and coverage
The Long LGK75-12N comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-LONG-LGK75-12N

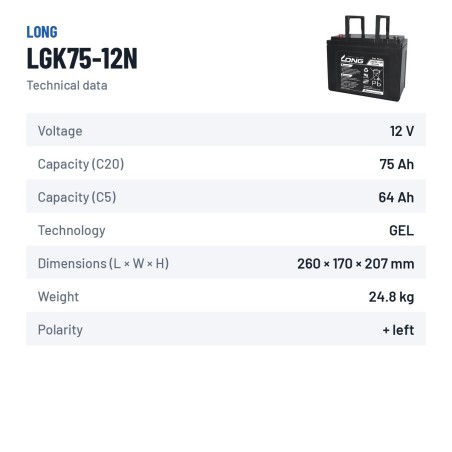

Data sheet
- Brand
- LONG
- Reference
- LGK75-12N
- Model
- LG Series
- Voltage (V)
- 12
- Length
- 260.00 cm
- Width
- 170.00 cm
- Height
- 207.00 cm
- Weight
- 24.80 Kgs
- Technology
- GEL
- Terminal layout
- Positive terminal on the left
- Capacity (C20)
- 75Ah (c20)
- Capacity (C5)
- 63.75Ah (c5)
Specific References
- EAN13
- 8404655001405
- MPN
- LGK75-12N
Codes and references Long LGK75-12N
| Brand | Long |
|---|---|
| Manufacturer range | LG Series |
| Manufacturer reference (MPN) | LGK75-12N |
| EAN-13 barcode | 8404655001405 |
| Dimensions (length × width × height) | 260 × 170 × 207 mm (260x170x207) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the LGK75-12N model a gel battery? Where is it used?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I fit the LGK75-12N model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long LGK75-12N battery last?
Expected lifespan of the Long LGK75-12N is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long LGK75-12N battery?
Dimensions (length × width × height) are 260×170×207 mm — also written as 260x170x207 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Long LGK75-12N?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
