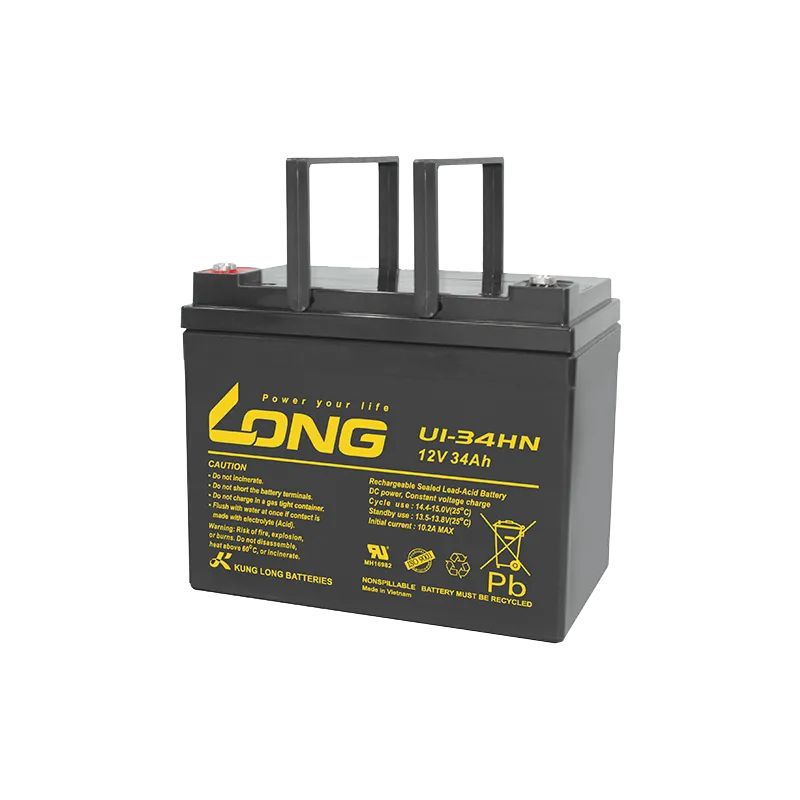

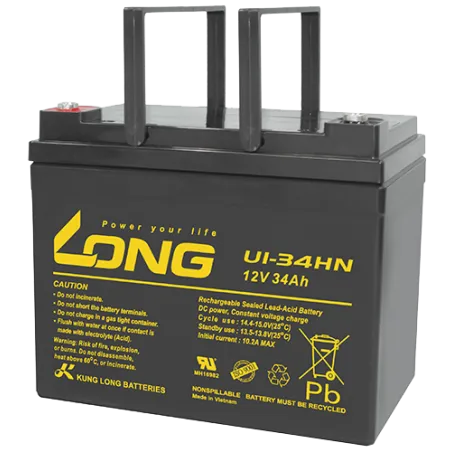

Long U1-34HN · Wheelchair battery 12V 34Ah AGM
Specifications
| Brand | LONG |
|---|---|
| Part number | U1-34HN |
| Voltage (V) | 12 |
| Capacity (C20) | 34Ah (c20) |
| Capacity (C5) | 28.9Ah (c5) |
| Technology | AGM |
| Length | 197.00 cm |
| Width | 131.00 cm |
| Height | 168.00 cm |
€130.80
VAT included
Long U1-34HN 12V 34Ah is a sealed AGM/GEL battery for daily mobility use: maintenance-free, no risk of spills, and thousands of useful cycles well beyond a starter battery.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
34 Ah
Dimensions
197×131×168 mm
Technology
AGM
Weight
10,5 kg
Model
U1 Series

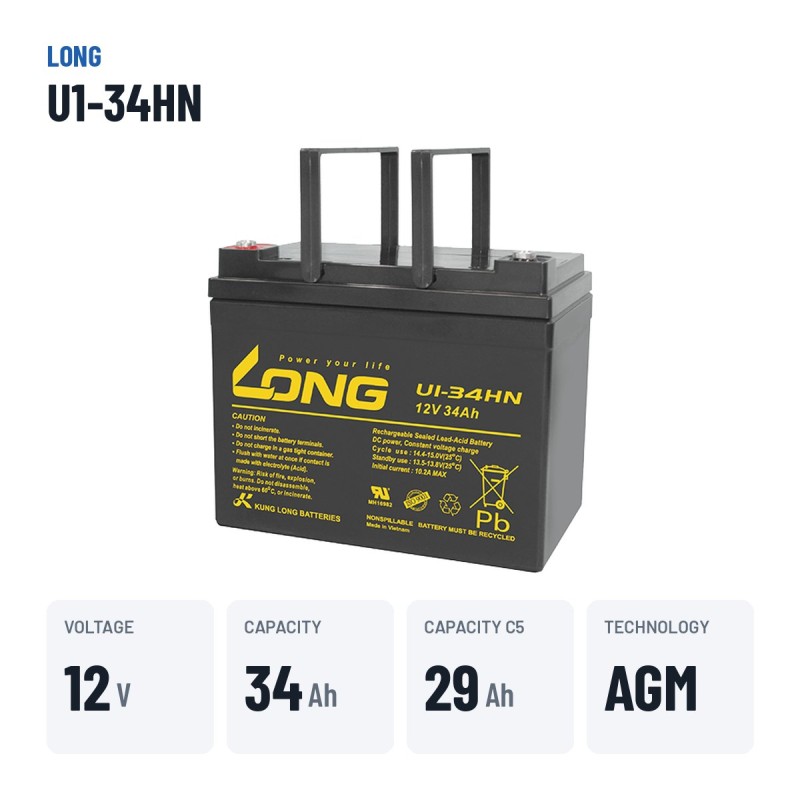

Mobility battery Long U1-34HN U1 Series 34Ah 12V
12VVoltage
34AhCapacity
10.50kgWeight
The 12 V, 34 Ah Long U1-34HN from the U1 Series range with AGM technology is the standard replacement for power wheelchairs, mobility scooters and light electric vehicles. It measures 197 × 131 × 168 mm, the format sought by anyone replacing a 34 Ah battery in power wheelchairs and mobility scooters.
- Designed to be discharged and recharged daily without losing capacity.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Standard replacement format for wheelchairs and scooters.
- Thousands of useful cycles over its lifetime.

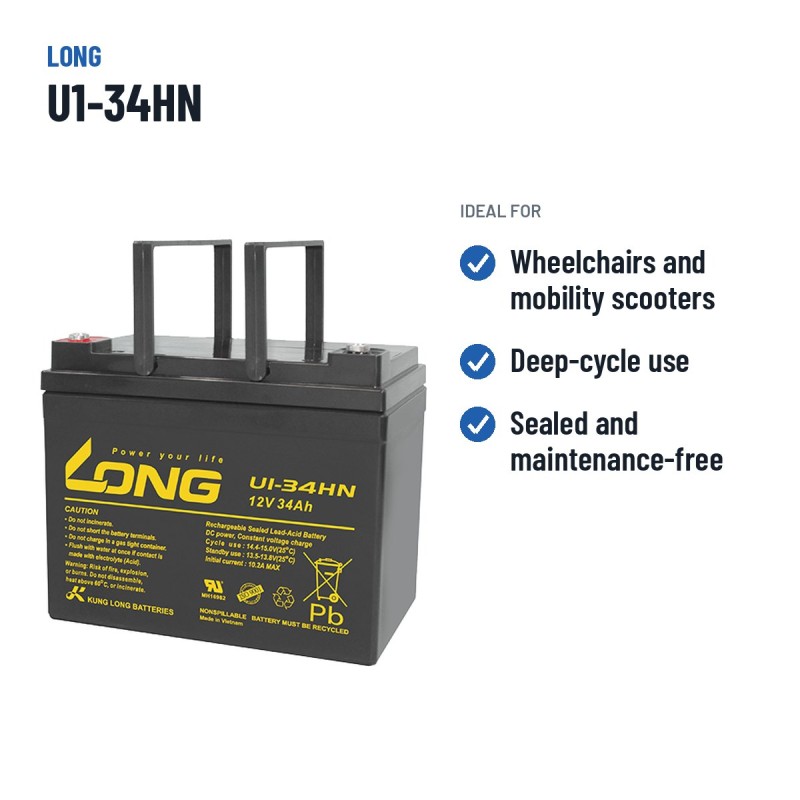

What the Long U1-34HN is for
With 34 Ah, the Long U1-34HN offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 10.50 kg.

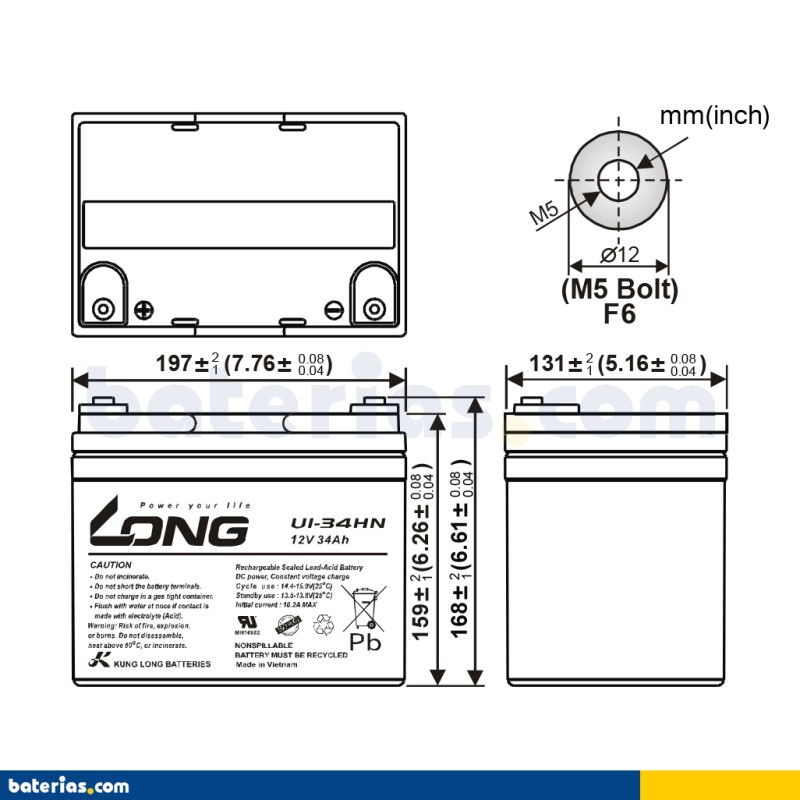

Dimensions, polarity and mounting
It has external dimensions of 197 × 131 × 168 mm and weighs 10.50 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Long: the maker behind the U1-34HN
Long batteries combine large-scale production with ISO quality standards and a batch-to-batch consistency that has made them the de-facto standard in backup systems and electric mobility. All the Long batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Long U1-34HN: U1 Series range and AGM technology
The U1 Series is the Long range the U1-34HN belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
How to make it last longer
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Official warranty
The Long U1-34HN comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-LONG-U1-34HN

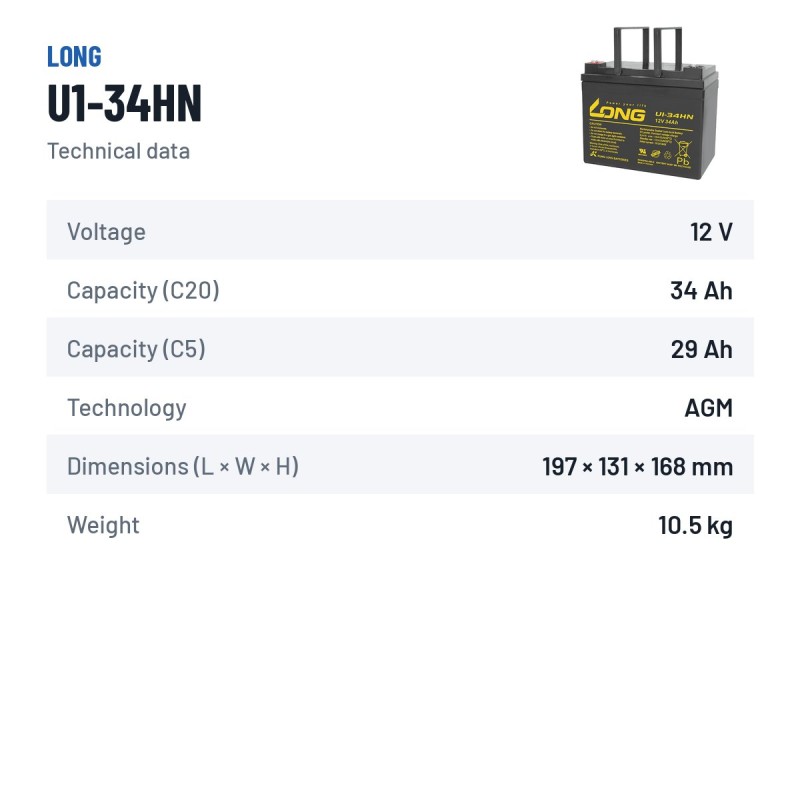

Data sheet
- Brand
- LONG
- Reference
- U1-34HN
- Model
- U1 Series
- Voltage (V)
- 12
- Length
- 197.00 cm
- Width
- 131.00 cm
- Height
- 168.00 cm
- Weight
- 10.50 Kgs
- Technology
- AGM
- Capacity (C20)
- 34Ah (c20)
- Capacity (C5)
- 28.9Ah (c5)
Specific References
- MPN
- U1-34HN
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The U1-34HN from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the U1-34HN model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long U1-34HN battery last?
Expected lifespan of the Long U1-34HN is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long U1-34HN battery?
Dimensions (length × width × height) are 197×131×168 mm — also written as 197x131x168 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
