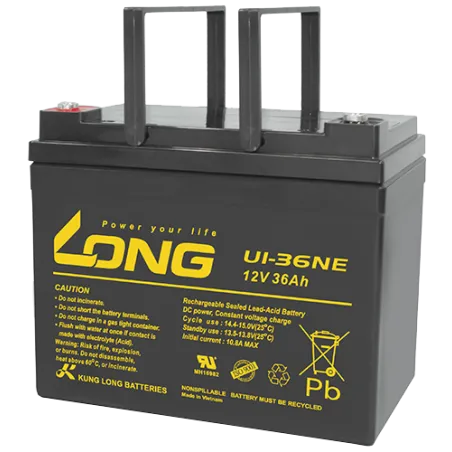

Long U1-36NE · Wheelchair battery 12V 36Ah AGM
Wheelchair battery Long U1-36NE 12V 36Ah AGM images

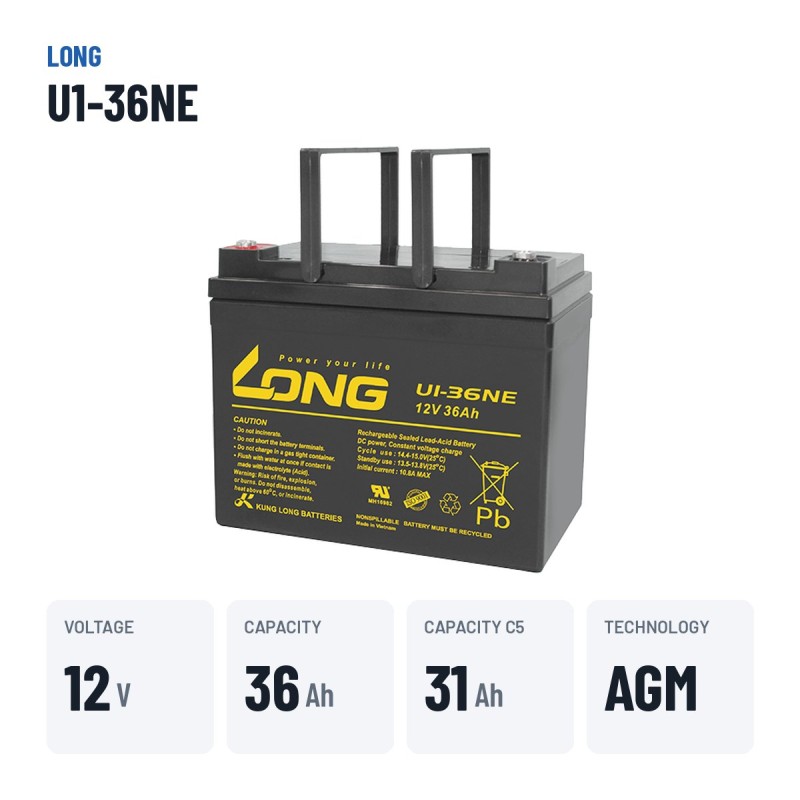

Specifications
| Brand | LONG |
|---|---|
| Part number | U1-36NE |
| Voltage (V) | 12 |
| Capacity (C20) | 36Ah (c20) |
| Capacity (C5) | 30.6Ah (c5) |
| Technology | AGM |
| Length | 197.00 cm |
| Width | 131.00 cm |
| Height | 168.00 cm |
Long U1-36NE 12V 36Ah is a sealed AGM/GEL battery for daily mobility use: maintenance-free, no risk of spills, and thousands of useful cycles well beyond a starter battery.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Comprei esta bateria para a moto elétrica da minha mãe. Ficamos muito satisfeitas, tanto a nível do preço como da qualidade e da rapidez…
Mafalda Papelaria M.Verified purchaseOrder EVLOLT
✦ Our favourite reviews ✦
Reviews shown in their original language
Mobility battery Long U1-36NE U1 Series 36Ah 12V

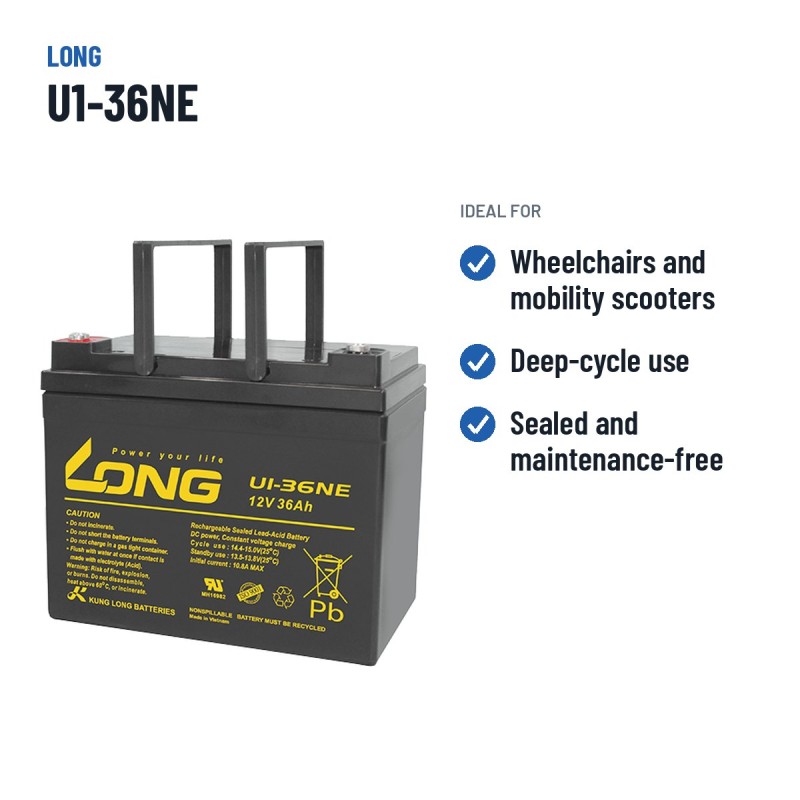

The Long U1-36NE with AGM technology delivers 36 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. Measuring 197 × 131 × 168 mm, it is the direct replacement for power wheelchairs and mobility scooters fitted from the factory with a 36 Ah battery of this format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Sealed AGM/GEL: safe indoors and in transport.
- No maintenance, no water top-ups.
- Approved for air and sea transport (VRLA).
What the Long U1-36NE is for
With 36 Ah, the Long U1-36NE offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 11 kg.
Will it fit your current battery tray?

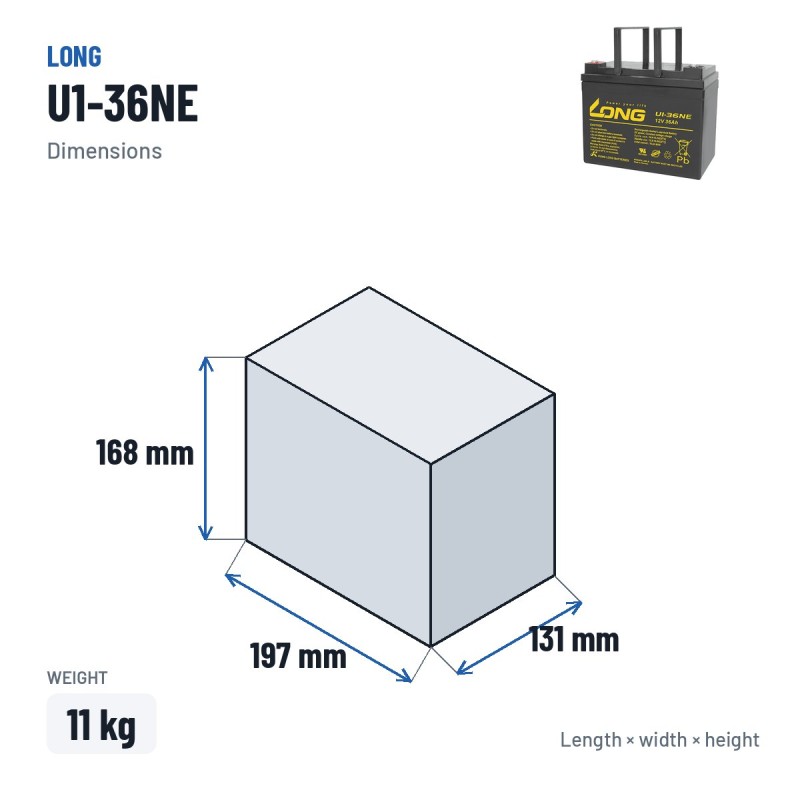

It has external dimensions of 197 × 131 × 168 mm and weighs 11 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Long: the maker behind the U1-36NE
Long batteries combine large-scale production with ISO quality standards and a batch-to-batch consistency that has made them the de-facto standard in backup systems and electric mobility. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Long U1-36NE: U1 Series range and AGM technology
The U1-36NE is part of the Long U1 Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Care and maintenance
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Manufacturer's warranty
The Long U1-36NE comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
-
-
ReferenceBCOM-LONG-U1-36NE

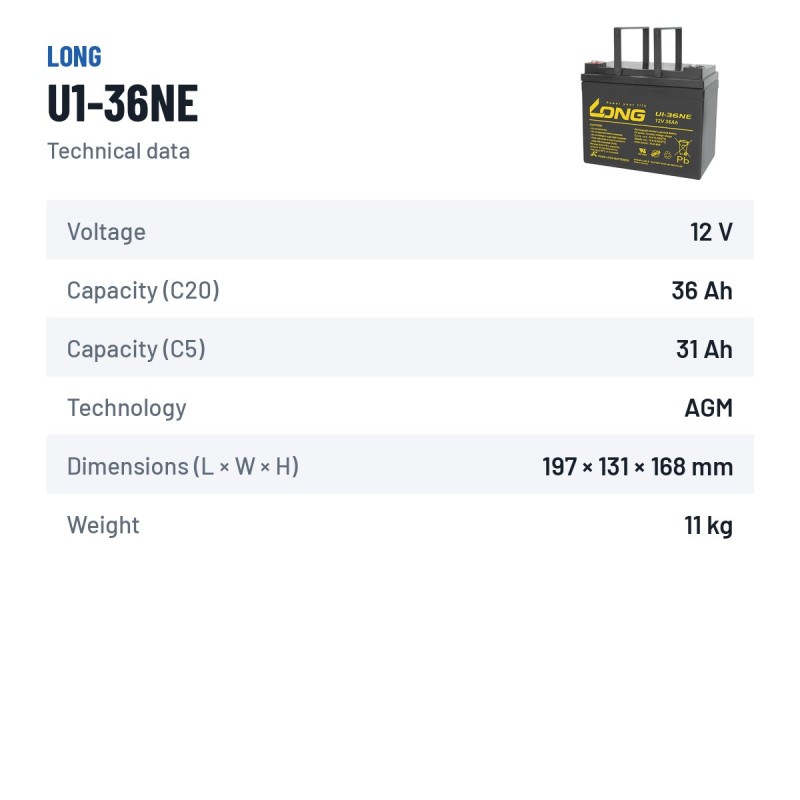

Data sheet
-
BrandLONG
-
ReferenceU1-36NE
-
ModelU1 Series
-
Voltage (V)12
-
Length197.00 cm
-
Width131.00 cm
-
Height168.00 cm
-
Weight11.00 Kgs
-
TechnologyAGM
-
EAN4055909185422
-
Capacity (C20)36Ah (c20)
-
Capacity (C5)30.6Ah (c5)
Specific References
-
EAN134055909185422
-
MPNU1-36NE
No reviews with that rating
Reviews shown in their original language
Comprei esta bateria para a moto elétrica da minha mãe. Ficamos muito satisfeitas, tanto a nível do preço como da qualidade e da rapidez de entrega. É a segunda vez que faço uma encomenda a Baterias.com. Eu recomendo e confio neles.
Codes and references Long U1-36NE
| Brand | Long |
|---|---|
| Manufacturer range | U1 Series |
| Manufacturer part number (MPN) | U1-36NE |
| Also known as | U136NE · U1 36NE |
| EAN-13 barcode | 4055909185422 |

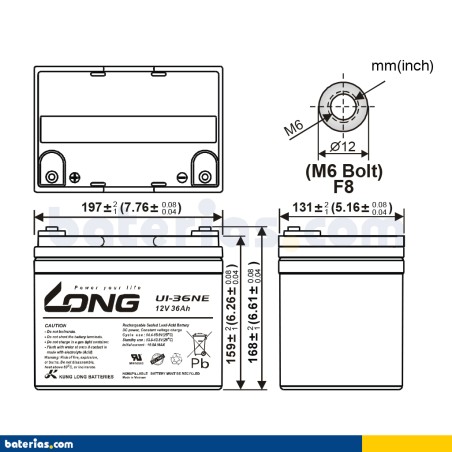

| Dimensions (length × width × height) | 197 × 131 × 168 mm (197x131x168) |
Recommended accessories
Frequently asked questions
Is the Long U1-36NE an AGM battery and what are the benefits of AGM?
Yes. The U1-36NE from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Long U1-36NE battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long U1-36NE battery last?
Expected lifespan of the Long U1-36NE is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long U1-36NE battery?
Dimensions (length × width × height) are 197×131×168 mm — also written as 197x131x168 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Long U1-36NE?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
