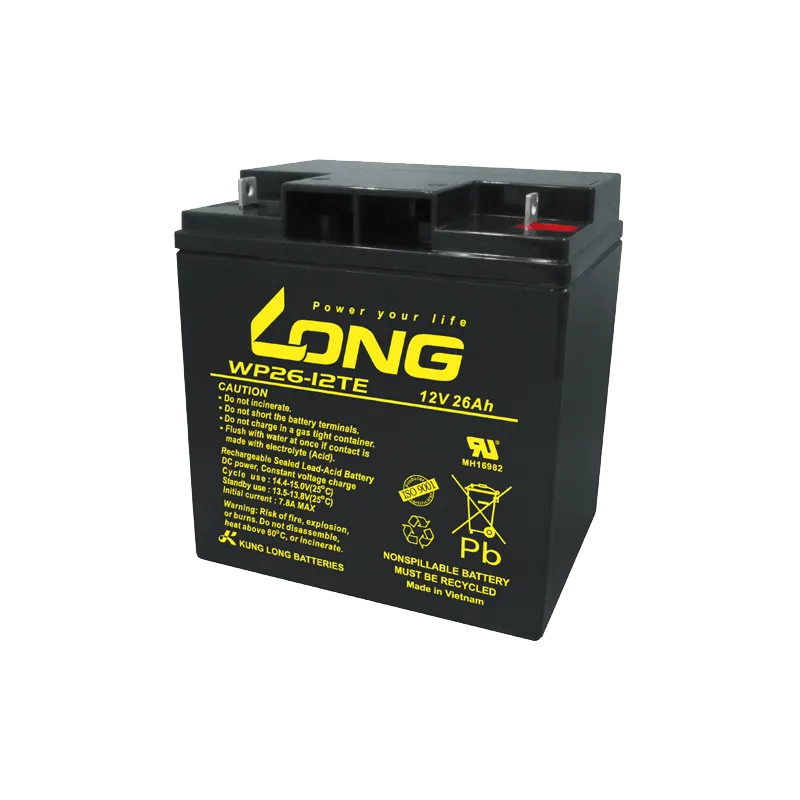

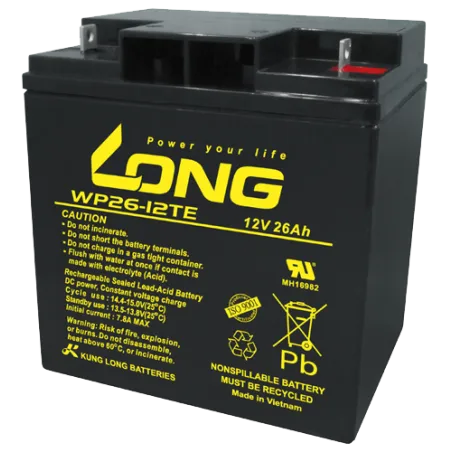

Long WP26-12TE · Wheelchair battery 12V 26Ah AGM
Specifications
| Brand | LONG |
|---|---|
| Part number | WP26-12TE |
| Voltage (V) | 12 |
| Capacity (C20) | 26Ah (c20) |
| Capacity (C5) | 22.1Ah (c5) |
| Technology | AGM |
| Length | 166.00 cm |
| Width | 125.50 cm |
| Height | 176.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Long WP26-12TE 12V 26Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
26 Ah
Dimensions
166×125×176 mm
Technology
AGM
Weight
8,08 kg
Model
WP Series
Free quote, no obligation
Request a quote for your Wheelchair battery Long WP26-12TE 12V 26Ah AGM
- Reply in under 24 working hours
- Best price guaranteed

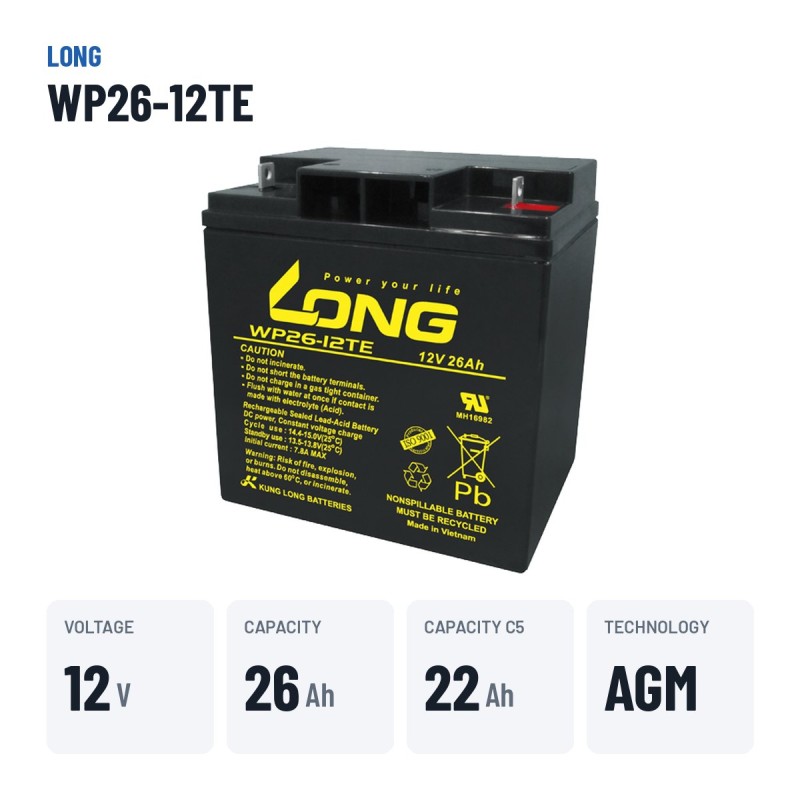

Mobility battery Long WP26-12TE WP Series 26Ah 12V
12VVoltage
26AhCapacity
8.08kgWeight
The 12 V, 26 Ah Long WP26-12TE from the WP Series range with AGM technology is the standard replacement for power wheelchairs, mobility scooters and light electric vehicles. It measures 166 × 125 × 176 mm, the format sought by anyone replacing a 26 Ah battery in power wheelchairs and mobility scooters.
- Designed to be discharged and recharged daily without losing capacity.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Standard replacement format for wheelchairs and scooters.
- Thousands of useful cycles over its lifetime.
What the Long WP26-12TE is for
The Long WP26-12TE is the usual replacement in power wheelchairs, mobility scooters and light electric vehicles. Recharge after each use and avoid leaving it discharged for days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 8.08 kg.

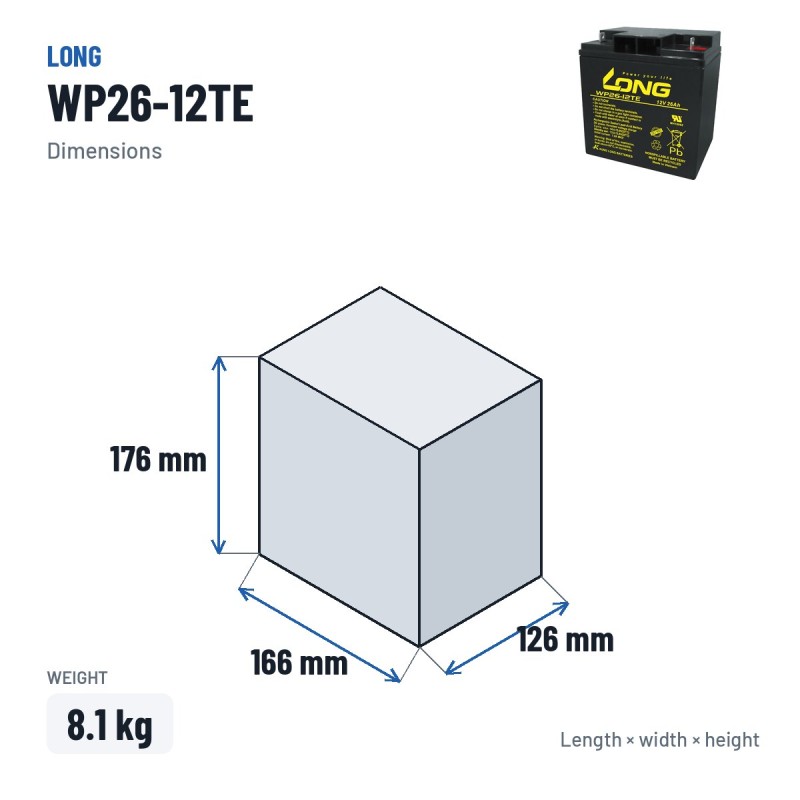

Dimensions, polarity and mounting
The Long WP26-12TE is made in the 166 × 125 × 176 mm format and weighs 8.08 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Long: the maker behind the WP26-12TE
Long batteries combine large-scale production with ISO quality standards and a batch-to-batch consistency that has made them the de-facto standard in backup systems and electric mobility. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
The Long WP26-12TE: WP Series range and AGM technology
The WP26-12TE is part of the Long WP Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity.
Official warranty
The Long WP26-12TE comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LONG-WP26-12TE

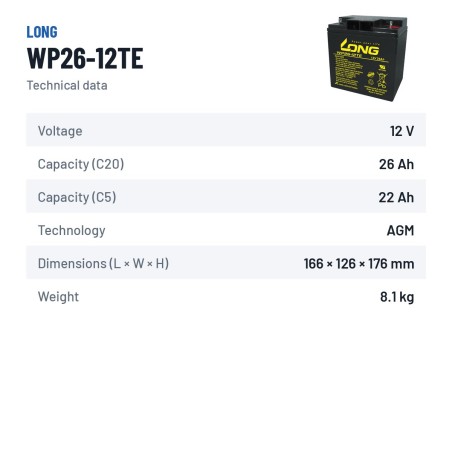

Data sheet
- Brand
- LONG
- Reference
- WP26-12TE
- Model
- WP Series
- Voltage (V)
- 12
- Length
- 166.00 cm
- Width
- 125.50 cm
- Height
- 176.00 cm
- Weight
- 8.08 Kgs
- Technology
- AGM
- Capacity (C20)
- 26Ah (c20)
- Capacity (C5)
- 22.1Ah (c5)
Specific References
- MPN
- WP26-12TE
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Long WP26-12TE an AGM battery and what are the benefits of AGM?
Yes. The WP26-12TE from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the WP26-12TE model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long WP26-12TE battery last?
Expected lifespan of the Long WP26-12TE is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the WP26-12TE model?
Dimensions (length × width × height) are 166×126×176 mm — also written as 166x126x176 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the WP26-12TE model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
