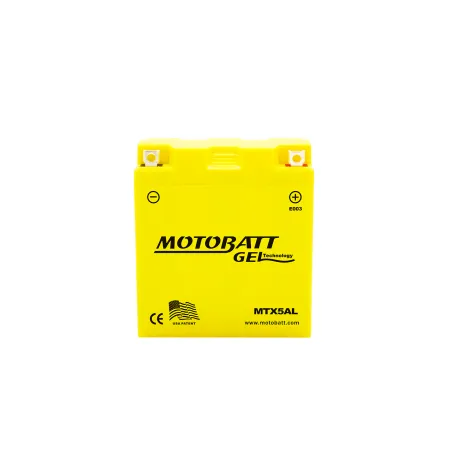

Motobatt MTX5AL · Motorcycle battery 12V 5Ah 85A GEL
Specifications
| Brand | MOTOBATT |
|---|---|
| Part number | MTX5AL |
| Voltage (V) | 12 |
| Capacity (C20) | 5 |
| Capacity (C10) | 5Ah (c10) |
| Technology | GEL |
| Length | 119.50 mm |
| Width | 60.00 mm |
| Height | 131.00 mm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
4,75/5★★★★★57 reviewsVerified purchases
- ★★★★★Jose Ignacio Gil:
Muy buena atención telefónica
- ★★★★★Pedro Roman:
Recomiendo la web por su trato al momento de elegir
- ★★★★★David Ramirez:
Quiero dejar una reseña por que me parece increíble el buen trato que me dieron. Muy buena atención telefónica
Motobatt MTX5AL 12V 5Ah 85A is a sealed motorcycle battery ready to fit, with the JIS reference your mechanic recognises at a glance. Vibration-resistant, keeps voltage during the winter off-season and cranks first time when you take it out for a ride.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
Voltage
12 V
Capacity
5 Ah
Cold cranking
85 A
Dimensions
119×60×131 mm
Technology
GEL
Weight
2,1 kg
Model
MOTOBATT SUPER GEL
Mfr. reference
MTX5AL
Free quote, no obligation
Request a quote for your Motorcycle battery Motobatt MTX5AL 12V 5Ah 85A GEL
- Reply in under 24 working hours
- Best price guaranteed
Motorcycle battery Motobatt MTX5AL Super GEL 5Ah 85A 12V
12VVoltage
5AhCapacity
85ACold cranking
2.10kgWeight
The Motobatt MTX5AL from the Super GEL range is a motorcycle battery with 5 Ah and 85 A of cold cranking current (EN), designed for motorcycles, scooters, quads and personal watercraft. It replaces the original battery without adaptation in motorcycles with a 119 × 60 × 131 mm format: same 5 Ah capacity.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Same JIS code as the original battery: fits first time.
- Resistant to the vibration typical of two wheels.
- Energetic cranking for high-compression engines.
Size, terminals and hold-down of the Motobatt MTX5AL
In terms of format, the Motobatt MTX5AL measures 119 × 60 × 131 mm (length × width × height) and weighs 2.10 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Motobatt MTX5AL is for
With 5 Ah, the Motobatt MTX5AL covers the starting of motorcycles, scooters, quads and personal watercraft. The JIS code on your current battery label is the safest way to confirm equivalence. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 2.10 kg.
The Motobatt MTX5AL: Super GEL range and GEL technology
Within the Motobatt catalogue, the Super GEL series groups the references designed for this use. The MTX5AL is the 5 Ah model of that family, with the same performance as its siblings in other sizes.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
What Motobatt does differently
Motobatt is the motorcycle battery specialist with Quadflex technology: four terminals that let you connect the battery in any position and a sealed AGM construction ready to fit. We guarantee that every Motobatt arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Motobatt MTX5AL comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Usage and maintenance tips
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-MOTOBATT-MTX5AL
Data sheet
- Brand
- MOTOBATT
- Reference
- MTX5AL
- Model
- MOTOBATT SUPER GEL
- Voltage (V)
- 12
- Length
- 119.50 mm
- Width
- 60.00 mm
- Height
- 131.00 mm
- Weight
- 2.1 Kgs
- Technology
- GEL
- Cold cranking amps (EN)
- 85A
- Capacity (C20)
- 5
- Capacity (C10)
- 5Ah (c10)
Specific References
- MPN
- MTX5AL
4,75/5
Verified purchasesLatest verified reviews
★★★★★Jose Ignacio Gil
27/05/2026Lo mejor, la atención al cliente
Muy buena atención telefónica
★★★★★Pedro Roman
18/02/2026Me encantan
Recomiendo la web por su trato al momento de elegir
★★★★★David Ramirez
07/02/2026Los mejores
Quiero dejar una reseña por que me parece increíble el buen trato que me dieron. Muy buena atención telefónica
★★★★★Raul Ruiz
30/12/2025Gratamente sorprendido
Recomiendo esta web, excelente servicio
★★★★★Alvaro Santos
23/11/2025Buena atención
Excelente atención telefònico, recomiendo llamar a su número antes de comprar en otra web
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
Is this battery GEL? What is the typical use?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Motobatt MTX5AL battery installed in the vehicle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Motobatt MTX5AL is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the MTX5AL model?
Dimensions (length × width × height) are 120×60×131 mm — also written as 120x60x131 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Motobatt MTX5AL battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The MTX5AL typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
