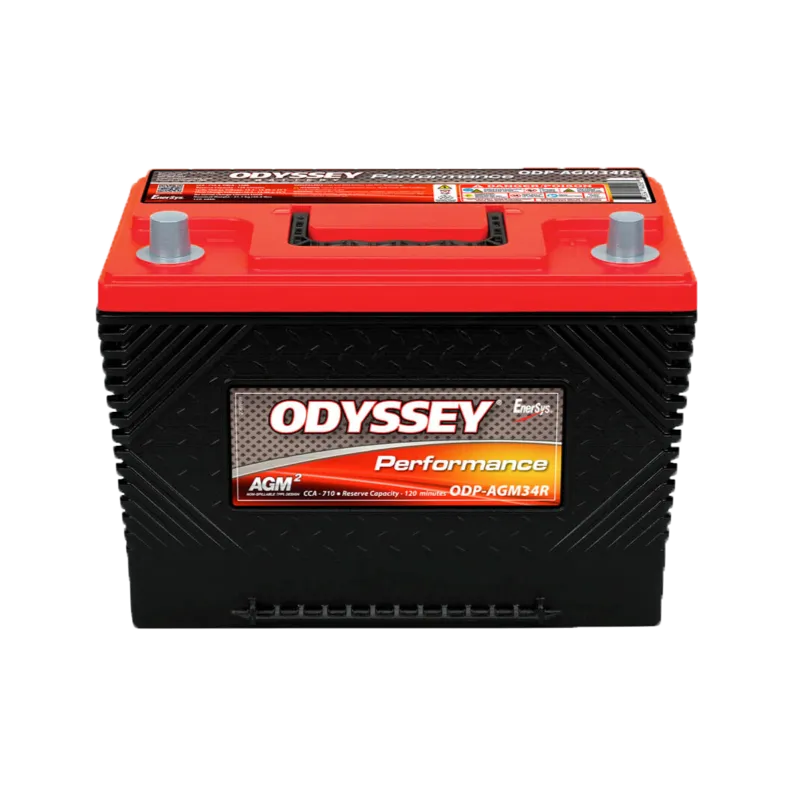

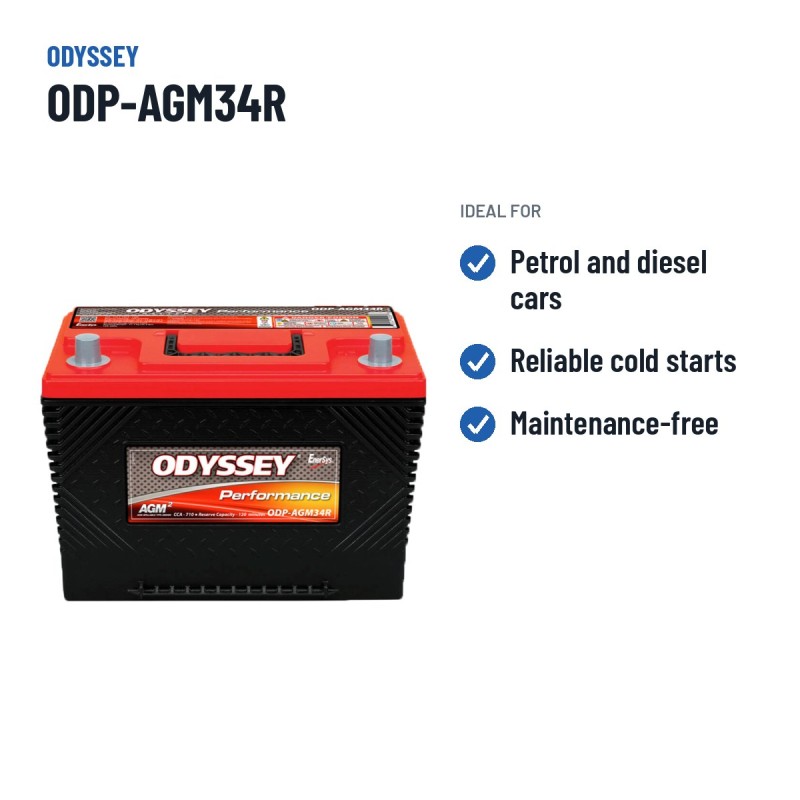

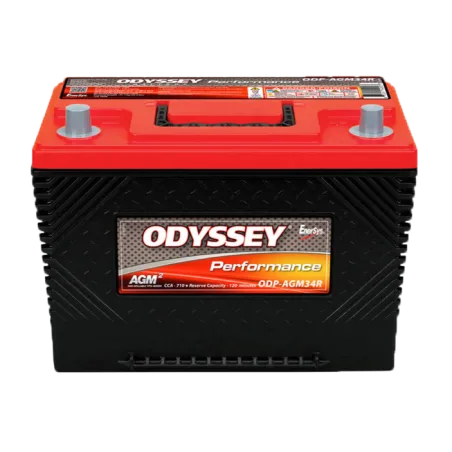

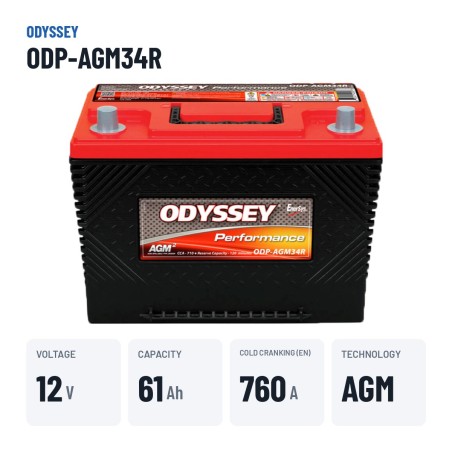

Odyssey ODP-AGM34R · Car battery 61Ah 792A AGM

Specifications

BrandODYSSEY
Part numberODP-AGM34R
Capacity (C20)61Ah (c20)
Capacity (C10)57Ah (c10)
Cold cranking amps (EN)792
TechnologyAGM
Length274 mm
Width173 mm
Height201 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Odyssey ODP-AGM34R 61Ah 792A is a starter battery with OEM-equivalent quality, designed for modern passenger cars. Delivers reliable cold-cranks even after weeks of inactivity and supports stable auxiliary loads (lights, climate control, infotainment).

Why this car battery?

  • Original-equipment qualitywithout dealership prices
  • Lasts 4 to 6 yearsbuy once instead of twice
  • Real human tech supportif you have any doubts before buying
Capacity
61 Ah C20
Cold cranking
792 A SAE
Dimensions
274×173×201 mm
Technology
AGM
Polarity
Positive on the right
Weight
21,1 kg
Model
ODP

Where it fits: the Odyssey ODP-AGM34R is one of our car batteries, belongs to our Odyssey batteries and by capacity it sits among our 61Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Car battery Odyssey ODP-AGM34R 61Ah 792A AGM

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF

The Odyssey ODP-AGM34R in practice

ODP-AGM34R vs Odyssey ODX-AGM34M

The Odyssey ODP-AGM34R offers 61 Ah and 792 A cold cranking in a 274 × 173 × 201 mm case. The Odyssey ODX-AGM34M, same brand and technology, goes up to 65 Ah and 880 A with 3 mm more length The difference shows on diesels and in hard winters; for a daily-driven petrol car the extra is not needed.

When not to choose it

Do not fit it in a tray that is not its own, nor charge it with a charger lacking an AGM mode; otherwise it is the most complete of the three technologies.

Logo Odyssey

Start-Stop battery Odyssey ODP-AGM34R ODP 61Ah 792A

61AhCapacity
792ACold cranking
21.10kgWeight

Designed for cars with Start-Stop, regenerative braking and heavy electrical loads, the Odyssey ODP-AGM34R from the ODP range combines 61 Ah and 792 A of cold cranking current (EN) with AGM construction able to withstand hundreds of starts a day. It measures 274 × 173 × 201 mm and the positive terminal on the right, the format sought by anyone replacing a 61 Ah battery in Start-Stop cars.

In short: the Odyssey ODP-AGM34R (61 Ah, 792 A, 274 × 173 × 201 mm, positive terminal on the right). It is an AGM battery for cars with Start-Stop and regenerative braking; if your car came with AGM, always replace it with another AGM.

  • Withstands hundreds of starts a day without degrading.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Up to three times the cycles of a conventional battery.
  • Compatible with regenerative braking and energy management (BMS).

What the Odyssey ODP-AGM34R is for

With 61 Ah, the Odyssey ODP-AGM34R is the replacement for cars with Start-Stop, regenerative braking and heavy electrical loads. After the swap it may be necessary to register the new battery in the ECU so that energy management works correctly. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 21.10 kg and SAE terminals.

The Odyssey ODP-AGM34R: ODP range and AGM technology

The ODP is the Odyssey range the ODP-AGM34R belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.

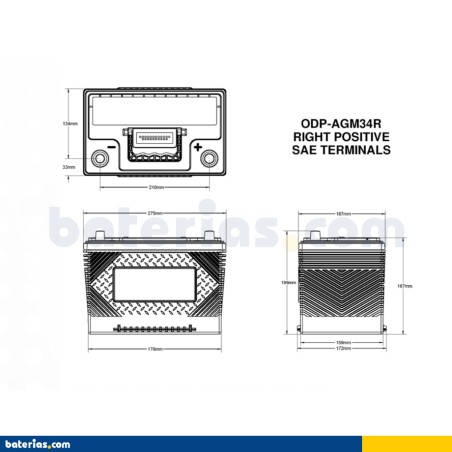

Will it fit your current battery tray?

The Odyssey ODP-AGM34R is made in the 274 × 173 × 201 mm format and weighs 21.10 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses SAE terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

Odyssey: the maker behind the ODP-AGM34R

Odyssey, part of the EnerSys group, makes thin-plate pure-lead (TPPL) batteries: extreme cranking, total vibration resistance and very long service life in motorsport, 4x4, marine and demanding vehicles. We guarantee that every Odyssey arrives new, charged and with the manufacturer's full warranty.

Usage and maintenance tips

If the vehicle only does very short trips, a periodic maintenance charge with an AGM/EFB-compatible charger greatly extends its life. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.

Official warranty

The Odyssey ODP-AGM34R comes with the manufacturer's official warranty. To keep it valid, always fit the same technology as the original battery (AGM or EFB) and register the replacement if your vehicle requires it.

Shipping, delivery and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-ODYSSEY-ODP-AGM34R

Data sheet

  • Brand
    ODYSSEY
  • Reference
    ODP-AGM34R
  • Model
    ODP
  • Length
    274 mm
  • Width
    173 mm
  • Height
    201 mm
  • Weight
    21.10 Kgs
  • Technology
    AGM
  • Terminal layout
    Positive terminal on the right
  • Terminal type
    SAE
  • Cold cranking amps (EN)
    792
  • Capacity (C20)
    61Ah (c20)
  • Capacity (C10)
    57Ah (c10)

Specific References

  • UPC
    635241139594
  • MPN
    ODP-AGM34R

Download

Datasheet Odyssey ODP-AGM34R

PDF datasheet of the Odyssey ODP-AGM34R battery

Download (1.88MB)

Other 61Ah batteries: We stock 5 models of 61 Ah to compare by price, technology and cold cranking: see all 61Ah batteries.

Recommended accessories — complement the Odyssey ODP-AGM34R with a charger or tester

Fitting it yourself? Step-by-step guide to replacing the battery →

Frequently asked questions

Is the Odyssey ODP-AGM34R an AGM battery and what are the benefits of AGM?

Yes. AGM (Absorbent Glass Mat) technology, 61 Ah: sealed lead-acid, with the electrolyte held in glass fibre. It is the technology required by cars with advanced Start-Stop and regenerative braking. It withstands more cycles than a conventional battery and copes better with heat.

Is the ODP-AGM34R model suitable for Start-Stop cars?

Yes: being AGM, the Odyssey ODP-AGM34R is designed for Start-Stop cars. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. If the car recovers energy when braking, AGM is recommended for its higher cycle count; for basic Start-Stop, EFB. The manufacturer's specification comes first. It needs nothing to work, though on most modern cars registering it via OBD is advisable so the alternator adjusts its charging profile.

What should I bear in mind when fitting this Start-Stop battery?

Allow 15-30 minutes and a 10 mm spanner. If the car keeps its battery in the boot or under a seat, it can take up to twice as long. With the engine stopped and the key removed, always start with the negative (−) terminal, then the positive (+). Free the clamp, swap the battery without turning it round (this one has positive on the right) so the polarity stays the same, and reconnect in reverse: positive (+) first, negative (−) last. On cars with Start-Stop or BMS, registering the battery via OBD makes the alternator charge with the correct profile. Mind the IBS sensor on the negative terminal too: loosen the cable nut, not the sensor. And the replacement must be the same technology (AGM or EFB) or higher: a conventional battery fails within months. Before you start, check the car handbook: the manufacturer's procedure always comes first. Our full step-by-step guide is on the blog.

What is the service life of the ODP-AGM34R model?

As a guide, you can expect the Odyssey ODP-AGM34R to last 5 to 8 years in mild-climate car use with Start-Stop, although the real figure may be higher or lower. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the car itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

What are the dimensions of the Odyssey ODP-AGM34R battery?

It measures 274×173×201 mm in length × width × height, with the terminals included in the height. Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close.

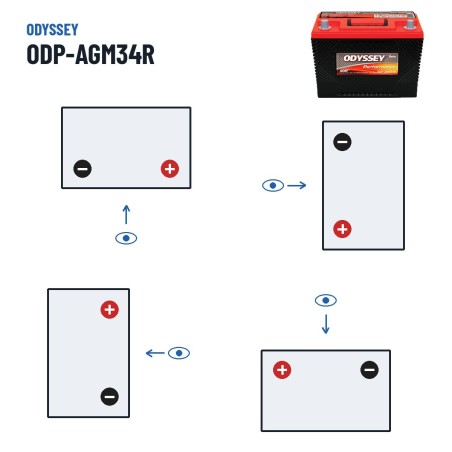

On which side is the positive of the ODP-AGM34R model?

On the Odyssey ODP-AGM34R, the polarity is positive on the right. It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. To check, stand the battery in front of you with the terminals nearest you: the positive (+) is the one with the red ring.

Will the Odyssey ODP-AGM34R battery fit my car?

Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your car is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). In every case, the car manufacturer's specifications (owner's handbook) take precedence.

Which batteries are equivalent to the Odyssey ODP-AGM34R?

To replace the Odyssey ODP-AGM34R without modifications, the other battery must be identical in size, polarity, Ah and CCA. Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop cars. The "Equivalents" section further down lists the recommended alternatives.

When do I need an AGM battery like this one?

AGM means Absorbent Glass Mat: the electrolyte soaks a glass-fibre mat (no spills), and an AGM battery lasts many more cycles than a conventional one. It is the recommended choice for advanced Start-Stop with regenerative braking (BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO, Volvo i-Stop) and copes better than an EFB with tilting, vibration and extreme temperatures. This ODP-AGM34R delivers 792 A cold cranking (EN).

Will my car recognise the new battery automatically?

The alternator detects the new battery and adapts the charge automatically, so on most cars it is not compulsory. Even so, it is advisable to register it via OBD so charging is optimum from the first minute and the battery lasts longer, particularly on BMW, Mercedes, Audi, Volvo or Land Rover, with more sophisticated BMS. Any workshop with an OBD scanner does it in a few minutes; DIY, with VCDS or Carista (VAG group), Bimmercode (BMW) or iCarsoft. Even if you do not register the Odyssey ODP-AGM34R, the car will start correctly; the profile adjusts within a few days.
