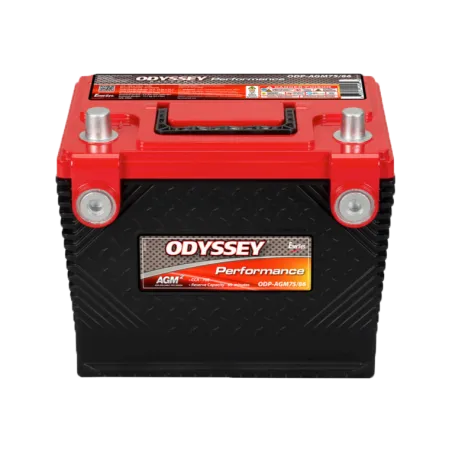

Odyssey ODP-AGM75 86 · Car battery 49Ah 708A AGM
Specifications
| Brand | ODYSSEY |
|---|---|
| Part number | ODP-AGM75 86 |
| Capacity (C20) | 49Ah (c20) |
| Capacity (C10) | 45Ah (c10) |
| Cold cranking amps (EN) | 708 |
| Technology | AGM |
| Length | 241 mm |
| Width | 173 mm |
| Height | 201 mm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Odyssey ODP-AGM75 86 49Ah 708A is a starter battery with OEM-equivalent quality, designed for modern passenger cars. Delivers reliable cold-cranks even after weeks of inactivity and supports stable auxiliary loads (lights, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Where it fits: the Odyssey ODP-AGM75 86 is one of our car batteries and belongs to our Odyssey batteries.
I prefer to fill in the form
Request a quote for your Car battery Odyssey ODP-AGM75 86 49Ah 708A AGM
- Reply in under 4 working hours
- Best price guaranteed
The Odyssey ODP-AGM75 86 in practice
ODP-AGM75 86 vs Odyssey ODP-AGM78
The Odyssey ODP-AGM75 86 offers 49 Ah and 708 A cold cranking in a 241 × 173 × 201 mm case. The Odyssey ODP-AGM78, same brand and technology, goes up to 61 Ah and 792 A with 33 mm more length The difference shows on diesels and in hard winters; for a daily-driven petrol car the extra is not needed.
When not to choose it
The only reason to rule it out is the case: if length or positive-terminal side differ from the original, do not force it however well the Ah match.

Start-Stop battery Odyssey ODP-AGM75 86 ODP 49Ah 708A
The Odyssey ODP-AGM75 86 with AGM technology delivers the 49 Ah at V and 708 A of cold cranking current (EN) that cars with Start-Stop, regenerative braking and heavy electrical loads need. It measures 241 × 173 × 201 mm and the positive terminal on the left, the format sought by anyone replacing a 49 Ah battery in Start-Stop cars.
In short: the Odyssey ODP-AGM75 86 (49 Ah, 708 A, 241 × 173 × 201 mm, positive terminal on the left). It is an AGM battery for cars with Start-Stop and regenerative braking; if your car came with AGM, always replace it with another AGM.
- Up to three times the cycles of a conventional battery.
- Compatible with regenerative braking and energy management (BMS).
- Withstands hundreds of starts a day without degrading.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.

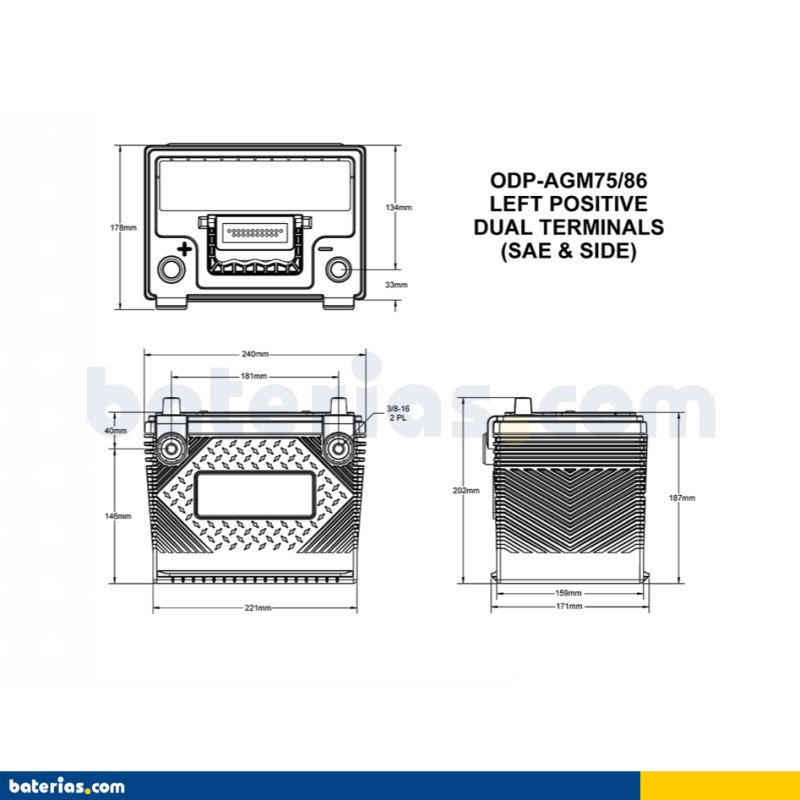

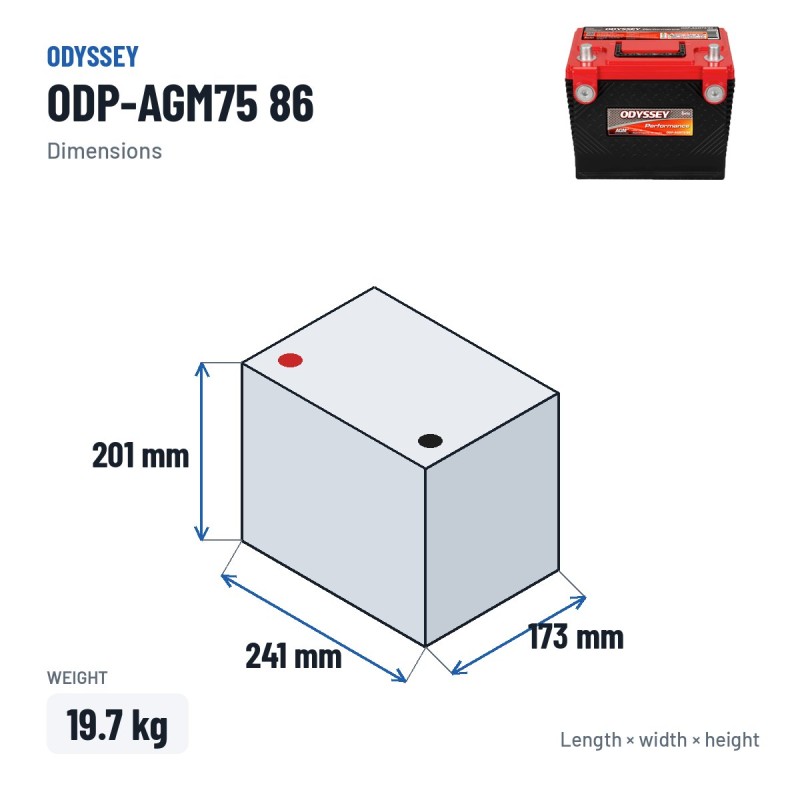

Dimensions, polarity and mounting
The Odyssey ODP-AGM75 86 is made in the 241 × 173 × 201 mm format and weighs 19.70 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses SAE terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Odyssey ODP-AGM75 86 is for
With 49 Ah, the Odyssey ODP-AGM75 86 is the replacement for cars with Start-Stop, regenerative braking and heavy electrical loads. After the swap it may be necessary to register the new battery in the ECU so that energy management works correctly. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 19.70 kg and SAE terminals.
The Odyssey ODP-AGM75 86: ODP range and AGM technology
The ODP is the Odyssey range the ODP-AGM75 86 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Why choose Odyssey batteries
Odyssey, part of the EnerSys group, makes thin-plate pure-lead (TPPL) batteries: extreme cranking, total vibration resistance and very long service life in motorsport, 4x4, marine and demanding vehicles. All the Odyssey batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Odyssey ODP-AGM75 86 comes with the manufacturer's official warranty. To keep it valid, always fit the same technology as the original battery (AGM or EFB) and register the replacement if your vehicle requires it.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Do not mix technologies: a conventional battery in a Start-Stop car degrades within months.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

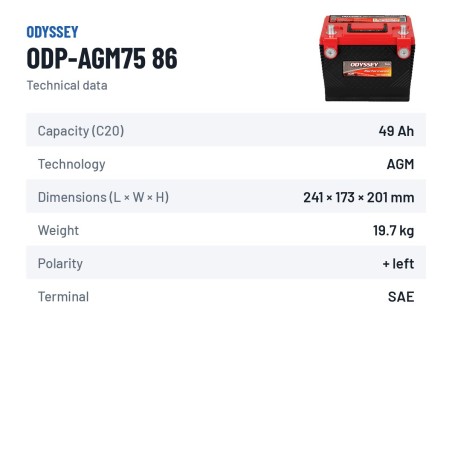

Data sheet
-
BrandODYSSEY
-
ReferenceODP-AGM75 86
-
ModelODP
-
Length241 mm
-
Width173 mm
-
Height201 mm
-
Weight19.70 Kgs
-
TechnologyAGM
-
Terminal layoutPositive terminal on the left
-
Terminal typeSAE
-
Cold cranking amps (EN)708
-
Capacity (C20)49Ah (c20)
-
Capacity (C10)45Ah (c10)
Specific References
-
UPC635241139563
-
MPNODP-AGM75 86
Recommended accessories
Fitting it yourself? Step-by-step guide to replacing the battery →
Frequently asked questions
Is the ODP-AGM75 86 model AGM? What does this technology offer?
Yes. AGM (Absorbent Glass Mat) technology, 49 Ah: sealed lead-acid, with the electrolyte held in glass fibre. Its advantages: more charge/discharge cycles than a conventional battery and better heat tolerance. It is also required in cars with advanced Start-Stop and regenerative braking.
Is the ODP-AGM75 86 model suitable for Start-Stop cars?
Yes, the AGM technology of the ODP-AGM75 86 is built for Start-Stop. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. If the car recovers energy when braking, AGM is recommended for its higher cycle count; for basic Start-Stop, EFB. The manufacturer's specification comes first. It works once fitted; on most modern cars, registering it via OBD is advisable so the alternator applies the optimum charging profile.
How do I replace a Start-Stop car battery with the ODP-AGM75 86?
On most cars it is a 15-30 minute job needing only a 10 mm spanner (up to twice as long when the battery is under a seat or in the boot). With Start-Stop there are three more points: the negative terminal usually carries a battery sensor (IBS), so undo the cable at the terminal nut without removing the sensor; register the battery via OBD so the alternator applies the correct charging profile; and fit the same technology as the original (AGM or EFB) or higher, because a conventional battery wears out within months. What matters most is the terminal order: removing, negative (−) before positive (+); refitting, positive (+) before negative (−). In between, with the engine off and the key out, release the clamp and fit the new battery the same way round as the original, positive on the left (polarity). Before you start, check the car handbook: the manufacturer's procedure always comes first. Our full step-by-step guide is on the blog.
How long does the Odyssey ODP-AGM75 86 battery last?
There is no exact figure: for a battery such as the Odyssey ODP-AGM75 86 (AGM), a reasonable guide is 5 to 8 years in mild-climate car use with Start-Stop. Actual lifespan varies with climate (cold starts, heat evaporating the electrolyte), with usage and short journeys, with the condition of the alternator and charging system, with power draw while parked and with maintenance; the type of car and Start-Stop also count.
What are the measurements of the ODP-AGM75 86 model?
Its dimensions are 241×173×201 mm, also written 241x173x201 mm; the height already includes the terminals. Check the room available in your car, because a single millimetre too much can stop the clamp from closing.

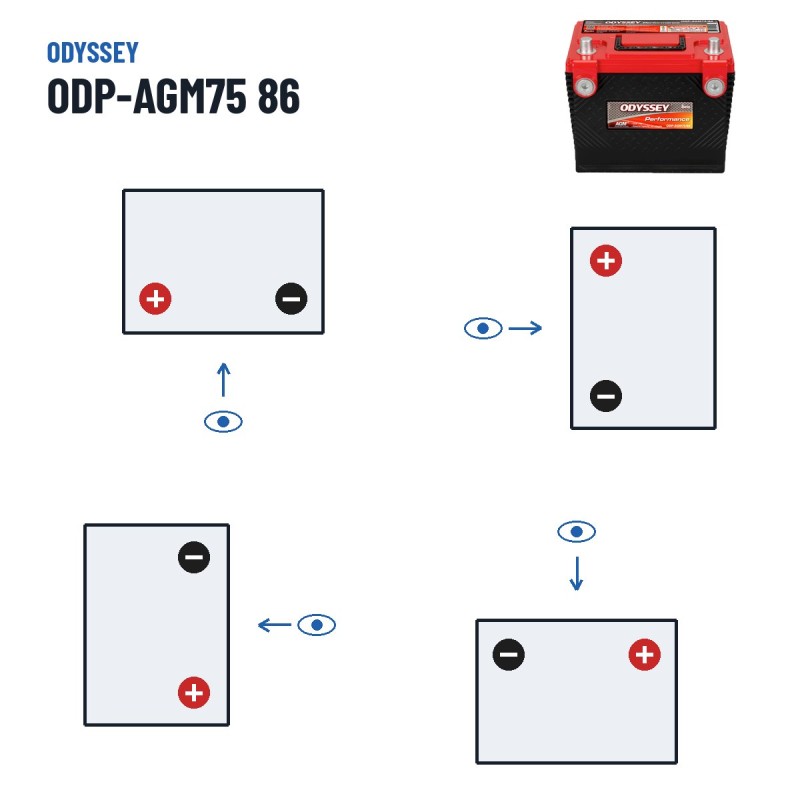

What polarity does the Odyssey ODP-AGM75 86 battery have?
It has the positive on the left (polarity). Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.
Will the Odyssey ODP-AGM75 86 battery fit my car?
The quickest way is to enter your number plate in the finder: DGT/DVLA/KBA detect model and engine. You can also look at the "Compatible vehicles" tab, verified by our technical team, or send us make, model, engine and year on WhatsApp; we answer during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). Always cross-check with what the car manufacturer states in the owner's handbook.
What are the equivalents of the ODP-AGM75 86 model?
Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop cars. The "Equivalents" section further down lists the recommended alternatives. To replace the Odyssey ODP-AGM75 86 without modifications, the other battery must be identical in size, polarity, Ah and CCA.
Why choose AGM instead of EFB for my Start-Stop car?
Compared with an EFB it resists tilted positions, heavy vibration and extreme temperatures better, and it is the recommended option where there is regenerative braking (BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO, Volvo i-Stop). In an AGM (Absorbent Glass Mat) battery the electrolyte is held in a glass-fibre mat: no spills, and many more charge/discharge cycles than a conventional battery. This ODP-AGM75 86 delivers 708 A cold cranking (EN).
Will my car recognise the new battery automatically?
It is not strictly necessary on most cars, because the alternator detects the change and adapts the charge. The advisable step is to register it via OBD: the charging profile is optimum from the first minute and the battery lasts longer, especially on brands with sophisticated BMS (BMW, Mercedes, Audi, Volvo, Land Rover). Any garage with an OBD scanner can do it in a few minutes. If you prefer to do it yourself: VCDS / Carista (VAG), Bimmercode (BMW) or iCarsoft. Even if you do not register the Odyssey ODP-AGM75 86, the car will start correctly; the profile adjusts within a few days.
