Ritar HR12-32W · Stationary UPS battery 12V 8Ah AGM

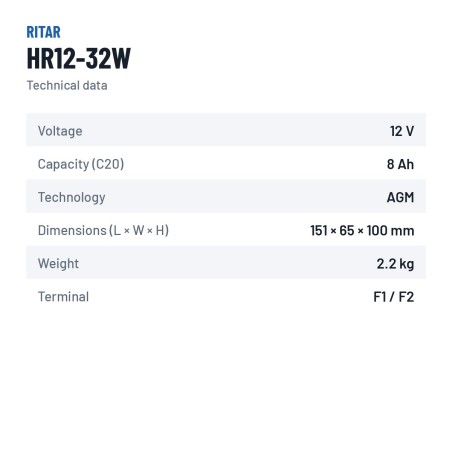

Specifications
| Brand | RITAR |
|---|---|
| Part number | HR12-32W |
| Voltage (V) | 12 |
| Capacity (C20) | 8Ah (c20) |
| Technology | AGM |
| Length | 151.00 mm |
| Width | 65.00 mm |
| Height | 100.00 mm |
| Terminal type | F1 / F2 |
€48.95
VAT included
4,83/5★★★★★10 reviewsVerified purchases
- ★★★★★Hector Vidal:
Recibí en plazo. Todo ok
- ★★★★Alejandro Navarro:
Gracias. Muy buena atención al cliente
- ★★★★★David Vidal:
Antes de realizar algun pedido en otra web llamen a los de baterias.com, te atienden estupendamente y te asesoran en todo lo que necesites
Reviews originally written in Spanish
See all 10 reviewsRitar HR12-32W 12V 8Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Voltage
12 V
Capacity
8 Ah
Dimensions
151×65×100 mm
Technology
AGM
Weight
2,2 kg
Model
RITAR HR
Stationary battery Ritar HR12-32W HR 8Ah 12V
12VVoltage
8AhCapacity
2.20kgWeight
Designed for UPS, alarms, telecoms and emergency lighting, the Ritar HR12-32W from the HR range offers 8 Ah with AGM technology on permanent float charge. Measuring 151 × 65 × 100 mm, it is the direct replacement for UPS, alarm and emergency systems fitted from the factory with a 8 Ah battery of this format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Instant response to mains failures.
- Low self-discharge and high reliability.
- Standard format for UPS and emergency systems.
What the Ritar HR12-32W is for
Designed for UPS, alarms, telecoms and emergency lighting, the Ritar HR12-32W is sealed, gas-free and suitable for technical cabinets and offices. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 2.20 kg and F1 / F2 terminals.

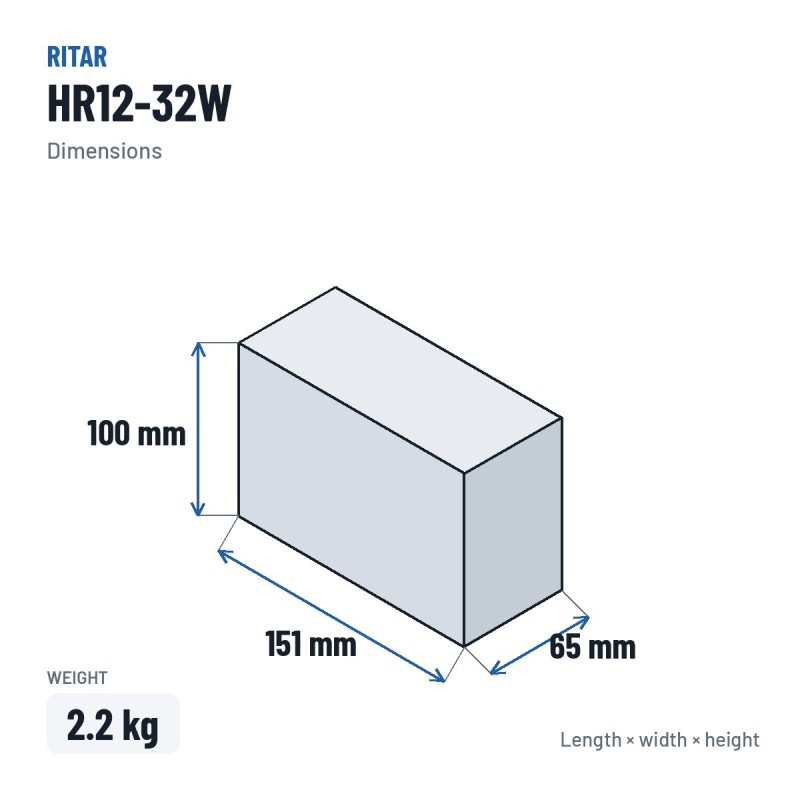

Will it fit your current battery tray?
It has external dimensions of 151 × 65 × 100 mm and weighs 2.20 kg. It uses F1 / F2 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Ritar batteries
With more than twenty years making sealed lead batteries, Ritar offers general-purpose, long-life, high-rate and front-terminal ranges for every stationary application. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Ritar HR12-32W: HR range and AGM technology
Within the Ritar catalogue, the HR series groups the references designed for this use. The HR12-32W is the 8 Ah model of that family, with the same performance as its siblings in other sizes.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
How to make it last longer
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery.
Manufacturer's warranty
The Ritar HR12-32W comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-RITAR-HR12-32W
Data sheet
- Brand
- RITAR
- Reference
- HR12-32W
- Model
- RITAR HR
- Voltage (V)
- 12
- Length
- 151.00 mm
- Width
- 65.00 mm
- Height
- 100.00 mm
- Technology
- AGM
- Terminal type
- F1 / F2
- Capacity (C20)
- 8Ah (c20)
Specific References
- MPN
- HR12-32W
4,83/5
Verified purchasesLatest verified reviews
Reviews originally written in Spanish
★★★★★Hector Vidal
18/02/2026De lo mejor
Recibí en plazo. Todo ok
★★★★★Alejandro Navarro
04/02/2026Buen servicio
Gracias. Muy buena atención al cliente
★★★★★David Vidal
03/01/2026Gran atención
Antes de realizar algun pedido en otra web llamen a los de baterias.com, te atienden estupendamente y te asesoran en todo lo que necesites
Comparison: Ritar HR12-32W vs equivalents
The Ritar HR12-32W is interchangeable with these equivalent references: HR12-28W (Ritar).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Ritar
HR12-32W
This battery
|
12V 8Ah | AGM | €48.95 |
Ritar
HR12-28W
|
12V 7Ah | AGM | €45.30 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The HR12-32W from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Ritar HR12-32W battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the HR12-32W model?
Expected lifespan of the Ritar HR12-32W is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the HR12-32W model?
Dimensions (length × width × height) are 151×65×100 mm — also written as 151x65x100 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the HR12-32W model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
