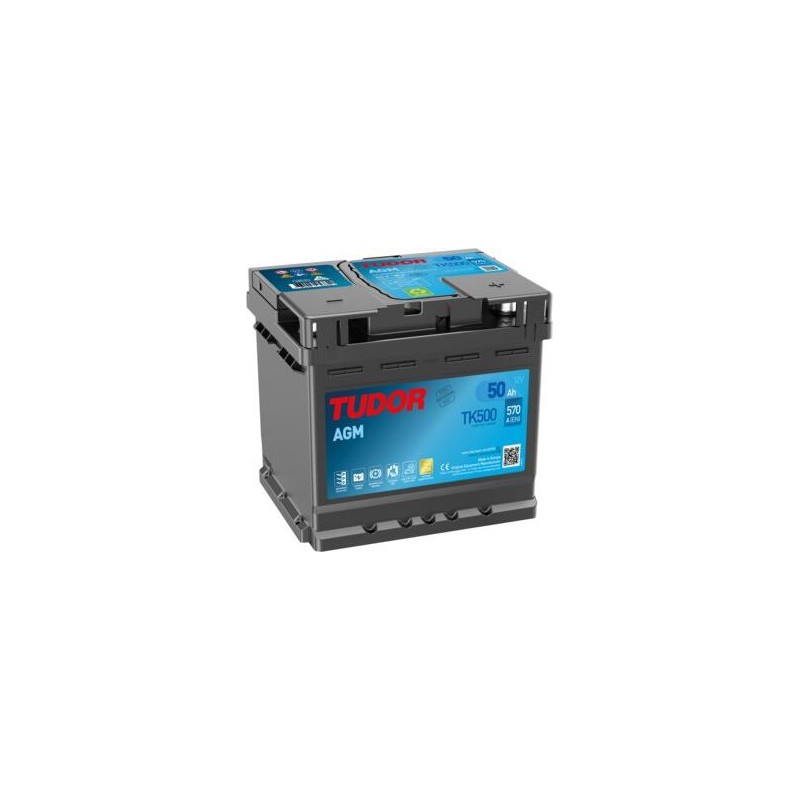

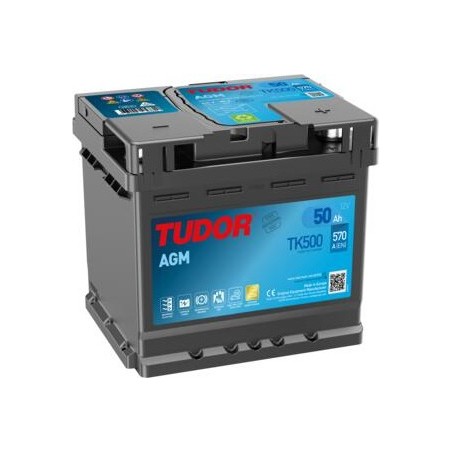

Tudor TK500 · Start-Stop battery 50Ah 570A AGM

Yes. The TK500 from Tudor uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for cars with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.

Yes. As AGM technology it is designed for Start-Stop vehicles. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. EFB is recommended for basic Start-Stop; AGM is recommended when regenerative braking is also present, thanks to its higher cycle capability. It works straight out of the box — on most modern vehicles registering the battery via OBD is recommended so the alternator automatically applies the optimal charging profile.

In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — with positive on the right match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile. Also, the negative terminal usually carries a battery sensor (IBS): undo the cable at the terminal nut without removing the sensor. Always replace it with the same technology (AGM or EFB) or higher: a conventional battery wears out within months with Start-Stop.

Expected lifespan of the Tudor TK500 is 5 to 8 years in mild-climate car use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

Dimensions (length × width × height) are 207×175×190 mm — also written as 207x175x190 mm and correspond to the European L1 case size — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

Polarity: positive on the right. To identify it, place the battery in front of you with the terminals facing you and check which side the positive (+, marked with a red ring) is on. Before buying, verify the polarity matches your current battery: switching polarity forces longer cables or system reconfiguration, with short-circuit risk.

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The TK500 typically fits a wide range of European vehicles thanks to its standard DIN case format.

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.

The Varta alternative that fits where the TK500 goes, with the same polarity. Compared with the TK500 it has 30 A of cold cranking less. It costs 10,30 € more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

AGM (Absorbent Glass Mat) technology uses absorbent fibreglass that retains the electrolyte, eliminating leaks and allowing up to 3× more charge/discharge cycles than a conventional battery. It is the recommended option when the car has advanced Start-Stop with regenerative braking (BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO, Volvo i-Stop). Withstands tilted positions, high vibration and extreme temperatures better than EFB. The Tudor TK500 is fully original and meets European EN 50342-6 standards for advanced Start-Stop.

On most cars it is not strictly necessary — the alternator detects the new battery and adapts the charge automatically. It is recommended to register the battery via OBD so that the alternator applies the optimal charging profile from the first minute and extends the battery life as much as possible (especially on brands with sophisticated BMS: BMW, Mercedes, Audi, Volvo, Land Rover). Any workshop with an OBD scanner (~10-15 € labour) does it in 5 minutes. DIY apps: VCDS / Carista (VAG), Bimmercode (BMW), iCarsoft. If you do not register, the car will still start correctly — the alternator just takes a few days to adjust the profile. The Tudor TK500 ships factory-charged at 80-90% so you can use it straight after fitting.
