Varta LED140 · Marine battery 12V 140Ah 800A EFB

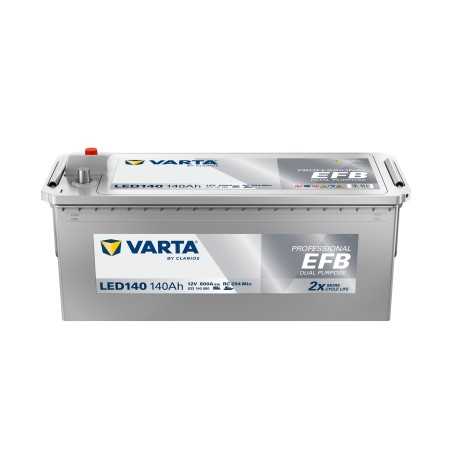

Marine battery Varta LED140 12V 140Ah 800A - front view
search

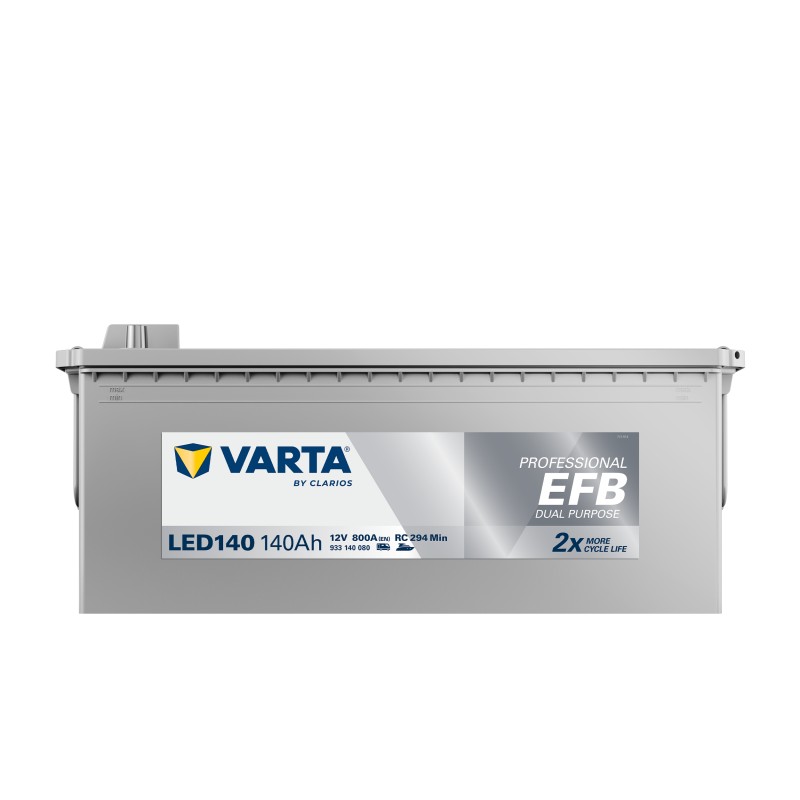

  • Marine battery Varta LED140 12V 140Ah 800A - front view
  • Marine battery Varta LED140 12V 140Ah 800A - dimensions diagram

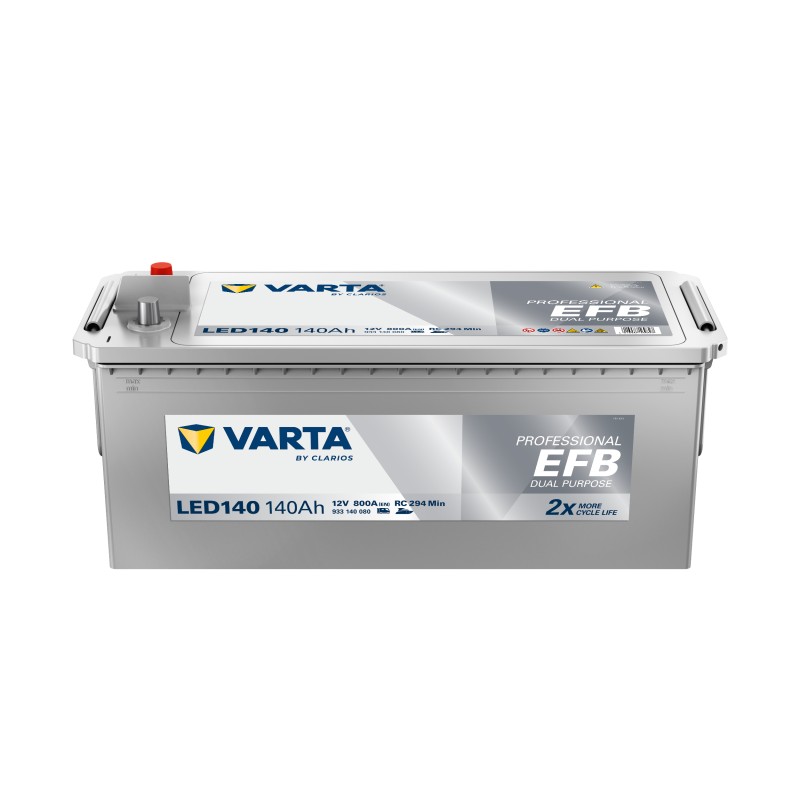

  • Marine battery Varta LED140 12V 140Ah 800A - front and top view

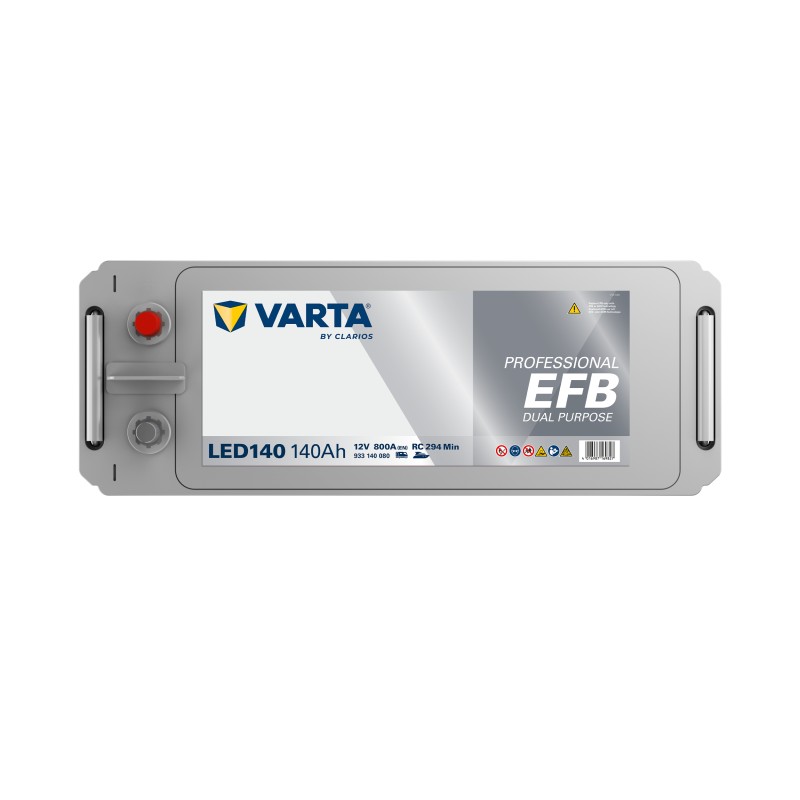

  • Marine battery Varta LED140 12V 140Ah 800A - top view

Specifications

BrandVARTA
Part numberLED140
Voltage (V)12
Capacity (C20)140Ah (c20)
TechnologyEFB
Length513 mm
Width189 mm
Height223 mm
Additional ETN933140080K312
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

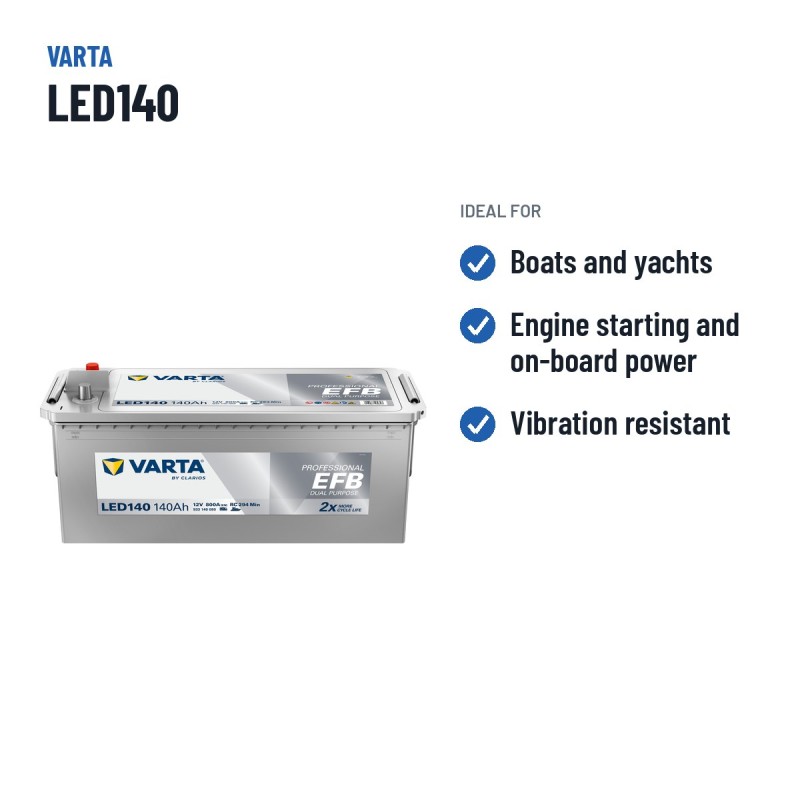

Varta LED140 12V 140Ah 800A is a marine battery, vibration- and deep-discharge resistant, suitable both for outboard engine starting and for onboard auxiliary services (navigation lights, GPS, sonar, fridge). Sealed and maintenance-free.

Why this marine battery?

  • Marine designbuilt for boat swell and vibration
  • Dual functionstarts the engine and powers onboard services
  • Sealed and safemaintenance-free even when the boat rolls
Voltage
12 V
Capacity
140 Ah C20
Cold cranking
800 A EN-1

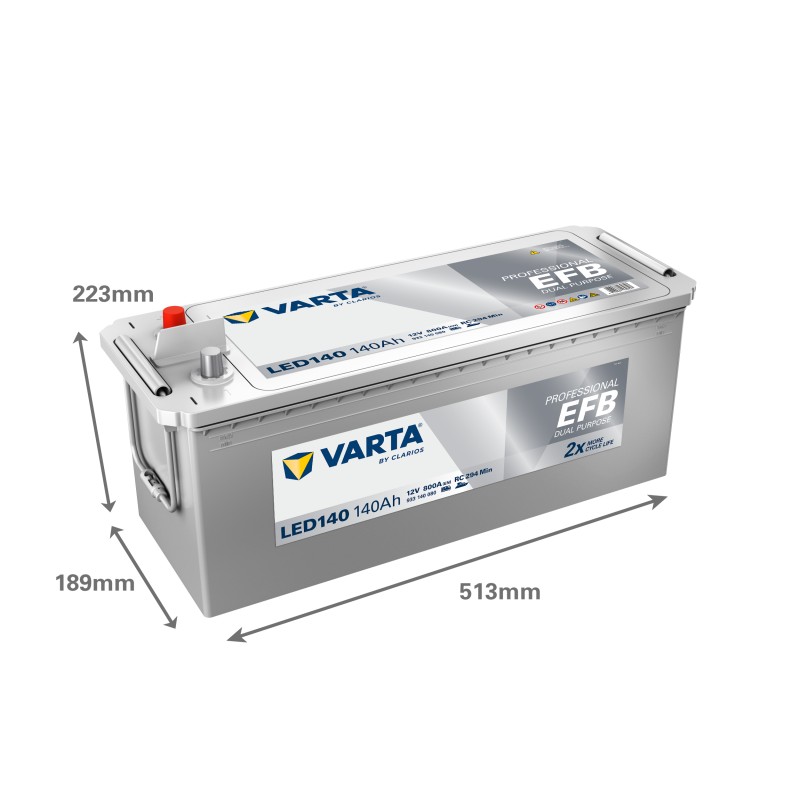

Dimensions
513×189×223 mm
Technology
EFB

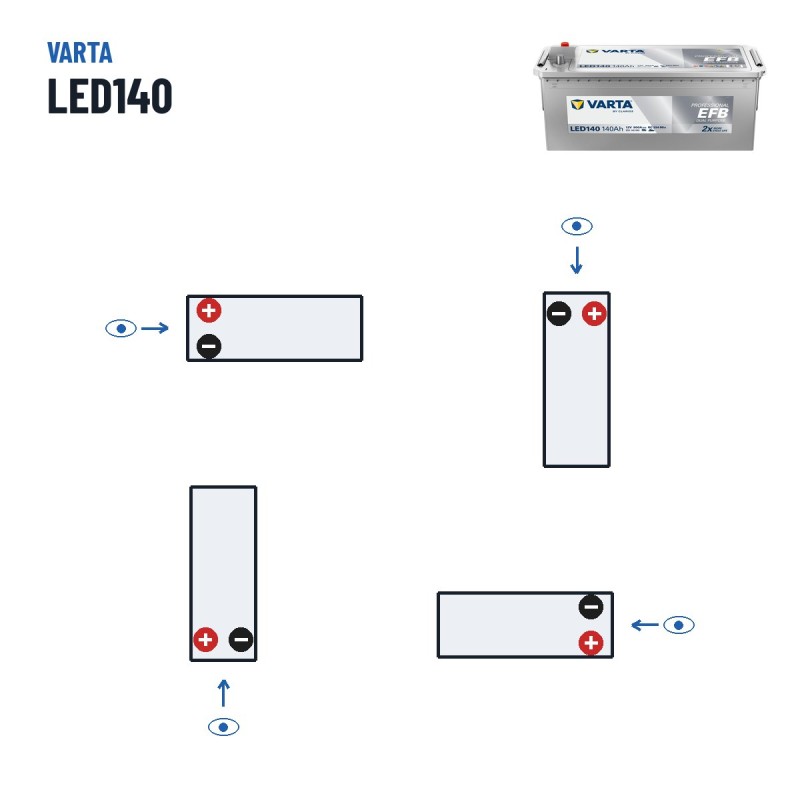

Polarity
Positive on the left
Weight
37,09 kg
Model
Professional Dual Purpose EFB
Free quote, no obligation

Request a quote for your Marine battery Varta LED140 12V 140Ah 800A EFB

  • Reply in under 24 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Varta

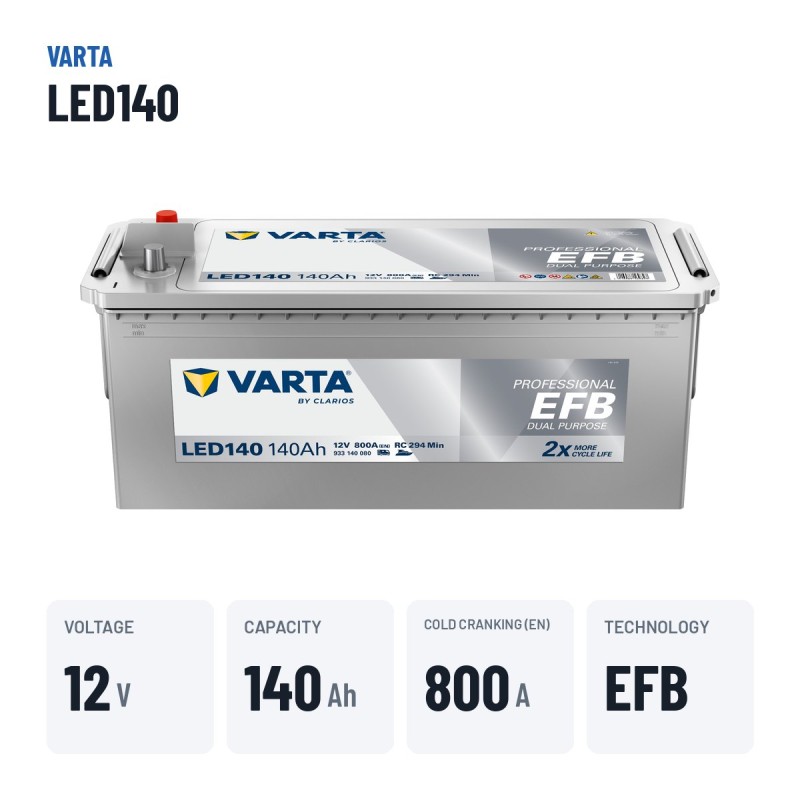

Varta LED140 Professional Dual Purpose EFB 140Ah 800A 12V Battery

12VVoltage
140AhCapacity
800ACold cranking

The Varta LED140 battery is the 12 V, 140 Ah model delivering 800 A of cold cranking power (EN), from Varta's Professional Dual Purpose EFB range, designed for motorhomes, boats and auxiliary power equipment. It replaces the original battery in vehicles with the 513 × 189 × 223 mm format without any modifications: the same 140 Ah capacity.

  • More on-board running time than a conventional starter battery.
  • Withstands deep discharges and repeated recharging without degrading.
  • Ideal for motorhomes, boating and leisure power.
  • Dual cycle: it both starts the engine and powers auxiliary equipment.

Applications of the Varta LED140 battery

The Varta LED140 covers the needs of motorhomes, boats and auxiliary power equipment with 140 Ah of capacity and a construction built for that use. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a B00 hold-down.

Format and fitting of the Varta LED140

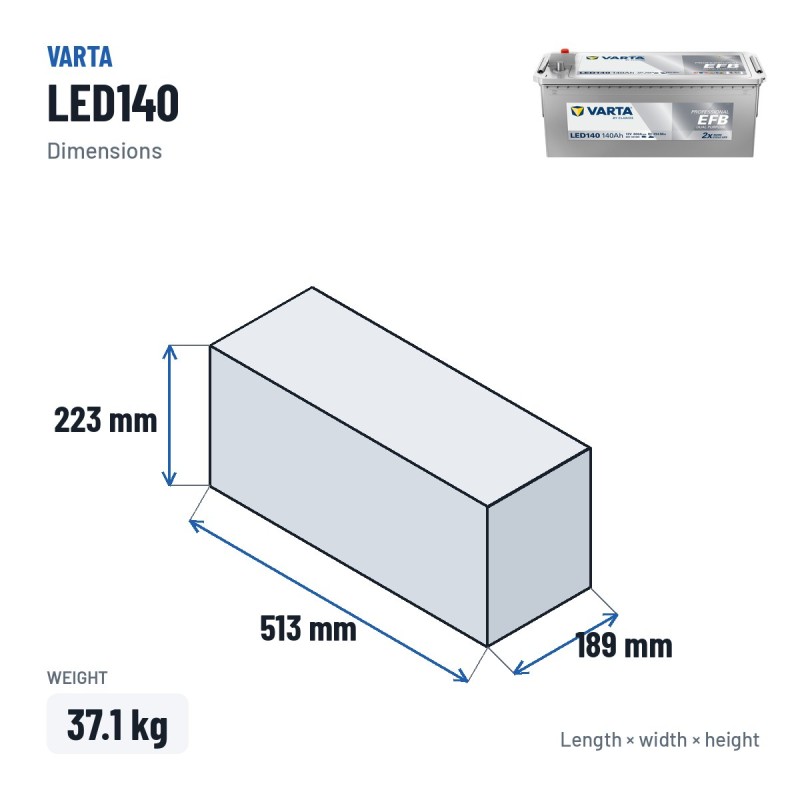

In format, the Varta LED140 measures 513 × 189 × 223 mm (length × width × height). It uses a B00 hold-down, the system that anchors it to the vehicle's battery tray. Before replacing it, measure the space your current battery occupies: if it matches on all three dimensions and on terminal position, the swap is direct and needs no adapters.

The Varta LED140 and the Professional Dual Purpose EFB range

The Professional Dual Purpose EFB range applies EFB technology to dual starting and leisure use, with more resistance to cycling than a conventional battery at a moderate cost.

It sits between the standard dual-purpose range and AGM: a solid step up for leisure and boating without paying AGM prices.

The chemistry is built to be drained and recharged many times over — the typical pattern in leisure and boating use — where an ordinary car battery would sulphate within weeks. It gives you running time for the on-board equipment and the cranking power to turn the engine over when needed.

Why choose a Varta battery

Varta is a byword for reliability: original equipment in numerous European vehicles and one of the most proven brands on the market. Replacing your battery with a Varta restores OEM quality — the same performance as the factory-fitted unit — with the manufacturer's backing.

Varta batteries are made under the Clarios group with German technology and quality controls that make them one of the best-selling choices in Europe. As a lead battery, it is 100% recyclable through any collection point.

More than 100 manufacturing parameters are checked on every Varta battery before it leaves the plant, a level of rigour that explains why so many workshops and manufacturers trust the brand as their first-choice replacement.

Manufacturer's warranty

The Varta LED140 battery comes with the official manufacturer warranty.

Care and maintenance

In leisure applications, avoiding discharges below 50% of capacity multiplies the number of cycles the battery will deliver. A suitable charger and, where possible, a solar regulator keep it healthy through the quieter seasons. To extend its life, recharge it as soon as possible after each discharge and never leave it flat over the winter. A trickle charger is the best investment for getting many cycles out of it.

BCOM-VARTA-LED140

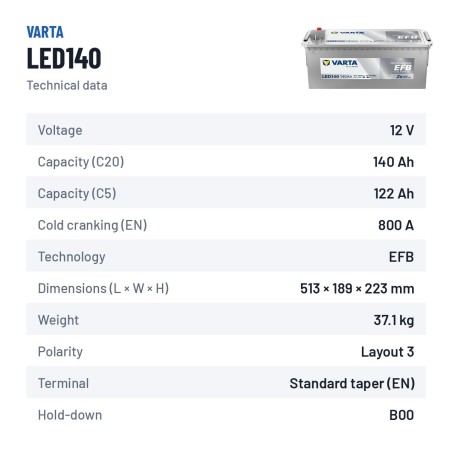

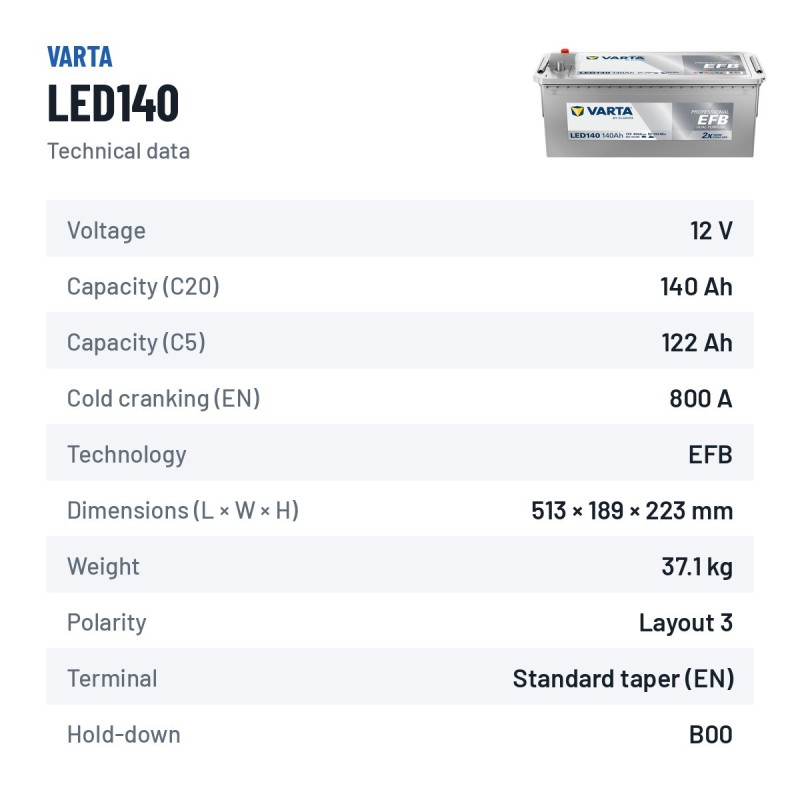

Data sheet

Brand
VARTA
Reference
LED140
Model
Varta Professional Dual Purpose EFB
Voltage (V)
12
Length
513 mm
Width
189 mm
Height
223 mm
Technology
EFB
EAN
4016987169827

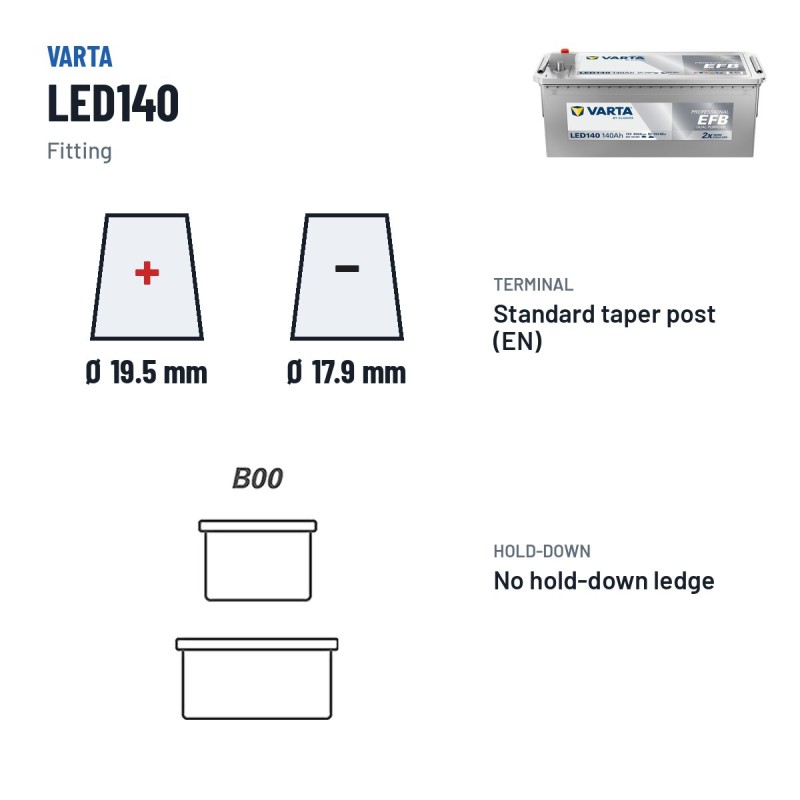

Hold-down
B00
Cold cranking amps (EN)
800A
Capacity (C20)
140Ah (c20)
Additional ETN
933140080K312

Specific References

EAN13
4016987169827
MPN
LED140

Codes and references Varta LED140

Brand Varta · see all batteries Varta
Manufacturer reference (MPN) LED140
EAN-13 barcode 4016987169827
Dimensions (length × width × height) 513 × 189 × 223 mm (513x189x223)

Comparison: Varta LED140 vs equivalents — alternatives with the same dimensions, Ah and CCA

The Varta LED140 is interchangeable with these equivalent references: TE1403 (Tudor), EE1403 (Exide), EP1200 (Exide).

Product Specifications Technology Price
Varta LED140 Varta LED140 This battery
Tudor TE1403 Tudor TE1403 ★ 4,5 12V 140Ah 800A EFB €235.90
Exide EE1403 Exide EE1403 ★ 4,8 12V 140Ah 800A EFB €224.70
Exide EP1200 Exide EP1200 ★ 4,8 12V 140Ah 700A AGM €269.80

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Recommended accessories — complement the Varta LED140 with a charger or tester

How to change the battery

Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.

⏱ 20-30 min🛠 Tools: 10 mm or 13 mm wrench (depending on terminal) · Protective gloves
  1. Step 1. Prepare the vehicle

    Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.

  2. Step 2. Locate the battery compartment

    Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery

    Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify circuit + water protection

    Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.

Frequently asked questions

How is the Varta LED140 battery installed in the vehicle?

In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

How long does the Varta LED140 battery last?

Expected lifespan of the Varta LED140 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What size is this battery?

Dimensions (length × width × height) are 513×189×223 mm — also written as 513x189x223 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

Does this battery fit my boat?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The LED140 typically fits a wide range of European vehicles thanks to its standard DIN case format.

Which batteries are equivalent to the Varta LED140?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
