Specifications
| Brand | VARTA |
|---|---|
| Part number | 522450034 |
| Voltage (V) | 12 |
| Capacity (C20) | 22 |
| Capacity (C10) | 22Ah (c10) |
| Cold cranking amps (EN) | 340A |
| Technology | Lead-acid |
| Length | 196.00 mm |
| Width | 132.00 mm |
How do you want it in …?
Battery + installation
Service for one battery per order.

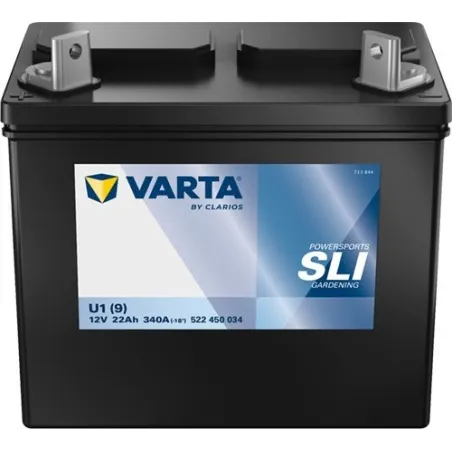

Varta U1-9 12V 22Ah 340A is a sealed motorcycle battery ready to fit, with the JIS reference your mechanic recognises at a glance. Vibration-resistant, keeps voltage during the winter off-season and cranks first time when you take it out for a ride.
Where it fits: the Varta 522450034 is one of our motorcycle batteries, belongs to our Varta batteries and by capacity it sits among our 22Ah batteries.
The Varta 522450034 offers 22 Ah and 340 A cold cranking in a 196 × 132 × 183 mm case. The Varta 530400030, same brand and technology, goes up to 30 Ah and 300 A with 31 mm less length and costs €102.10 more. If the tray takes the size, extra capacity and cranking give winter margin; if not, this one is the fit.

The Varta U1-9 motorcycle battery (reference 522450034) is the 12 V, 22 Ah and 340 A cold cranking (EN) model from Varta's Powersports range, designed for motorcycles, scooters, quads and personal watercraft. Its 196 × 132 × 183 mm dimensions and positive terminal on the left make it the exact replacement for the 22 Ah battery fitted as standard in many motorcycles.
According to our database, the Varta U1-9 is fitted to more than 53 vehicles from brands such as Yard MAN, Sears, John Deere, Iseki, Cub Cadet and MTD Products, among others. If you are looking for a battery for Yard MAN or Sears with these dimensions, the U1-9 is one of the usual replacement references. Added to that list are models from Case International, Toro, Allis-Chalmers, Gravely Corporation, Dixie Chopper, Woods, Carter Brothers and Bolens. Not sure whether it is the right one for your motorbike? Check in seconds by entering your registration number in our finder.
Its external dimensions are 196 × 132 × 183 mm and it weighs 9 kg. The positive terminal on the left determines which side the cables end up on: it is the detail that causes the most purchasing mistakes, so it is worth checking before ordering. Before replacing it, measure the space your current battery occupies: if it matches on all three dimensions and on the terminal positions, the swap is direct and needs no adapters.
The Powersports range comprises Varta's conventional starter batteries for the two-wheel world: motorbikes, scooters and quads with lead-acid technology.
They deliver powerful starting and good vibration resistance, as a direct replacement for traditional motorcycle batteries.
Unlike a car battery, what matters here is power density in a minimal size and resistance to vibration. It is the direct substitute for the original motorcycle battery, with the advantage of reliable starting even in the cold and after periods of inactivity.
Varta is a byword for reliability: original equipment in numerous European vehicles and one of the most proven brands on the market. Replacing your battery with a Varta restores OEM quality — the same performance as the factory-fitted unit — with the manufacturer's backing.
Varta batteries are made under the Clarios group with German technology and quality controls that make them one of the best-selling choices in Europe. As a lead battery, it is 100% recyclable through any collection point.
Varta's production combines automated lines with verification of more than 100 parameters per unit; that traceability is what underpins its reputation for reliable starting throughout the battery's life.
The Varta U1-9 battery comes with the official manufacturer warranty.
If the bike goes unused for long spells, a trickle charger greatly extends the battery's life and prevents sulphation. Storing it somewhere dry and checking the terminals at the start of each season helps it start first time. Motorcycle batteries suffer in the cold and when left idle: in winter, a maintenance charger stops the battery from discharging completely. With this care, it will typically deliver well over several years of service.

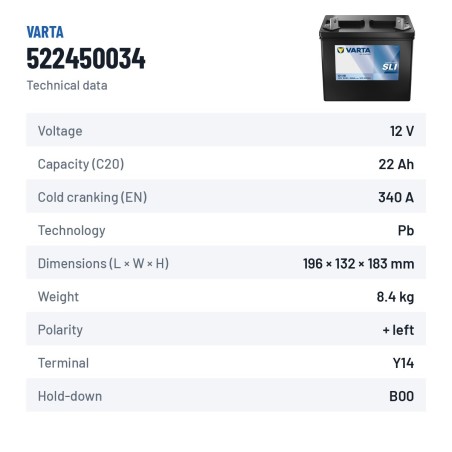

Download the official technical sheet for this battery with all the manufacturer data.
Data sheet
Specific References
No reviews with that rating
Reviews shown in their original language
5 ******
5.00/5 · 1 verified-purchase reviews · ✓ Collected after the order, unfiltered
mt bom serviço
5 ******
Each review is shown in the language the customer wrote it in.
| Brand | Varta · see all Varta batteries |
|---|---|
| Manufacturer range | Powersports |
| Manufacturer part number (MPN) | 522450034 |
| Also known as | Varta Powersports 522450034 |
| JIS equivalents | U1-9 |
| ETN code | 522450034A512 (short form 522 450 034) |
| EAN-13 barcode | 4016987169636 |
| Dimensions (length × width × height) | 196 × 132 × 183 mm (196x132x183) |
Other 22Ah batteries: We stock 10 models of 22 Ah to compare by price, technology and cold cranking: see all 22Ah batteries. Same size (196 × 132 × 183 mm): batteries of 196 × 132 × 183 mm.
The Varta 522450034 fits 52 vehicles. Most searched below:
With a 12 V motorcycle charger delivering at most 10 % of its capacity: 2.2 A for its 22 Ah. High-current car chargers can damage it. If the bike is laid up for the winter, keep it on a maintenance charger.
Yes: it is a conventional lead-acid battery. Check the electrolyte level from time to time and, if it drops, top up with distilled water to the mark.
Estimated lifespan of the Varta U1-9: 3 to 5 years, keeping it charged when the bike is not in use. Treat it as an approximate guide, as every case is different. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance. Cold demands more at every start and intense heat evaporates the electrolyte.
Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close. It measures 196×132×183 mm in length × width × height, with the terminals included in the height.
The U1-9 has the positive on the left: that is its polarity. Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on. A change of polarity from the original means longer cables or a reconfigured system and can cause a short circuit: check it before ordering.
Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your motorcycle is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). In every case, the motorcycle manufacturer's specifications (owner's handbook) take precedence. According to our data, 52 verified vehicle versions are compatible with the U1-9.
A battery interchangeable with the Varta U1-9 must match it on dimensions (196×132×183 mm), polarity (positive on the left), capacity (22 Ah) and cranking current (340 A). See the "Equivalents" section of this page for the recommended options at the same performance level.
