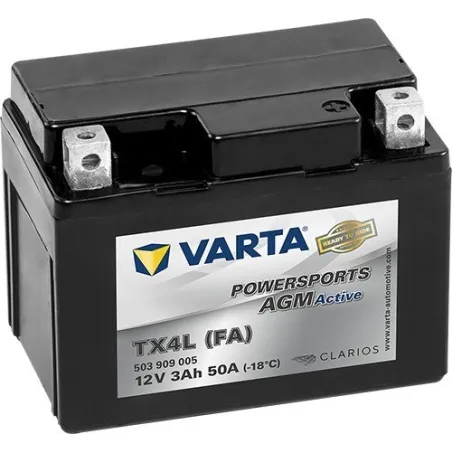

Varta YTX4L-4 · Motorcycle battery (503909005) 12V 3Ah 50A AGM
Specifications
| Brand | VARTA |
|---|---|
| Part number | 503909005 |
| Voltage (V) | 12 |
| Capacity (C20) | 3Ah (c20) |
| Cold cranking amps (EN) | 50A |
| Technology | AGM |
| Length | 113.00 mm |
| Width | 70.00 mm |
| Height | 87.00 mm |
Varta YTX4L-4 12V 3Ah 50A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season

Varta YTX4L-4 Powersports AGM Active (formerly Powersports AGM High Performance) 3Ah 50A 12V Motorcycle Battery
The Varta YTX4L-4 motorcycle battery (reference 503909005) is the 12 V, 3 Ah model delivering 50 A of cold cranking power (EN), from Varta's Powersports AGM Active (formerly Powersports AGM High Performance) range, designed for motorcycles, scooters, quads and personal watercraft. Its 113 × 70 × 87 mm dimensions and positive terminal on the right make it the exact replacement for the 3 Ah battery fitted as standard in many motorcycles.
In short: the Varta YTX4L-4 (3 Ah, 50 A, 113 × 70 × 87 mm, positive terminal on the right). Verified equivalent alternatives: Exide AGM12-4 and Exide ETX4L-BS.
- High cranking peak in a compact, lightweight format.
- Performs well in the cold and after periods of inactivity.
- Construction built to withstand the vibration typical of two-wheelers.
- Direct replacement for the original motorbike, scooter or quad battery.
Vehicles compatible with the Varta YTX4L-4 battery
This battery is listed as compatible with more than 324 vehicles from manufacturers such as MBK, Peugeot, Yamaha, Gilera, Aprilia Motorcycles and KTM. It is a go-to choice when you need a battery for an MBK, a Peugeot or other models built around this same format. The compatibility list also includes models from Sachs, Derbi, Malaguti, Piaggio, Hyosung, Honda, Suzuki and Italjet. Not sure whether it is the right one for your bike? Check in seconds by entering your registration number in our finder.
Format and fitting of the Varta YTX4L-4
The Varta YTX4L-4 is made in the 113 × 70 × 87 mm format. The positive terminal on the right determines which side the cables sit on: it is the detail that causes the most buying mistakes, so it is worth checking before you order. It uses a B00 hold-down, the system that anchors it to the vehicle's battery tray. Before replacing it, measure the space your current battery occupies: if it matches on all three dimensions and on terminal position, the swap is direct and needs no adapters.
The Varta YTX4L-4 and the Powersports AGM Active range
The Powersports AGM Active series is Varta's AGM motorcycle line that arrives activated and charged from the factory: it fits straight on, with no acid to add and no charging before use. It combines the ruggedness of AGM (resistance to vibration and to deep discharge) with the greatest possible ease of installation.
In the new portfolio it also absorbs the former high-performance versions (AGM High Performance), so it covers everything from general use to large-capacity, custom and trail bikes with heavy cranking demands.
On two wheels, vibration and extreme temperatures take a heavy toll on the battery. This range reinforces the internal plate mounting and seals the unit to withstand that use, delivering the instant burst of cranking power a motorbike or quad engine needs after weeks standing idle. This battery used to belong to Varta's Powersports AGM High Performance range; following the brand's change of commercial naming (2025), it now forms part of the new Powersports AGM Active series.
Why choose a Varta battery
Choosing Varta means going with the reference the car manufacturer itself signed off in the first place. Against own-brand batteries, the difference is not the purchase price but how many winters the battery lasts before it leaves you stranded.
Varta batteries are made under the Clarios group with German technology and quality controls that make them one of the best-selling choices in Europe. As a lead battery, it is 100% recyclable through any collection point.
Varta's production combines automated lines with verification of more than 100 parameters per unit; that traceability is what underpins its reputation for reliable starting throughout the battery's life.
Manufacturer's warranty
The Varta YTX4L-4 battery comes with the official manufacturer warranty.
Care and maintenance
If the bike goes unused for long spells, a trickle charger greatly extends the battery's life and prevents sulphation. Storing it somewhere dry and checking the terminals at the start of each season helps it start first time. Motorcycle batteries suffer in the cold and when left idle: in winter, a maintenance charger stops the battery from discharging completely. With this care, it will typically deliver well over several years of service.
Technical sheet
Download the official technical sheet for this battery with all the manufacturer data.
Data sheet
-
BrandVARTA
-
Reference503909005
-
ModelVarta Powersports AGM Active
-
Voltage (V)12
-
Length113.00 mm
-
Width70.00 mm
-
Height87.00 mm
-
TechnologyAGM
-
EAN4016987168899
-
Terminal layoutPositive terminal on the right
-
JISYTX4L-4
-
Hold-downB00
-
Cold cranking amps (EN)50A
-
Capacity (C20)3Ah (c20)
-
ETN503909005A512
Specific References
-
EAN134016987168899
-
MPN503909005
Codes and references Varta 503909005
| Brand | Varta · see all Varta batteries |
|---|---|
| Manufacturer range | Powersports AGM Active (formerly Powersports AGM High Performance) |
| Manufacturer part number (MPN) | 503909005 |
| Also known as | Varta Powersports AGM High Performance 503909005 · Varta Powersports AGM Active 503909005 |
| JIS equivalents | YTX4L-4 |
| ETN code | 503909005A512 (short form 503 909 005) |
| EAN-13 barcode | 4016987168899 |
| Dimensions (length × width × height) | 113 × 70 × 87 mm (113x70x87) |
Comparison: Varta 503909005 vs equivalents
The Varta 503909005 is interchangeable with these equivalent references: AGM12-4 (Exide), ETX4L-BS (Exide), 503014003 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
|
|
12V 3Ah 50A | AGM | €33.60 |
|
|
12V 3Ah 50A | AGM | €27.20 |
|
|
12V 3Ah 50A | AGM | €12.20 |
|
|
12V 3Ah 40A | AGM | €21.20 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
Compatible vehicles
The Varta 503909005 fits 324 vehicles. Most searched below:
Frequently asked questions
Is the Varta YTX4L-4 an AGM battery and what are the benefits of AGM?
Yes. The YTX4L-4 from Varta uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for motorcycles with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — with positive on the right match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Varta YTX4L-4 battery last?
Expected lifespan of the Varta YTX4L-4 is 5 to 8 years in mild-climate motorcycle use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the YTX4L-4 model?
Dimensions (length × width × height) are 113×70×87 mm — also written as 113x70x87 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
On which side is the positive of the YTX4L-4 model?
Polarity: positive on the right. To identify it, place the battery in front of you with the terminals facing you and check which side the positive (+, marked with a red ring) is on. Before buying, verify the polarity matches your current battery: switching polarity forces longer cables or system reconfiguration, with short-circuit risk.
Will the Varta YTX4L-4 battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The YTX4L-4 fits 324 verified vehicle versions in our database.
Which batteries are equivalent to the Varta YTX4L-4?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
