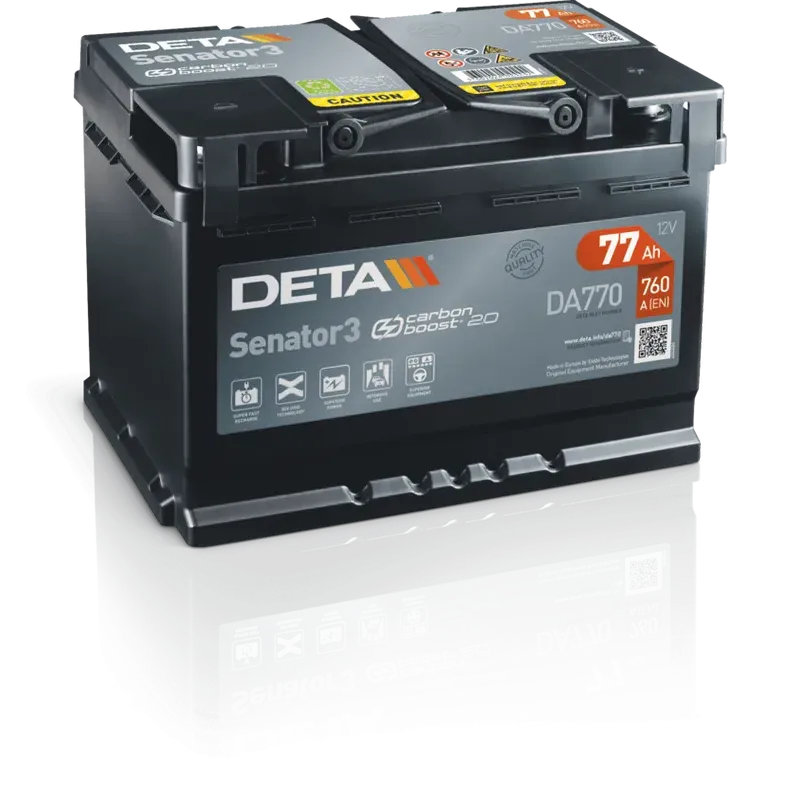

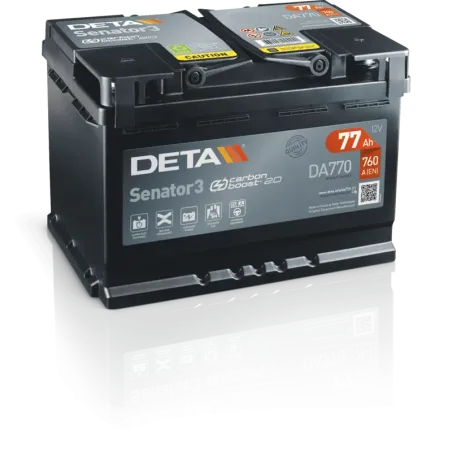

Deta DA770 · Car battery 12V 77Ah 760A
Specifications
| Brand | Deta |
|---|---|
| Part number | DA770 |
| Voltage (V) | 12 |
| Capacity (C20) | 77Ah (c20) |
| Cold cranking amps (EN) | 760A |
| Technology | Lead-acid |
| Length | 278 mm |
| Width | 175 mm |
| Height | 190 mm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Deta DA770 12V 77Ah 760A is a starter battery with OEM-equivalent quality, designed for modern passenger cars. Delivers reliable cold-cranks even after weeks of inactivity and supports stable auxiliary loads (lights, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
77 Ah
Cold cranking
760 A
Dimensions
278×175×190 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
17,5 kg
Model
DETA Senator3
Free quote, no obligation
Request a quote for your Car battery Deta DA770 12V 77Ah 760A
- Reply in under 24 working hours
- Best price guaranteed
Car battery Deta DA770 Senator3 77Ah 760A 12V
12VVoltage
77AhCapacity
760ACold cranking
17.50kgWeight
The Deta DA770 from the Senator3 range delivers 77 Ah and 760 A of cold cranking current (EN) at 12 V: the usual specification for passenger cars with conventional starting, without a Start-Stop system. Measuring 278 × 175 × 190 mm and the positive terminal on the right, it is the direct replacement for cars fitted from the factory with a 77 Ah battery of this format.
- Low self-discharge: copes with long stops without losing charge.
- Designed to last several years under normal daily use.
- Good balance of capacity, cranking power and price.
- Stable voltage for the vehicle electronics (ECU, sensors, climate control).
Will it fit your current battery tray?
In terms of format, the Deta DA770 measures 278 × 175 × 190 mm (length × width × height) and weighs 17.50 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Deta DA770 is for
The Deta DA770 covers the needs of passenger cars with conventional starting, without a Start-Stop system: reliable starting, stable voltage for the electronics and a service life of several years in daily use. Check that it matches your current battery in size and terminal position. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 17.50 kg and B13 hold-down.
The Deta DA770: Senator3 range and conventional lead-acid technology
The DA770 is part of the Deta Senator3 range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
Deta: the maker behind the DA770
Deta is the German brand of the Exide group: batteries built with original-equipment technology and a very complete range for cars, Start-Stop, trucks, motorcycles and leisure. All the Deta batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Deta DA770 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
Care and maintenance
Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-DETA-DA770
Data sheet
- Brand
- DETA
- Reference
- DA770
- Model
- DETA Senator3
- Voltage (V)
- 12
- Length
- 278 mm
- Width
- 175 mm
- Height
- 190 mm
- Weight
- 17.50 Kgs
- Technology
- Lead-acid
- EAN
- 3661024024242
- Terminal layout
- Positive terminal on the right
- Hold-down
- B13
- Cold cranking amps (EN)
- 760A
- Capacity (C20)
- 77Ah (c20)
- Case type
- L03
Specific References
- EAN13
- 3661024024242
- MPN
- DA770
Codes and references Deta DA770
| Brand | Deta |
|---|---|
| Manufacturer range | DETA Senator3 |
| Manufacturer reference (MPN) | DA770 |
| EAN-13 barcode | 3661024024242 |
| European case size (EN 50342-2) | L3 |
| Dimensions (length × width × height) | 278 × 175 × 190 mm (278x175x190) |
Comparison: Deta DA770 vs equivalents
The Deta DA770 is interchangeable with these equivalent references: TA770 (Tudor), TB740 (Tudor), E11 (Varta), E13 (Varta), E44 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Deta
DA770
This battery
|
12V 77Ah 760A | Lead-acid | |
Tudor
TA770
|
12V 77Ah 760A | Lead-acid | €74.70 |
Tudor
TB740
|
12V 74Ah 680A | Lead-acid | €63.95 |
Varta
E11
|
12V 74Ah 680A | Lead-acid | €71.95 |
Varta
E13
|
12V 70Ah 640A | Lead-acid | €68.90 |
Varta
E44
|
12V 77Ah 780A | Lead-acid | €85.40 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
Compatible vehicles
The Deta DA770 fits 181 vehicles. Most searched below:
RENAULTTRAFIC Van (T_, P_, V_)1990RENAULTTRAFIC Platform/Chassis (T_, P_, V_)1990VOLKSWAGENGOLF III (1H1)1990SEATIBIZA II (6K1)1993ARO240-2441990PEUGEOT505 (551A)1990AUVERLANDA3 Open Off-Road Vehicle1990PLYMOUTHVOYAGER / GRAND VOYAGER1990NISSANX-TRAIL I (T30)2001AUVERLANDA3 Closed Off-Road Vehicle1990VOLKSWAGENPASSAT B3/B4 Variant (3A5, 35I)1990SAAB9000 Hatchback1990
See all 181 compatible vehicles
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Deta DA770 battery installed in the vehicle?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Deta DA770 battery last?
Expected lifespan of the Deta DA770 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Deta DA770 battery?
Dimensions (length × width × height) are 278×175×190 mm — also written as 278x175x190 mm and correspond to the European L3 case size — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Does this battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The DA770 fits 181 verified vehicle versions in our database.
What are the equivalents of the DA770 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
