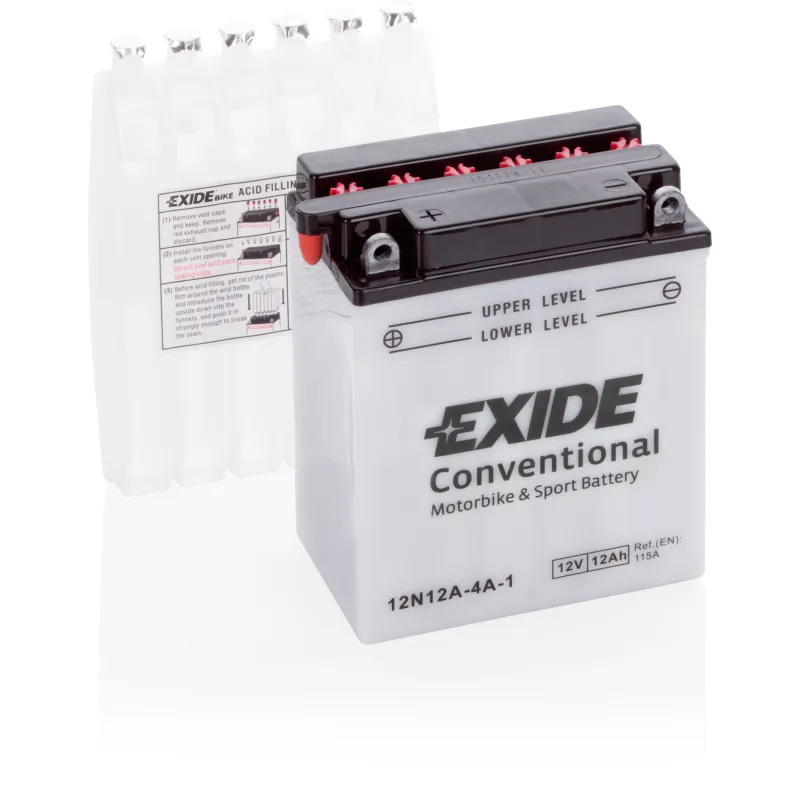

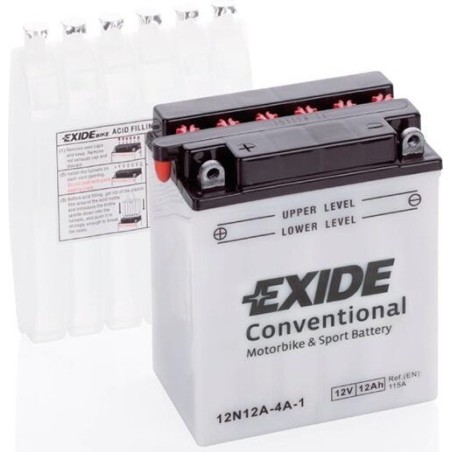

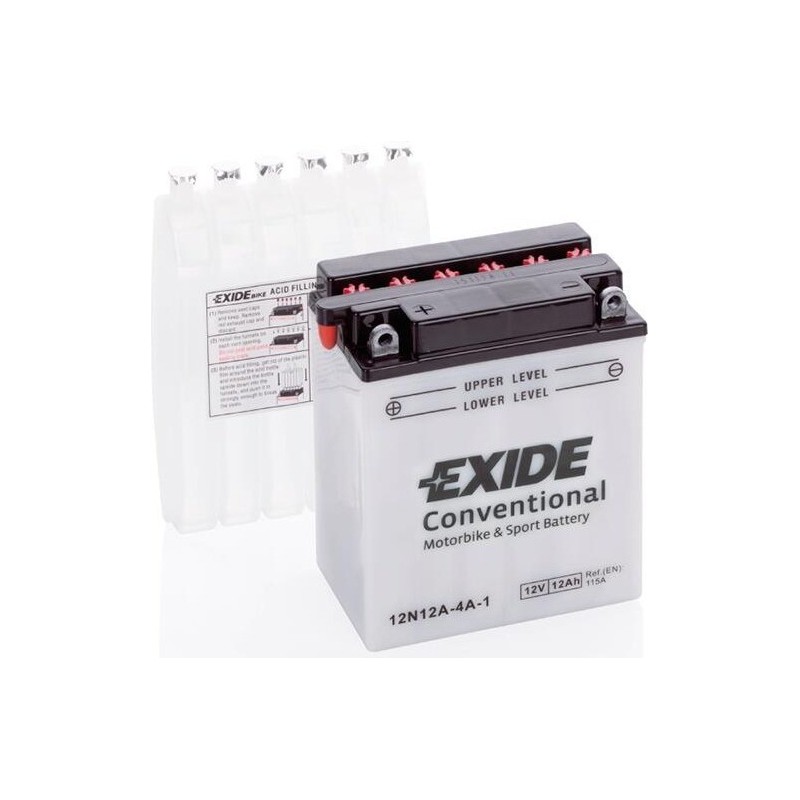

Exide 12N12A-4A-1 · Motorcycle battery 12V 12Ah 115A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | 12N12A-4A-1 |
| Voltage (V) | 12 |
| Capacity (C20) | 12Ah (c20) |
| Technology | Lead-acid |
| Length | 135.00 cm |
| Width | 80.00 cm |
| Height | 160.00 cm |
| Weight | 3.90 Kgs |
€51.95
VAT included
Exide 12N12A-4A-1 12V 12Ah 115A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
12N12A-4A-1
Voltage
12 V
Capacity
12 Ah
Cold cranking
115 A
Dimensions
135×80×160 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
3,9 kg
Model
EXIDE MOTO CONVENTIONAL 12V
Mfr. reference
12N12A-4A-1
Motorcycle battery Exide 12N12A-4A-1 Moto Convencional 12Ah 115A 12V
12VVoltage
12AhCapacity
115ACold cranking
3.90kgWeight
With 12 Ah at 12 V and 115 A of cold cranking current (EN), the Exide 12N12A-4A-1 with conventional lead-acid technology replaces the original battery of motorcycles, scooters, quads and personal watercraft. Measuring 135 × 80 × 160 mm and the positive terminal on the left, it is the direct replacement for motorcycles fitted from the factory with a 12 Ah battery of this format.
- Holds its charge through winter storage.
- Compact and lightweight format.
- Good balance of capacity, cranking power and price.
- Sealed and ready to fit, no acid handling.
What the Exide 12N12A-4A-1 is for
With 12 Ah, the Exide 12N12A-4A-1 covers the starting of motorcycles, scooters, quads and personal watercraft. The JIS code on your current battery label is the safest way to confirm equivalence. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 3.90 kg, M06 terminals and B0 hold-down.
Size, terminals and hold-down of the Exide 12N12A-4A-1
The Exide 12N12A-4A-1 is made in the 135 × 80 × 160 mm format and weighs 3.90 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and M06 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Exide 12N12A-4A-1: Moto Convencional range and conventional lead-acid technology
Within the Exide catalogue, the Moto Convencional series groups the references designed for this use. The 12N12A-4A-1 is the 12 Ah model of that family, with the same performance as its siblings in other sizes.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
What Exide does differently
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Exide 12N12A-4A-1 comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Care and maintenance
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Check the resting voltage before the season (above 12.6 V on a charged battery) and make sure the terminals are clean and tight.
Shipping, delivery and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-EXIDE-12N12A-4A-1
Data sheet
- Brand
- EXIDE
- Reference
- 12N12A-4A-1
- Model
- EXIDE MOTO CONVENCIONAL 12V
- Voltage (V)
- 12
- Length
- 135.00 cm
- Width
- 80.00 cm
- Height
- 160.00 cm
- Weight
- 3.90 Kgs
- Technology
- Lead-acid
- EAN
- 3661024033282
- Terminal layout
- Positive terminal on the left
- Terminal type
- M06
- Hold-down
- B0
- Cold cranking amps (EN)
- 115A
- Capacity (C20)
- 12Ah (c20)
Specific References
- EAN13
- 3661024033282
- MPN
- 12N12A-4A-1
Codes and references Exide 12N12A-4A-1
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MOTO CONVENCIONAL 12V |
| Manufacturer reference (MPN) | 12N12A-4A-1 |
| EAN-13 barcode | 3661024033282 |
| Dimensions (length × width × height) | 135 × 80 × 160 mm (135x80x160) |
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Exide 12N12A-4A-1 battery installed in the vehicle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Exide 12N12A-4A-1 is 4 to 6 years in regular motorcycle use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide 12N12A-4A-1 battery?
Dimensions (length × width × height) are 135×80×160 mm — also written as 135x80x160 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the 12N12A-4A-1 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The 12N12A-4A-1 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the 12N12A-4A-1 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
