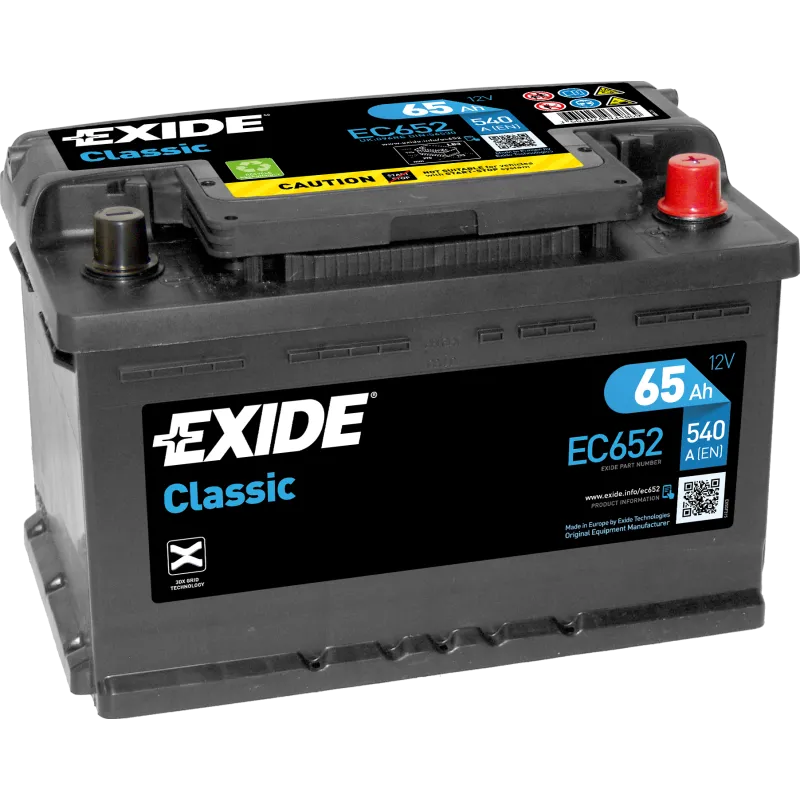

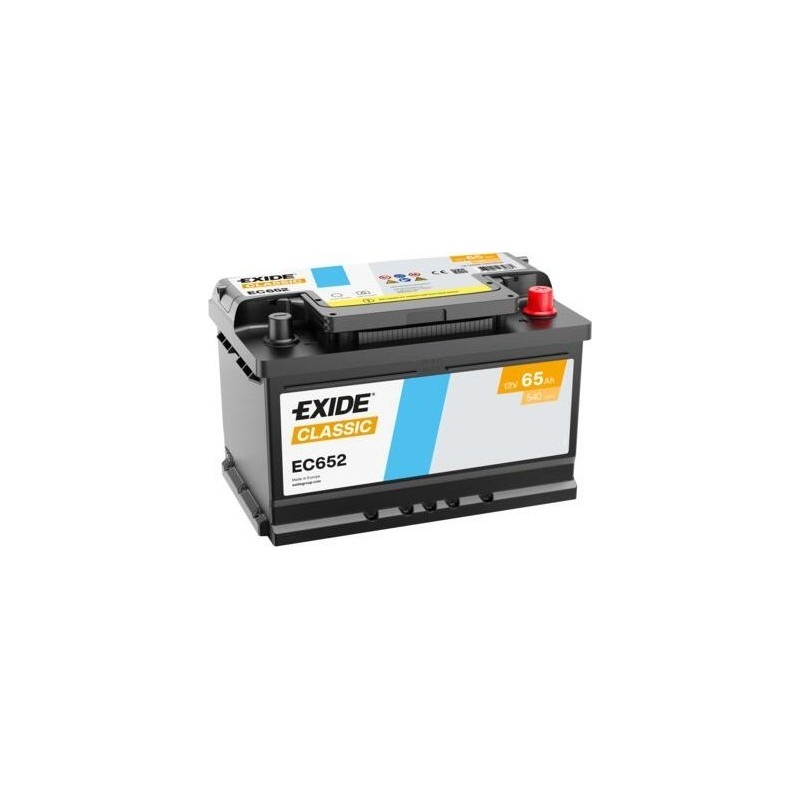

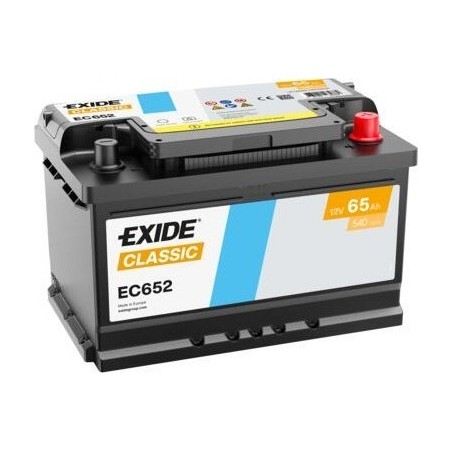

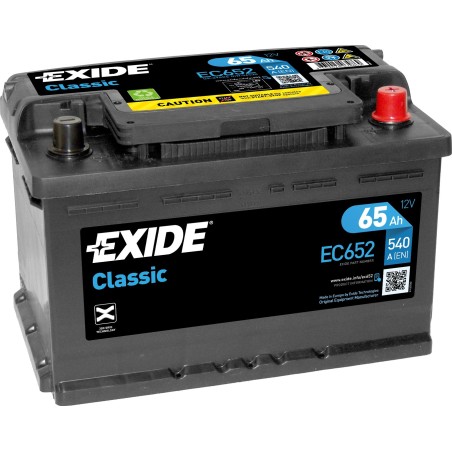

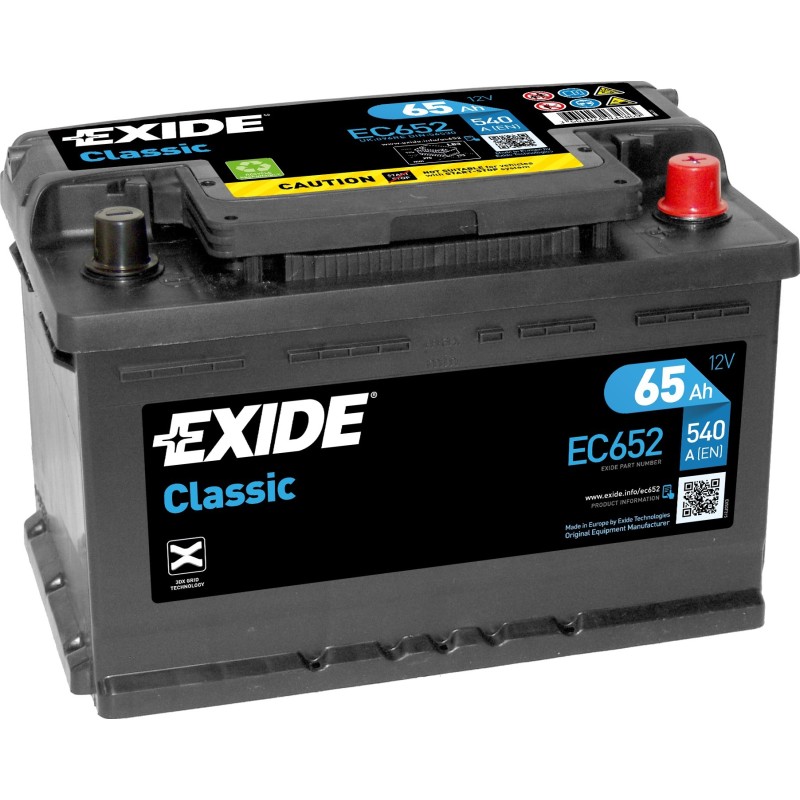

Exide EC652 · Car battery 12V 65Ah 540A
Car battery Exide EC652 12V 65Ah 540A images
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EC652 |
| Voltage (V) | 12 |
| Capacity (C20) | 65Ah (c20) |
| Cold cranking amps (EN) | 540A |
| Technology | Lead-acid |
| Length | 278.00 cm |
| Width | 175.00 cm |
| Height | 175.00 cm |
Exide EC652 12V 65Ah 540A is a ready-to-use passenger car battery, sealed and maintenance-free. Delivers the cranking amps the engine needs in cold weather and keeps stable voltage for modern car loads (ECU, sensors, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Classic car battery Exide EC652 Classic 65Ah 540A 12V
With 65 Ah at 12 V and 540 A of cold cranking current (EN), the Exide EC652 from the Classic range covers the starting demand of classic and vintage cars with their original electrical system. It replaces the original battery without adaptation in classic cars with a 278 × 175 × 175 mm format: same 65 Ah capacity and the positive terminal on the right.
In short: the Exide EC652 (65 Ah, 540 A, 278 × 175 × 175 mm, positive terminal on the right). Verified equivalent alternatives: Tudor TC652 and Tudor TA722.
- Conventional lead-acid: the most proven and economical technology.
- Respects the vehicle's original electrical system.
- Format and terminals compatible with period battery trays.
- Robust construction against vibration.

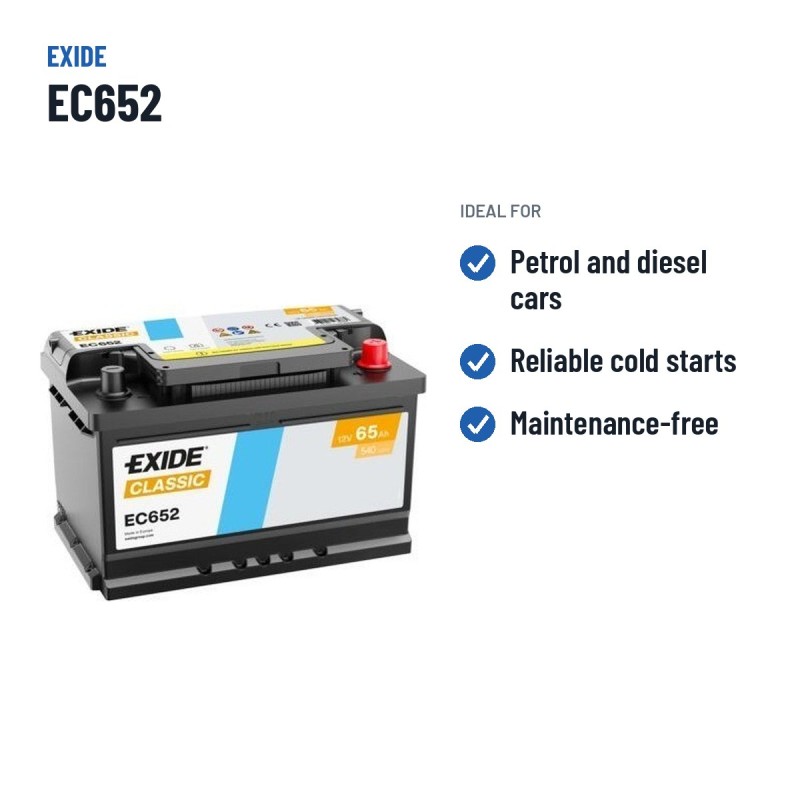

What the Exide EC652 is for
The Exide EC652 is designed for classic and vintage cars with their original electrical system: a format compatible with period trays and a stable voltage for original ignition and wiring. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 14.50 kg.
Will it fit your current battery tray?

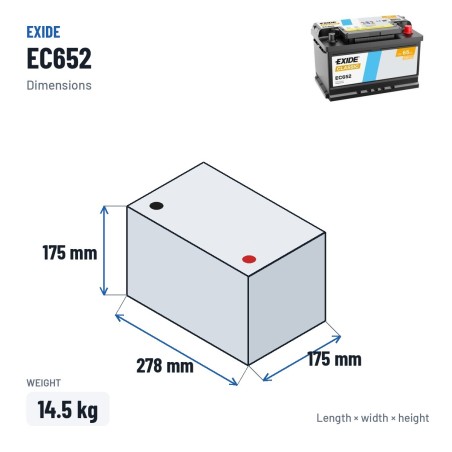

The Exide EC652 is made in the 278 × 175 × 175 mm format and weighs 14.50 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Why choose Exide batteries
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
The Exide EC652: Classic range and conventional lead-acid technology
The EC652 is part of the Exide Classic range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Usage and maintenance tips
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Check the resting voltage and terminals periodically; corrosion in old wiring is the most frequent cause of weak starts.
Official warranty
The Exide EC652 comes with the manufacturer's official warranty against manufacturing defects. The warranty does not cover deep discharge through inactivity: in a classic, a trickle charger is the best protection.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
-
-
ReferenceBCOM-EXIDE-EC652
Data sheet
-
BrandEXIDE
-
ReferenceEC652
-
ModelEXIDE CLASSIC
-
Voltage (V)12
-
Length278.00 cm
-
Width175.00 cm
-
Height175.00 cm
-
Weight14.50 Kgs
-
TechnologyLead-acid
-
EAN3661024034869
-
Terminal layoutPositive terminal on the right
-
Cold cranking amps (EN)540A
-
Capacity (C20)65Ah (c20)
-
Case typeLB3
Specific References
-
EAN133661024034869
-
MPNEC652
Codes and references Exide EC652
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE CLASSIC |
| Manufacturer part number (MPN) | EC652 |
| EAN-13 barcode | 3661024034869 |
| European case size (EN 50342-2) | LB3 |
| Dimensions (length × width × height) | 278 × 175 × 175 mm (278x175x175) |
Comparison: Exide EC652 vs equivalents
The Exide EC652 is interchangeable with these equivalent references: TC652 (Tudor), TA722 (Tudor), TB712 (Tudor), E38 (Varta), E43 (Varta), E9 (Varta), EA722 (Exide), EB712 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EC652
This battery
|
12V 65Ah 540A | Lead-acid | €77.80 |
Tudor
TC652
|
12V 65Ah 540A | Lead-acid | €71.30 |
Tudor
TA722
|
12V 72Ah 720A | Lead-acid | €65.30 |
Tudor
TB712
|
12V 71Ah 670A | Lead-acid | €73.60 |
Varta
E38
|
12V 74Ah 750A | Lead-acid | €83.80 |
Varta
E43
|
12V 72Ah 680A | Lead-acid | €83.80 |
Varta
E9
|
12V 70Ah 640A | Lead-acid | €85.90 |
Exide
EA722
|
12V 72Ah 720A | Lead-acid | €59.20 |
Exide
EB712
|
12V 71Ah 670A | Lead-acid | €59.50 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
Fitting it yourself? Step-by-step guide to replacing the battery →
Frequently asked questions
How is the Exide EC652 battery installed in the vehicle?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on our blog. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — with positive on the right match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the EC652 model?
Expected lifespan of the Exide EC652 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 278×175×175 mm — also written as 278x175x175 mm and correspond to the European LB3 case size — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
On which side is the positive of the EC652 model?
Polarity: positive on the right. To identify it, place the battery in front of you with the terminals facing you and check which side the positive (+, marked with a red ring) is on. Before buying, verify the polarity matches your current battery: switching polarity forces longer cables or system reconfiguration, with short-circuit risk.
Does this battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EC652 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the EC652 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
