Tudor TC652 · Car battery 12V 65Ah 540A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TC652 |
| Voltage (V) | 12 |
| Capacity (C20) | 65Ah (c20) |
| Technology | Flooded |
| Length | 278 mm |
| Width | 175 mm |
| Height | 175 mm |
| Weight | 14.50 Kgs |
€71.30
VAT included
Tudor TC652 12V 65Ah 540A is a starter battery with OEM-equivalent quality, designed for modern passenger cars. Delivers reliable cold-cranks even after weeks of inactivity and supports stable auxiliary loads (lights, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
65 Ah
Cold cranking
540 A
Dimensions
278×175×175 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
14,5 kg
Model
TUDOR Standard

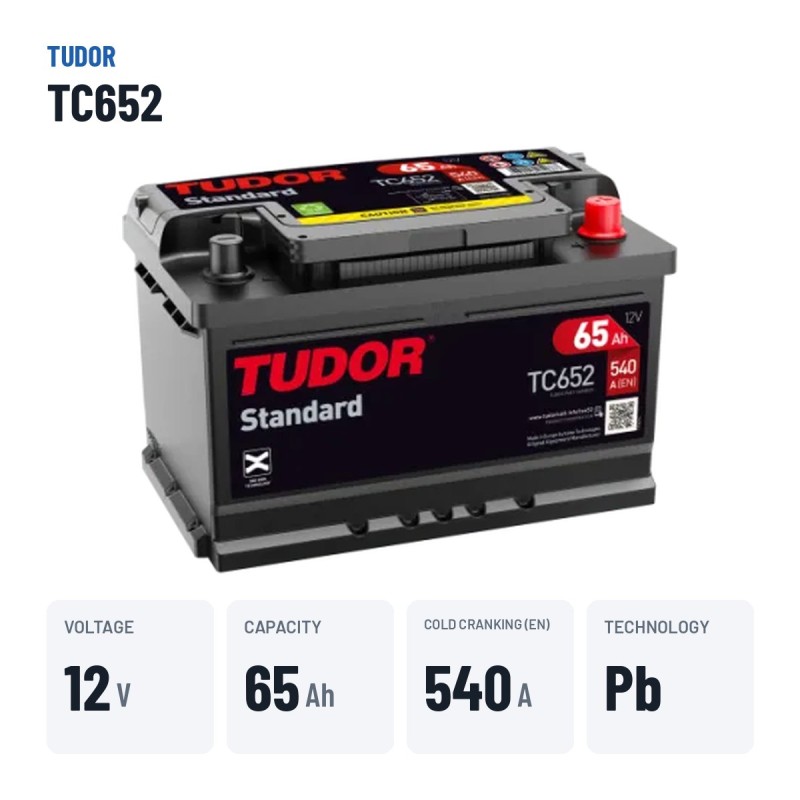

Car battery Tudor TC652 Standard 65Ah 540A 12V
12VVoltage
65AhCapacity
540ACold cranking
14.50kgWeight
With 65 Ah at 12 V and 540 A of cold cranking current (EN), the Tudor TC652 from the Standard range is a starter battery built for passenger cars with conventional starting, without a Start-Stop system. Its 278 × 175 × 175 mm and the positive terminal on the right make it the exact replacement for the 65 Ah battery fitted as standard to many cars.
- Designed to last several years under normal daily use.
- Low self-discharge: copes with long stops without losing charge.
- Stable voltage for the vehicle electronics (ECU, sensors, climate control).
- Good balance of capacity, cranking power and price.
What the Tudor TC652 is for
Designed for passenger cars with conventional starting, without a Start-Stop system, the Tudor TC652 is the direct replacement when your vehicle uses a 65 Ah battery of this format. Before buying, compare dimensions, terminals and capacity with the battery you are replacing. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 14.50 kg, EN taper post terminals and B13 hold-down.
The Tudor TC652: Standard range and conventional lead-acid technology
The Standard is the Tudor range the TC652 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.

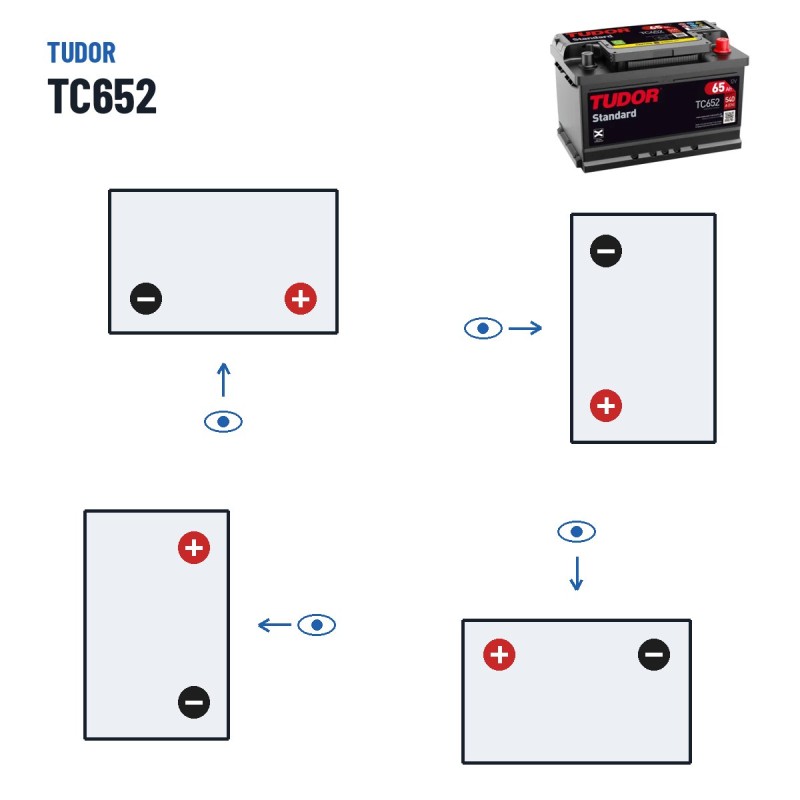

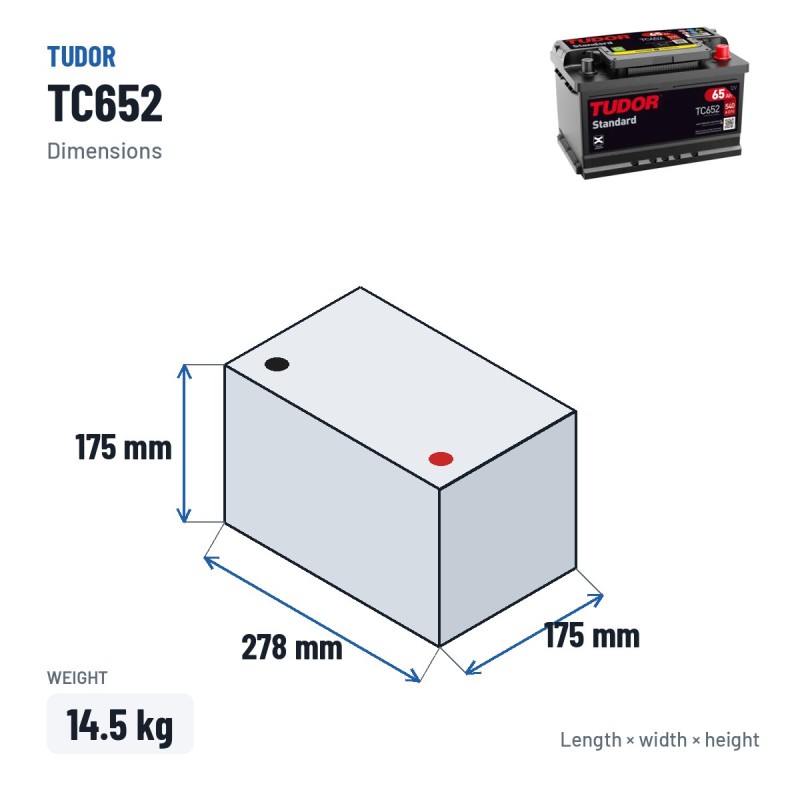

Dimensions, polarity and mounting

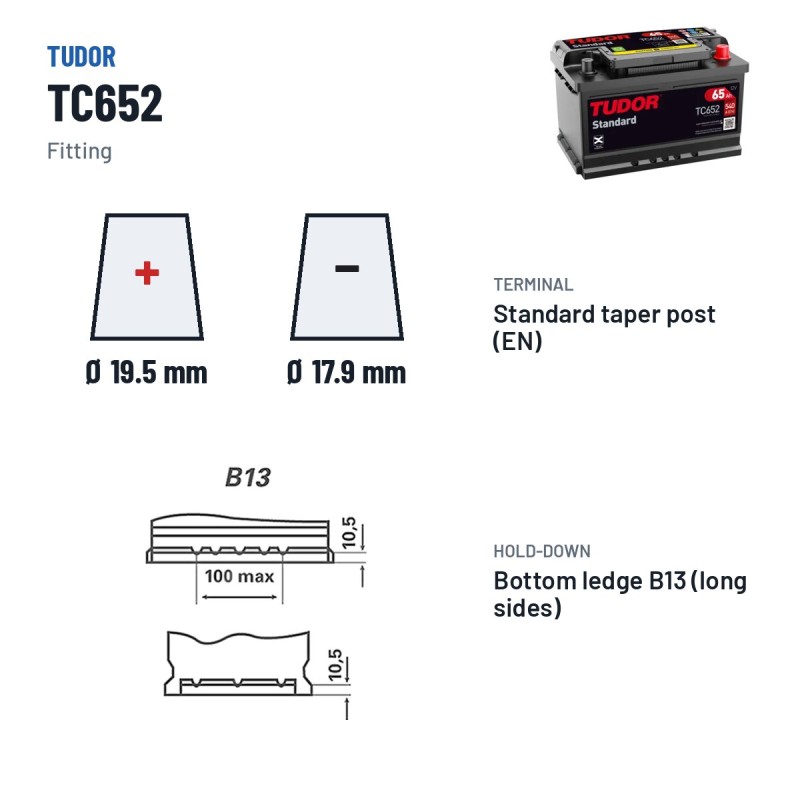

It has external dimensions of 278 × 175 × 175 mm and weighs 14.50 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Tudor batteries
Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. We guarantee that every Tudor arrives new, charged and with the manufacturer's full warranty.
How to make it last longer
In normal daily use the alternator keeps the battery charged; if the car stands for weeks, a maintenance charge once a month prevents deep discharge. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Official warranty
The Tudor TC652 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TUDOR-TC652

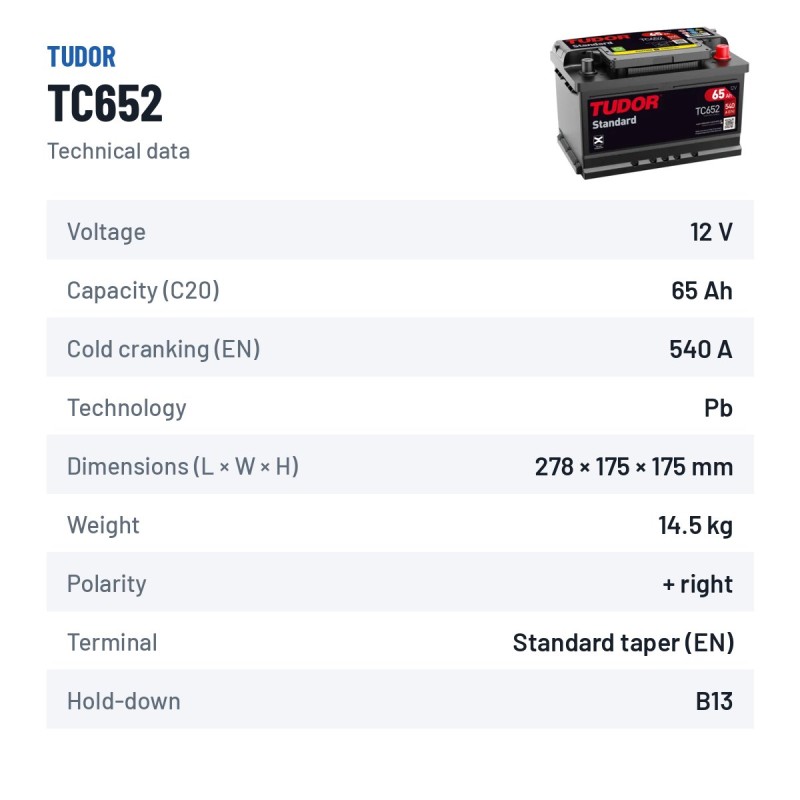

Data sheet
- Brand
- TUDOR
- Reference
- TC652
- Model
- TUDOR Standard
- Voltage (V)
- 12
- Length
- 278 mm
- Width
- 175 mm
- Height
- 175 mm
- Weight
- 14.50 Kgs
- Technology
- Flooded
- EAN
- 3661024054867
- Terminal layout
- Positive terminal on the right
- Terminal type
- EN taper post
- Hold-down
- B13
- Cold cranking amps (EN)
- 540A
- Capacity (C20)
- 65Ah (c20)
- Case type
- LB3
Specific References
- EAN13
- 3661024054867
- MPN
- TC652
Codes and references Tudor TC652
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR Standard |
| Manufacturer reference (MPN) | TC652 |
| EAN-13 barcode | 3661024054867 |
| European case size (EN 50342-2) | LB3 |
| Dimensions (length × width × height) | 278 × 175 × 175 mm (278x175x175) |
Comparison: Tudor TC652 vs equivalents
The Tudor TC652 is interchangeable with these equivalent references: EC652 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TC652
This battery
|
12V 65Ah 540A | Lead-acid | €71.30 |
Exide
EC652
|
12V 65Ah 540A | Lead-acid | €77.80 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TC652 battery last?
Expected lifespan of the Tudor TC652 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 278×175×175 mm — also written as 278x175x175 mm and correspond to the European LB3 case size — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TC652 battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TC652 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Tudor TC652?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
