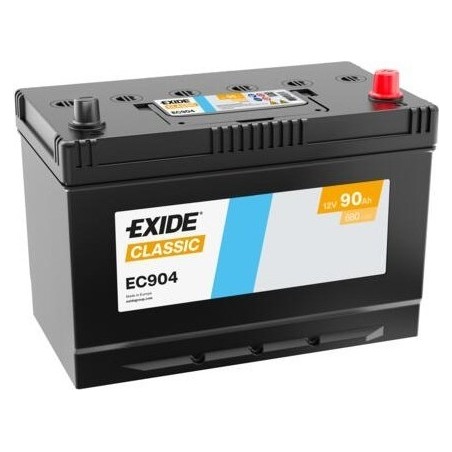

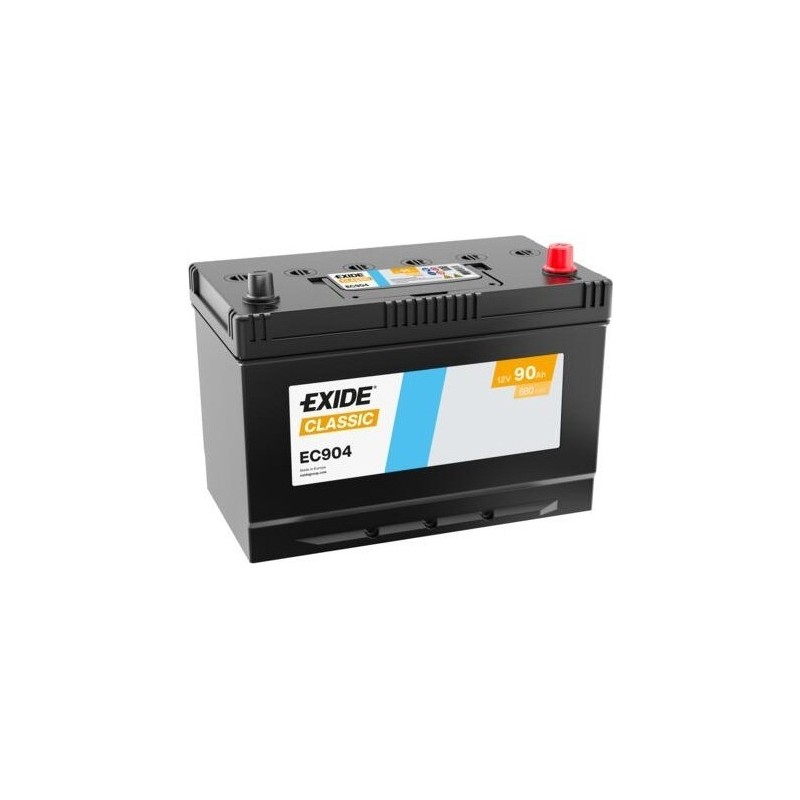

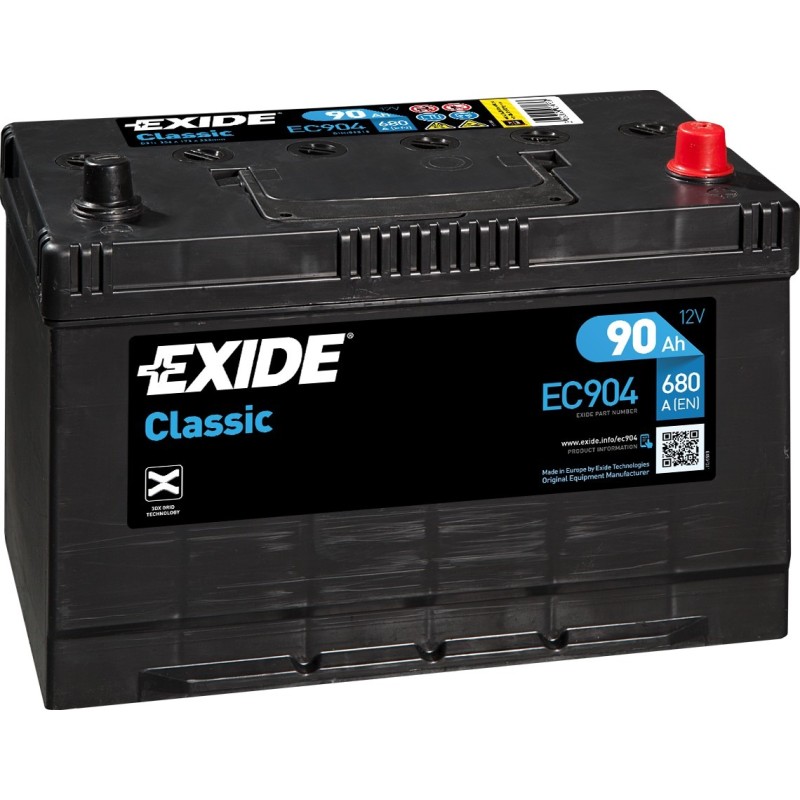

Exide EC904 Classic · Car battery 90Ah 680A

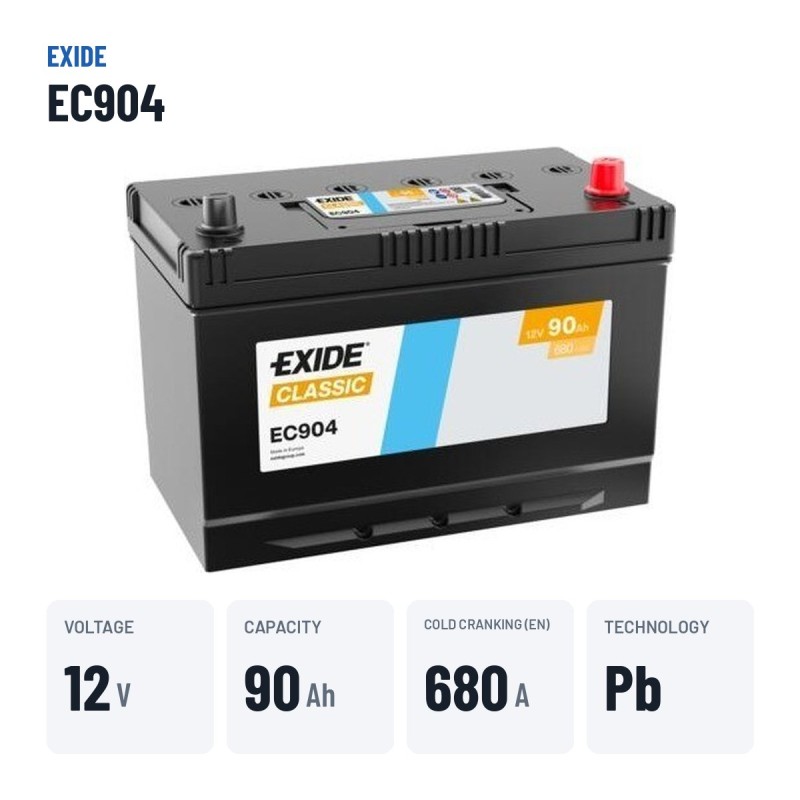

Specifications
| Brand | EXIDE |
|---|---|
| Part number | EC904 |
| Voltage (V) | 12 |
| Capacity (C20) | 90Ah (c20) |
| Cold cranking amps (EN) | 680A |
| Technology | Lead-acid |
| Length | 306 mm |
| Width | 173 mm |
| Height | 222 mm |
How do you want it in …?
Battery + installation
Service for one battery per order.
Exide EC904 12V 90Ah 680A is a ready-to-use passenger car battery, sealed and maintenance-free. Delivers the cranking amps the engine needs in cold weather and keeps stable voltage for modern car loads (ECU, sensors, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Where it fits: the Exide EC904 is one of our car batteries, belongs to our Exide batteries and by capacity it sits among our 90Ah batteries.
The Exide EC904 in practice
When not to choose it
If your car shuts the engine off at the lights, rule it out: Start-Stop demands EFB or AGM and a conventional battery lasts months in that duty. And never choose fewer Ah or A than the original.

Classic car battery Exide EC904 Classic 90Ah 680A 12V
The Exide EC904 from the Classic range is rated at 12 V, 90 Ah and 680 A of cold cranking current (EN), a common choice for classic and vintage cars with their original electrical system. It replaces the original battery without adaptation in classic cars with a 306 × 173 × 222 mm format: same 90 Ah capacity and the positive terminal on the right.
In short: the Exide EC904 (90 Ah, 680 A, 306 × 173 × 222 mm, positive terminal on the right). Verified equivalent alternatives: Tudor TC904 and Tudor TA954.
- Conventional lead-acid: the most proven and economical technology.
- Respects the vehicle's original electrical system.
- Format and terminals compatible with period battery trays.
- Robust construction against vibration.
What the Exide EC904 is for
With 90 Ah, the Exide EC904 starts classic engines without stressing the rest of the installation. Check size and terminals before ordering. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 19.90 kg.
The Exide EC904: Classic range and conventional lead-acid technology
The EC904 is part of the Exide Classic range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Will it fit your current battery tray?

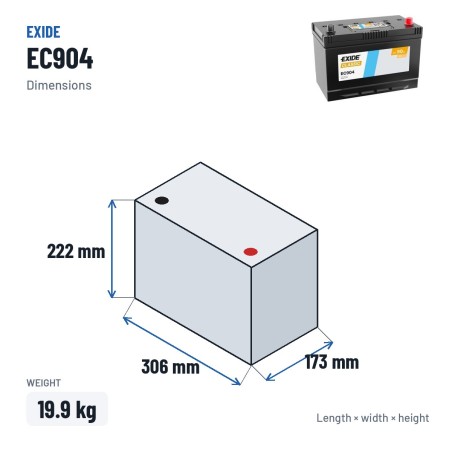

In terms of format, the Exide EC904 measures 306 × 173 × 222 mm (length × width × height) and weighs 19.90 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Exide batteries
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.
How to make it last longer
On batteries with filler caps, check the electrolyte level and top up only with distilled water. A classic car often stands for long spells: a trickle charger connected in the garage is the best investment for the battery.
Official warranty
The Exide EC904 comes with the manufacturer's official warranty against manufacturing defects. The warranty does not cover deep discharge through inactivity: in a classic, a trickle charger is the best protection.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

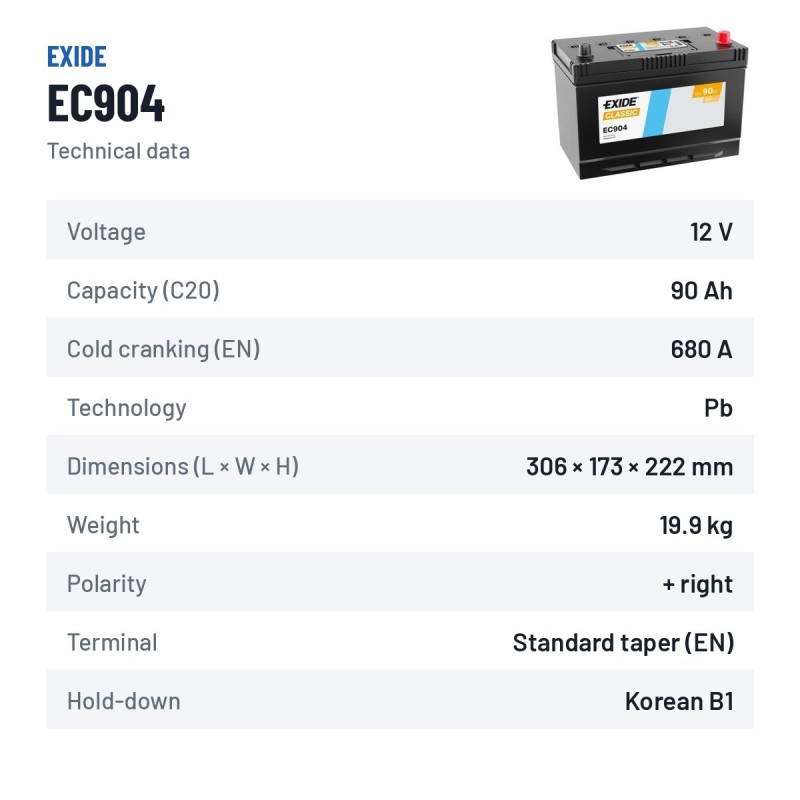

Data sheet
-
BrandEXIDE
-
ReferenceEC904
-
ModelEXIDE CLASSIC
-
Voltage (V)12
-
Length306 mm
-
Width173 mm
-
Height222 mm
-
Weight19.90 Kgs
-
TechnologyLead-acid
-
EAN3661024034753
-
Terminal layoutPositive terminal on the right
-
Cold cranking amps (EN)680A
-
Capacity (C20)90Ah (c20)
-
Case typeD31
Specific References
-
EAN133661024034753
-
MPNEC904
Codes and references Exide EC904
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE CLASSIC |
| Manufacturer part number (MPN) | EC904 |
| EAN-13 barcode | 3661024034753 |
| Dimensions (length × width × height) | 306 × 173 × 222 mm (306x173x222) |
Exide EC904: best-selling equivalent or higher-spec batteries
The Exide EC904 is interchangeable with these equivalent references: TC904 (Tudor), TA954 (Tudor), TB954 (Tudor), EA954 (Exide), EB954 (Exide). Higher-technology alternatives that can replace it: EL954 (Exide), N85 (Varta).
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Exide
EC904
This battery
|
12V 90Ah 680A | Lead-acid | 103,70 € | |||||||||||||||||||||
Exide
EB954
Bigger sister
|
12V 95Ah 760A | Lead-acid | 81,99 € −21,71 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| EC904 | EB954 | |
|---|---|---|
| Capacity | 90 Ah | 95 Ah |
| Cold cranking (EN) | 680 A | 760 A |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 306 × 173 × 222 | 306 × 173 × 222 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 103,70 € | 81,99 € |
Exide
EA954
Bigger sister
Exide EC904 vs Exide EA954
Bigger sister · −6,71 €
Same family as the EC904, one step up in performance. Compared with the EC904 it has 5 Ah more and 120 A of cold cranking more. It costs 6,71 € less. Worth it if your car originally had more capacity, is a diesel or cranks lazily in winter; otherwise the EC904 does the job.
| EC904 | EA954 | |
|---|---|---|
| Capacity | 90 Ah | 95 Ah |
| Cold cranking (EN) | 680 A | 800 A |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 306 × 173 × 222 | 306 × 173 × 222 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 103,70 € | 96,99 € |
Exide
EL954
Upgrade: EFB Exide EC904 vs Exide EL954
Upgrade: EFB · +36,90 €
It is the EFB version of the same case: it withstands far more start cycles than the EC904. Compared with the EC904 it has 5 Ah more and 120 A of cold cranking more. It costs 36,90 € more. You need it if the original battery label says EFB; in a car without Start-Stop the EC904 does the job and EFB only adds service life.
| EC904 | EL954 | |
|---|---|---|
| Capacity | 90 Ah | 95 Ah |
| Cold cranking (EN) | 680 A | 800 A |
| Technology | Lead-acid | EFB |
| Dimensions (mm) | 306 × 173 × 222 | 306 × 173 × 222 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 103,70 € | 140,60 € |
Varta
N85
Upgrade: EFB
Exide EC904 vs Varta N85
Upgrade: EFB · +27,29 €
The EFB of this size, built for the simple Start-Stop that a conventional battery like the EC904 cannot take. Compared with the EC904 it has 5 Ah less and 120 A of cold cranking more. It costs 27,29 € more. Essential if your car has basic Start-Stop or came with EFB; without Start-Stop it is a durability upgrade you can skip.
| EC904 | N85 | |
|---|---|---|
| Capacity | 90 Ah | 85 Ah |
| Cold cranking (EN) | 680 A | 800 A |
| Technology | Lead-acid | EFB |
| Dimensions (mm) | 306 × 173 × 222 | 306 × 173 × 225 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 103,70 € | 130,99 € |
Tudor
TB954
Tudor equivalent Exide EC904 vs Tudor TB954
Tudor equivalent · −3,00 €
It is the verified Tudor equivalent for the EC904 tray. Compared with the EC904 it has 5 Ah more and 80 A of cold cranking more. It costs 3,00 € less. Decide by price, brand preference and availability: both fit and crank the same.
| EC904 | TB954 | |
|---|---|---|
| Capacity | 90 Ah | 95 Ah |
| Cold cranking (EN) | 680 A | 760 A |
| Technology | Lead-acid | Lead-acid |
| Dimensions (mm) | 306 × 173 × 222 | 306 × 173 × 222 |
| Positive terminal | Positive terminal on the right | Positive terminal on the right |
| Price | 103,70 € | 100,70 € |
Tudor
TA954
Tudor equivalent
Tudor
TC904
Tudor equivalent
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Other 90Ah batteries: We stock 18 models of 90 Ah to compare by price, technology and cold cranking: see all 90Ah batteries. Same size (306 × 173 × 222 mm): batteries of 306 × 173 × 222 mm.
Recommended accessories
Fitting it yourself? Step-by-step guide to replacing the battery →
Frequently asked questions
How do I fit the EC904 model in my car?
Steps: 1) switch off and remove the key; 2) find the battery (bonnet, boot or under a seat); 3) undo the negative (−), then the positive (+); 4) remove the clamp and the old battery; 5) fit the new one facing the same way (positive on the right) to match the polarity; 6) connect the positive (+) and finally the negative (−). Allow 15-30 minutes and a 10 mm spanner. If the car keeps its battery in the boot or under a seat, it can take up to twice as long. Our blog guide covers it in detail; if the owner's handbook describes a different procedure, follow the manufacturer.
How long does the Exide EC904 battery last?
As a rough estimate, the Exide EC904 typically lasts 4 to 6 years in regular car use without Start-Stop; it is a guide figure, not a guaranteed period. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of car and whether it has Start-Stop.
What size is this battery?
Length × width × height: 306x173x222 mm. Height is measured to the top of the terminals. Measure your car's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close.
On which side is the positive of the EC904 model?
Polarity of the Exide EC904: positive on the right. Seen from the front, terminals towards you, the positive (+) is the post with the red ring. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.
Will the Exide EC904 battery fit my car?
For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). If our table and the car handbook disagree, go with what the manufacturer says.
Which batteries are equivalent to the Exide EC904?
Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the EC904, 90 Ah (680 A cranking). Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop cars. The "Equivalents" section further down lists the recommended alternatives.
Exide EC904 or Exide EB954: which one to choose?
It is the bigger sister of the EC904 in the same Exide range. Compared with the EC904 it has 5 Ah more and 80 A of cold cranking more. It costs 21,71 € less. If the tray takes the size, extra reserve never hurts; for a daily-driven petrol car the extra is not needed.
Exide EC904 or Exide EA954: which one to choose?
Same family as the EC904, one step up in performance. Compared with the EC904 it has 5 Ah more and 120 A of cold cranking more. It costs 6,71 € less. Worth it if your car originally had more capacity, is a diesel or cranks lazily in winter; otherwise the EC904 does the job.
