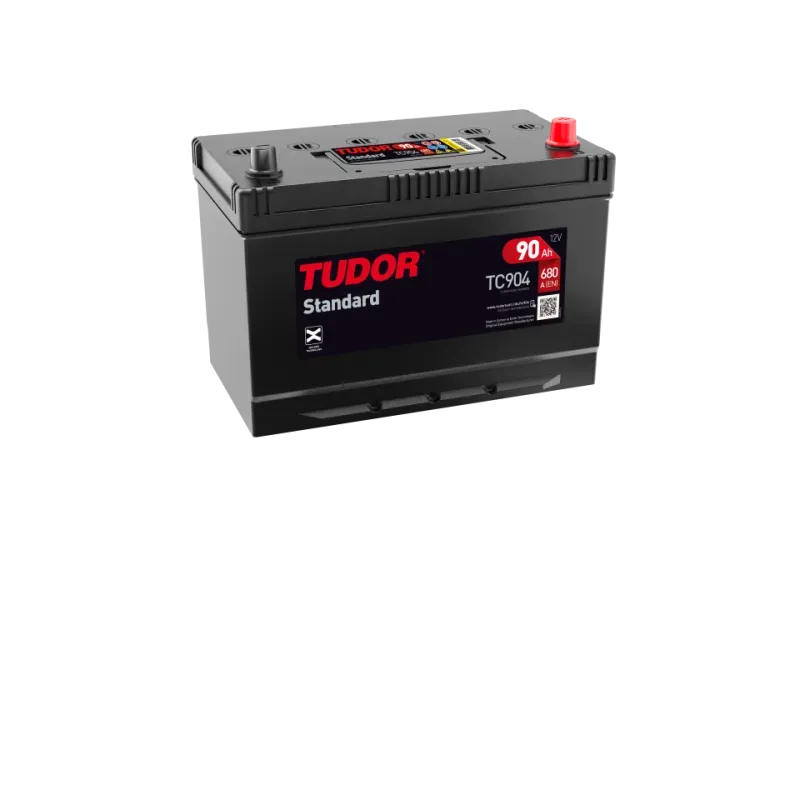

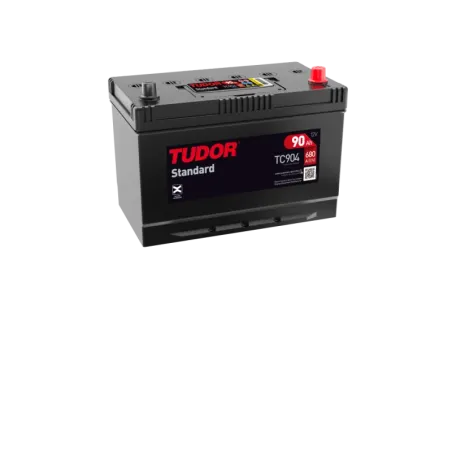

Tudor TC904 · Car battery 12V 90Ah 680A

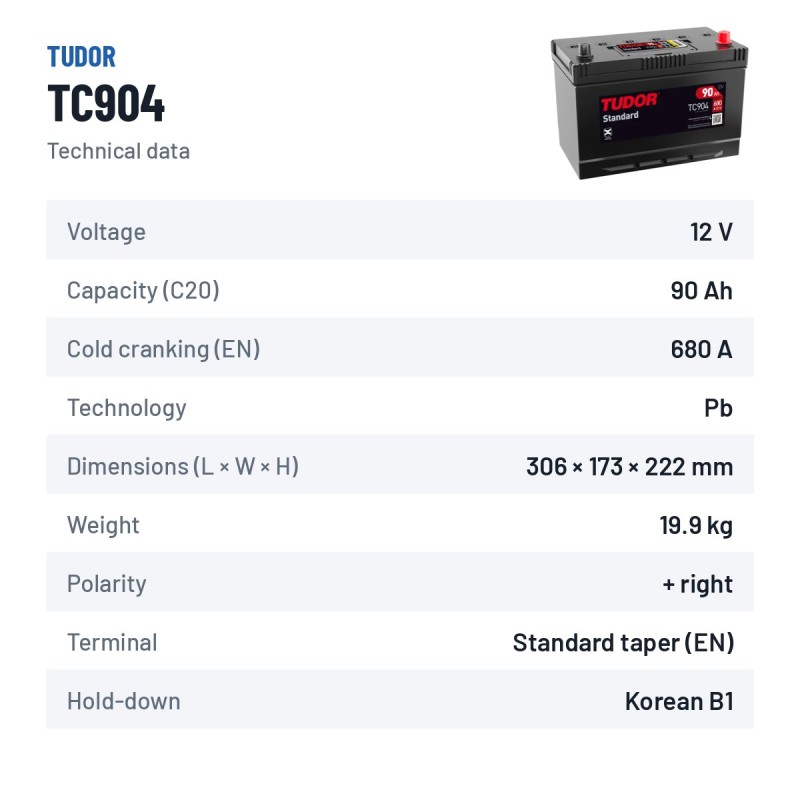

Specifications
| Brand | TUDOR |
|---|---|
| Part number | TC904 |
| Voltage (V) | 12 |
| Capacity (C20) | 90Ah (c20) |
| Technology | Flooded |
| Length | 306 mm |
| Width | 173 mm |
| Height | 222 mm |
| Weight | 19.90 Kgs |
€97.80
VAT included
Tudor TC904 12V 90Ah 680A is a starter battery with OEM-equivalent quality, designed for modern passenger cars. Delivers reliable cold-cranks even after weeks of inactivity and supports stable auxiliary loads (lights, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
90 Ah
Cold cranking
680 A
Dimensions
306×173×222 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
19,9 kg
Model
TUDOR Standard

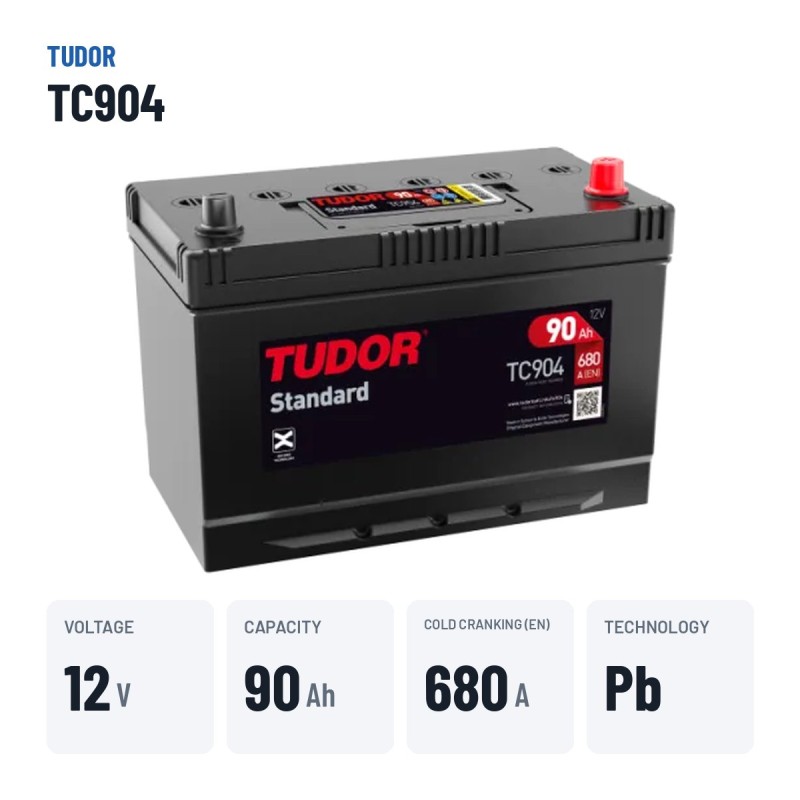

Car battery Tudor TC904 Standard 90Ah 680A 12V
12VVoltage
90AhCapacity
680ACold cranking
19.90kgWeight
The Tudor TC904 car battery is rated at 12 V, 90 Ah and 680 A of cold cranking current (EN) from the Standard range, and is designed for passenger cars with conventional starting, without a Start-Stop system. Measuring 306 × 173 × 222 mm and the positive terminal on the right, it is the direct replacement for cars fitted from the factory with a 90 Ah battery of this format.
- Low self-discharge: copes with long stops without losing charge.
- Designed to last several years under normal daily use.
- Good balance of capacity, cranking power and price.
- Stable voltage for the vehicle electronics (ECU, sensors, climate control).

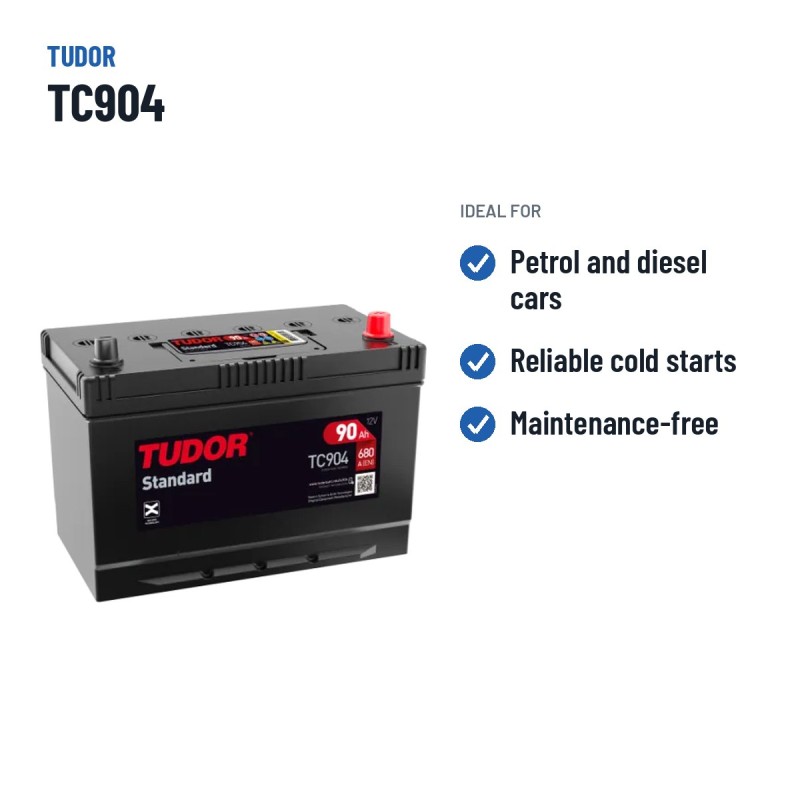

What the Tudor TC904 is for
The Tudor TC904 covers the needs of passenger cars with conventional starting, without a Start-Stop system: reliable starting, stable voltage for the electronics and a service life of several years in daily use. Check that it matches your current battery in size and terminal position. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 19.90 kg, EN taper post terminals and Korean B1 hold-down.

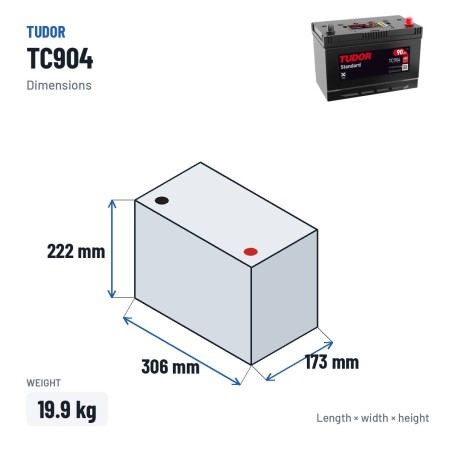

Size, terminals and hold-down of the Tudor TC904

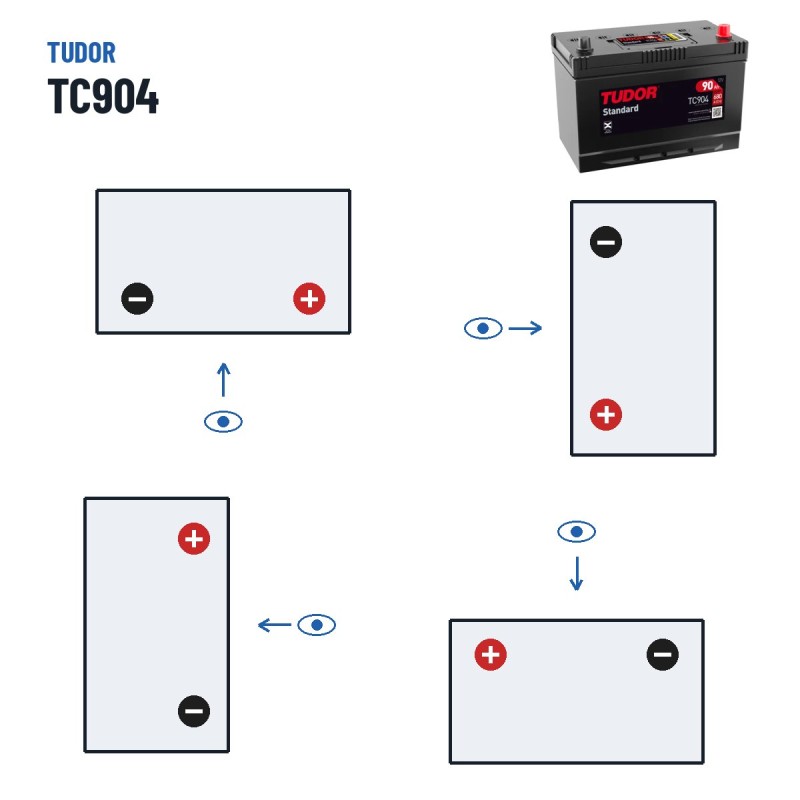

It has external dimensions of 306 × 173 × 222 mm and weighs 19.90 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a Korean B1 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
The Tudor TC904: Standard range and conventional lead-acid technology
The TC904 is part of the Tudor Standard range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Tudor: the maker behind the TC904
Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. We guarantee that every Tudor arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Tudor TC904 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
Usage and maintenance tips
Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges. In normal daily use the alternator keeps the battery charged; if the car stands for weeks, a maintenance charge once a month prevents deep discharge.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TUDOR-TC904
Data sheet
- Brand
- TUDOR
- Reference
- TC904
- Model
- TUDOR Standard
- Voltage (V)
- 12
- Length
- 306 mm
- Width
- 173 mm
- Height
- 222 mm
- Weight
- 19.90 Kgs
- Technology
- Flooded
- EAN
- 3661024054751
- Terminal layout
- Positive terminal on the right

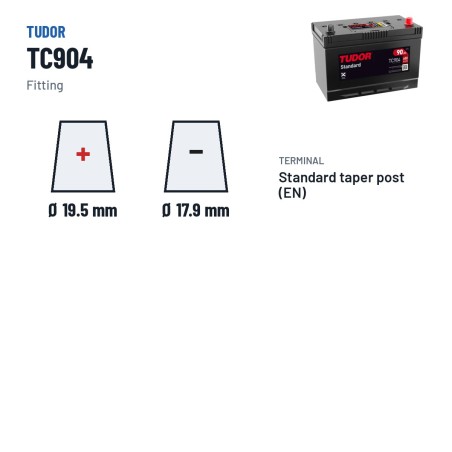

- Terminal type
- EN taper post
- Hold-down
- Korean B1
- Cold cranking amps (EN)
- 680A
- Capacity (C20)
- 90Ah (c20)
- Case type
- D31
Specific References
- EAN13
- 3661024054751
- MPN
- TC904
Codes and references Tudor TC904
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR Standard |
| Manufacturer reference (MPN) | TC904 |
| EAN-13 barcode | 3661024054751 |
| Dimensions (length × width × height) | 306 × 173 × 222 mm (306x173x222) |
Comparison: Tudor TC904 vs equivalents
The Tudor TC904 is interchangeable with these equivalent references: EC904 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TC904
This battery
|
12V 90Ah 680A | Lead-acid | €97.80 |
Exide
EC904
|
12V 90Ah 680A | Lead-acid | €103.70 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TC904 battery last?
Expected lifespan of the Tudor TC904 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Tudor TC904 battery?
Dimensions (length × width × height) are 306×173×222 mm — also written as 306x173x222 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TC904 battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TC904 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the TC904 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
