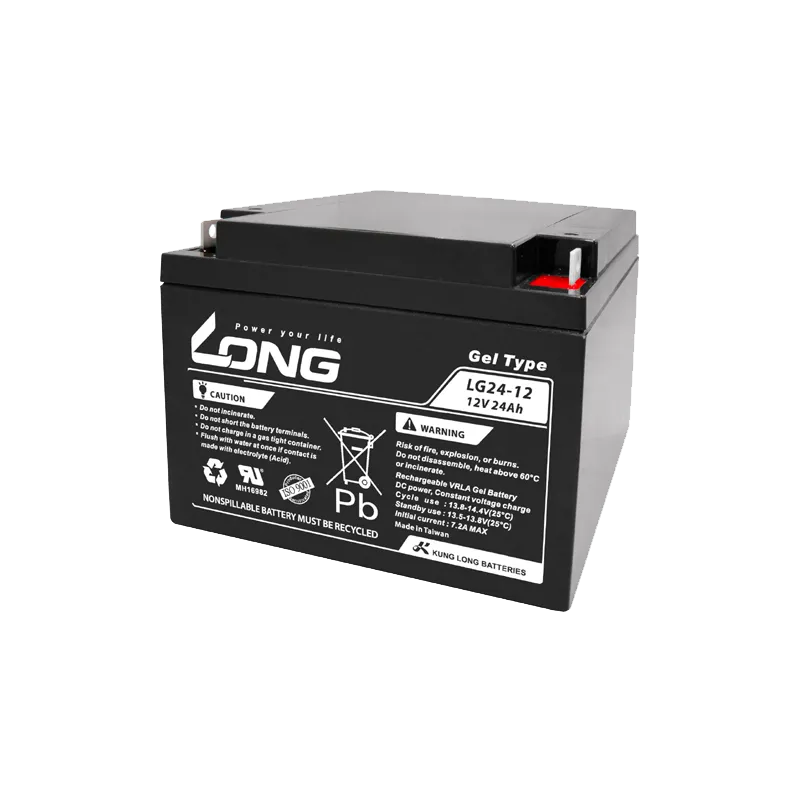

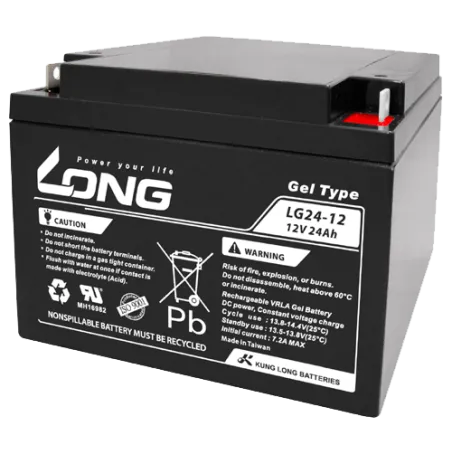

Long LG24-12 · Wheelchair battery 12V 24Ah GEL
Specifications
| Brand | LONG |
|---|---|
| Part number | LG24-12 |
| Voltage (V) | 12 |
| Capacity (C20) | 24Ah (c20) |
| Capacity (C5) | 20.4Ah (c5) |
| Technology | GEL |
| Length | 166.00 cm |
| Width | 175.00 cm |
| Height | 125.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Long LG24-12 12V 24Ah is a sealed AGM/GEL battery for daily mobility use: maintenance-free, no risk of spills, and thousands of useful cycles well beyond a starter battery.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
24 Ah
Dimensions
166×175×125 mm
Technology
GEL
Polarity
Positive on the right
Weight
9,3 kg
Model
LG Series
Free quote, no obligation
Request a quote for your Wheelchair battery Long LG24-12 12V 24Ah GEL
- Reply in under 24 working hours
- Best price guaranteed
Mobility battery Long LG24-12 LG Series 24Ah 12V
12VVoltage
24AhCapacity
9.30kgWeight
The Long LG24-12 with GEL technology delivers 24 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. Its 166 × 175 × 125 mm and the positive terminal on the right make it the exact replacement for the 24 Ah battery fitted as standard to many power wheelchairs and mobility scooters.
- Sealed AGM/GEL: safe indoors and in transport.
- GEL: excellent resistance to deep discharge and long cycle life.
- Approved for air and sea transport (VRLA).
- No maintenance, no water top-ups.

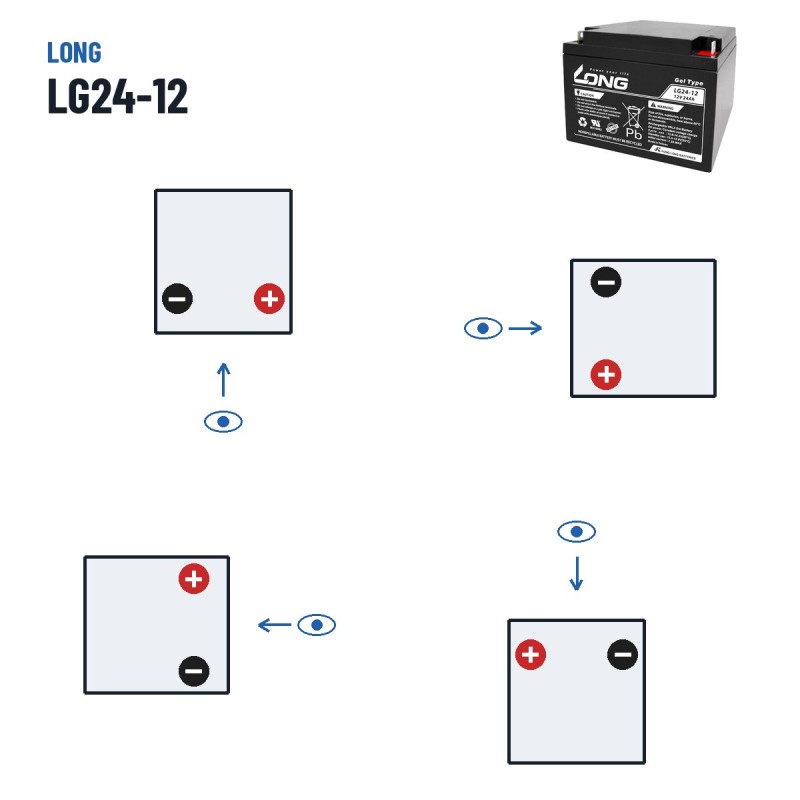

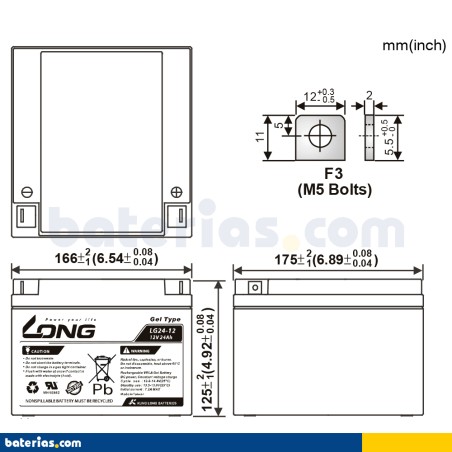

Dimensions, polarity and mounting
The Long LG24-12 is made in the 166 × 175 × 125 mm format and weighs 9.30 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

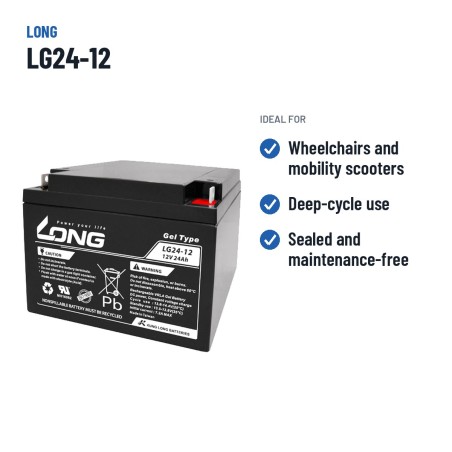

What the Long LG24-12 is for
With 24 Ah, the Long LG24-12 offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 9.30 kg.
The Long LG24-12: LG Series range and GEL technology
Within the Long catalogue, the LG Series series groups the references designed for this use. The LG24-12 is the 24 Ah model of that family, with the same performance as its siblings in other sizes.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
Why choose Long batteries
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Warranty and coverage
The Long LG24-12 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity. GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LONG-LG24-12
Data sheet
- Brand
- LONG
- Reference
- LG24-12
- Model
- LG Series
- Voltage (V)
- 12
- Length
- 166.00 cm
- Width
- 175.00 cm
- Height
- 125.00 cm
- Weight
- 9.30 Kgs
- Technology
- GEL
- Terminal layout
- Positive terminal on the right
- Capacity (C20)
- 24Ah (c20)
- Capacity (C5)
- 20.4Ah (c5)
Specific References
- MPN
- LG24-12
Comparison: Long LG24-12 vs equivalents
The Long LG24-12 is interchangeable with these equivalent references: ES26-12 (MK Powered), ES290 (Exide).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Long
LG24-12
This battery
|
12V 24Ah | Gel | |
MK Powered
ES26-12
|
12V 26Ah | AGM | €84.20 |
Exide
ES290
|
12V 25Ah 150A | Gel | €85.10 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the LG24-12 model a gel battery? Where is it used?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long LG24-12 battery last?
Expected lifespan of the Long LG24-12 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 166×175×125 mm — also written as 166x175x125 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Long LG24-12?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
