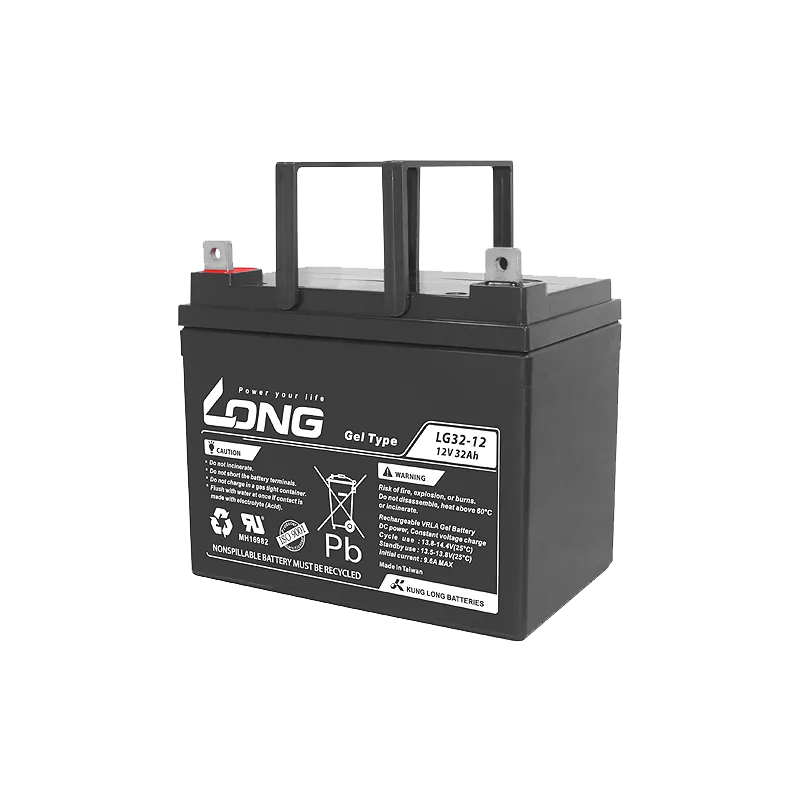

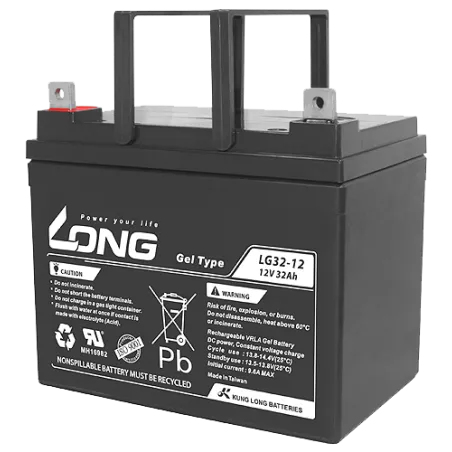

Long LG32-12 · Wheelchair battery 12V 32Ah GEL
Specifications
| Brand | LONG |
|---|---|
| Part number | LG32-12 |
| Voltage (V) | 12 |
| Capacity (C20) | 32Ah (c20) |
| Capacity (C5) | 27.2Ah (c5) |
| Technology | GEL |
| Length | 197.00 cm |
| Width | 131.00 cm |
| Height | 180.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Long LG32-12 12V 32Ah is a sealed AGM/GEL battery for daily mobility use: maintenance-free, no risk of spills, and thousands of useful cycles well beyond a starter battery.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
32 Ah
Dimensions
197×131×180 mm
Technology
GEL
Polarity
Positive on the left
Weight
10,4 kg
Model
LG Series
Free quote, no obligation
Request a quote for your Wheelchair battery Long LG32-12 12V 32Ah GEL
- Reply in under 24 working hours
- Best price guaranteed

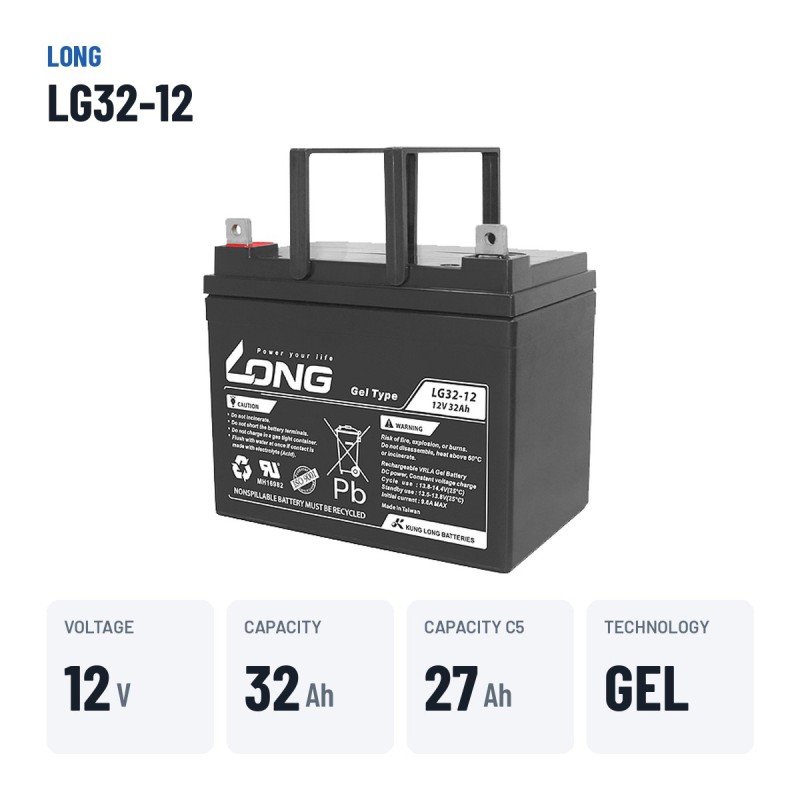

Mobility battery Long LG32-12 LG Series 32Ah 12V
12VVoltage
32AhCapacity
10.40kgWeight
Designed for power wheelchairs, mobility scooters and light electric vehicles, the Long LG32-12 from the LG Series range offers 32 Ah of deep-cycle capacity with GEL technology. Measuring 197 × 131 × 180 mm and the positive terminal on the left, it is the direct replacement for power wheelchairs and mobility scooters fitted from the factory with a 32 Ah battery of this format.
- GEL: excellent resistance to deep discharge and long cycle life.
- Sealed AGM/GEL: safe indoors and in transport.
- No maintenance, no water top-ups.
- Approved for air and sea transport (VRLA).

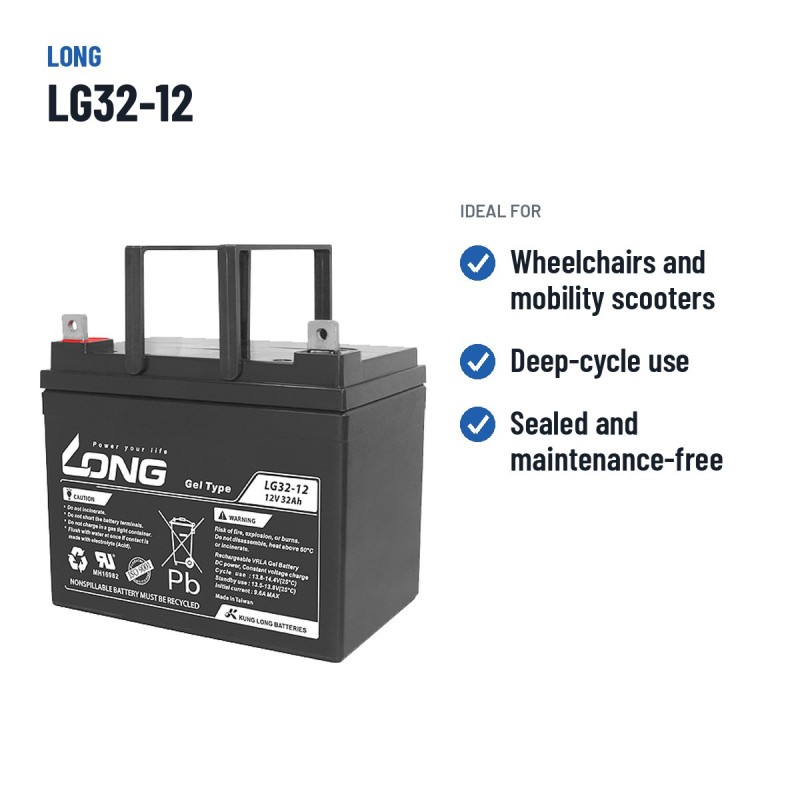

What the Long LG32-12 is for
The Long LG32-12 is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 10.40 kg.

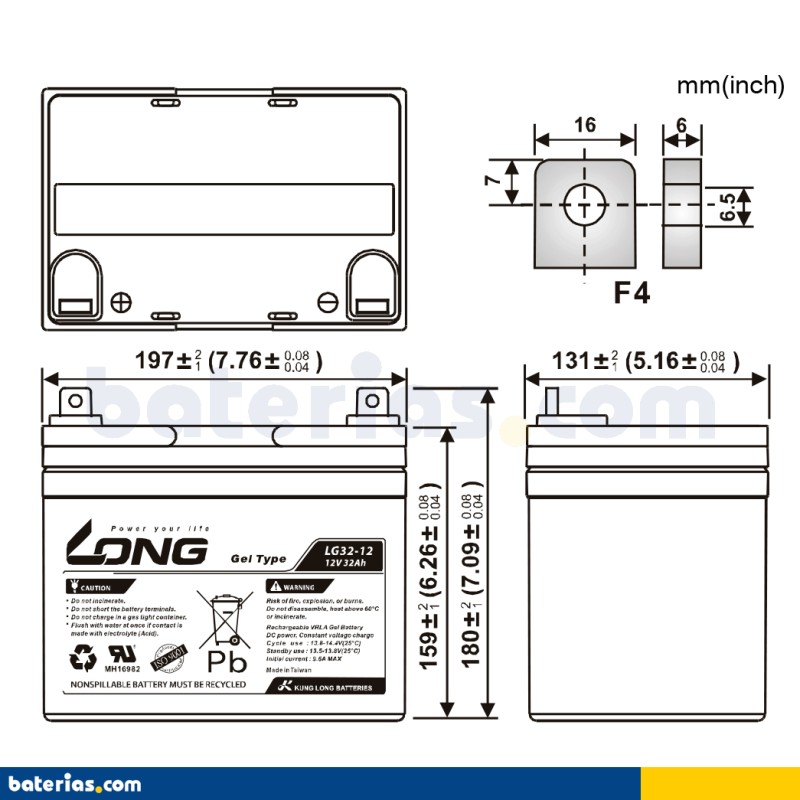

Will it fit your current battery tray?

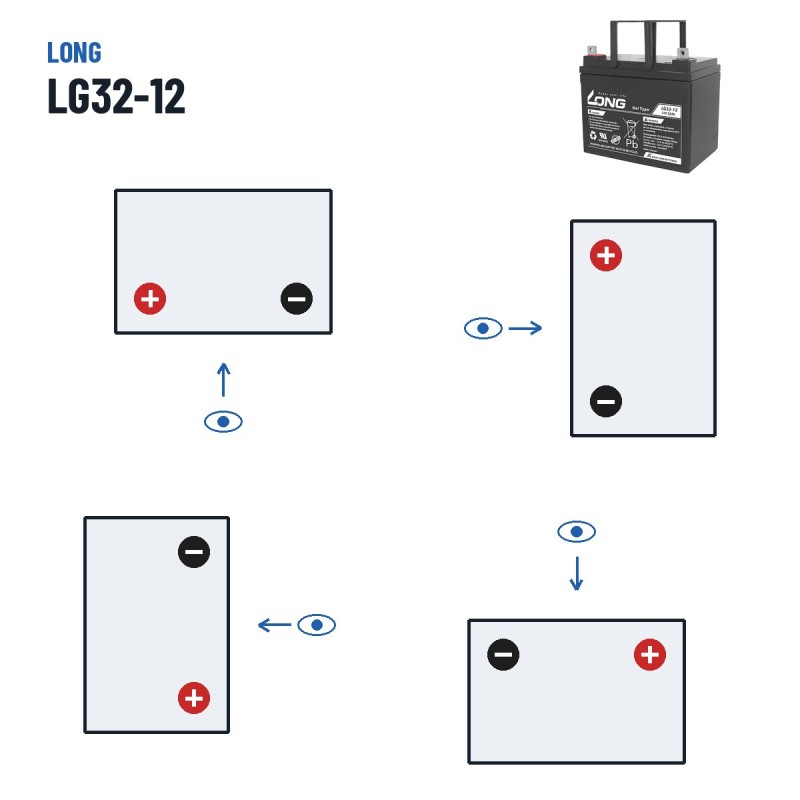

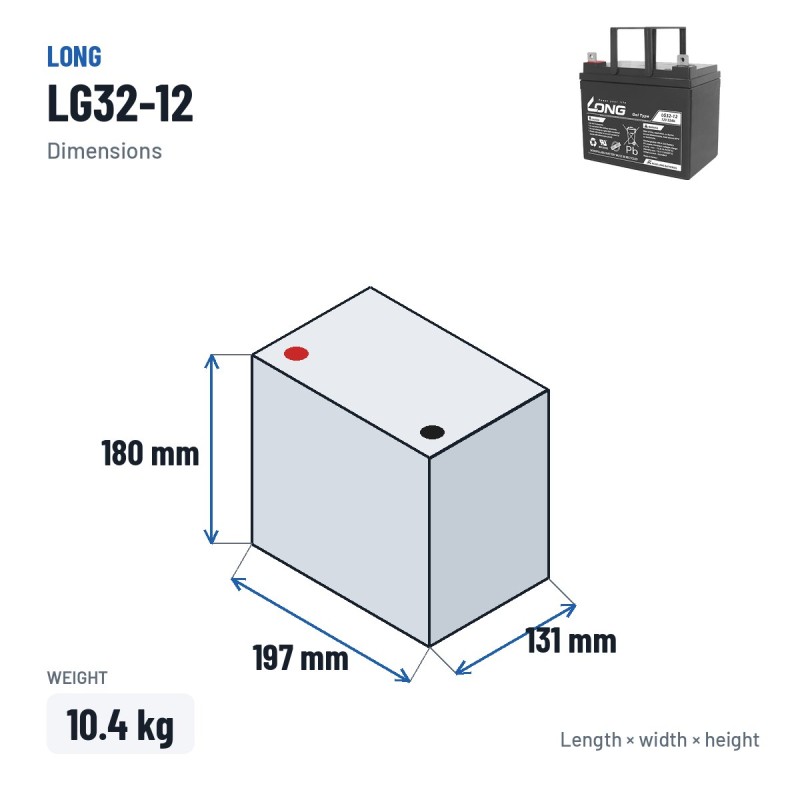

The Long LG32-12 is made in the 197 × 131 × 180 mm format and weighs 10.40 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Long batteries
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
The Long LG32-12: LG Series range and GEL technology
Within the Long catalogue, the LG Series series groups the references designed for this use. The LG32-12 is the 32 Ah model of that family, with the same performance as its siblings in other sizes.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
Care and maintenance
Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity. GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte.
Warranty and coverage
The Long LG32-12 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LONG-LG32-12

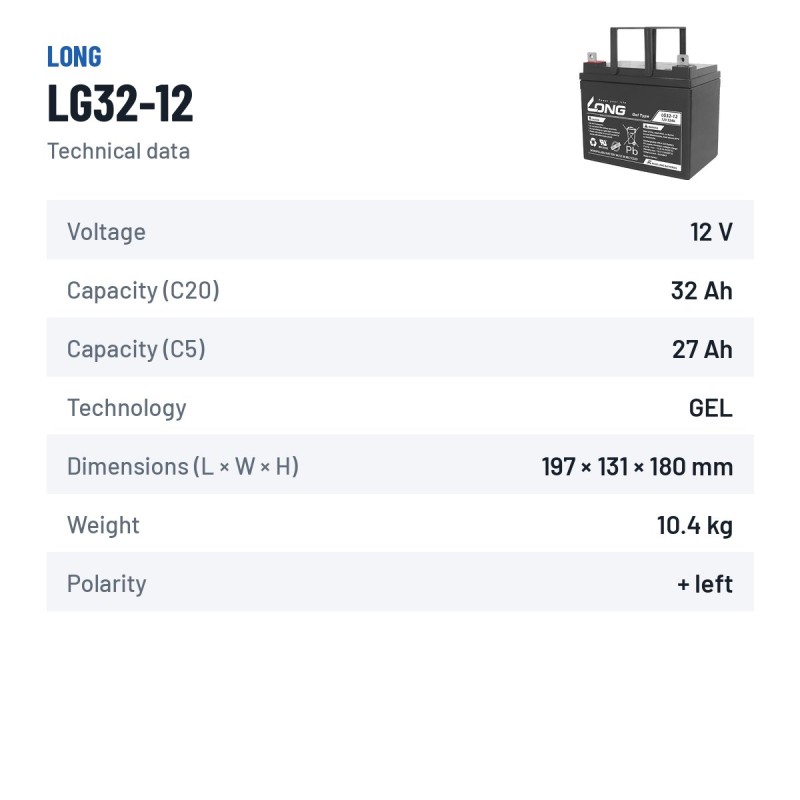

Data sheet
- Brand
- LONG
- Reference
- LG32-12
- Model
- LG Series
- Voltage (V)
- 12
- Length
- 197.00 cm
- Width
- 131.00 cm
- Height
- 180.00 cm
- Weight
- 10.40 Kgs
- Technology
- GEL
- Terminal layout
- Positive terminal on the left
- Capacity (C20)
- 32Ah (c20)
- Capacity (C5)
- 27.2Ah (c5)
Specific References
- MPN
- LG32-12
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Long LG32-12 a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Long LG32-12 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the LG32-12 model?
Expected lifespan of the Long LG32-12 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long LG32-12 battery?
Dimensions (length × width × height) are 197×131×180 mm — also written as 197x131x180 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Long LG32-12?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
