Long LG40-12 · Wheelchair battery 12V 40Ah GEL
Specifications
| Brand | LONG |
|---|---|
| Part number | LG40-12 |
| Voltage (V) | 12 |
| Capacity (C20) | 40Ah (c20) |
| Capacity (C5) | 34Ah (c5) |
| Technology | GEL |
| Length | 199.00 cm |
| Width | 166.00 cm |
| Height | 171.00 cm |
€189.60
VAT included
Long LG40-12 12V 40Ah is a sealed AGM/GEL battery for daily mobility use: maintenance-free, no risk of spills, and thousands of useful cycles well beyond a starter battery.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
40 Ah
Dimensions
199×166×171 mm
Technology
GEL
Polarity
Positive on the right
Weight
13,3 kg
Model
LG Series
Mobility battery Long LG40-12 LG Series 40Ah 12V
12VVoltage
40AhCapacity
13.30kgWeight
Designed for power wheelchairs, mobility scooters and light electric vehicles, the Long LG40-12 from the LG Series range offers 40 Ah of deep-cycle capacity with GEL technology. It replaces the original battery without adaptation in power wheelchairs and mobility scooters with a 199 × 166 × 171 mm format: same 40 Ah capacity and the positive terminal on the right.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Designed to be discharged and recharged daily without losing capacity.
- Thousands of useful cycles over its lifetime.
- Standard replacement format for wheelchairs and scooters.
What the Long LG40-12 is for
The Long LG40-12 is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 13.30 kg.
The Long LG40-12: LG Series range and GEL technology
Within the Long catalogue, the LG Series series groups the references designed for this use. The LG40-12 is the 40 Ah model of that family, with the same performance as its siblings in other sizes.
In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.

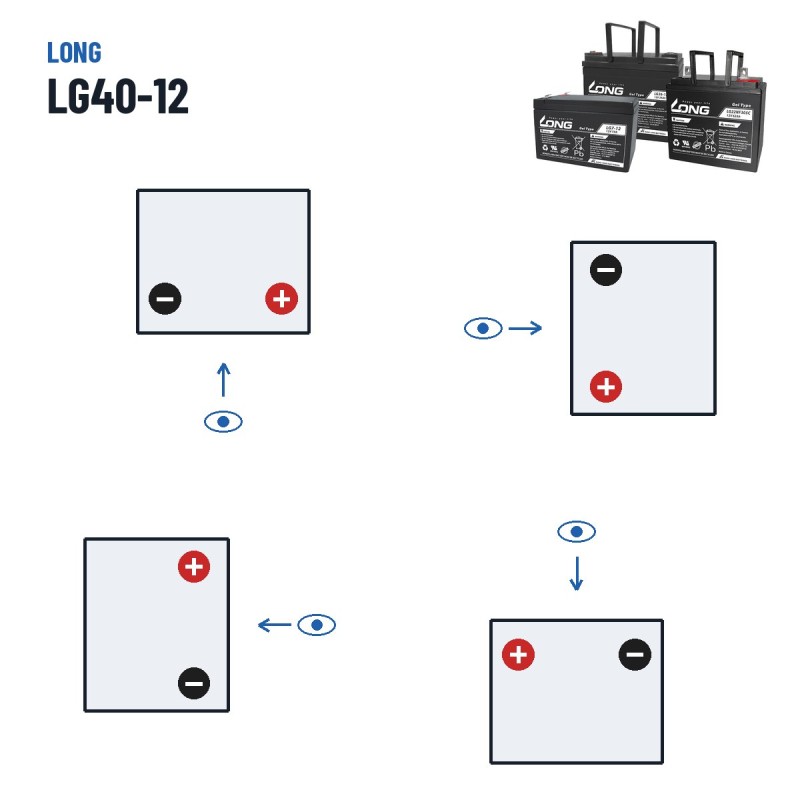

Size, terminals and hold-down of the Long LG40-12
The Long LG40-12 is made in the 199 × 166 × 171 mm format and weighs 13.30 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Long: the maker behind the LG40-12
Long batteries combine large-scale production with ISO quality standards and a batch-to-batch consistency that has made them the de-facto standard in backup systems and electric mobility. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
How to make it last longer
Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity. Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together.
Official warranty
The Long LG40-12 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-LONG-LG40-12
Data sheet
- Brand
- LONG
- Reference
- LG40-12
- Model
- LG Series
- Voltage (V)
- 12
- Length
- 199.00 cm
- Width
- 166.00 cm
- Height
- 171.00 cm
- Weight
- 13.30 Kgs
- Technology
- GEL
- Terminal layout
- Positive terminal on the right
- Capacity (C20)
- 40Ah (c20)
- Capacity (C5)
- 34Ah (c5)
Specific References
- MPN
- LG40-12
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Long LG40-12 a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Long LG40-12 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Long LG40-12 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long LG40-12 battery?
Dimensions (length × width × height) are 199×166×171 mm — also written as 199x166x171 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Long LG40-12?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
