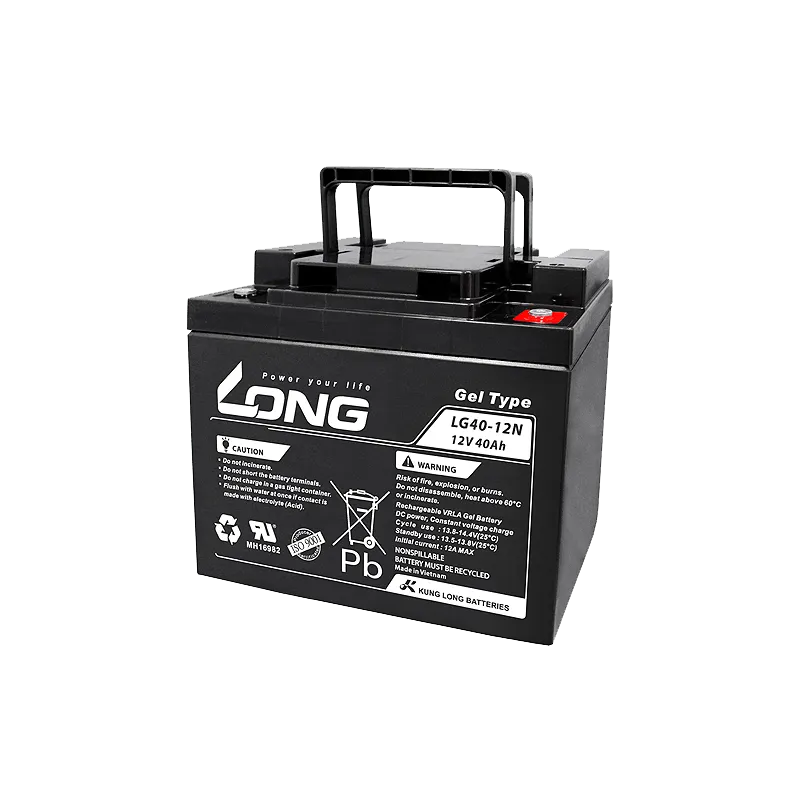

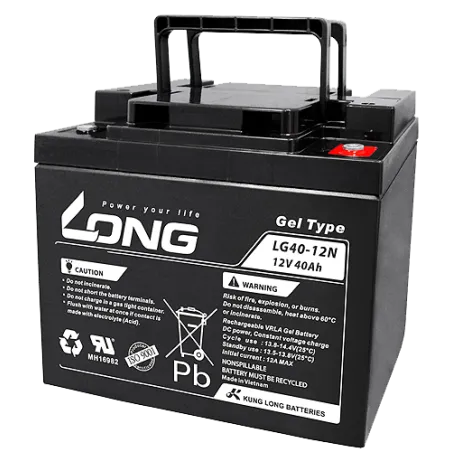

Long LG40-12N · Wheelchair battery 12V 40Ah GEL
Specifications
| Brand | LONG |
|---|---|
| Part number | LG40-12N |
| Voltage (V) | 12 |
| Capacity (C20) | 40Ah (c20) |
| Capacity (C5) | 34Ah (c5) |
| Technology | GEL |
| Length | 199.00 cm |
| Width | 166.00 cm |
| Height | 171.00 cm |
€189.60
VAT included
Long LG40-12N 12V 40Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
40 Ah
Dimensions
199×166×171 mm
Technology
GEL
Polarity
Positive on the right
Weight
13,3 kg
Model
LG Series
Mobility battery Long LG40-12N LG Series 40Ah 12V
12VVoltage
40AhCapacity
13.30kgWeight
The Long LG40-12N with GEL technology delivers 40 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. It replaces the original battery without adaptation in power wheelchairs and mobility scooters with a 199 × 166 × 171 mm format: same 40 Ah capacity and the positive terminal on the right.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Designed to be discharged and recharged daily without losing capacity.
- Thousands of useful cycles over its lifetime.
- Standard replacement format for wheelchairs and scooters.
What the Long LG40-12N is for
With 40 Ah, the Long LG40-12N offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 13.30 kg.

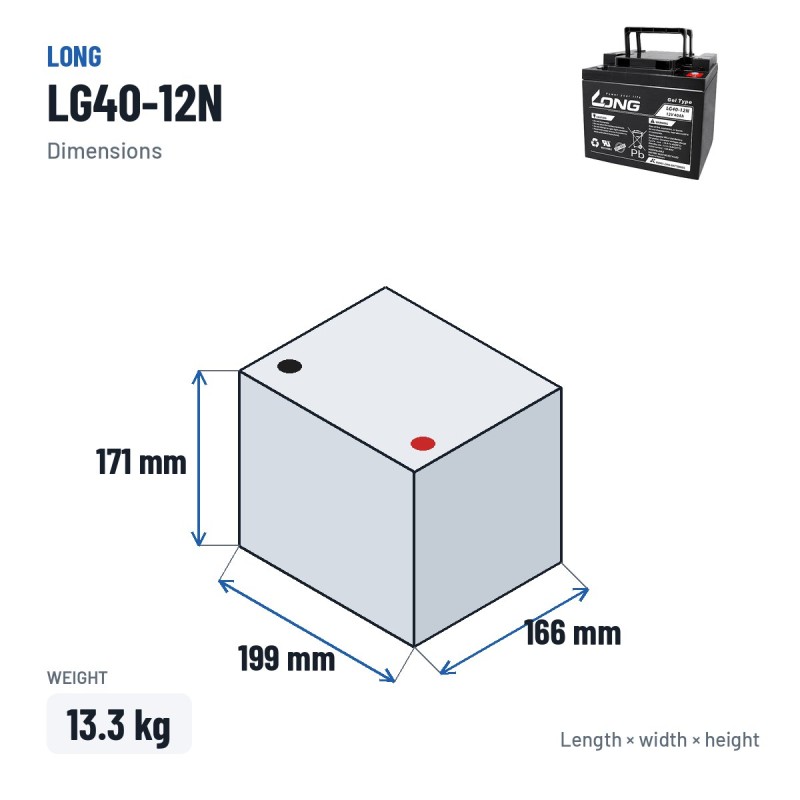

Size, terminals and hold-down of the Long LG40-12N
It has external dimensions of 199 × 166 × 171 mm and weighs 13.30 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
The Long LG40-12N: LG Series range and GEL technology
The LG Series is the Long range the LG40-12N belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
GEL technology fixes the acid in a solid gel. That removes maintenance and leaks and gives very long cycle life, in exchange for slightly slower recharging and lower peak current than an AGM.
Long: the maker behind the LG40-12N
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Long LG40-12N comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-LONG-LG40-12N

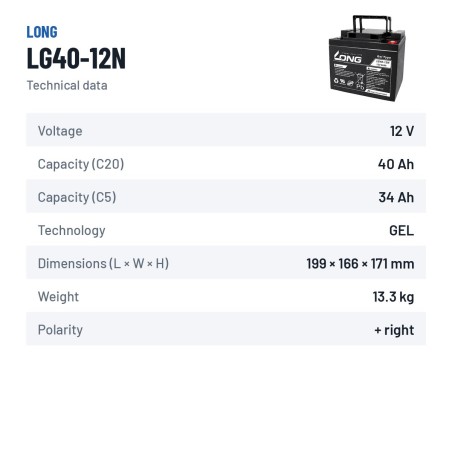

Data sheet
- Brand
- LONG
- Reference
- LG40-12N
- Model
- LG Series
- Voltage (V)
- 12
- Length
- 199.00 cm
- Width
- 166.00 cm
- Height
- 171.00 cm
- Weight
- 13.30 Kgs
- Technology
- GEL
- Terminal layout
- Positive terminal on the right
- Capacity (C20)
- 40Ah (c20)
- Capacity (C5)
- 34Ah (c5)
Specific References
- MPN
- LG40-12N
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Long LG40-12N a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I fit the LG40-12N model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long LG40-12N battery last?
Expected lifespan of the Long LG40-12N is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long LG40-12N battery?
Dimensions (length × width × height) are 199×166×171 mm — also written as 199x166x171 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
