Long WP12-12A · Wheelchair battery 12V 12Ah AGM

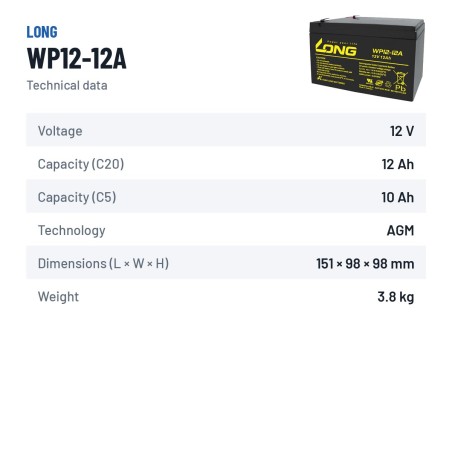

Specifications
| Brand | LONG |
|---|---|
| Part number | WP12-12A |
| Voltage (V) | 12 |
| Capacity (C20) | 12Ah (c20) |
| Capacity (C5) | 10.2Ah (c5) |
| Technology | AGM |
| Length | 151.00 cm |
| Width | 98.00 cm |
| Height | 98.00 cm |
€77.50
VAT included
Long WP12-12A 12V 12Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
12 Ah
Dimensions
151×98×98 mm
Technology
AGM
Weight
3,75 kg
Model
WP Series
Mobility battery Long WP12-12A WP Series 12Ah 12A 12V
12VVoltage
12AhCapacity
12ACold cranking
3.75kgWeight
The 12 V, 12 Ah Long WP12-12A from the WP Series range with AGM technology is the standard replacement for power wheelchairs, mobility scooters and light electric vehicles. It replaces the original battery without adaptation in power wheelchairs and mobility scooters with a 151 × 98 × 98 mm format: same 12 Ah capacity.
- Thousands of useful cycles over its lifetime.
- Standard replacement format for wheelchairs and scooters.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Designed to be discharged and recharged daily without losing capacity.
What the Long WP12-12A is for
The Long WP12-12A is the usual replacement in power wheelchairs, mobility scooters and light electric vehicles. Recharge after each use and avoid leaving it discharged for days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 3.75 kg.

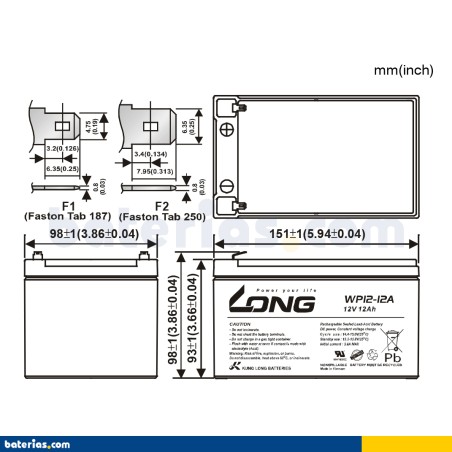

Size, terminals and hold-down of the Long WP12-12A

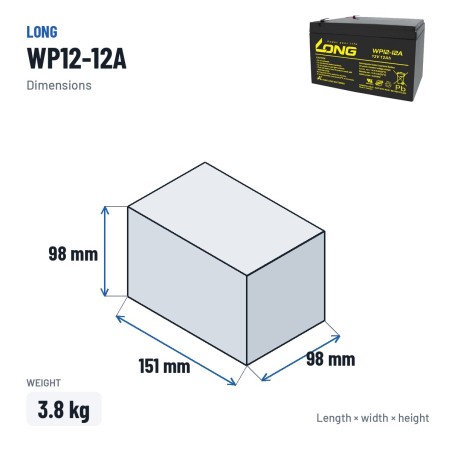

In terms of format, the Long WP12-12A measures 151 × 98 × 98 mm (length × width × height) and weighs 3.75 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Long: the maker behind the WP12-12A
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. All the Long batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Long WP12-12A: WP Series range and AGM technology
Within the Long catalogue, the WP Series series groups the references designed for this use. The WP12-12A is the 12 Ah model of that family, with the same performance as its siblings in other sizes.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Care and maintenance
Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Manufacturer's warranty
The Long WP12-12A comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LONG-WP12-12A
Data sheet
- Brand
- LONG
- Reference
- WP12-12A
- Model
- WP Series
- Voltage (V)
- 12
- Length
- 151.00 cm
- Width
- 98.00 cm
- Height
- 98.00 cm
- Weight
- 3.75 Kgs
- Technology
- AGM
- Capacity (C20)
- 12Ah (c20)
- Capacity (C5)
- 10.2Ah (c5)
Specific References
- MPN
- WP12-12A
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Long WP12-12A an AGM battery and what are the benefits of AGM?
Yes. The WP12-12A from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long WP12-12A battery last?
Expected lifespan of the Long WP12-12A is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long WP12-12A battery?
Dimensions (length × width × height) are 151×98×98 mm — also written as 151x98x98 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the WP12-12A model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
