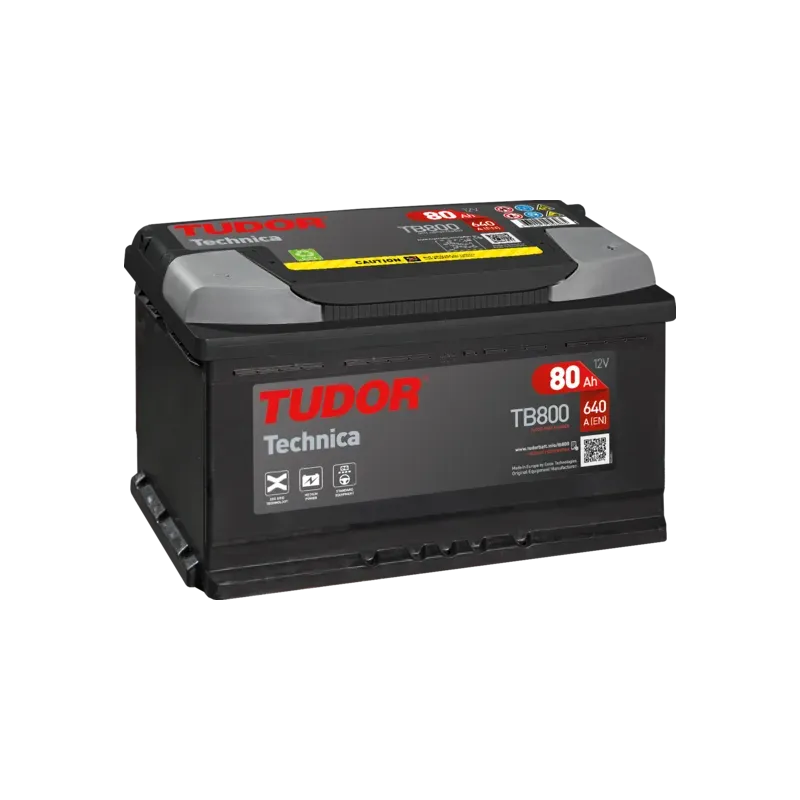

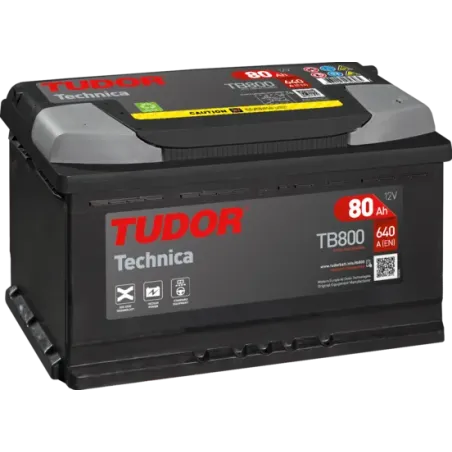

Tudor TB800 Technica · Car battery 80Ah 640A

Specifications

BrandTUDOR
Part numberTB800
Voltage (V)12
Capacity (C20)80Ah (c20)
Cold cranking amps (EN)640A
TechnologyFlooded
Length315.00 mm
Width175.00 mm
Height190.00 mm
See the full specifications →
Price: €85.60
VAT included
Quantity

Brand: Tudor batteries Part number: TB800

Tudor TB800 12V 80Ah 640A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.

Why this car battery?

  • Original-equipment qualitywithout dealership prices
  • Lasts 4 to 6 yearsbuy once instead of twice
  • Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
80 Ah C20
Cold cranking
640 A EN-1
Dimensions
315×175×190 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
19 kg
Model
TUDOR TECHNICA

Where it fits: the Tudor TB800 is one of our car batteries, belongs to our Tudor batteries and by capacity it sits among our 80Ah batteries.

The Tudor TB800 in practice

When not to choose it

Not for Start-Stop or regenerative braking; those need EFB or AGM. Nor if the original had more capacity or cranking: never downwards.

Car battery Tudor TB800 Technica 80Ah 640A 12V

12VVoltage
80AhCapacity
640ACold cranking
19kgWeight

The Tudor TB800 from the Technica range delivers 80 Ah and 640 A of cold cranking current (EN) at 12 V: the usual specification for passenger cars with conventional starting, without a Start-Stop system. Its 315 × 175 × 190 mm and the positive terminal on the right make it the exact replacement for the 80 Ah battery fitted as standard to many cars.

In short: the Tudor TB800 (80 Ah, 640 A, 315 × 175 × 190 mm, positive terminal on the right). It is a conventional battery for cars without Start-Stop: if yours has Start-Stop, it needs an EFB or AGM battery of the same size. Verified equivalent alternatives: Exide EB800 and Tudor TA900.

  • Designed to last several years under normal daily use.
  • Low self-discharge: copes with long stops without losing charge.
  • Stable voltage for the vehicle electronics (ECU, sensors, climate control).
  • Good balance of capacity, cranking power and price.

Vehicles compatible with the Tudor TB800

The Tudor TB800 is compatible with more than 174 vehicles: it is fitted as original equipment or as a replacement by brands such as Renault, Volkswagen, Audi, Toyota, Chevrolet and RAM. For anyone who needs to replace the battery in their Renault or Volkswagen, this Tudor TB800 reproduces the original specifications. It also appears as a replacement in vehicles from Dodge, Chrysler, Fiat, Hyundai, Jeep, BMW, Ford and Opel, among other manufacturers. It is checked against 17 original-equipment references from different manufacturers.

Will it fit your current battery tray?

The Tudor TB800 is made in the 315 × 175 × 190 mm format and weighs 19 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

The Tudor TB800: Technica range and conventional lead-acid technology

The Technica is the Tudor range the TB800 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.

What Tudor does differently

Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

Manufacturer's warranty

The Tudor TB800 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.

How to make it last longer

Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge. On batteries with filler caps, check the electrolyte level and top up only with distilled water.

When you get it and how to return it

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-TUDOR-TB800

Data sheet

  • Brand
    TUDOR
  • Reference
    TB800
  • Model
    TUDOR TECHNICA
  • Voltage (V)
    12
  • Length
    315.00 mm
  • Width
    175.00 mm
  • Height
    190.00 mm
  • Weight
    19.00 Kgs
  • Technology
    Flooded
  • EAN
    3661024056465
  • Terminal layout
    Positive terminal on the right
  • Terminal type
    EN taper post
  • Hold-down
    B13
  • Cold cranking amps (EN)
    640A
  • Capacity (C20)
    80Ah (c20)
  • Case type
    L04

Specific References

  • EAN13
    3661024056465
  • MPN
    TB800

Download

Datasheet Tudor TB800 (English)

PDF datasheet of the Tudor TB800 battery – English

Download (180.78KB)

Codes and references Tudor TB800

Brand Tudor · see all Tudor batteries
Manufacturer range TUDOR TECHNICA
Manufacturer part number (MPN) TB800
EAN-13 barcode 3661024056465
European case size (EN 50342-2) L4
Dimensions (length × width × height) 315 × 175 × 190 mm (315x175x190)

Tudor TB800: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Tudor TB800 is interchangeable with these equivalent references: EB800 (Exide), TA900 (Tudor), F16 (Varta), F19 (Varta), EA900 (Exide). Higher-technology alternatives that can replace it: TL800 (Tudor), EL800 (Exide), TK820 (Tudor).

Product Specifications Technology Price
Tudor TB800 Tudor TB800 This battery 12V 80Ah 640A Lead-acid 85,60 €
Tudor TK820 Tudor TK820 Upgrade: AGM ★ 5,0 12V 82Ah 800A AGM Upgrade 124,99 € +39,39 €

Tudor TB800 vs Tudor TK820

Upgrade: AGM · +39,39 €

A technology step up: sealed AGM, with stronger cranking and a noticeably longer life than the TB800 when the car draws a lot of power. Compared with the TB800 it has 2 Ah more and 160 A of cold cranking more. It costs 39,39 € more. Choose it if your car required it from the factory or if you want the longest-lasting battery for this size; for normal use without Start-Stop, the TB800 is plenty.

TB800TK820
Capacity80 Ah82 Ah
Cold cranking (EN)640 A800 A
TechnologyLead-acidAGM
Dimensions (mm)315 × 175 × 190315 × 175 × 190
Positive terminalPositive terminal on the rightPositive terminal on the right
Price85,60 €124,99 €
Tudor TA900 Tudor TA900 Bigger sister ★ 4,0 12V 90Ah 720A Lead-acid 81,40 € −4,20 €

Tudor TB800 vs Tudor TA900

Bigger sister · −4,20 €

Same family as the TB800, one step up in performance. Compared with the TB800 it has 10 Ah more and 80 A of cold cranking more. It costs 4,20 € less. Worth it if your car originally had more capacity, is a diesel or cranks lazily in winter; otherwise the TB800 does the job.

TB800TA900
Capacity80 Ah90 Ah
Cold cranking (EN)640 A720 A
TechnologyLead-acidLead-acid
Dimensions (mm)315 × 175 × 190315 × 175 × 190
Positive terminalPositive terminal on the rightPositive terminal on the right
Price85,60 €81,40 €
Tudor TL800 Tudor TL800 Upgrade: EFB 12V 80Ah 800A EFB Upgrade 96,30 € +10,70 €

Tudor TB800 vs Tudor TL800

Upgrade: EFB · +10,70 €

The EFB of this size, built for the simple Start-Stop that a conventional battery like the TB800 cannot take. Compared with the TB800 it has 160 A of cold cranking more. It costs 10,70 € more. Essential if your car has basic Start-Stop or came with EFB; without Start-Stop it is a durability upgrade you can skip.

TB800TL800
Capacity80 Ah80 Ah
Cold cranking (EN)640 A800 A
TechnologyLead-acidEFB
Dimensions (mm)315 × 175 × 190315 × 175 × 190
Positive terminalPositive terminal on the rightPositive terminal on the right
Price85,60 €96,30 €
Varta F19 Varta F19 Varta equivalent ★ 5,0 12V 85Ah 800A Lead-acid 101,80 € +16,20 €

Tudor TB800 vs Varta F19

Varta equivalent · +16,20 €

It is the verified Varta equivalent for the TB800 tray. Compared with the TB800 it has 5 Ah more and 160 A of cold cranking more. It costs 16,20 € more. Decide by price, brand preference and availability: both fit and crank the same.

TB800F19
Capacity80 Ah85 Ah
Cold cranking (EN)640 A800 A
TechnologyLead-acidLead-acid
Dimensions (mm)315 × 175 × 190315 × 175 × 190
Positive terminalPositive terminal on the rightPositive terminal on the right
Price85,60 €101,80 €
Exide EL800 Exide EL800 Upgrade: EFB 12V 80Ah 800A EFB Upgrade 89,90 € +4,30 €

Tudor TB800 vs Exide EL800

Upgrade: EFB · +4,30 €

It is the EFB version of the same case: it withstands far more start cycles than the TB800. Compared with the TB800 it has 160 A of cold cranking more. It costs 4,30 € more. You need it if the original battery label says EFB; in a car without Start-Stop the TB800 does the job and EFB only adds service life.

TB800EL800
Capacity80 Ah80 Ah
Cold cranking (EN)640 A800 A
TechnologyLead-acidEFB
Dimensions (mm)315 × 175 × 190315 × 175 × 190
Positive terminalPositive terminal on the rightPositive terminal on the right
Price85,60 €89,90 €
Varta F16 Varta F16 Varta equivalent 12V 80Ah 740A Lead-acid 90,99 € +5,39 €
Exide EA900 Exide EA900 Exide equivalent ★ 5,0 12V 90Ah 720A Lead-acid 89,90 € +4,30 €
Exide EB800 Exide EB800 Exide equivalent 12V 80Ah 640A Lead-acid 85,60 € same price

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 80Ah batteries: We stock 30 models of 80 Ah to compare by price, technology and cold cranking: see all 80Ah batteries. Same size (315 × 175 × 190 mm): batteries of 315 × 175 × 190 mm.

Recommended accessories — complement the Tudor TB800 with a charger or tester

Fitting it yourself? Step-by-step guide to replacing the battery →

Frequently asked questions

How do I fit the TB800 model in my car?

Allow 15-30 minutes and a 10 mm spanner for a L4 case like this one. If the car keeps its battery in the boot or under a seat, it can take up to twice as long. With the engine stopped and the key removed, always start with the negative (−) terminal, then the positive (+). Free the clamp, swap the battery without turning it round (this one has positive on the right) so the polarity stays the same, and reconnect in reverse: positive (+) first, negative (−) last. For the detail, read our guide to replacing the car battery and, if in doubt, the owner's handbook or a main dealer.

What is the service life of the TB800 model?

As a rough estimate, the Tudor TB800 typically lasts 4 to 7 years in regular use (depends on technology and climate); it is a guide figure, not a guaranteed period. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the car itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

What are the dimensions of the Tudor TB800 battery?

Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close. It measures 315×175×190 mm in length × width × height, with the terminals included in the height; that is the European L4 case size.

On which side is the positive of the TB800 model?

Polarity of the Tudor TB800: positive on the right. If your current battery has its positive on the other side, this one is not suitable without longer cables or a reconfigured system (short-circuit risk). Seen from the front, terminals towards you, the positive (+) is the post with the red ring.

Will the Tudor TB800 battery fit my car?

Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your car is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). In every case, the car manufacturer's specifications (owner's handbook) take precedence.

Which batteries are equivalent to the Tudor TB800?

A direct equivalent needs what this TB800 offers: 315×175×190 mm, positive on the right, the same Ah and CCA. Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop cars. The "Equivalents" section further down lists the recommended alternatives.

Tudor TB800 or Tudor TK820: which one to choose?

A technology step up: sealed AGM, with stronger cranking and a noticeably longer life than the TB800 when the car draws a lot of power. Compared with the TB800 it has 2 Ah more and 160 A of cold cranking more. It costs 39,39 € more. Choose it if your car required it from the factory or if you want the longest-lasting battery for this size; for normal use without Start-Stop, the TB800 is plenty.

Tudor TB800 or Tudor TA900: which one to choose?

Same family as the TB800, one step up in performance. Compared with the TB800 it has 10 Ah more and 80 A of cold cranking more. It costs 4,20 € less. Worth it if your car originally had more capacity, is a diesel or cranks lazily in winter; otherwise the TB800 does the job.
