Tudor TF1723 · Truck battery 172Ah 1390A

Specifications

BrandTUDOR
Part numberTF1723
Capacity (C20)172Ah (c20)
Cold cranking amps (EN)1390A
TechnologyLead-acid
Length513mm
Width223mm
Height223mm
Weight48.80 Kg
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Tudor TF1723 172Ah 1390A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Capacity
172 Ah C20
Cold cranking
1390 A EN-1
Dimensions
513×223×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
48,8 kg

Where it fits: the Tudor TF1723 is one of our truck batteries and belongs to our Tudor batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Truck battery Tudor TF1723 12V 172Ah 1390A

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF

Truck battery Tudor TF1723 172Ah 1,390A 12V

12VVoltage
172AhCapacity
1,390ACold cranking
48.80kgWeight

With 172 Ah and 1,390 A of cold cranking current (EN), the Tudor TF1723 is built for professional use in trucks, buses, tractors and heavy machinery. Measuring 513 × 223 × 223 mm and the positive terminal on the left, it is the direct replacement for trucks fitted from the factory with a 172 Ah battery of this format.

In short: the Tudor TF1723 (172 Ah, 1390 A, 513 × 223 × 223 mm, positive left). Verified equivalent alternatives: Varta M18 and Varta M12.

  • Powers tachograph, fridge and heater during rest stops.
  • Better tolerance to deep discharge than a conventional starter battery.
  • Good balance of capacity, cranking power and price.
  • Resistant to constant chassis vibration.

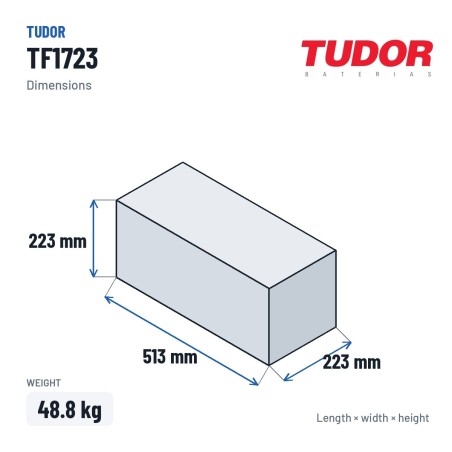

Dimensions, polarity and mounting

In terms of format, the Tudor TF1723 measures 513 × 223 × 223 mm (length × width × height) and weighs 48.80 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B00 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

What the Tudor TF1723 is for

With 172 Ah, the Tudor TF1723 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 48.80 kg, EN taper post terminals and B00 hold-down.

Technology inside the Tudor TF1723

Within the Tudor catalogue, the TF1723 is the 172 Ah model designed for this application.

The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

Tudor: the maker behind the TF1723

Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

Official warranty

The Tudor TF1723 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

How to make it last longer

On batteries with filler caps, check the electrolyte level and top up only with distilled water. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.

Shipping, delivery and returns

Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

  • Reference
    BCOM-TUDOR-TF1723

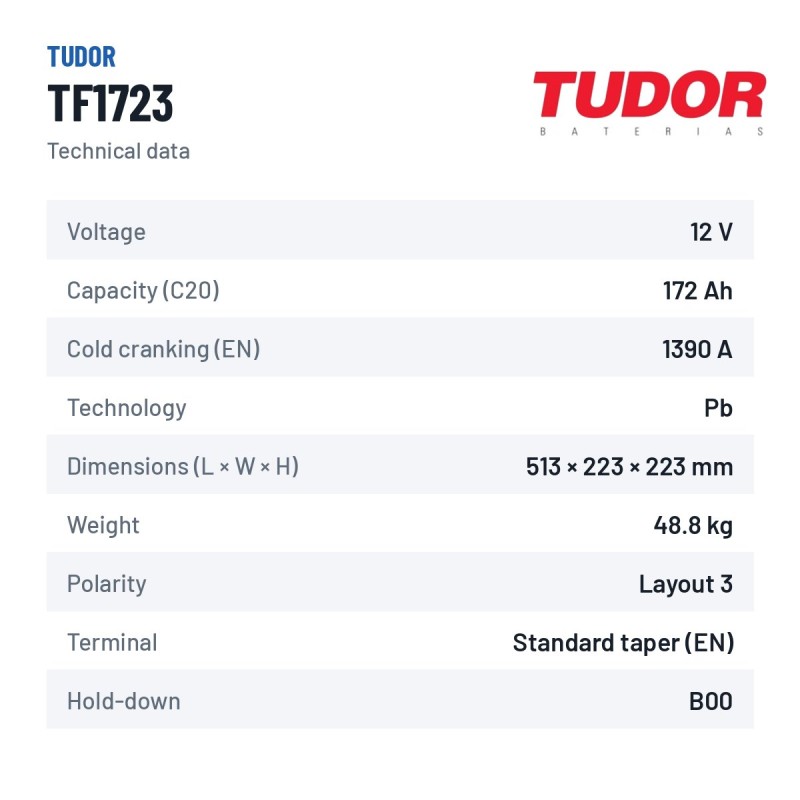

Data sheet

  • Length
    513mm
  • Width
    223mm
  • Height
    223mm
  • Weight
    48.80 Kg
  • Technology
    Lead-acid
  • EAN
    3661024057776

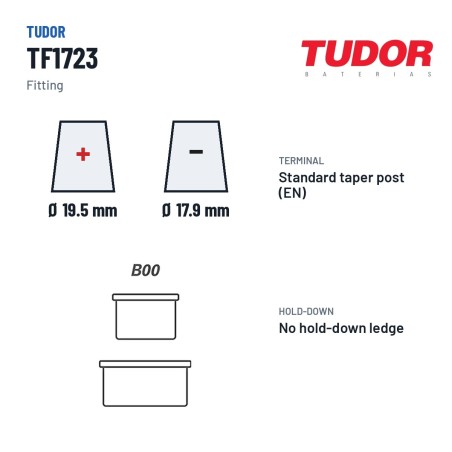

  • Terminal layout
    Positive left
  • Terminal type
    EN taper post
  • Hold-down
    B00
  • Cold cranking amps (EN)
    1390A
  • Capacity (C20)
    172Ah (c20)

Specific References

  • EAN13
    3661024057776
  • MPN
    TF1723

Download

Datasheet Tudor TF1723

PDF datasheet of the Tudor TF1723 battery

Download (110.12KB)

Codes and references Tudor TF1723

Brand Tudor · see all Tudor batteries
Manufacturer part number (MPN) TF1723
EAN-13 barcode 3661024057776
Dimensions (length × width × height) 513 × 223 × 223 mm (513x223x223)

Tudor TF1723: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Tudor TF1723 is interchangeable with these equivalent references: M18 (Varta), M12 (Varta), TJ1723 (Tudor), TF1853 (Tudor). Higher-technology alternatives that can replace it: B90 (Varta), TX1803 (Tudor).

Product Specifications Technology Price
Tudor TF1723 Tudor TF1723 This battery 172Ah 1390A Lead-acid
Tudor TF1853 Tudor TF1853 Bigger sister 12V 185Ah 1150A Lead-acid €177.40 +€177.40

Tudor TF1723 vs Tudor TF1853

Bigger sister · +€177.40

The next step up from the TF1723 in the same range and the same case. Compared with the TF1723 it has 13 Ah more and 240 A of cold cranking less. It costs €177.40 more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TF1723 does the job.

TF1723TF1853
Capacity172 Ah185 Ah
Cold cranking (EN)1390 A1150 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive leftPositive terminal on the left
Price€177.40
Tudor TX1803 Tudor TX1803 Upgrade: EFB 12V 180Ah 1000A EFB Upgrade €261.95 +€261.95

Tudor TF1723 vs Tudor TX1803

Upgrade: EFB · +€261.95

It is the EFB version of the same case: it withstands far more partial discharges than the TF1723. Compared with the TF1723 it has 8 Ah more and 390 A of cold cranking less. It costs €261.95 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TF1723 does the job and EFB only adds service life.

TF1723TX1803
Capacity172 Ah180 Ah
Cold cranking (EN)1390 A1000 A
TechnologyLead-acidEFB
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive leftPositive terminal on the left
Price€261.95
Tudor TJ1723 Tudor TJ1723 Same range 12V 172Ah 1390A Lead-acid €830.40 +€830.40

Tudor TF1723 vs Tudor TJ1723

Same range · +€830.40

Same range and the same performance as the TF1723. Compared with the TF1723 it has the same Ah and cranking power. It costs €830.40 more. Either one works; decide by price.

TF1723TJ1723
Capacity172 Ah172 Ah
Cold cranking (EN)1390 A1390 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive leftPositive terminal on the left
Price€830.40
Varta M12 Varta M12 Varta equivalent 12V 180Ah 1400A Lead-acid €179.40 +€179.40

Tudor TF1723 vs Varta M12

Varta equivalent · +€179.40

The Varta alternative that fits where the TF1723 goes, with the same polarity. Compared with the TF1723 it has 8 Ah more and 10 A of cold cranking more. It costs €179.40 more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

TF1723M12
Capacity172 Ah180 Ah
Cold cranking (EN)1390 A1400 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive leftPositive terminal on the left
Price€179.40
Varta M18 Varta M18 Varta equivalent 12V 180Ah 1000A Lead-acid €182.20 +€182.20

Tudor TF1723 vs Varta M18

Varta equivalent · +€182.20

Same case and same fitting as the TF1723, from Varta. Compared with the TF1723 it has 8 Ah more and 390 A of cold cranking less. It costs €182.20 more. If you want to save or the TF1723 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

TF1723M18
Capacity172 Ah180 Ah
Cold cranking (EN)1390 A1000 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive leftPositive terminal on the left
Price€182.20
Varta B90 Varta B90 Upgrade: EFB 12V 190Ah 1050A EFB Upgrade €209.60 +€209.60

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How long does the Tudor TF1723 battery last?

Estimated lifespan of the Tudor TF1723: 4 to 6 years in normal lorry use. Treat it as an approximate guide, as every case is different. What weighs most: temperature (cold makes starts harder and intense heat evaporates the electrolyte), frequent short trips, the condition of the alternator and charging system, power draw while parked and maintenance, not forgetting the type of truck and Start-Stop.

What are the measurements of the TF1723 model?

Measure your truck's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close. Length × width × height: 513x223x223 mm. Height is measured to the top of the terminals.

On which side is the positive of the TF1723 model?

The TF1723 has the positive on the left: that is its polarity. If your current battery has its positive on the other side, this one is not suitable without longer cables or a reconfigured system (short-circuit risk). Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on.

Will the Tudor TF1723 battery fit my truck?

Three routes: the "Compatible vehicles" tab on this page, with the vehicles verified by our technical team; your number plate in the finder, from which DGT/DVLA/KBA detect model and engine; and WhatsApp, with make, model, engine and year, during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). If our table and the truck handbook disagree, go with what the manufacturer says. The TF1723 typically fits a wide range of European vehicles thanks to its standard DIN case format.

What are the equivalents of the TF1723 model?

The "Equivalents" section of this page gathers the recommended options with equivalent performance; remember that in Start-Stop trucks an EFB should not be replaced with a conventional battery. To replace the Tudor TF1723 without modifications, the other battery must be identical in size, polarity, Ah and CCA.

Tudor TF1723 or Tudor TF1853: which one to choose?

The next step up from the TF1723 in the same range and the same case. Compared with the TF1723 it has 13 Ah more and 240 A of cold cranking less. It costs €177.40 more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TF1723 does the job.

Tudor TF1723 or Tudor TX1803: which one to choose?

It is the EFB version of the same case: it withstands far more partial discharges than the TF1723. Compared with the TF1723 it has 8 Ah more and 390 A of cold cranking less. It costs €261.95 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TF1723 does the job and EFB only adds service life.
