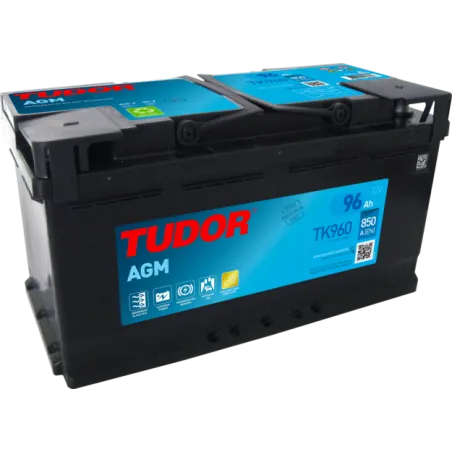

Tudor TK960 AGM Microhybrid · Start-Stop battery 96Ah 850A

Yes. The Tudor TK960 is AGM (Absorbent Glass Mat): sealed lead-acid, with the electrolyte absorbed in glass fibre. Compared with a conventional battery it withstands more charge/discharge cycles and handles heat better; it is the required technology for cars with advanced Start-Stop and regenerative braking.

Yes, the AGM technology of the TK960 is built for Start-Stop. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. It works once fitted; on most modern cars, registering it via OBD is advisable so the alternator applies the optimum charging profile. The general recommendation is EFB for basic Start-Stop and AGM where there is regenerative braking (it handles more cycles), unless the car manufacturer says otherwise.

Our blog guide covers it in detail; if the owner's handbook describes a different procedure, follow the manufacturer. On most cars it is a 15-30 minute job needing only a 10 mm spanner (up to twice as long when the battery is under a seat or in the boot). The right order: engine off and key out; disconnect the negative (−) first, then the positive (+); release the hold-down clamp, lift out the old battery and seat the new one in the same position (positive on the right), keeping the polarity; reconnect the positive (+) first and the negative (−) last. On cars with Start-Stop or BMS, registering the battery via OBD makes the alternator charge with the correct profile. Mind the IBS sensor on the negative terminal too: loosen the cable nut, not the sensor. And the replacement must be the same technology (AGM or EFB) or higher: a conventional battery fails within months.

There is no exact figure: for a battery such as the Tudor TK960 (AGM), a reasonable guide is 5 to 8 years in mild-climate car use with Start-Stop. What weighs most: temperature (cold makes starts harder and intense heat evaporates the electrolyte), frequent short trips, the condition of the alternator and charging system, power draw while parked and maintenance, not forgetting the type of car and Start-Stop.

Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close. It measures 353×175×190 mm in length × width × height, with the terminals included in the height; that is the European L5 case size.

It has the positive on the right (polarity). Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.

Three routes: the "Compatible vehicles" tab on this page, with the vehicles verified by our technical team; your number plate in the finder, from which DGT/DVLA/KBA detect model and engine; and WhatsApp, with make, model, engine and year, during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). In every case, the car manufacturer's specifications (owner's handbook) take precedence. The compatibility list for the TK960 runs to 729 verified vehicle versions.

See the "Equivalents" section of this page for the recommended options at the same performance level. Mind the technology: in Start-Stop cars an EFB is not swapped for a conventional battery. Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the TK960, 96 Ah (850 A cranking).

Same range and the same performance as the TK960. Compared with the TK960 it has the same Ah and cranking power. It costs 41,90 € more. Either one works; decide by price.

The Varta alternative that fits where the TK960 goes, with the same polarity. Compared with the TK960 it has 1 Ah less. It costs 49,89 € more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

The Tudor TK960 has a capacity of 96 Ah. AGM means Absorbent Glass Mat: the electrolyte soaks a glass-fibre mat (no spills), and an AGM battery lasts many more cycles than a conventional one. For regenerative braking systems such as BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO or Volvo i-Stop, AGM is the recommendation; it also copes better than an EFB with tilting, vibration and extreme temperatures.

It is not strictly necessary on most cars, because the alternator detects the change and adapts the charge. The advisable step is to register it via OBD: the charging profile is optimum from the first minute and the battery lasts longer, especially on brands with sophisticated BMS (BMW, Mercedes, Audi, Volvo, Land Rover). Any garage with an OBD scanner can do it in a few minutes. If you prefer to do it yourself: VCDS / Carista (VAG), Bimmercode (BMW) or iCarsoft. Even if you do not register the Tudor TK960, the car will start correctly; the profile adjusts within a few days.
