Tudor TC542 · Car battery 12V 54Ah 500A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TC542 |
| Voltage (V) | 12 |
| Capacity (C20) | 54Ah (c20) |
| Technology | Flooded |
| Length | 242 mm |
| Width | 175 mm |
| Height | 175 mm |
| Weight | 12.90 Kgs |
€74.90
VAT included
Tudor TC542 12V 54Ah 500A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
54 Ah
Cold cranking
500 A
Dimensions
242×175×175 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
12,9 kg
Model
TUDOR Standard
Car battery Tudor TC542 Standard 54Ah 500A 12V
12VVoltage
54AhCapacity
500ACold cranking
12.90kgWeight
The Tudor TC542 car battery is rated at 12 V, 54 Ah and 500 A of cold cranking current (EN) from the Standard range, and is designed for passenger cars with conventional starting, without a Start-Stop system. It measures 242 × 175 × 175 mm and the positive terminal on the right, the format sought by anyone replacing a 54 Ah battery in cars.
- Original-equipment build quality without the dealership price.
- Direct replacement for the original battery in size and terminals.
- Reliable cold starts, even after weeks without driving.
- Conventional lead-acid: the most proven and economical technology.

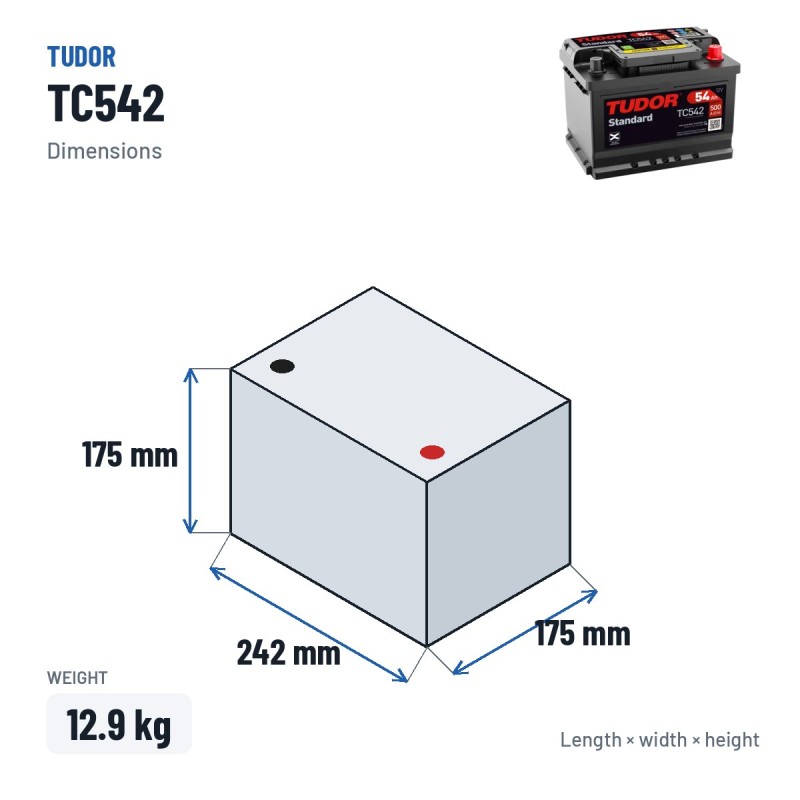

Will it fit your current battery tray?

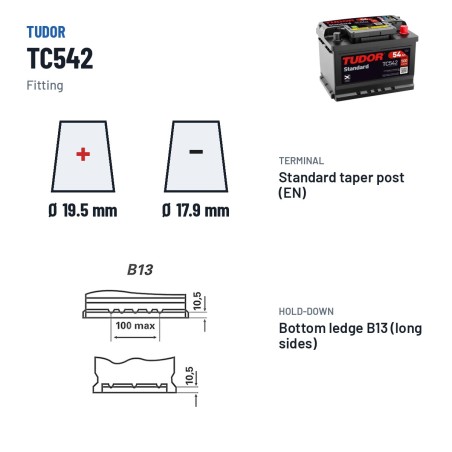

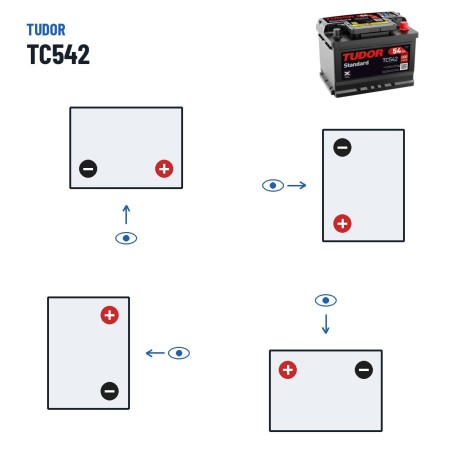

The Tudor TC542 is made in the 242 × 175 × 175 mm format and weighs 12.90 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Tudor TC542 is for
The Tudor TC542 covers the needs of passenger cars with conventional starting, without a Start-Stop system: reliable starting, stable voltage for the electronics and a service life of several years in daily use. Check that it matches your current battery in size and terminal position. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 12.90 kg, EN taper post terminals and B13 hold-down.
The Tudor TC542: Standard range and conventional lead-acid technology
The Standard is the Tudor range the TC542 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
What Tudor does differently
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Tudor TC542 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
How to make it last longer
Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TUDOR-TC542
Data sheet
- Brand
- TUDOR
- Reference
- TC542
- Model
- TUDOR Standard
- Voltage (V)
- 12
- Length
- 242 mm
- Width
- 175 mm
- Height
- 175 mm
- Weight
- 12.90 Kgs
- Technology
- Flooded
- EAN
- 3661024054850
- Terminal layout
- Positive terminal on the right
- Terminal type
- EN taper post
- Hold-down
- B13
- Cold cranking amps (EN)
- 500A
- Capacity (C20)
- 54Ah (c20)
- Case type
- LB2
Specific References
- EAN13
- 3661024054850
- MPN
- TC542
Codes and references Tudor TC542
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR Standard |
| Manufacturer reference (MPN) | TC542 |
| EAN-13 barcode | 3661024054850 |
| European case size (EN 50342-2) | LB2 |
| Dimensions (length × width × height) | 242 × 175 × 175 mm (242x175x175) |
Comparison: Tudor TC542 vs equivalents
The Tudor TC542 is interchangeable with these equivalent references: EC542 (Exide), C11 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TC542
This battery
|
12V 54Ah 500A | Lead-acid | €74.90 |
Exide
EC542
|
12V 54Ah 500A | Lead-acid | €79.90 |
Varta
C11
|
12V 53Ah 500A | Lead-acid | €84.60 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TC542 battery last?
Expected lifespan of the Tudor TC542 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Tudor TC542 battery?
Dimensions (length × width × height) are 242×175×175 mm — also written as 242x175x175 mm and correspond to the European LB2 case size — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TC542 battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TC542 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Tudor TC542?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
