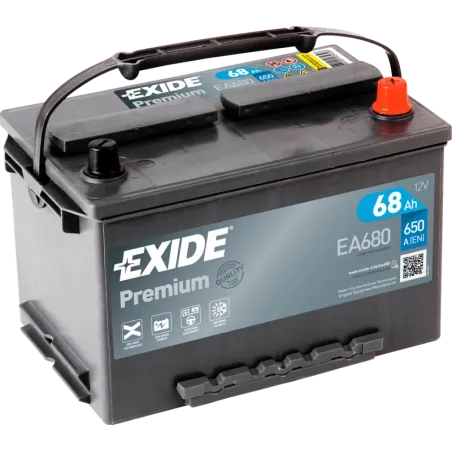

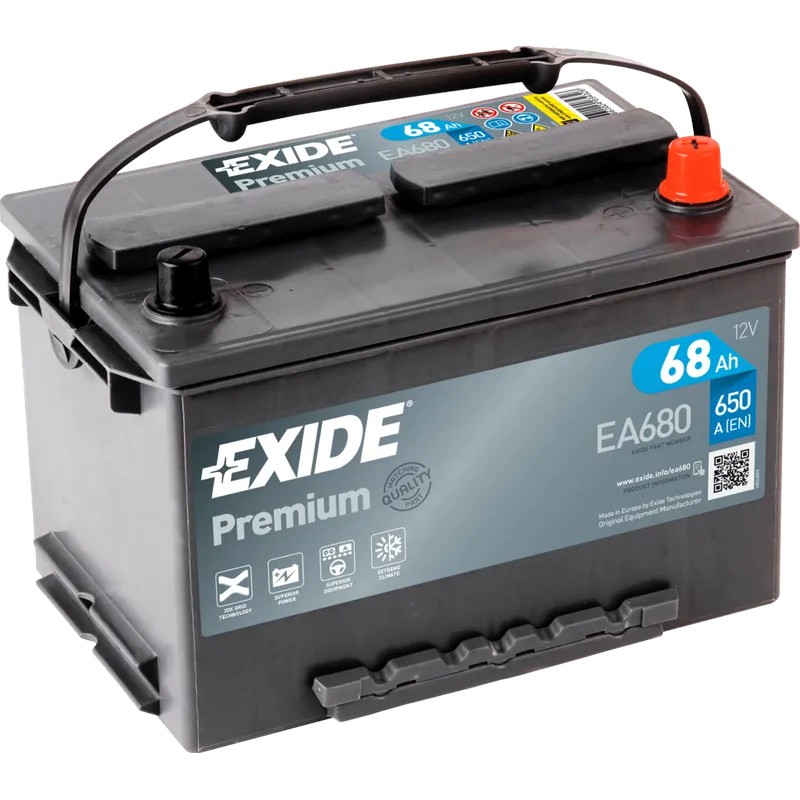

Exide EA680 · Car battery 12V 68Ah 650A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EA680 |
| Voltage (V) | 12 |
| Capacity (C20) | 68Ah (c20) |
| Technology | Flooded |
| Length | 277.00 mm |
| Width | 175.00 mm |
| Height | 190.00 mm |
| Weight | 17.00 Kgs |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Exide EA680 12V 68Ah 650A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
68 Ah
Cold cranking
650 A
Dimensions
277×175×190 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
17 kg
Model
EXIDE Premium
Free quote, no obligation
Request a quote for your Car battery Exide EA680 12V 68Ah 650A
- Reply in under 24 working hours
- Best price guaranteed
Car battery Exide EA680 Premium 68Ah 650A 12V
12VVoltage
68AhCapacity
650ACold cranking
17kgWeight
The Exide EA680 car battery is rated at 12 V, 68 Ah and 650 A of cold cranking current (EN) from the Premium range, and is designed for passenger cars with conventional starting, without a Start-Stop system. It replaces the original battery without adaptation in cars with a 277 × 175 × 190 mm format: same 68 Ah capacity and the positive terminal on the right.
- Conventional lead-acid: the most proven and economical technology.
- Reliable cold starts, even after weeks without driving.
- Direct replacement for the original battery in size and terminals.
- Original-equipment build quality without the dealership price.
What the Exide EA680 is for
Designed for passenger cars with conventional starting, without a Start-Stop system, the Exide EA680 is the direct replacement when your vehicle uses a 68 Ah battery of this format. Before buying, compare dimensions, terminals and capacity with the battery you are replacing. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 17 kg, EN taper post terminals and B13 hold-down.
The Exide EA680: Premium range and conventional lead-acid technology
The Premium is the Exide range the EA680 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Will it fit your current battery tray?
The Exide EA680 is made in the 277 × 175 × 190 mm format and weighs 17 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B13 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Exide: the maker behind the EA680
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge. In normal daily use the alternator keeps the battery charged; if the car stands for weeks, a maintenance charge once a month prevents deep discharge.
Warranty and coverage
The Exide EA680 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-EXIDE-EA680
Data sheet
- Brand
- EXIDE
- Reference
- EA680
- Model
- EXIDE PREMIUM
- Voltage (V)
- 12
- Length
- 277.00 mm
- Width
- 175.00 mm
- Height
- 190.00 mm
- Weight
- 17.00 Kgs
- Technology
- Flooded
- EAN
- 3661024034326
- Terminal layout
- Positive terminal on the right
- Terminal type
- EN taper post
- Hold-down
- B13
- Cold cranking amps (EN)
- 650A
- Capacity (C20)
- 68Ah (c20)
- Case type
- S68
Specific References
- EAN13
- 3661024034326
- MPN
- EA680
Codes and references Exide EA680
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE PREMIUM |
| Manufacturer reference (MPN) | EA680 |
| EAN-13 barcode | 3661024034326 |
| European case size (EN 50342-2) | L3 |
| Dimensions (length × width × height) | 277 × 175 × 190 mm (277x175x190) |
Comparison: Exide EA680 vs equivalents
The Exide EA680 is interchangeable with these equivalent references: N70 (Varta), LFS74 (Varta), LFD75 (Varta), LA70 (Varta), E44 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EA680
This battery
|
12V 68Ah 650A | Lead-acid | |
Varta
N70
|
12V 70Ah 760A | EFB | €116.80 |
Varta
LFS74
|
12V 74Ah 680A | Lead-acid | €126.30 |
Varta
LFD75
|
12V 75Ah 650A | Lead-acid | €250.70 |
Varta
LA70
|
12V 70Ah 760A | AGM | €140.80 |
Varta
E44
|
12V 77Ah 780A | Lead-acid | €85.40 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I fit the EA680 model in my car?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Exide EA680 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the EA680 model?
Dimensions (length × width × height) are 277×175×190 mm — also written as 277x175x190 mm and correspond to the European L3 case size — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide EA680 battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EA680 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the EA680 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
